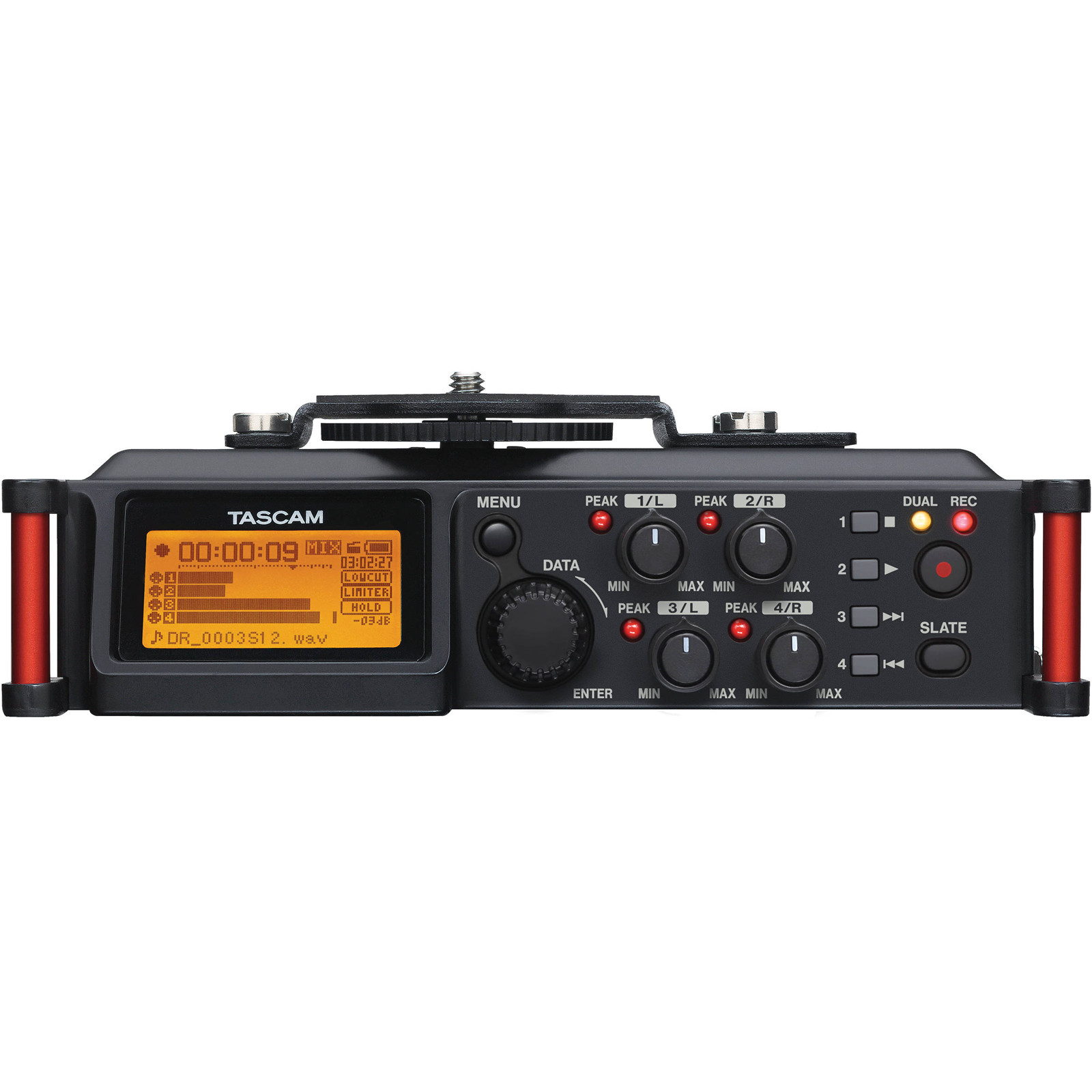

TASCAM DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras

PB Tech price

$ 514 .78

+GST

$ 592 .00

inc GST

TASCAM DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras

Brand: TASCAM
MPN: TASCAMDR70D
Part #: AUDTSC1006
UPC: 043774031139

PB Tech price

$ 592 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 29 Sep When will I receive it?

Add To Compare

Stock Alerts

Finance from $6.17 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: TASCAM
MPN: TASCAMDR70D
Part #: AUDTSC1006
UPC: 043774031139

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Designed as an audio recording solution for filmmakers, the DR-70D 4-Channel Audio Recording Device for DSLR and Video Cameras from Tascam features dual built-in omnidirectional microphones and is capable of recording up to 4 tracks simultaneously. It has tripod mounts on both the top and bottom of the unit and can be mounted above or below your DSLR or video camera as well as on a follow-focus cage.

Recording to SD, SDHC, or SDXC cards up to 128GB, the DR-70D tracks in BWAV format for NLE compatibility. All integral parameters feature dedicated hardware controls, so you never have to go searching through menus to quickly change a setting. A dedicated camera output lets you send a mic-level signal to your camera's audio input to create a reference track for easier synching in post, while the dedicated headphone output allows you to monitor your audio.

- Designed for use with video and DSLR cameras and can be screwed to the bottom of a DSLR camera with jacks and controls that stay out of the way
- Simplified interface with controls on hardware switches and knobs instead of menus, for quick adjustment during a take
- Dual record function captures a safety track to have a backup in case of distortion
- Tascam's HDDA microphone preamps which are designed for low noise, low distortion, and full-bandwidth
- BWAV format capture for NLE compatibility
- Limiter and high-pass filter prevent wind or mic bumps from overdriving the recording
- Microphone level camera output allows you to record the same audio to the camera for easy synchronization in your editor
- Records to SD/SDHC/SDXC media
- Individual headphone and camera outputs allows you to monitor recording with headphones while sending another output to the camera
- Slate function records a tone for precise synchronization between DR-70D and camera audio in post
- 4-track recording records from four XLR microphone inputs
- Built-in omnidirectional microphones allow you to record without packing mics
- Runs on 4 AA batteries

Specifications

Recording Media

Media
SD card (64 MB to 2 GB)
SDHC card (4 to 32 GB)
SDXC card (48 to 128 GB)

Recording Format

Recording Format
WAV & BWF 44.1 to 96 kHz, 16/24-bit

Channels

Number of Channels
4 channels (2x stereo or 4x mono)

XLR Inputs

Connector
4x Combo XLR/TRS Connectors (1: Ground, 2: Hot, 3: Cold)

Input Impedance
Mic/Mic + Phantom Power: 2 kOhms
Line: 10 kOhms or more

Phantom Power
48 V +/-4 V(10 mA/CH), 24 V +/-4 V(10 mA/CH)

Input Level
Mic/Mic + Phantom Power: 0 dBu standard, -72 dBu maximum
Line: +4 dBu standard, +20 dBu maximum

Mic Input
Mic Input Gain: +11 dB (low), +51 dB (High), +64 dB (Hi + Plus)

Stereo Mini Input

Connector
1/8" (3.5 mm) stereo mini jack (this connector can be supplied plug-in power)

Input Impedance
10 kOhms

Input Level
Minimum Input Level: -50 dBV
Maximum Input Level: +10 dBV

Input Gain
Mic Input Gain: +3 dB (Low), +26 dB (High), +38 dB (High + Plus)

Camera In

Connector
1/8" (3.5 mm) stereo mini jack

Input Impedance
10 kOhms

Input Level
Standard Input Level: -10 dBV
Maximum Input Level: +6 dBV

Audio Output

Line Output
Connector: 1/8" (3.5 mm) stereo mini jack
Output Impedance: 200 ohms
Standard Output Level: -10 dBV
Maximum Output Level: +6 dBV

Camera Out
Connector: 1/8" (3.5 mm) stereo mini jack
Output Impedance: 200 ohms
Standard Output Level: -40 dBV
Maximum Output Level: -24 dBV

Headphone Output

Connector
1/8" (3.5 mm) stereo mini jack

Maximum Output Level
20 mW + 20 mW

USB

Connector
Micro-B type

Format
USB 2.0 High Speed mass storage class

Remote

Input
2.5 mm TRS jack (remote sold separately)

Power

Power Source
4x AA batteries (Alkaline or Ni-MH)
USB Bus power
Optional AC Adapter
Optional Battery pack

Power Consumption
5 W

Audio Performance

Frequency Response
20 Hz to 20 kHz +0.5/-2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB(LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA)

Distortion
0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1/48/96 kHz, JEITA)

Signal to Noise Ratio
92 dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1/48/96 kHz, JEITA)

Equivalent Input Noise
-120 dBu or less

Compatibility

Windows
OS: XP, Vista, 7, 8, 8.1
CPU: Pentium 300 MHz or better
RAM: 128 MB or more
USB: 2.0 recommended

Mac
OS: OS X 10.2 to 10.9
CPU: Power PC, iMac, G3, G4, 266 MHz or more
RAM: 64 MB or more
USB: 2.0 recommended

General

Operating Temperature
32 to 104°F (0 to 40°C)

Dimensions (W × H × D)
6.65 x 2.2 x 4.2" (169 x 55.2 x 106.5 mm), with top adapter attached

Weight With Batteries:
1.37 lb (625 g)

Without Batteries:
1.16 lb (530 g)

Manufacturer Part No:

TASCAMDR70D

Brand:

TASCAM

Product Type:

UPC

043774031139

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

AUDTSC1006

Product Model:

DR-70D

Warranty: 12 months *
