Features

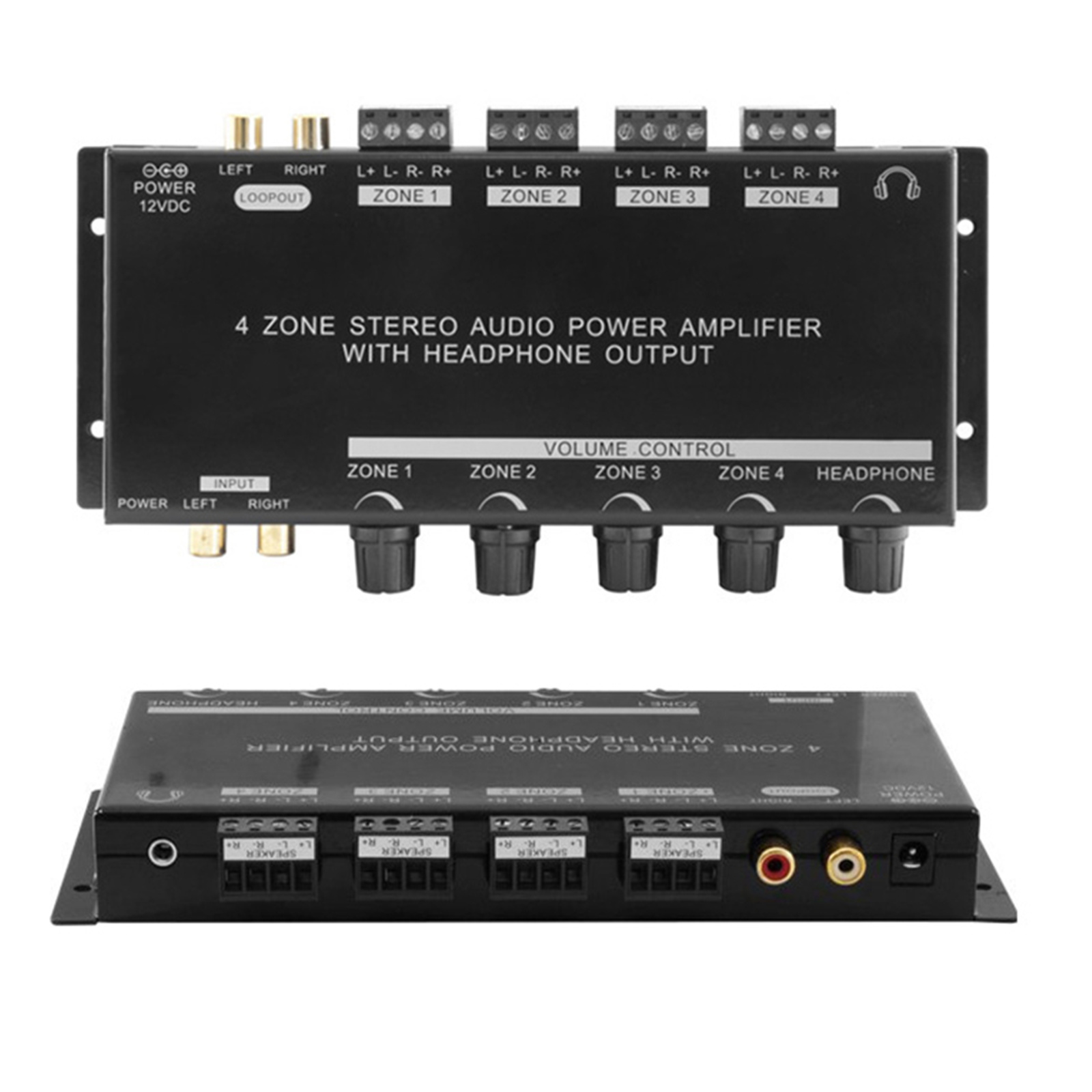

Stereo Audio Power Amplifier 4 Zone 1 Source ( ARC-1300 ) - Arco
This Stereo Audio Power Amplifier is Small size and compact. With a single RCA input, and the ability to adjust each zone's volume independently, the 1 x 4 Audio Power Amplifier is a quick and easy way of adding audio in up to four rooms.
- One-in, Four-out with Headphone Amp.
- Large detachable terminal block(supplied) for quick and easy installation in a structured-wiring cabinet.
- Also suitable for wall-mounting.
- Screw terminals handle wire sizes from 24 to 12 gauge. Large detachable terminal block (supplied) for quick and easy installation
- Screw terminals handle wire sizes from 24 to 12 gauge
Specifications
Speaker Audio Power Amplifier (x4)
Amplifier Type
Stereo Class-D
Output power
15W(RMS) per channel (@ RL=4 ohm)
THD+N
0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance
4 ohm
Includes Speaker Protection circuit
Earphone Audio Power Amplifier
Output power
105mW(RMS) per channel
THD+N
0.05 % (@ RL=16 ohm, f = 1 kHz)
Minimum Load Resistance
16 ohm
Power & Dimensions
Power Consumed
9A Max
Power Source
DC 12 Volts
Size (L x W x H)
285mm x 128mm x 43mm
Net Weight (Unit only)
0.8 Kg
