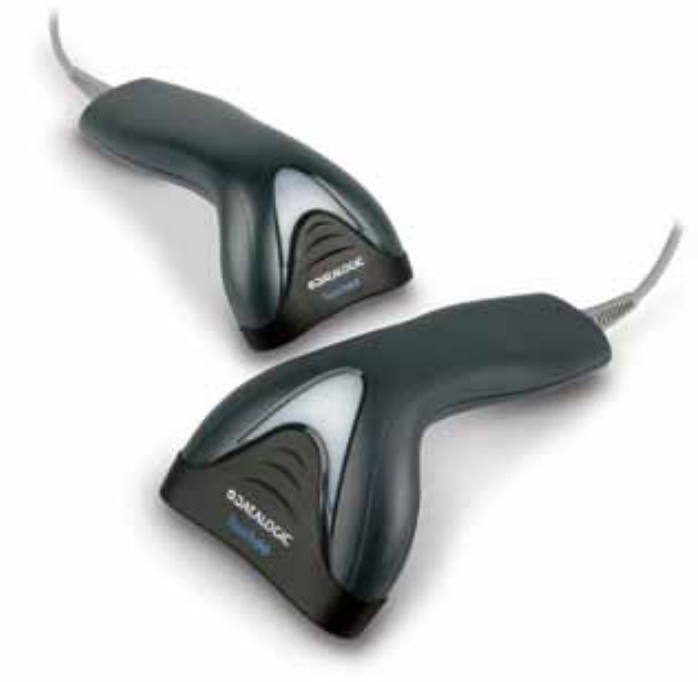

Datalogic TD1120-BK-65K1 Touch TD1100 65 Lite - Barcode Scanner - Handheld - decoded - USB General Purpose, Handheld, Black. Incl. Scanner, Holder, and 90A052065 Cable

PB Tech price
PB Tech price
$ 141 .74
 +GST
$ 163 .00
 inc GST

Out of stock

Datalogic TD1120-BK-65K1 Touch TD1100 65 Lite - Barcode Scanner - Handheld - decoded - USB General Purpose, Handheld, Black. Incl. Scanner, Holder, and 90A052065 Cable

  • Brand: Datalogic
  • MPN: TD1120-BK-65K1
  • Part #: BARDAT0467
  • UPC:
PB Tech price
$ 141 .74 $ 163 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

https://www.datalogic.com/eng/handheld-scanners/td1100-pd-342.html

The Touch TD1100 series of linear imaging contact readers represents Datalogic's solution for customers who require a cost-effective solution for close-contact bar code reading without sacrificing quality or performance.

Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading capability on virtually all linear bar codes, including damaged or poorly printed codes.

Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness with a 1.5 m drop resistance, which is typical of higher range products.

The Touch readers are available with the option of two different sizes of reading windows: 6.5 cm (Touch 65) or 9.0 cm (Touch 90), which benefits the user when reading standard or wide bar codes.

The Touch TD1100 65/90 Pro readers provide a complete all-in-one multi-interface solution, including RS-232, USB and Keyboard Wedge and Wand Emulation, while the Touch 65/90 Lite readers provide USB or RS-232/Keyboard Wedge interfaces.

An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items.

Datalogic's Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

The Touch series is available in a black model only, however, additional custom color options are available for a minimum order quantity.

- Wide reading windows: 6.5 cm / 2.6 in and 9.0 cm / 3.5 in
- Excellent reading performance on damaged or poorly printed bar codes
- Interface options: USB or Keyboard Wedge / RS-232 (Touch 65/90 Lite); USB / RS-232 / Keyboard Wedge / Wand Emulation (Touch 65/90 Pro)
- Supports GS1 DataBar™ linear codes
- Compact and innovative 'read-thru' holder for hands-free reading capability
- Drop Resistance to 1.5 m / 5.0 ft

Specifications

Decoding Capability

1D / Linear Codes

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

Stacked Codes

GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Electrical

Current

Operating (Typical): < 100 mA @ 5 VDC
Standby/Idle (Typical): 20 mA @ 5 VDC

Input Voltage

5 VDC +/- 0.5 V

Environmental

Ambient Light

0 - 20,000 lux

Drop Resistance

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface

ESD Protection (Air Discharge)

16 kV

Humidity (Non-Condensing)

5 - 95%

Particulate and Water Sealing

IP30

Temperature

Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F

Interfaces

Interfaces

RS-232 / Keyboard Wedge: Touch 65/90 Lite
RS-232 / USB / Keyboard Wedge / Wand Emulation MultiInterface: Touch 65/90 Pro
USB: Touch 65/90 Lite

Physical Characteristics

Colour

Black

Dimensions

65 Pro & Lite: 16.0 x 8.4 x 5.8 cm / 6.3 x 3.3 x 2.3 in

Weight

65 Pro & Lite: 130.0 g / 4.6 oz

Reading Performance

Light Source

Illumination: 640 nm LED

Print Contrast Ratio (Minimum)

25%

Read Angle

Pitch: +/- 65º; Roll (Tilt): +/- 45º; Skew (Yaw): +/- 70º

Reading Indicators

Beeper (Adjustable Tone); Good Read LED

Resolution (Maximum)

0.102 mm / 4 mil

Reading Ranges

Typical Depth of Field

Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
Code 39: 7.5 mils: 0 to 8.1 cm / 0 to 3.2 in
Code 39: 10 mils: 0 to 12.0 cm / 0 to 4.7 in
EAN13: 13 mils: 0 to 15.0 cm / 0 to 6.0 in

Safety & Regulatory

Agency Approvals

The product meets necessary safety and regulatory approvals for its intended use.
The Quick Reference Guide for this product can be referred to for a complete list of certifications.

Environmental Compliance

Complies to China RoHS; Complies to EU RoHS

Utilities

Datalogic Aladdin™

Datalogic Aladdin configuration program is available for download at no charge.

OPOS / JavaPOS

JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.

Remote Host Download

Lowers service costs and improves operations.

Manufacturer Part No:
TD1120-BK-65K1
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
BARDAT0467
Product Model:
TD1120-BK-65K1
Warranty: 12 months *
