Features

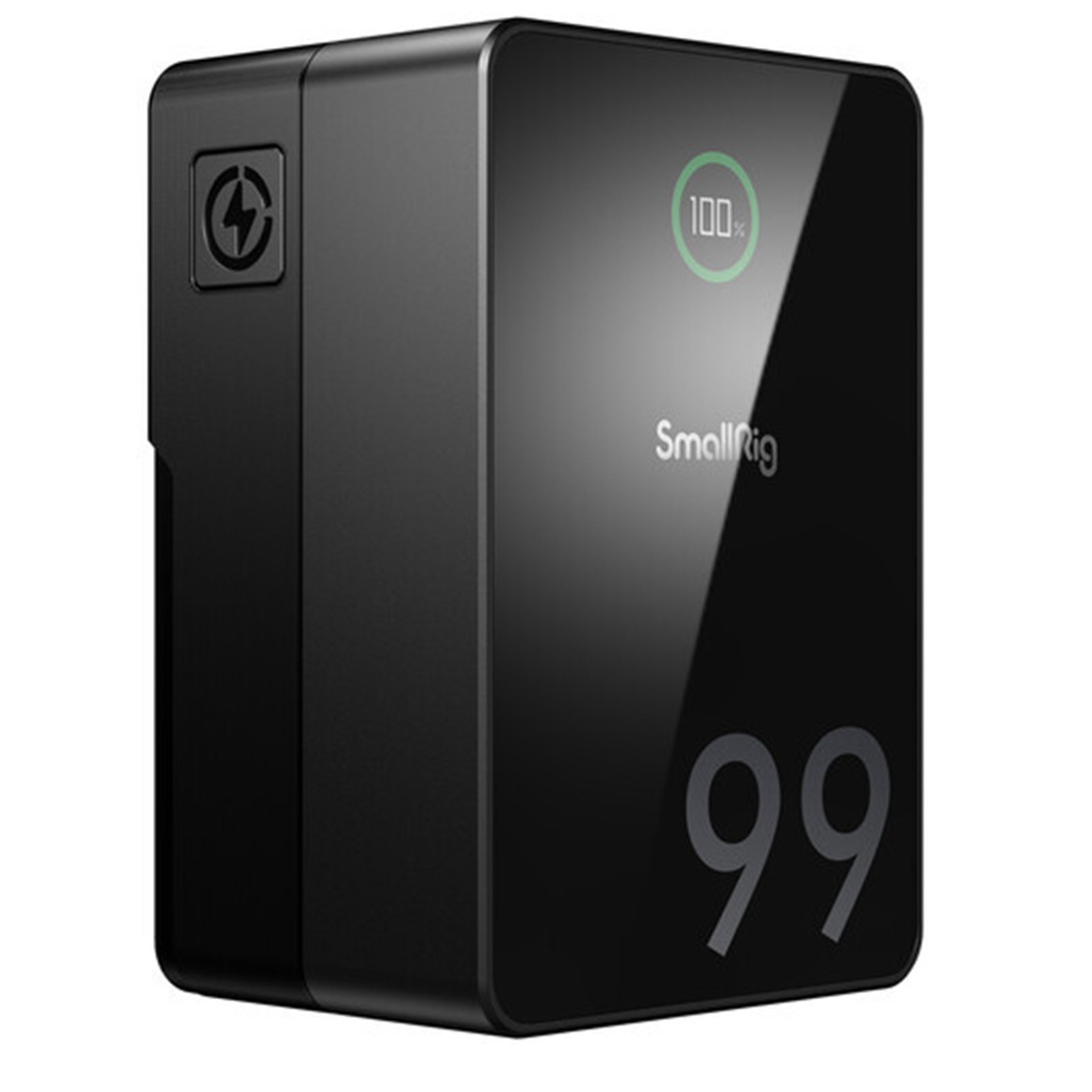

SmallRig VB99 Pro mini V Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert!
The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, cratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!

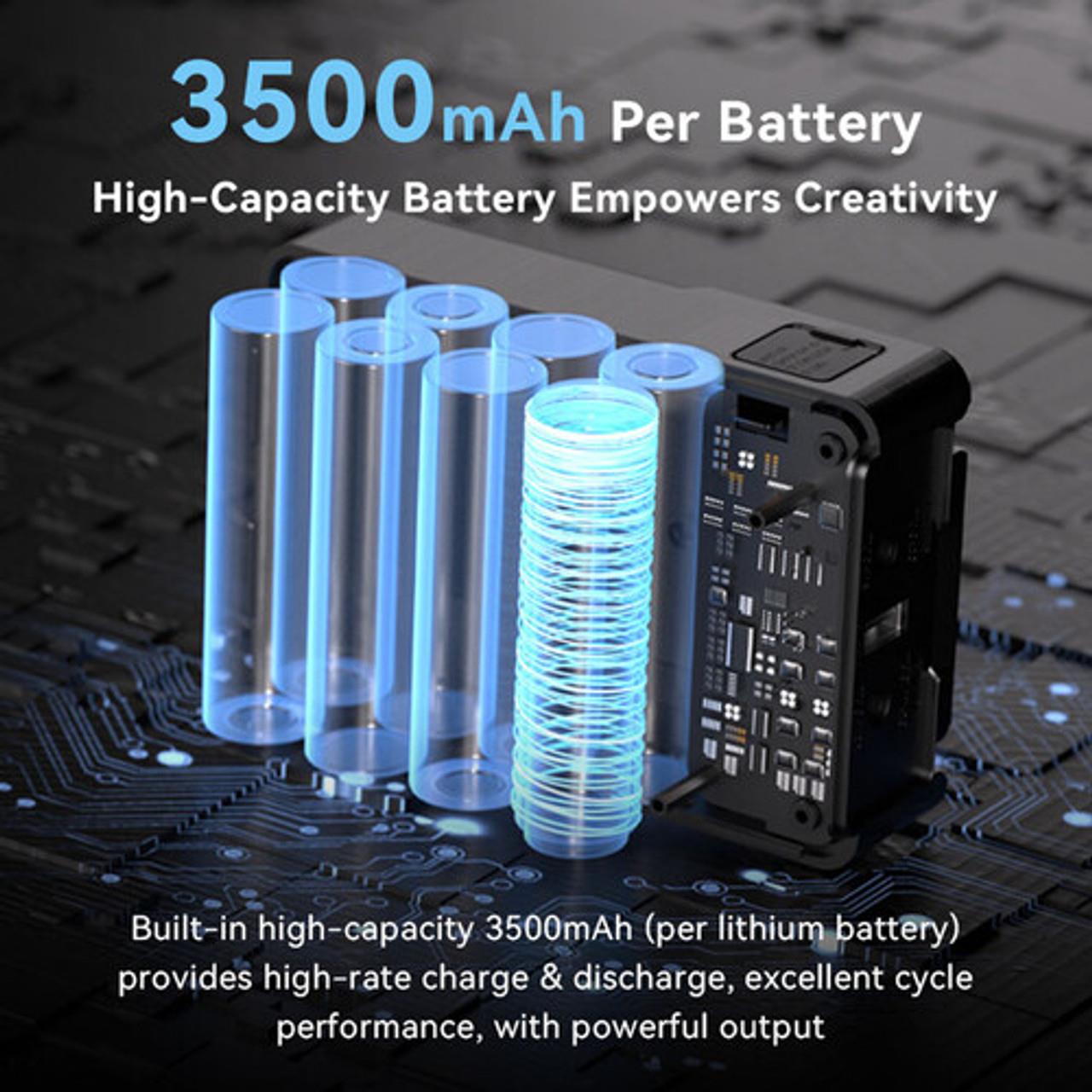

- BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2.5 hours; Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable;

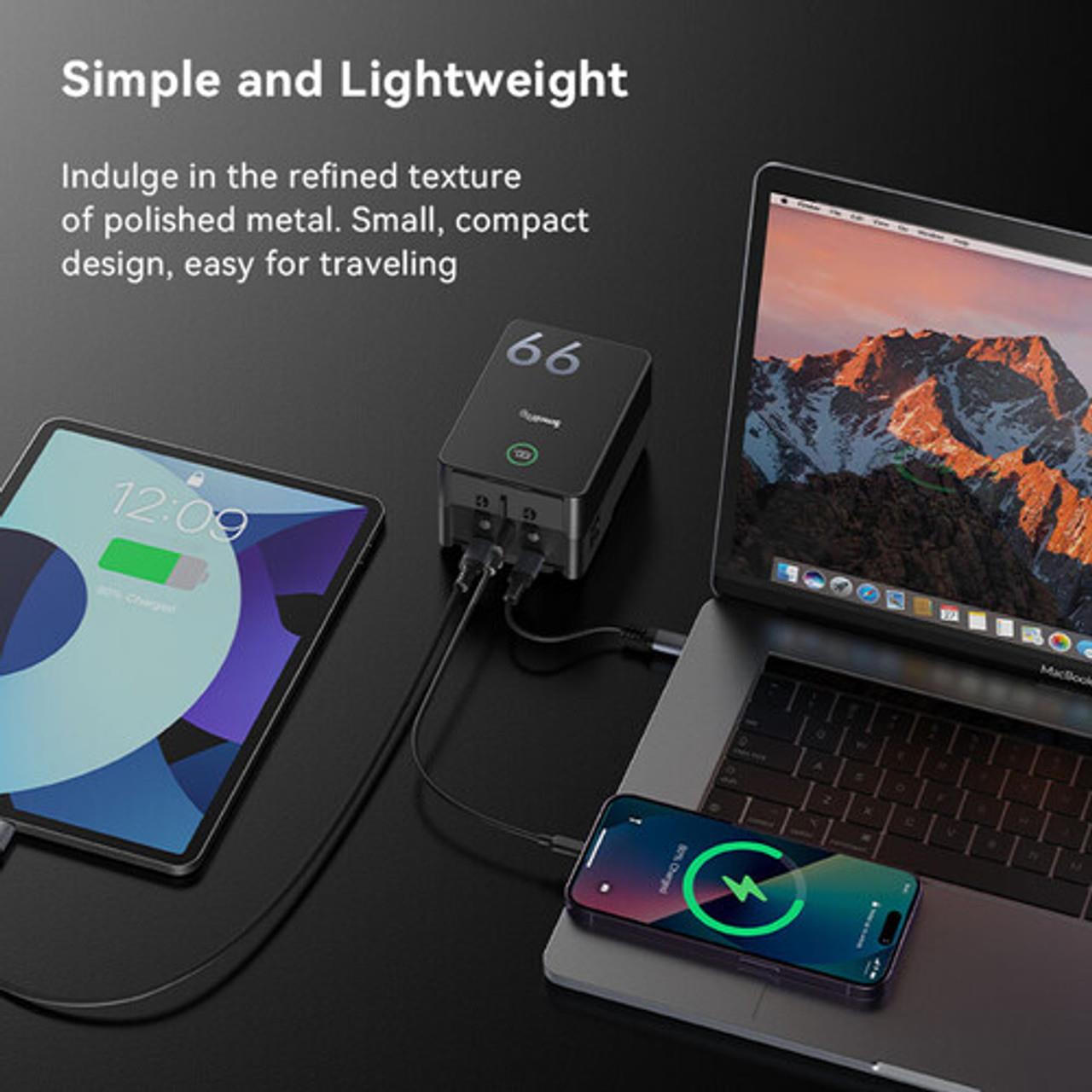

- Highly integrated design, about 70% the size of a normal V-mount battery, lighter and more portable;

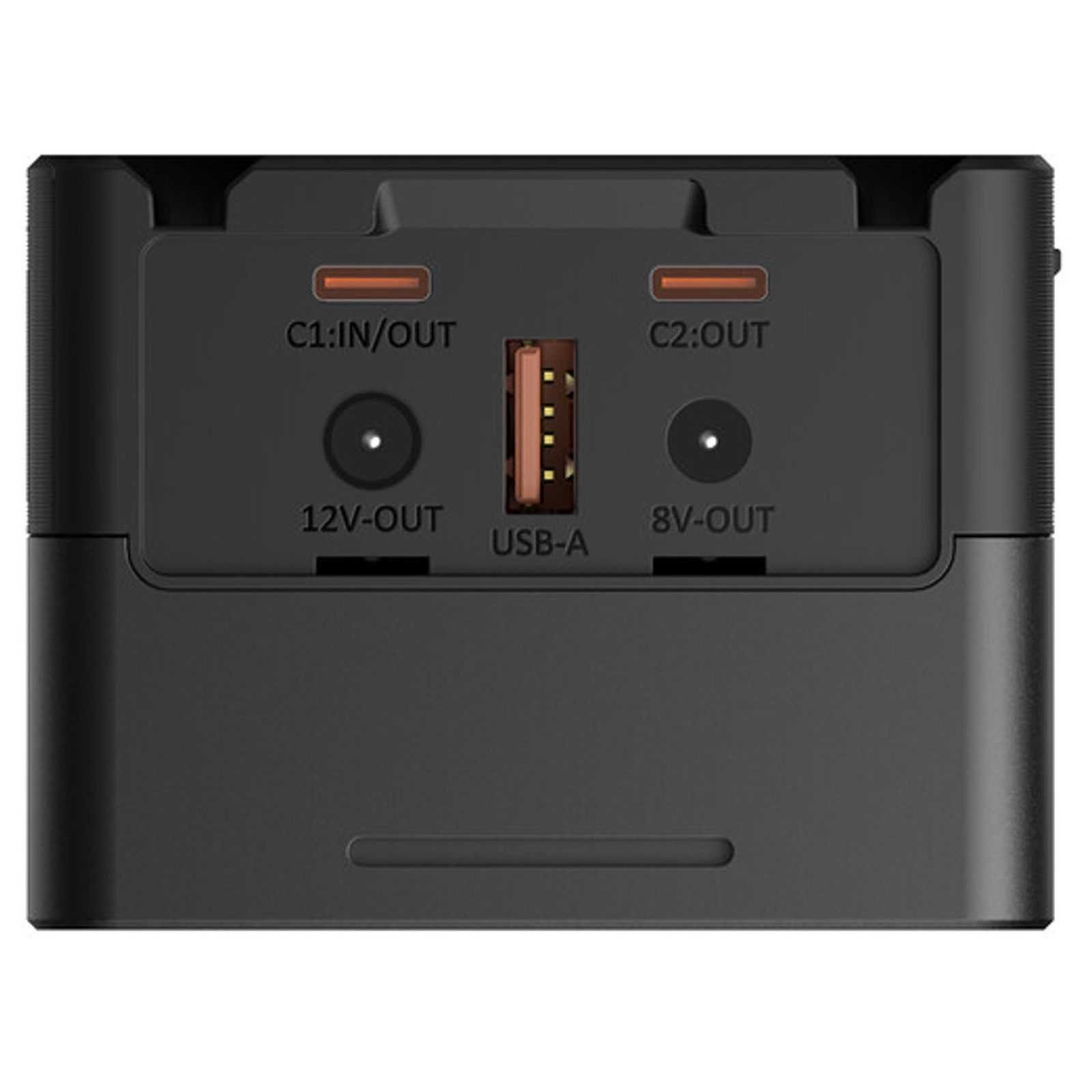

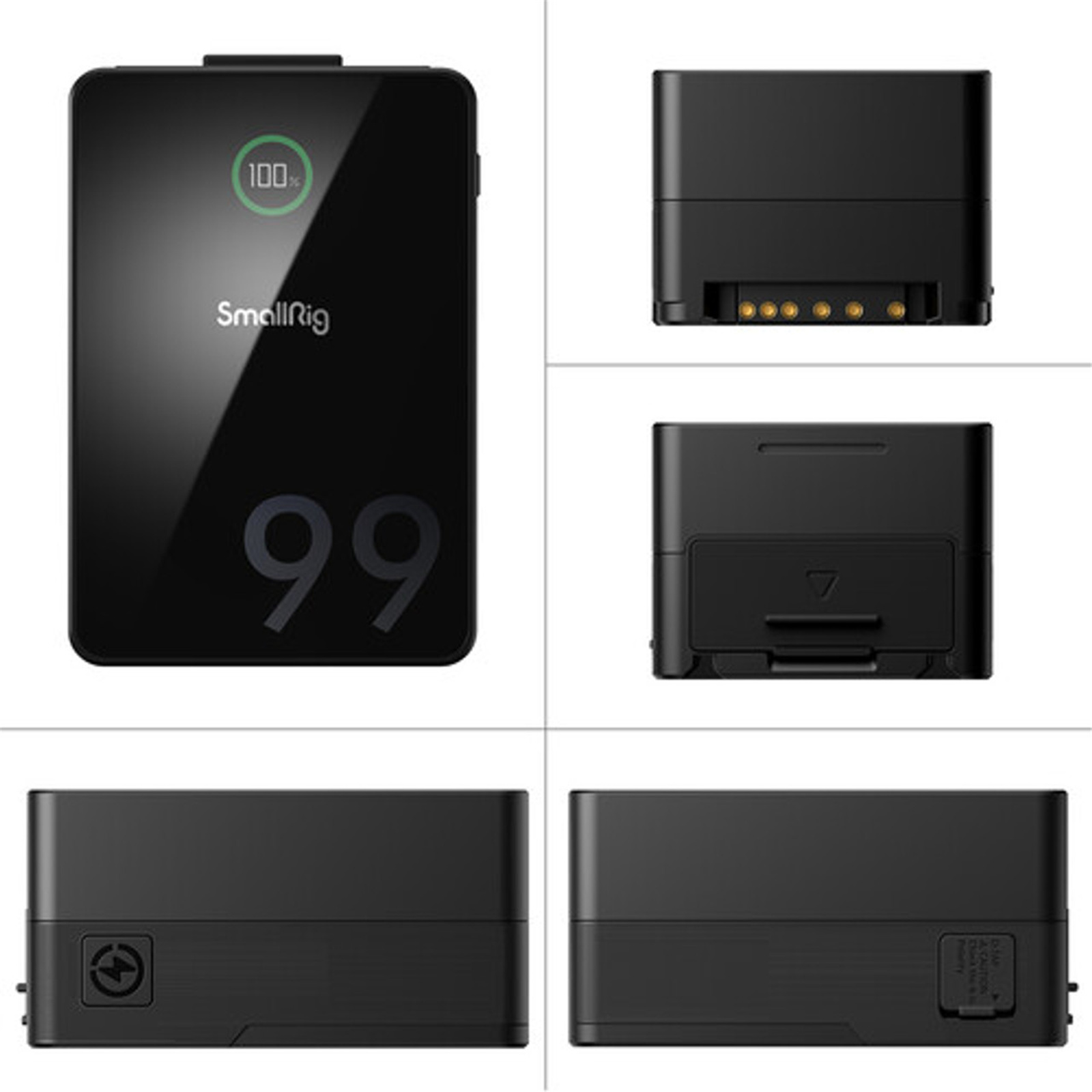

- Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 8V-OUT, 1 12V-OUT, each with a shunt design to allow simultaneous USB-C and USB-A fast charging;
- Aluminum alloy and fireproof PC, sturdy and drop-proof;

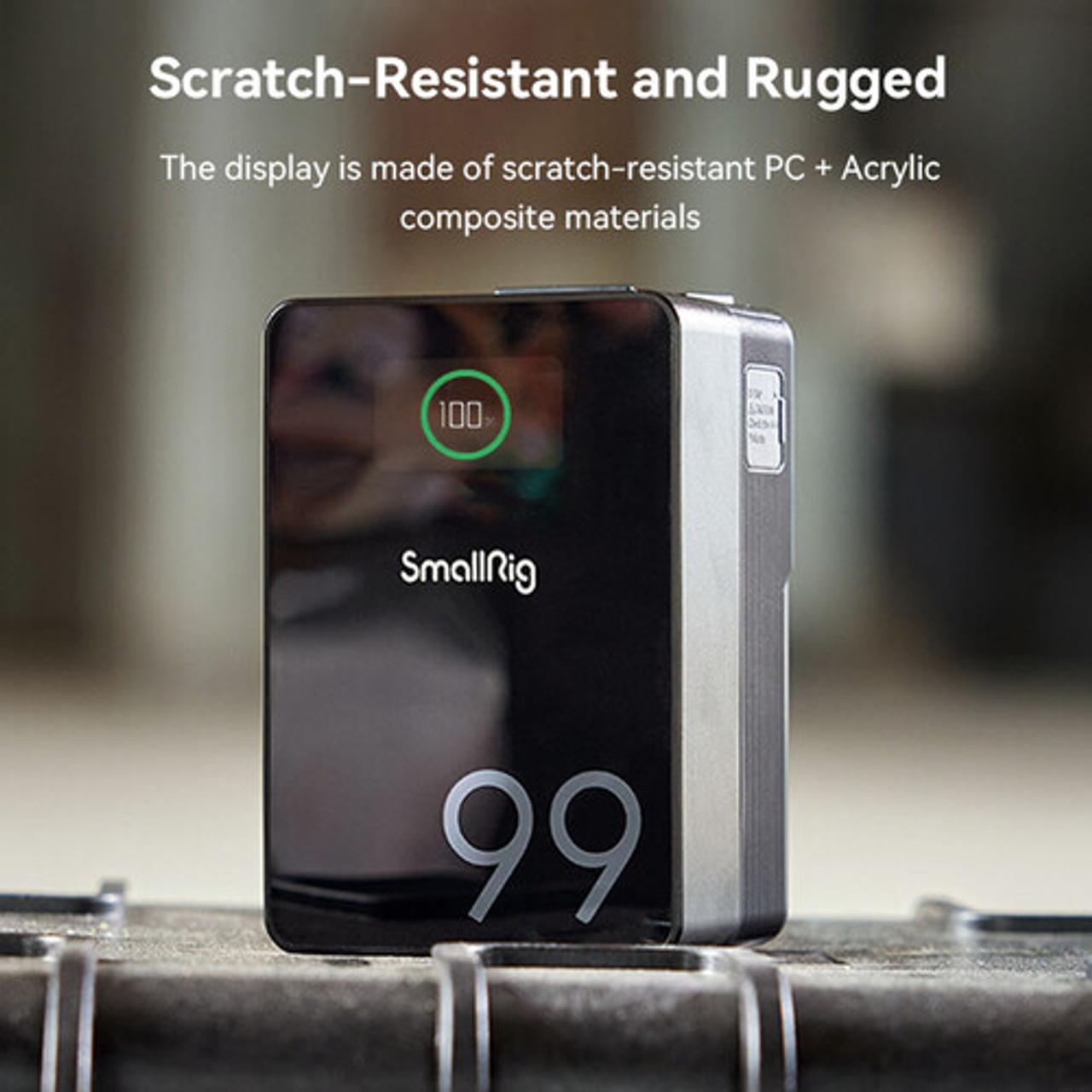

- Durable, cratch-resistant PC and acrylic cover on the front;TFT color screen displays status clearly and accurately.
Specifications
Material(s)
Aluminum Alloy, Fireproof PC
Capacity
14.54V 6.8Ah 98.872Wh
Rated Power
100W

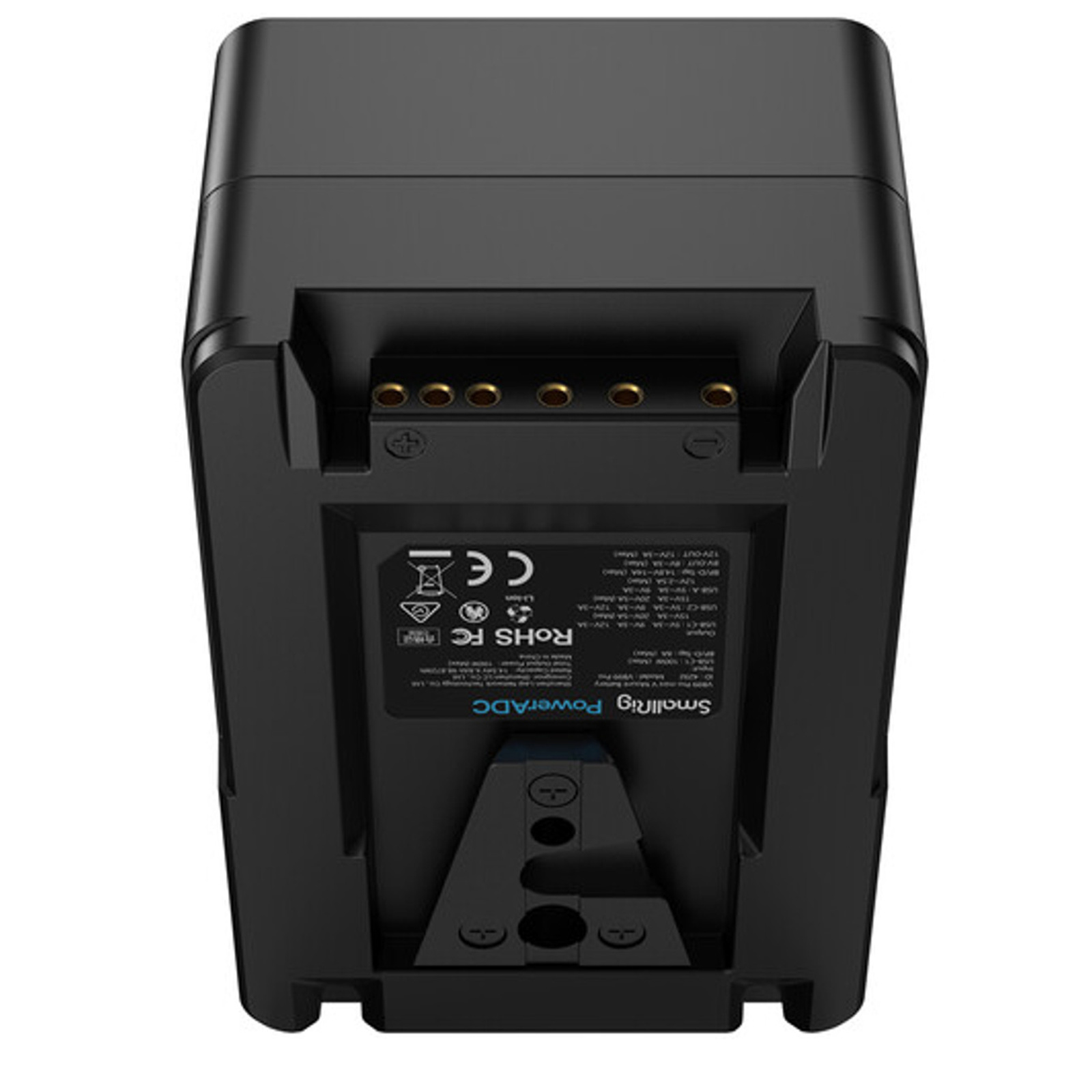

BP / D-tap Input
8A (Max.)
BP / D-Tap Output
14.8V / 14A (Max.)
USB-A Output QC2.0 / QC3.0
5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
USB-C1 Input / Output
Input / Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS
5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
USB-C2 Output
Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS
5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
8V-OUT
8V / 3A (Max.)
12V-OUT
12V / 3A (Max.)
Cut-off Voltage
11V
Optional Charging Method
BP charger, 16.8V D-TAP charger, USB-C charger (GaN)
PD fast charging tech (up to 100W)
Note
Manually measured weight and size may not be accurate.
Product Weight (include charging cable)
660 ± 10g
Product Dimensions
107.2 × 73.2 × 55.2mm
Package Weight
847 ± 10g
Package Dimensions
146 × 113 × 74mm
In the Box
VB99 Pro mini V Mount Battery x 1
240W USB-C Charging Cable x 1
User Manual x 1
