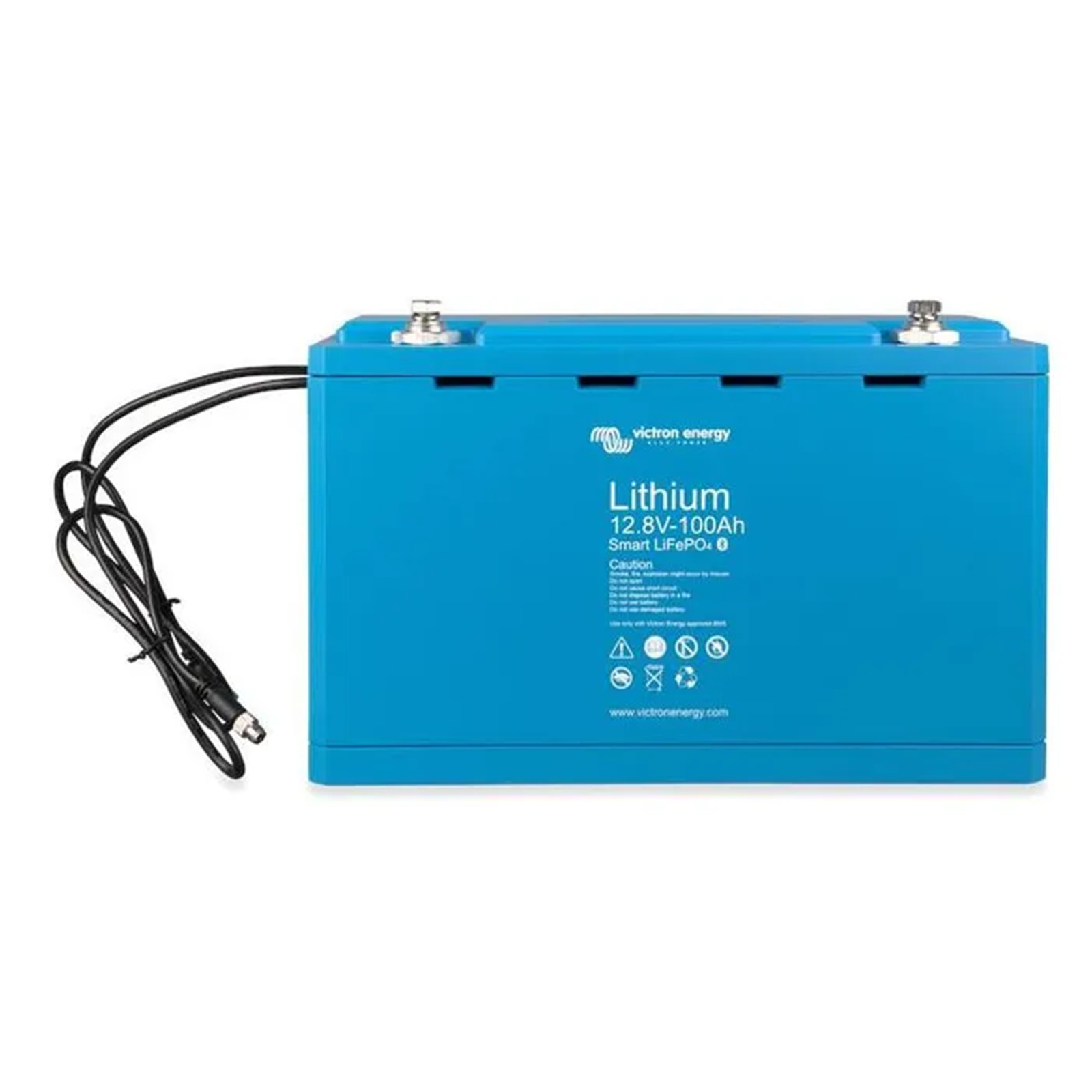

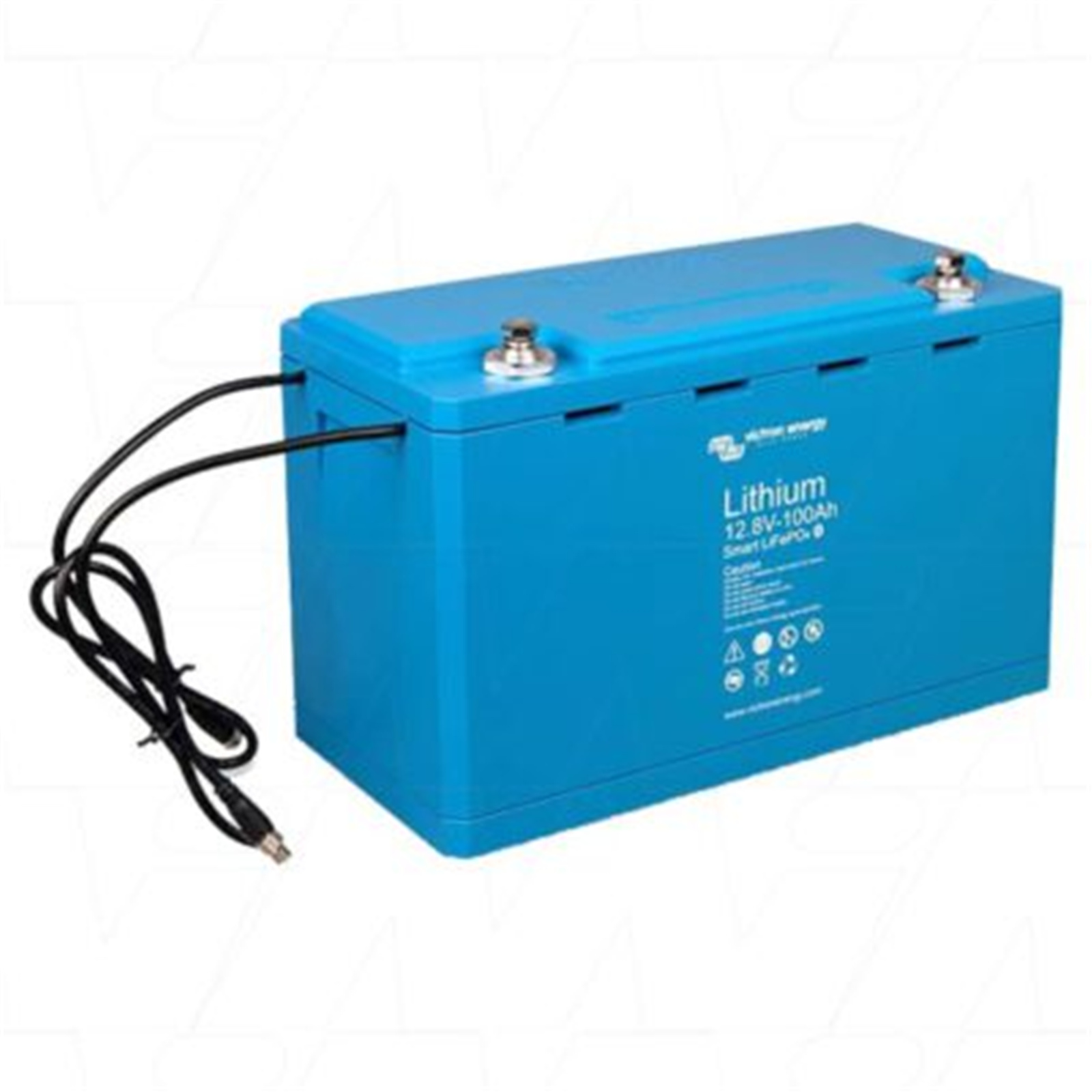

VICTRON 12.8V 100AH Lithium LiFePO4 Battery
Out of stock
VICTRON 12.8V 100AH Lithium LiFePO4 Battery
- Brand: VICTRON
- MPN: BAT512110610
- Part #: BATVTN0100
- UPC:
- Brand: VICTRON
- MPN: BAT512110610
- Part #: BATVTN0100
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Lithium Batteries





VICTRON 12.8V 100AH Lithium LiFePO4 Battery
- Brand: VICTRON
- MPN: BAT512110610
- Part #: BATVTN0100

Product URL: https://www.pbtech.co.nz/product/BATVTN0100/VICTRON-128V-100AH-Lithium-LiFePO4-Battery?srsltid=AfmBOopR0vLEBjFbQ49_to2a4BIbJlOJ8-2hW8oO8xcaqost8nXyfHlA
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Victron Energy LiFePO4 Smart battery
With integrated cell balancing. Can be parallel and series connected. Bluetooth app available to monitor cell voltage and temperature.
Lithium-iron-phosphate (LiFePO4 or LFP) are the safest of the mainstream li-ion battery types.
An LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).
Efficient In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round-trip energy efficiency of an LFP battery is 92%. Size and weight saves up to 70% in space and saves up to 70% in weight.
Specifications
VOLTAGE AND CAPACITY
Nominal voltage
12.8V
Nominal capacity @ 25°C
100 Ah
Nominal capacity @ 0 C
80 Ah
Nominal capacity @ -20 C
50 Ah
Nominal capacity @ 25 C
1280 Ah
CYCLE LIFE (capacity = 80 % of nominal)
80 % DoD
2500 cycles
70 % DoD
3000 cycles
50 % DoD
5000 cycles
OPERATING CONDITIONS
Operating Temperature
Discharge: - 20 °C to +50°C Charge: +5 °C to +50° C
Storage temperature
-45 °C to +70°C
Humidity (non-condensing)
Max. 95%
Protection class
IP 22
CHARGE
Charge voltage
Between 14 V/28 V and 14,4 V/28,8 V (14,2 V/28,4 V recommended)
Float voltage
13,5 V/27 V
Maximum charge current
200A
Recommended charge current
=50 A
MOUNTING
Can be placed on their sides
Yes
OTHER
Max storage time @ 25°C
1 year
BMS Connection
Male + female cable with M8 circular connector, length 50cm
Power connection (threaded inserts)
M8
Dimensions (hxwxd) mm
197 x 321 x 152
Weight
14kg
STANDARDS
Safety
Cells: UL1973 +IEC62619:2017 + UL9540A
EMC
EN-IEC 61000-6-3:2007/A1:2011/AC:2012-EN 55014-1:2017/A11:2020
Automotive
ECE R10-6
