  • Brand: VICTRON
  • MPN: CEP121621000
  • Part #: BATVTN1002
  • UPC:

Features

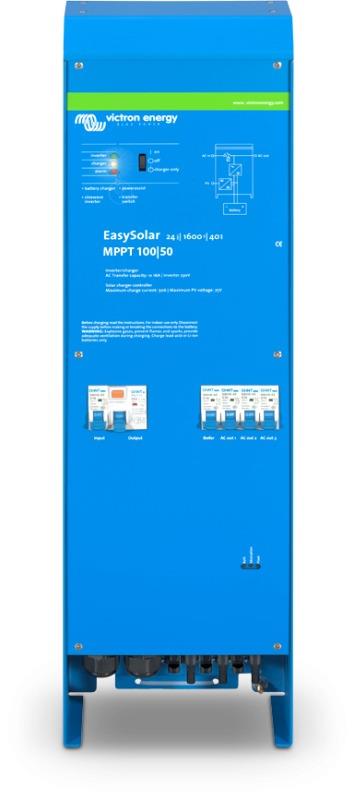

VICTRON EasySolar 12/1600/70-16+MPPT Inverter / Charger System (CEP121621000 VIC)

Integrated 12-volt, 1600-VA inverter charger with a 100/50 MPPT charge controller, PV array combiner and AC power distribution.

The EasySolar is a all-in-one solar power solution. It incorporates the following hardware in a compact vertical cabinet:

- Multiplus Compact 12/1600/70 inverter charger
- Bluesolar MPPT 100/50 solar controller
- AC Circuit Breakers and RCD

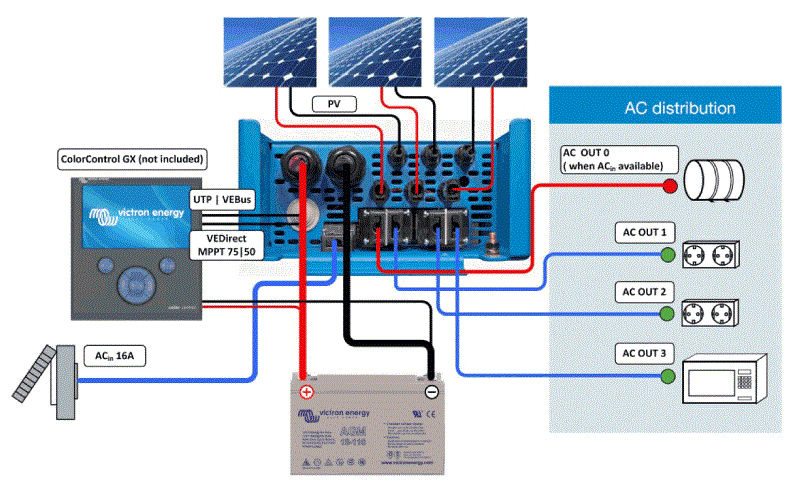

- PV Array Combiner (Three sets of MC4 PV connectors)
- Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.

With a minimum of wiring the device is easy to install and combines all the features of the Multiplus, Bluesolar MPPT and is completed with the AC distribution functionality, which consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

Included features include:

Mulitplus

- True sine wave inverter
- Adaptive charging
- Hybrid PowerAssist
- PowerControl
- Multiple system integration

MPPT

- Advanced Maximum Power Point Detection
- Three Step Charging
- Inbuilt additional electronic protection provides
- PV short circuit and PV reverse polarity protection
- PV reverse current protection.

Specifications

Inverter

Input Voltage Range

9.5 - 17V

'Heavy Duty' Output AC 0

16A

Output AC1, 2, 3

Voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0.1% (1)

Cont. Output Power at 25°C (3)

1600VA / 1300W

Cont. Output Power at 40°C

1200W

Peak Power

3000W

Max Efficiency

92%

Zero Load Power

8w

Zero Load Power in Search Mode

2W

Charger

AC Input

Voltage Range: 187265 VAC
Frequency: 45 - 65 Hz
Power Factor: 1

Charge Voltage 'Absorption'

14.4V

Charge Voltage 'Float'

13.8V

Storage Mode

13.2V

Charge Current House Battery (4)

70A

Charge Current Starter Battery (A)

4

Battery Temperature Sensor

Yes

Programmable Relay (5)

Yes

Protection (2)

a - g

Solar Charge Controller

Model

MPPT 100/50

Max Output Current

50A

Max PV Power, 6a,b

700W

Maximum PV Opne Circuit Voltage

100V

Max Efficiency

98%

Self Consumption

10 mA

Charge Voltage 'Absorbtion', Default Setting

14.4V

Charge Voltage 'Float', Default Setting

13.8V

Charge Algorithm

Multi-Stage Adaptive

Tempterature Compensation

-16mV / C°

Protection

a - g

Common Characteristics

Operating Temp. Range

-20 to 50°C (Fan Assisted Cooling)

Humidity (Non-Condensing)

Max 95%

Enclosure

Material

Aluminium

Colour

Blue

Protection Category

IP 21

Battery-Connection

Battery Cables of 1.5 meters

PV Connection

Three sets of MC4 (PV - ST01) PV Connectors

230 V AC-Connection

G-ST18i Connector

Weight

15kg

Dimensions (mm) (HxWxD)

745 x 214 x 110

Standards

Safety

En 60335-1, EN 60335-2-29, EN 62109

Emmision / Immunity

EN 55014-1, EN 55014-2, EN 61000-3-3

Automotive Directive

2004/104/EC

Manufacturer Part No:
CEP121621000
Brand:
VICTRON
Product Type:
Inverter / Charger
UPC
-
Product Family:
EasySolar
Shipping Weight:
0.5 kg
PB Part No:
BATVTN1002
Product Model:
12/1600/70-16+MPPT
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
