ASRock Mini PC 4x4 BOX Barebone with AMD Ryzen 3 5400U

PB Tech price
PB Tech price
$ 499 .00
 +GST
$ 573 .85
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

ASRock Mini PC 4x4 BOX Barebone with AMD Ryzen 3 5400U

Ready to go. Just add RAM, SSD and Operating system!
  • Brand: ASRock
  • MPN: BPCASR0002
  • Part #: BPCASR0002
  • UPC:
1
PB Tech price
$ 499 .00 $ 573 .85
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: ASRock
  • MPN: BPCASR0002
  • Part #: BPCASR0002
  • UPC:

CPU Family

AMD Ryzen 3

GPU Model

Integrated Graphics

Expansion Slots

2.5" & M.2

RAM Slots

2 x DDR4

Wireless Technology

WiFi + Bluetooth

HDMI Ports

1

DisplayPorts

1

USB Ports

5

What PB Tech customers are saying about this product...

See More Reviews

"I bought this to replace an old Intel NUC. The screws were longer than I expected (a mini electronic screwdriver helps out a lot with reducing effort there), and the provided instr ...view more"

DE
By: DavidE8847 04/09/24
Verified Owner

Features

4X4 BOX-5400U Fanned BOX

- AMD Ryzen™ 5000U-Series 5400U
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
- 1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type-C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88"), Fanned Barebone

Specifications

Processor System

CPU

AMD Ryzen™ 5000U-Series
4X4 BOX-5400U (AMD Ryzen™ 3 5400U, 4Cores, Max Speed up to 4.0GHz)

Chipset

SoC

BIOS

AMI SPI 128 Mbit

Memory

Technology

Dual Channel DDR4 3200 MHz

Capacity

64 GB (32 GB per DIMM)

Socket

2 x 260-pin SO-DIMM

Graphics

Controller

AMD Radeon™ Graphics

HDMI

HDMI 2.0a
Max resolution up to 4096x2160 @ 60Hz

DisplayPort

DisplayPort 1.2a, DP++
Max resolution up to 4096x2160 @ 60Hz

MultiDisplay

Max 4 display (Included 2 outputs from Type C)

Expansion Slot

M.2/WLAN

1 x Wi-Fi 6E 802.11ax + BT 5.2

Audio

Interface

Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed

LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV (DASH) with 10/100/1000 Mbps

Connector

2 x RJ-45

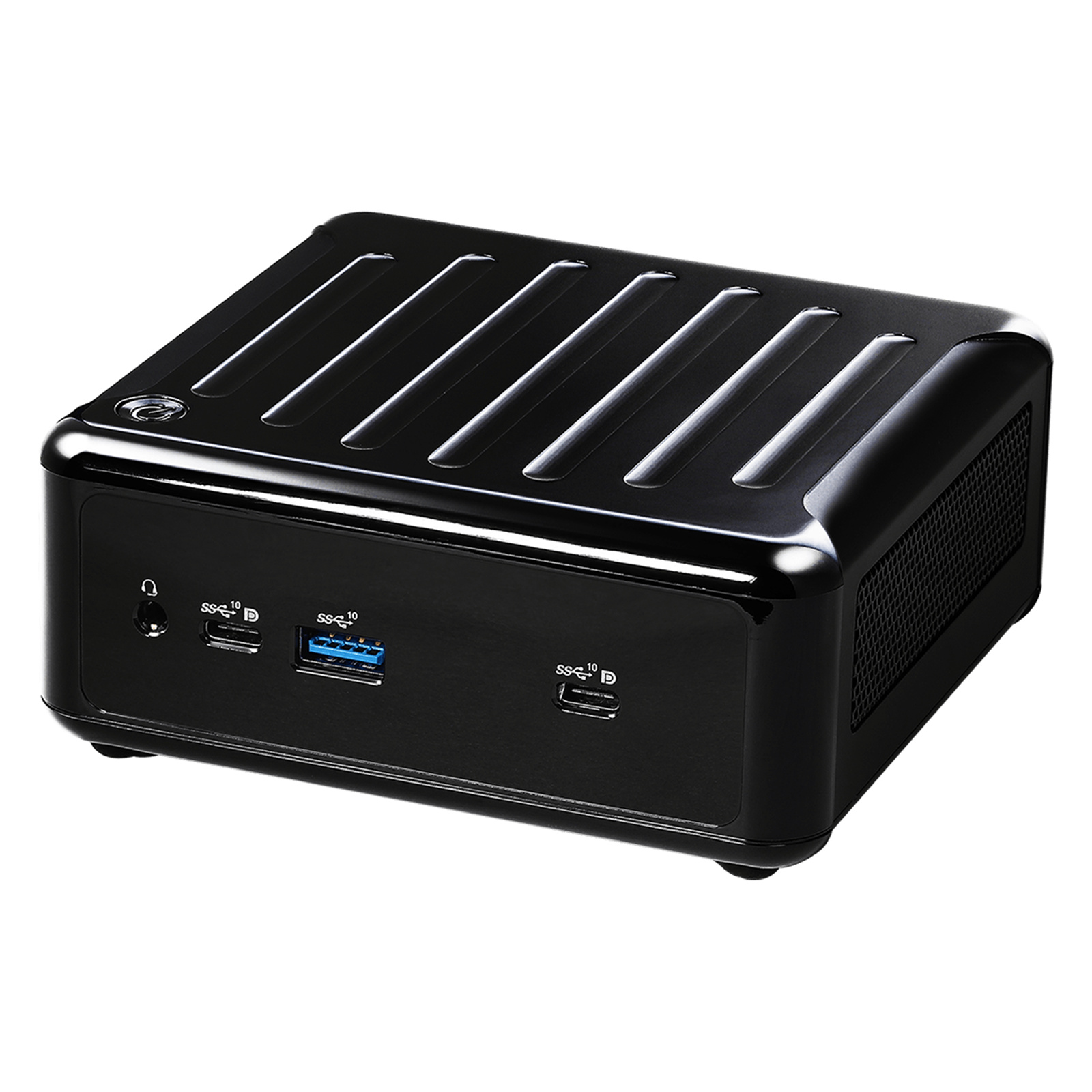

Front I/O

USB

1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type C, 5V/3A, Supports DP 1.2a display output)

Audio

1 (headphone & microphone jack)

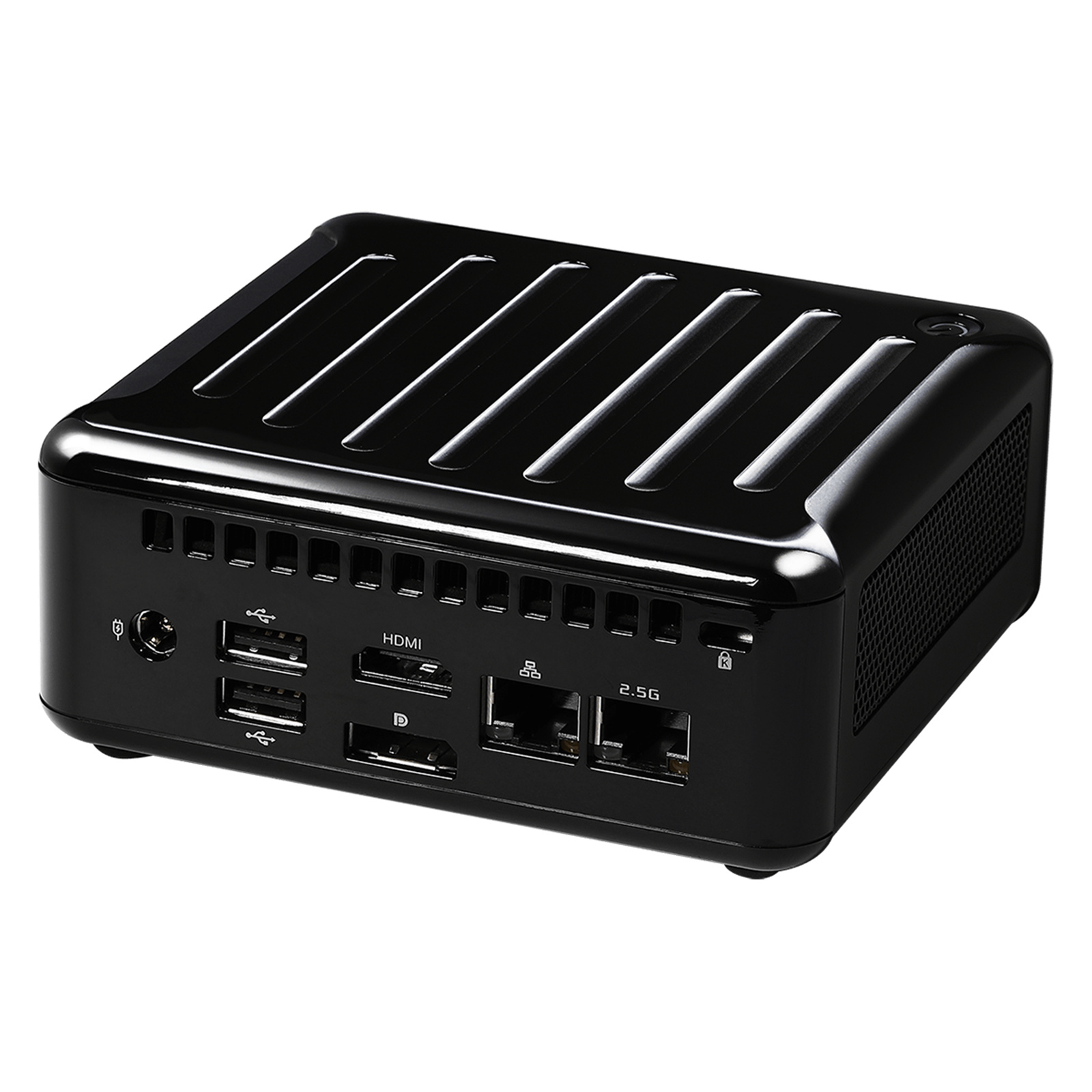

Rear I/O

HDMI

1 x HDMI 2.0a

DisplayPort

1 x DP 1.2a

Ethernet

1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN

USB

2 x USB 2.0

DC Jack

1

Storage

M.2

1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)

SATA

1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output

From Super I/O to drag RESETCON#

Interval

256 Segments 0,1,2....255sec

Power Requirements

Input PWR

1 x 19V/90W Power Adapter

Power On

AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp

0ºC ~ 40ºC

Storage Temp

-40° C ~ 85° C

Operating Humidity

5% ~ 90%

Storage Humidity

5% ~ 90%

Mechanical

Mounting

VESA mount

Dimensions (L x W x H)

117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")

Weight

Net Weight: 1kg

Others

OS Support

Windows 10/11

TPM

TPM 2.0 onboard IC

Certifications

CE, FCC

Packing List

1 x 19V/90W Power Adapter
1 x VESA mount bracket

Manufacturer Part No:
BPCASR0002
Brand:
Product Type:
Barebone
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
BPCASR0002
Product Model:
Mini PC
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
