DJI RC - Remote control with screen
DJI RC - Remote control with screen
- Brand: DJI
- MPN: CP-RC-00000005
- Part #: CAADJI10045
- UPC: 190021059139
- Brand: DJI
- MPN: CP-RC-00000005
- Part #: CAADJI10045
- UPC: 190021059139
Features

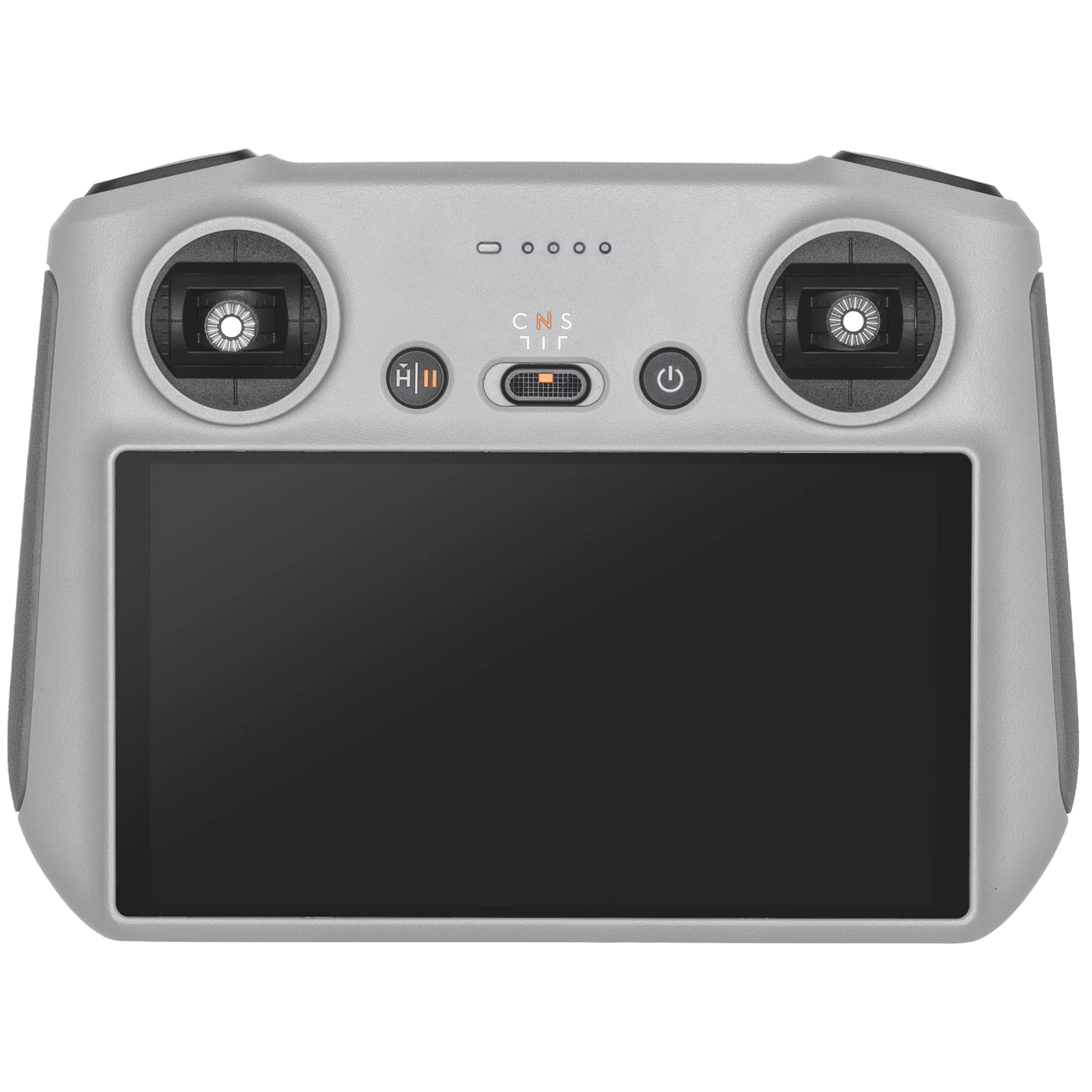

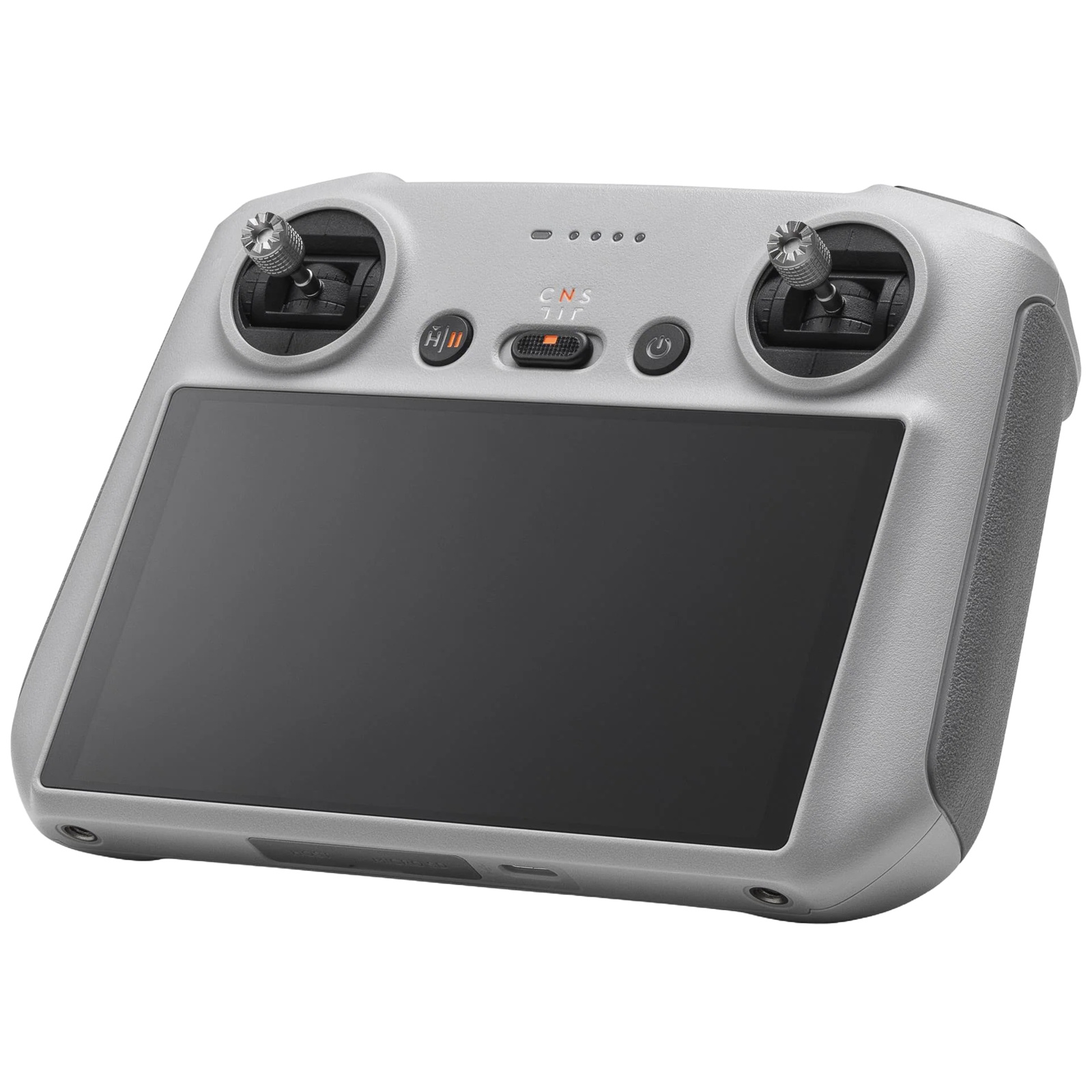

DJI RC - Remote Control with Screen
DJI RC is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. [1] With its powerful functionality, aerial creation is more convenient than ever.

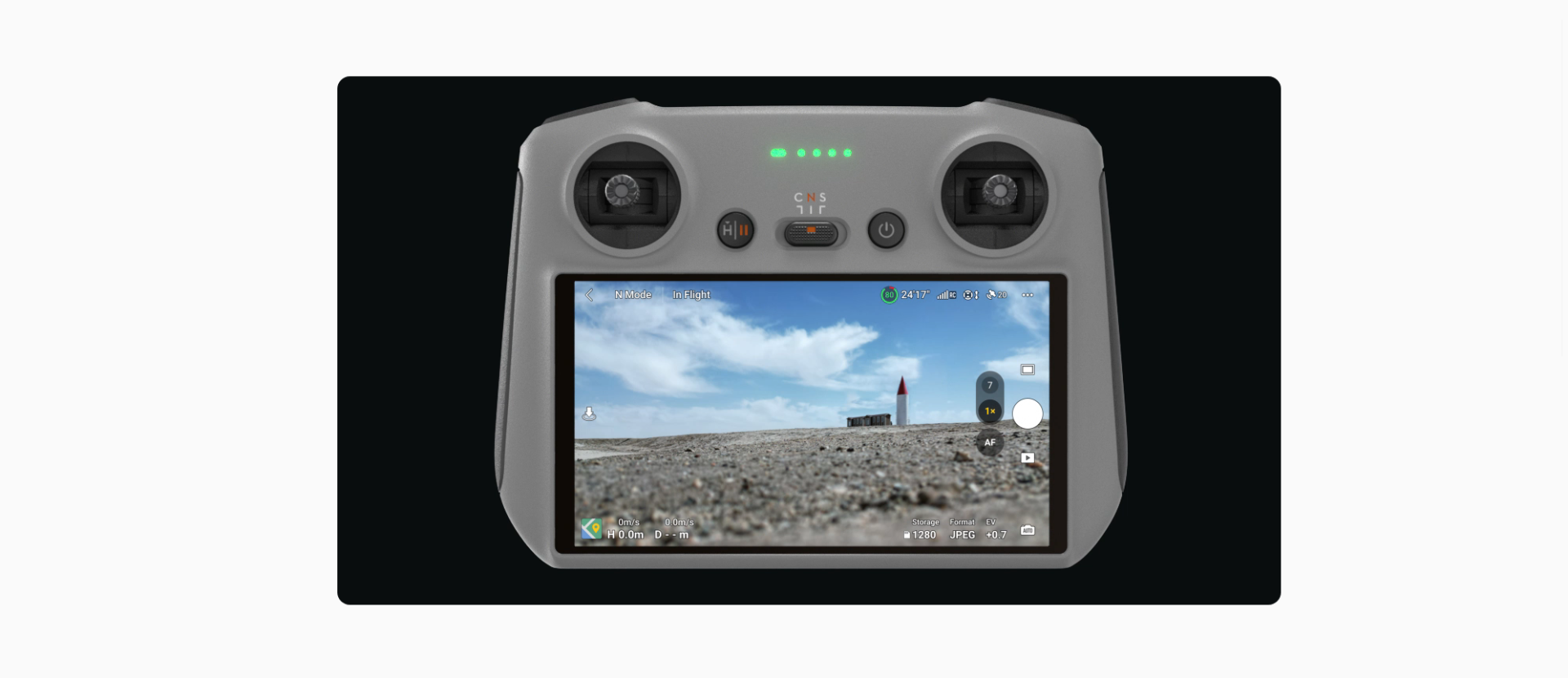

Video Transmission Technology
When used with drones that support O3+ transmission, like DJI Mavic 3, [1] DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km [2] for smoother control and safer flight.

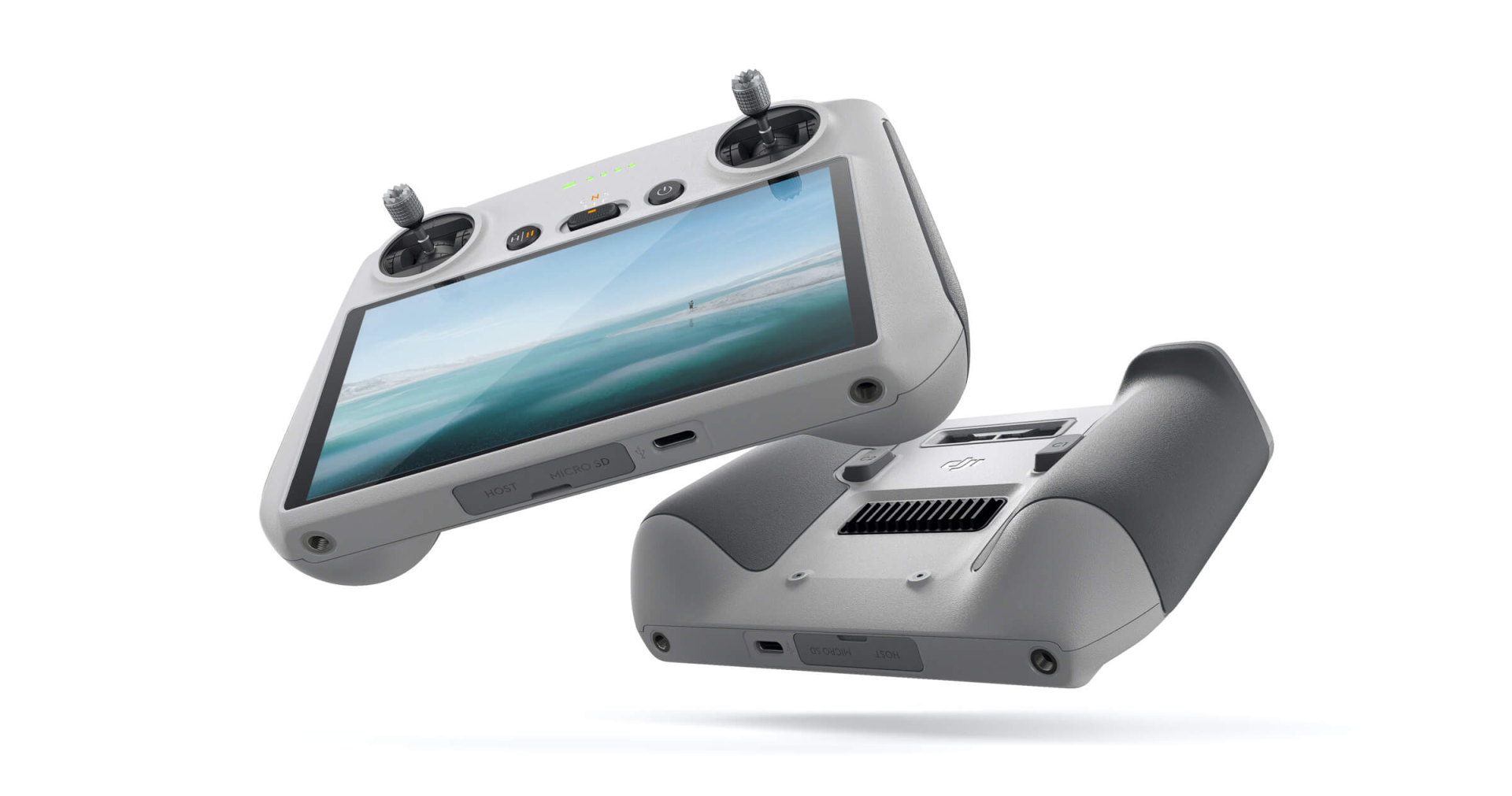

Light, Compact, Powerful

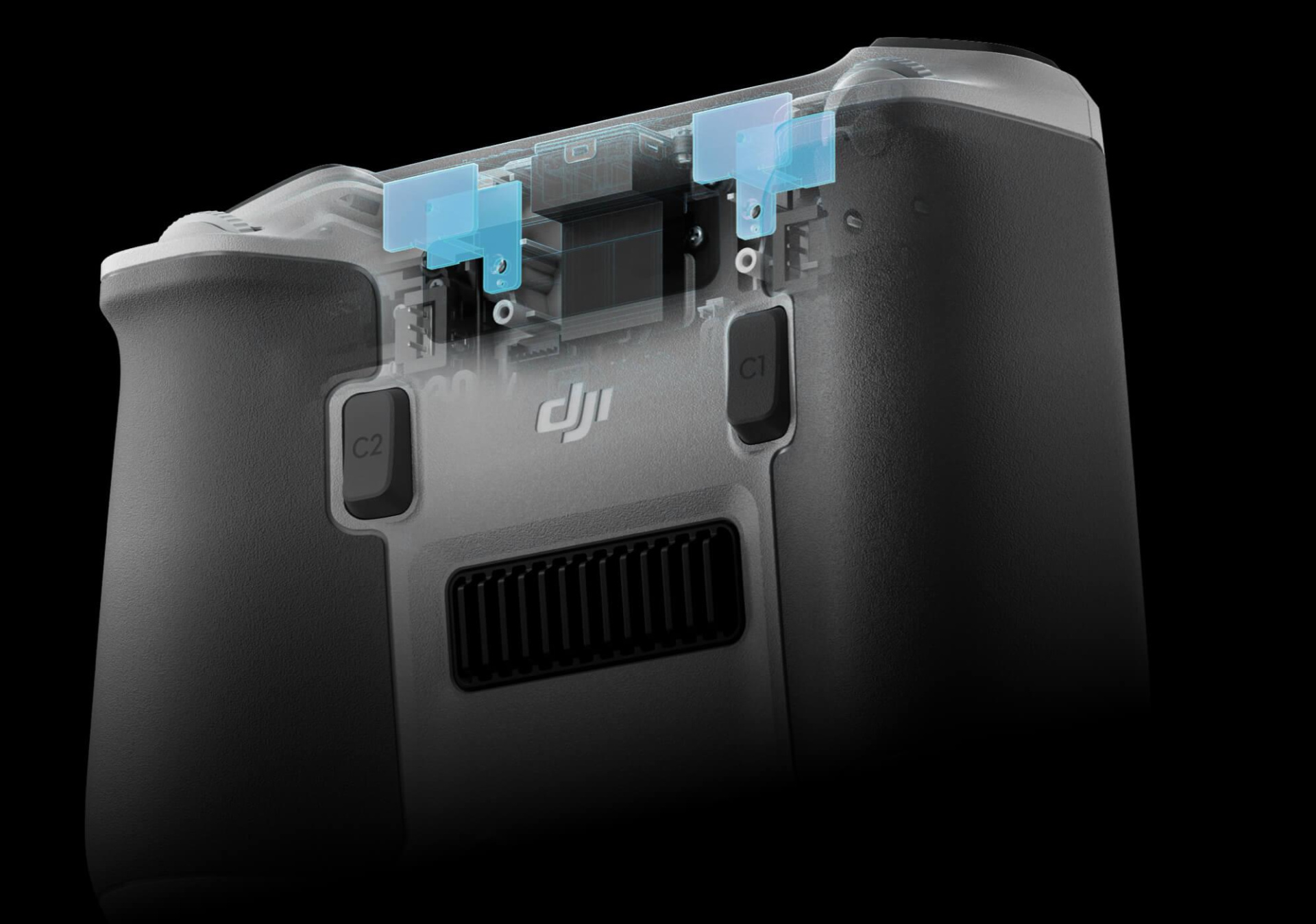

Thanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams. [3]
The built-in 5.5-inch FHD screen supports long-lasting brightness of up to 700 nits.

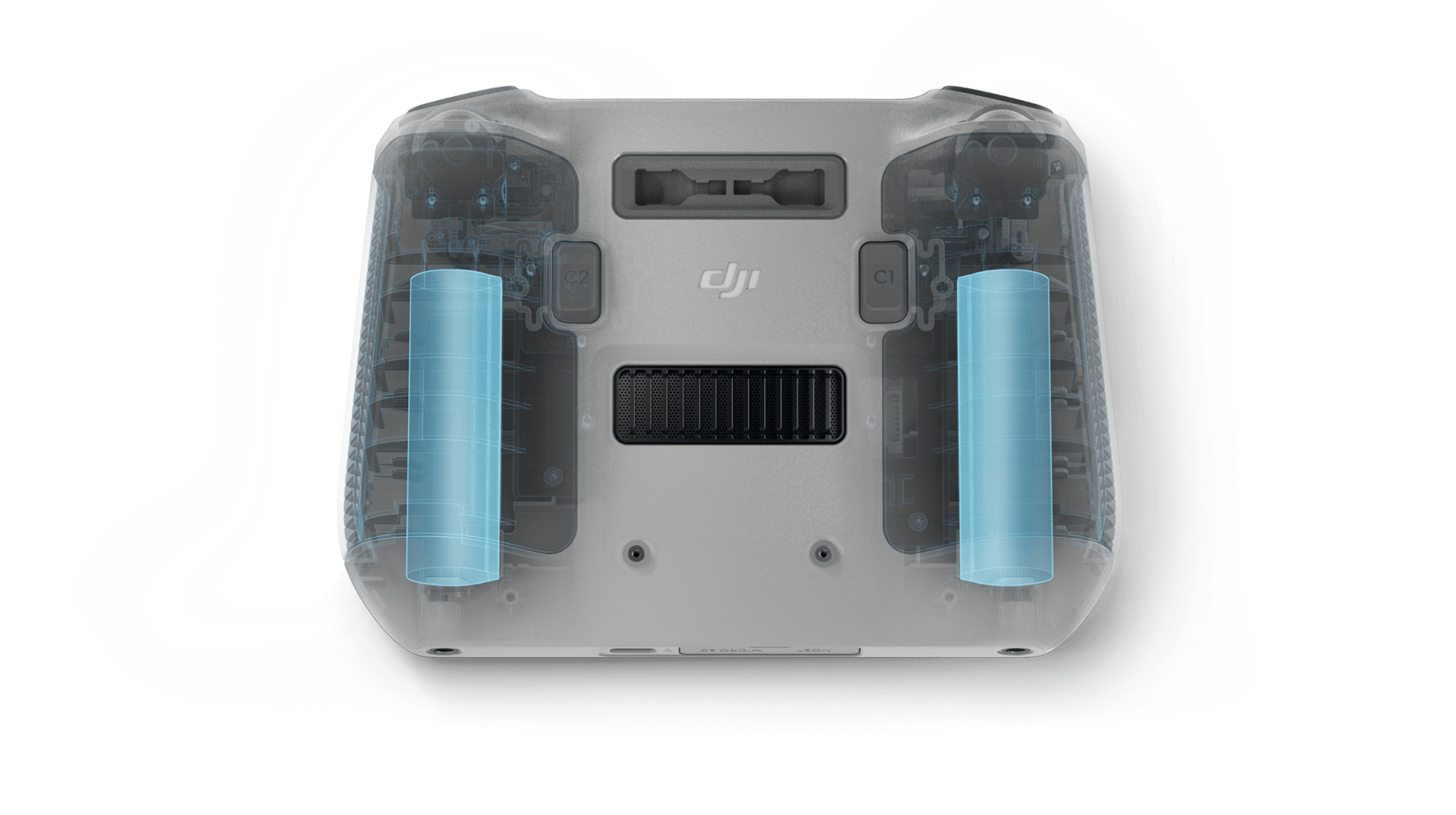

4-Hour Ultra-Long Runtime
DJI RC's new design enables use for up to four hours on a full charge. [4]
That gives you enough battery to shoot at multiple locations on a single charge.
Highlights in Detail

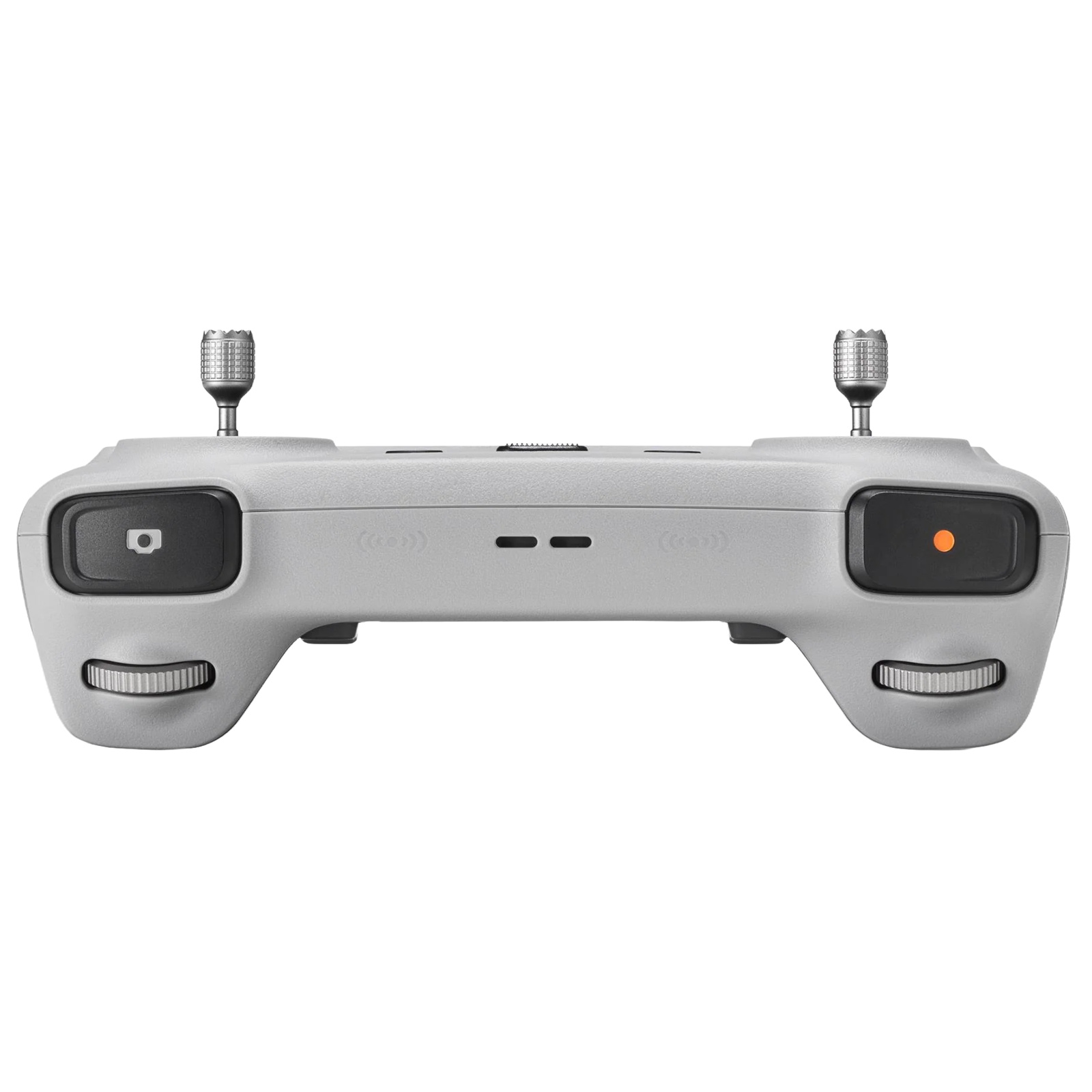

DJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience.
Get Started Fast to Seize Any Moment
With a built-in screen, DJI RC can directly link with your drone after powering on without connecting to a smartphone, allowing you to start shooting right away.
Footnotes
1. Once connected to a compatible drone, DJI RC will automatically switch to the corresponding video transmission technology.
2. Measured in an unobstructed environment free of interference and with a maximum flight range of 15 km with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders on the DJI Fly app.
3. Weight measured using a production model of DJI RC in a controlled test environment and should be used for reference only.
4. Tested at room temperature (77° F/25° C) and should be used for reference only.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Drone Controllers & Controller Accessories
DJI Air 3S Fly More Combo (DJI RC-N3)
DJI RC 2 Remote Controller
DJI FPV Remote Controller 3
DJI RC-N3 Controller
DJI RC - Remote control with screen
DJI RC - Remote control with screen
- Brand: DJI
- MPN: CP-RC-00000005
- Part #: CAADJI10045
- UPC:190021059139
Product URL: https://www.pbtech.co.nz/product/CAADJI10045/DJI-RC---Remote-control-with-screen
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
DJI RC - Remote Control with Screen
DJI RC is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. [1] With its powerful functionality, aerial creation is more convenient than ever.
Video Transmission Technology
When used with drones that support O3+ transmission, like DJI Mavic 3, [1] DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km [2] for smoother control and safer flight.
Light, Compact, Powerful
Thanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams. [3]
The built-in 5.5-inch FHD screen supports long-lasting brightness of up to 700 nits.
4-Hour Ultra-Long Runtime
DJI RC's new design enables use for up to four hours on a full charge. [4]
That gives you enough battery to shoot at multiple locations on a single charge.
Highlights in Detail
DJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience.
Get Started Fast to Seize Any Moment
With a built-in screen, DJI RC can directly link with your drone after powering on without connecting to a smartphone, allowing you to start shooting right away.
Footnotes
1. Once connected to a compatible drone, DJI RC will automatically switch to the corresponding video transmission technology.
2. Measured in an unobstructed environment free of interference and with a maximum flight range of 15 km with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders on the DJI Fly app.
3. Weight measured using a production model of DJI RC in a controlled test environment and should be used for reference only.
4. Tested at room temperature (77° F/25° C) and should be used for reference only.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
General Specs
Battery
Li-ion (5,200 mAh @ 3.6 V)
Charging Type
It is recommended to use a charger rated 5 V/2 A or above.
Rated Power
4.5 W
Storage Capacity
Expandable (with microSD card)
Charging Time
1.5 hours (with 5 V/3 A charger)
Operating Time
4 hours
Video Output Port
N/A
Operating Temperature
-10° to 40° C (14° to 104° F)
Storage Temperature
Within one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature
5° to 40° C (41° to 104° F)
Supported Aircraft Models**
DJI Mini 3 Pro
DJI Air 2S
DJI Mavic 3 Classic
DJI Mavic 3
DJI Mavic 3 Cine
GNSS
GPS + BeiDou + Galileo
Dimensions (L×W×H)
Without control sticks: 168.4×123.7×46.2 mm
With control sticks: 168.4×123.7×62.7 mm
Weight
Approx. 390 g
Model
RM330
Video Transmission
Video Transmission System
DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.
With different aircraft hardware, the corresponding video transmission specifications are as follows:
DJI Mini 3 Pro: O3
DJI Mavic 3 Classic: O3+
DJI Mavic 3: O3+
DJI Mavic 3 Cine: O3+
DJI Air 2S: O3
Max. Transmission Distance (unobstructed, free of interference)
DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3 Classic: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Air 2S: 12 km (FCC); 8 km (CE/SRRC/MIC)
Operating Frequency*
2.400-2.4835 GHz; 5.725-5.850 GHz
Antennas
2 antennas, 1T2R
Transmitter Power (EIRP)
2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
Wi-Fi
Protocol
802.11 a/b/g/n
Operating Frequency*
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol
Bluetooth 4.2
Operating Frequency
2.400-2.4835 GHz
Transmitter Power (EIRP)
< 10 dBm
Screen
Resolution
1920×1080
Size
5.5 inches
Frame Rate
60fps
Brightness
700 nits
Touch Control
10-point multi-touch
Storage
Supported SD Cards
UHS-I Speed Grade 3 rating microSD card or above
Recommended microSD Cards
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston 128GB V30 microSDXC
Packing Info
In the box
DJI RC × 1
DJI RC Spare Control Sticks (pair) × 1
Type-C to Type-C PD Cable × 1
