Cruxtec HDMI 2.0 Active Optical Cable - 20m

18Gbps - 4K/60Hz

PB Tech price
PB Tech price
$ 94 .23
 +GST
$ 108 .36
 inc GST
$94.23  +GST
$108.36

Cruxtec HDMI 2.0 Active Optical Cable - 20m

18Gbps - 4K/60Hz

  • Brand: Cruxtec
  • MPN: HS20-20-BK
  • Part #: CABCXT17200
  • UPC: 787303420468
10
PB Tech price
$ 94 .23 $ 108 .36
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Nov When will I receive it?
$94.23  +GST
$108.36
  • Brand: Cruxtec
  • MPN: HS20-20-BK
  • Part #: CABCXT17200
  • UPC: 787303420468

Cable Length

5m 10m 20m 30m 50m

Colour

Black

Connector 1

HDMI (Male)

Connector 2

HDMI (Male)

Braided

No

HDMI Version

Version 2.0

Similar in-stock products available at PB Tech right now

What PB Tech customers are saying about this product...

See More Reviews
30m | Black

"Used to run sim setup in garage a wee while away and worked better than trying to stream etc"

By: CorbanF18 17/04/25
Verified Owner
10m | Black

"Had tried HDMI over Ethernet and active HDMI cables for a long run, but each had issues supporting 4K resolutions (compression artifacts or signal stability). Switching to optical ...view more"

JH
By: JessicaH11 14/11/24
Verified Owner
20m | Black

"I'm always a bit sceptical regarding HDMI cabling but in this instance it was a true plug and play between a 4k camera and laptop via an HDMI-USB adaptor. Being a very thin cable i ...view more"

DP
By: DavidP66872 15/08/24
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Cruxtec HDMI 2.0 Active Optical Cable - 20m 18Gbps - 4K/60Hz
Cruxtec HDMI 2.0 Active Optical Cable - 20m 18Gbps - 4K/60Hz
Total:
$ 246 .14
 +GST
$ 283 .06
Buy together and save $6.81 $7.83
LENKENG LKV312HDR-V2.0 1-In-2-out HDMI Splitter with HDR & EDID Supports UHD Res up to 4K2K30 / 60Hz HDMI 2.0 & HDCP2.2 Compliant - Low Power Consumption - Plug & Play - Solid Metal Housing
LENKENG LKV312HDR-V2.0 1-In-2-out HDMI Splitter with HDR & EDID Supports UHD Res up to 4K2K30 / 60Hz HDMI 2.0 & HDCP2.2 Compliant - Low Power Consumption - Plug & Play - Solid Metal Housing
$62.40 $71.76

$60.75  +GST

$69.86

Dynamix A-HDMI-FF HDMI Cable Joiner, HDMI female to HDMI female
Dynamix A-HDMI-FF HDMI Cable Joiner, HDMI female to HDMI female

$7.13  +GST

$8.20

You save 9% You save 9%
Loctek Eco Mount, 32"-70" Tilt TV Wall Mount - Max Load 40 kg - Max VESA 600x400mm - Tilt Angle 0+12deg - TV To Wall 35mm - 5 Years Warranty.
Loctek Eco Mount, 32"-70" Tilt TV Wall Mount - Max Load 40 kg - Max VESA 600x400mm - Tilt Angle 0+12deg - TV To Wall 35mm - 5 Years Warranty.
$46.09 $53.00

$44.35  +GST

$51.00

You save 3% You save 3%
Promate MEDIASPLIT-C2 HDMI Splitter with Dual HDMI Ports. Supports up to 4K 60Hz Play Content on 2xMonitorsSimultaneously. USB-C Port (5V,500MA). Easy Plug & Play.
Promate MEDIASPLIT-C2 HDMI Splitter with Dual HDMI Ports. Supports up to 4K 60Hz Play Content on 2xMonitorsSimultaneously. USB-C Port (5V,500MA). Easy Plug & Play.
$42.36 $48.71

$39.68  +GST

$45.63

You save 6% You save 6%

Features

Cruxtec HDMI 2.0 4K Ultra-HD Optical fiber Cable (4K/60Hz)

1) Gold plated connectors
2) HDMI 2.0 18Gbps
3) Optical Fiber Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmission
4) Breakthrough the length limit, non-destructive transmission without interference
5) Kevlar is used as the central strength member on fibre optic cables, it provides additional protection for the fibres from the environment



Optical Fiber Cable

Breakthrough the length limit, non-destructive transmission without interference



II-VI's Vertical Cavity Surface Emitting Laser (VCSEL)

High efficiency and reliability, brings together the advantages of optical efficiency within a small footprint.



CL2 and CMG-FT4 fire resistance rating



Kevlar is used as a strength member

provides cushioning protection for the fibres



HDMI 2.0 compliant

Bandwidth 18Gbps, Resolutions up to 4K/60Hz (2160p)

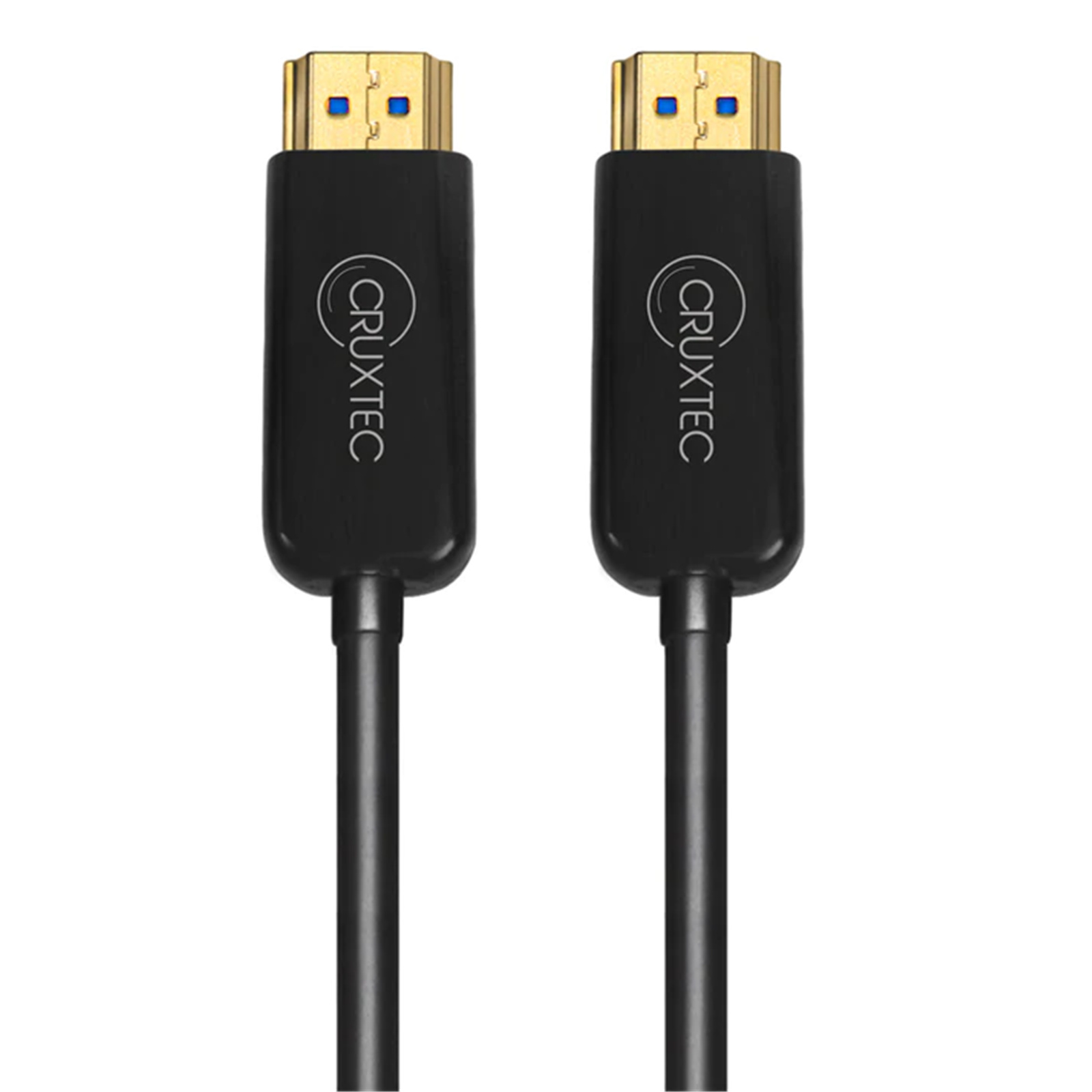

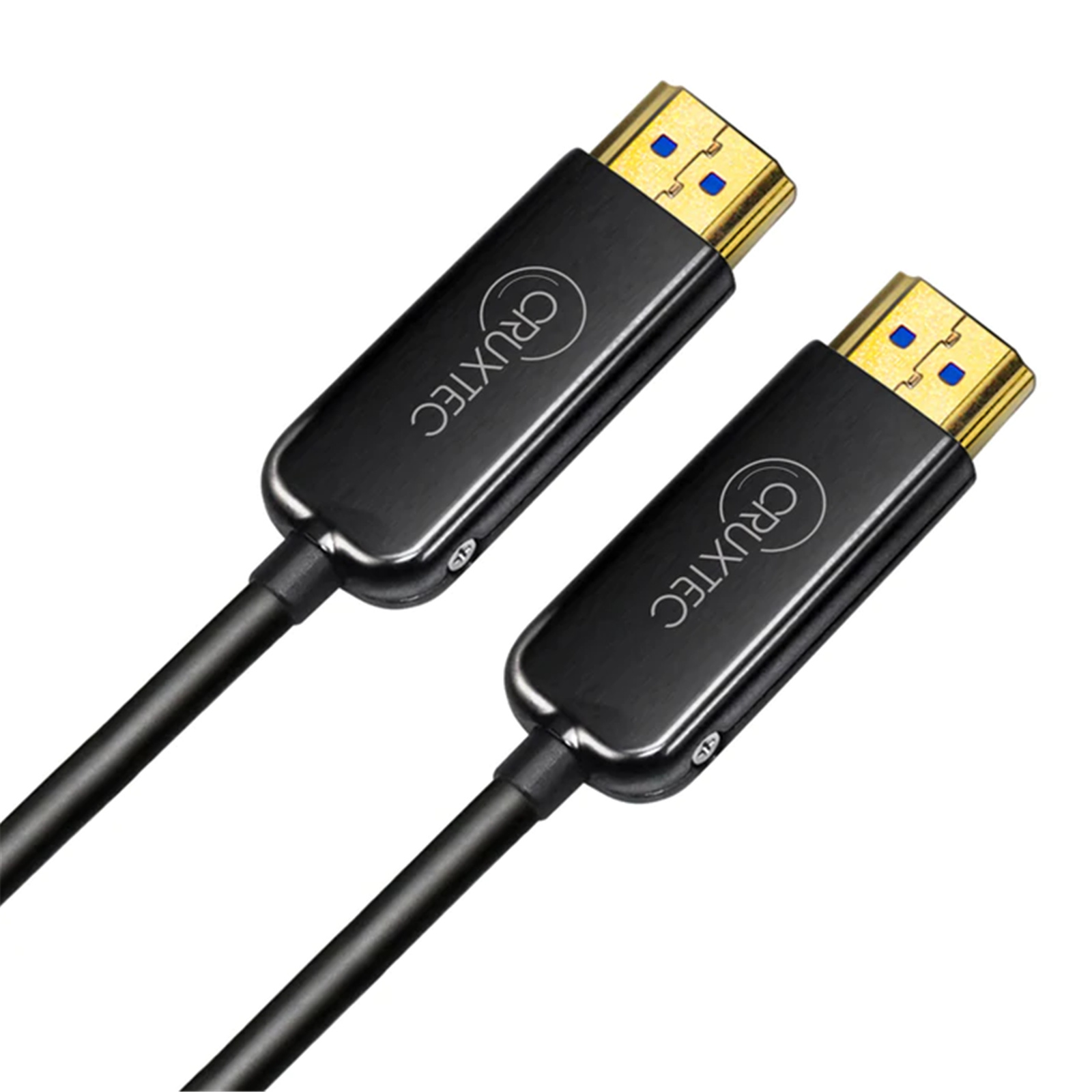

Gold-plated Connectors

It is highly conductive and durable

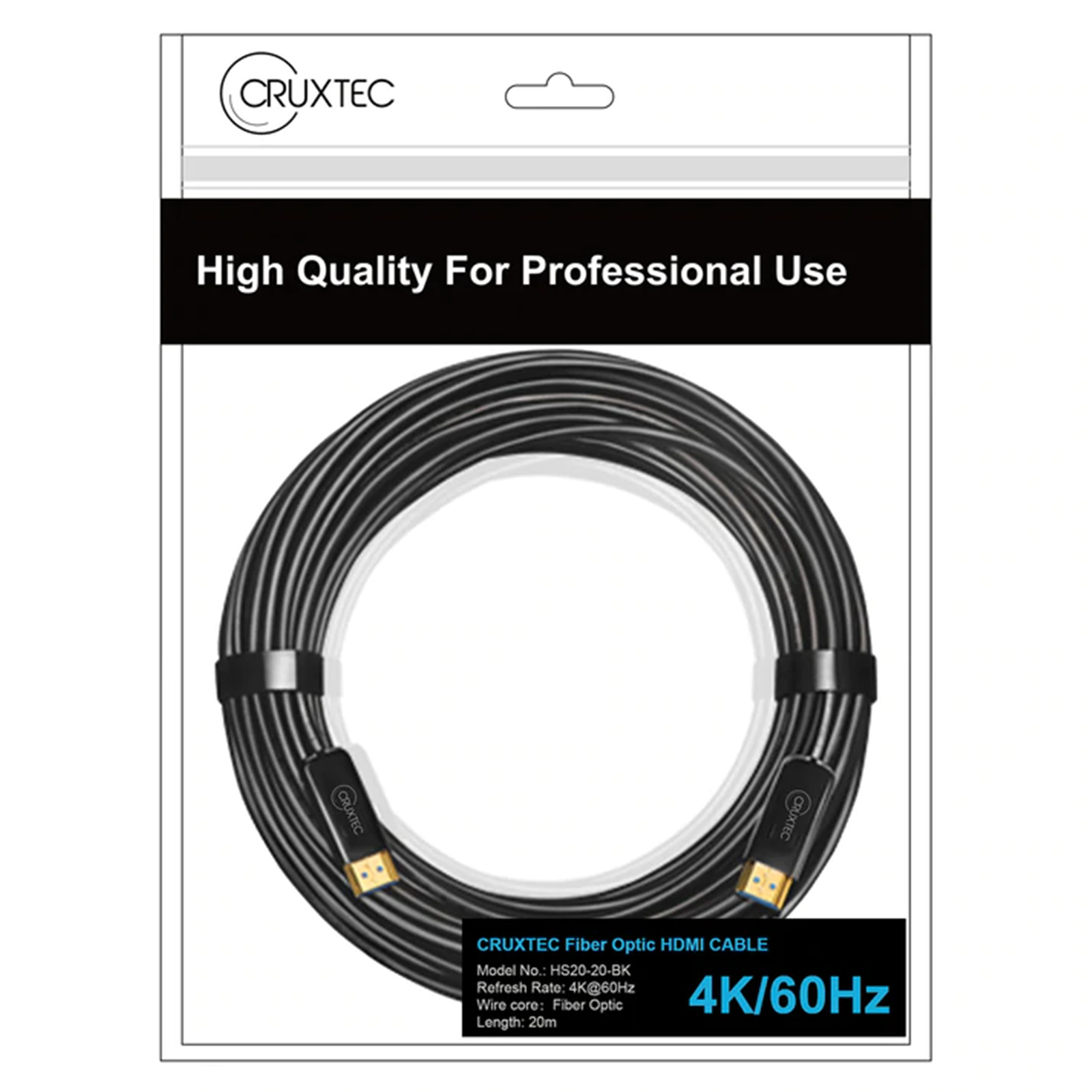

Simple and Elegant Packaging

Imaginative design and new materials are the key to more sustainable

*Photos above are for illustration purposes only.

Specifications

Length

20m

Pin plating:

Gold

Bandwidth:

HDMI2.0 18Gbps

Maximum Resolution:

4K/60Hz

Connectors:

HDMI Male to Male

Colour:

Black

Chipsets:

Silicon line (Germany)

VCSEL:

II VI (America)

Multimode Fiber Type:

OM2(5m,10m,20m,30m), OM3 (50m)

Cable Diameter (OD):

4.2mm

Power Consumption:

250mW(Maximum)

Shield Type:

Aluminium foil shield

Manufacturer Part No:
HS20-20-BK
Brand:
Product Type:
HDMI 2.0 Active Optical Cable
UPC
787303420468
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
CABCXT17200
