Dynamix F-MAOS212-1KM OS2 Micro Armoured Fibre Roll - 12 Core - 1km
Singlemode - Indoor / Outdoor - LSZH - Micro Armoured
Out of stock
Dynamix F-MAOS212-1KM OS2 Micro Armoured Fibre Roll - 12 Core - 1km
Singlemode - Indoor / Outdoor - LSZH - Micro Armoured
- Brand: Dynamix
- MPN: F-MAOS212-1KM
- Part #: CABDNX7518
- UPC:
- Brand: Dynamix
- MPN: F-MAOS212-1KM
- Part #: CABDNX7518
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Fibre Optic Cables





Dynamix F-MAOS212-1KM OS2 Micro Armoured Fibre Roll - 12 Core - 1km Singlemode - Indoor / Outdoor - LSZH - Micro Armoured
- Brand: Dynamix
- MPN: F-MAOS212-1KM
- Part #: CABDNX7518

Product URL: https://www.pbtech.co.nz/product/CABDNX7518/Dynamix-F-MAOS212-1KM-OS2-Micro-Armoured-Fibre-Rol
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

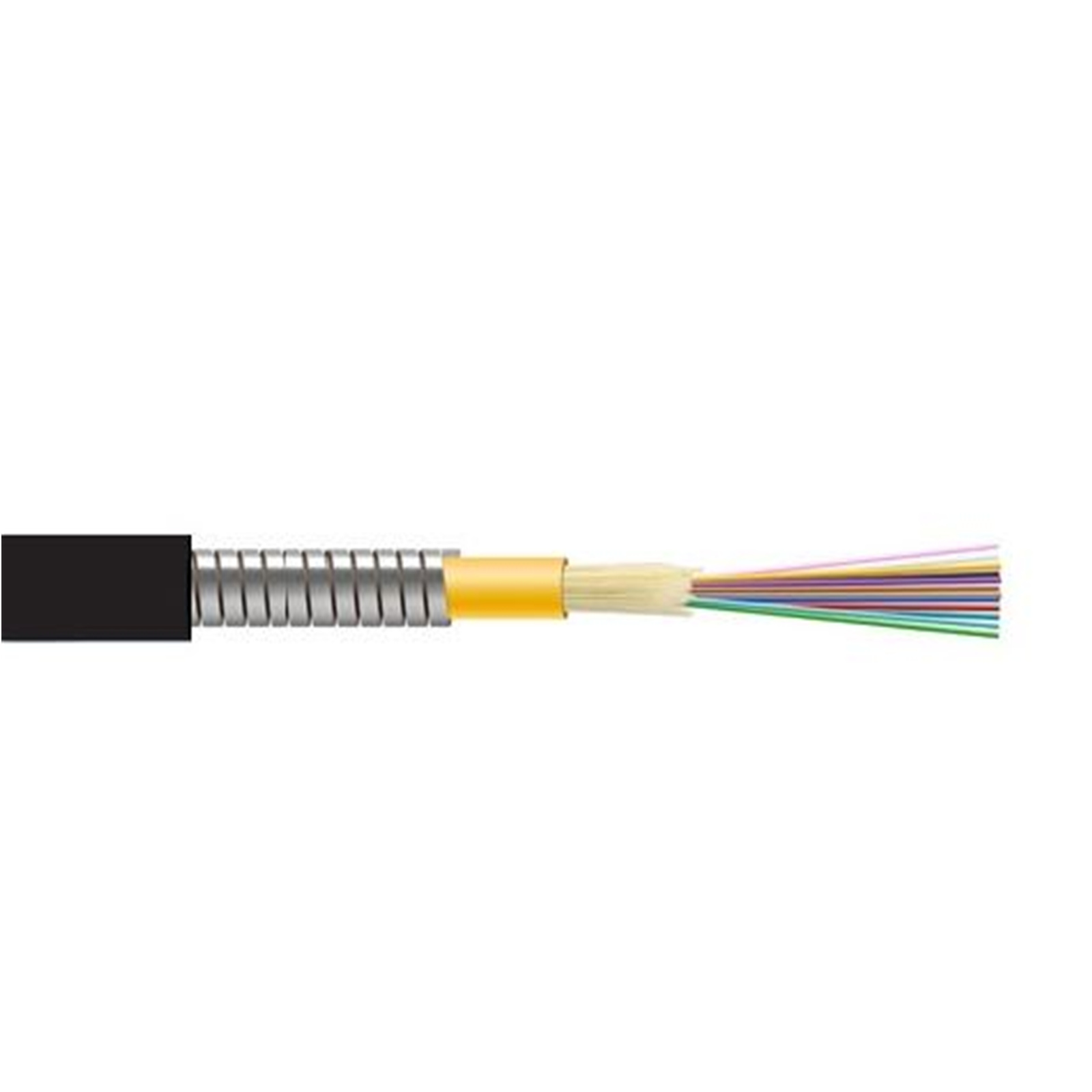

DYNAMIX 1km G.652D 12 Core Single mode. Micro Armoured Fibre Cable Roll. Indoor Outdoor Rated. Black OFNR Jacket.

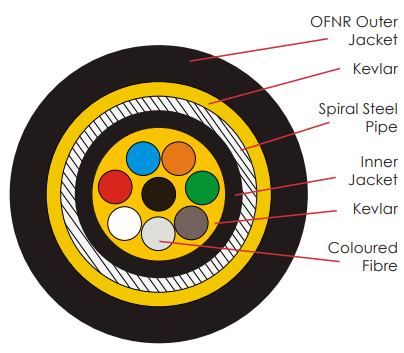

The micro armoured tight buffered indoor/outdoor distribution cables consist of 2 to 24 of 250µm buffered optical fibres surrounded aramid yarn strength members jacketed in a black OFNR outer jacket.
Features
- Stock Coded in 12 Core OS2
- Available on request in OM4 and alternate core sizes
- Colour coded fibres
- High strength spiral steel pipe and metal woven net for crush resistance
- Black OFNR jacket
Applications
- Indoor/Outdoor cable for installation in harsh environments or portable applications
- Fibre backbones in riser and horizontal configurations
Specifications
Max. Tension (N)
Long Term
300
Short Term
750
Max. Crushing Resistance (N/100mm)
Long Term
500
Short Term
1000
Min. Bending Radius
Long Term
30D (Dynamic)
Short Term
15D (Static)
Storage & Operating Temperature
Temperature
-40°C - 80°C
