Legrand MLTOS224 OS2 Cable - 24F - Blue

Mini Loose - Indoor / Outdoor

PB Tech price
PB Tech price
$ 7 .51
 +GST
$ 8 .64
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

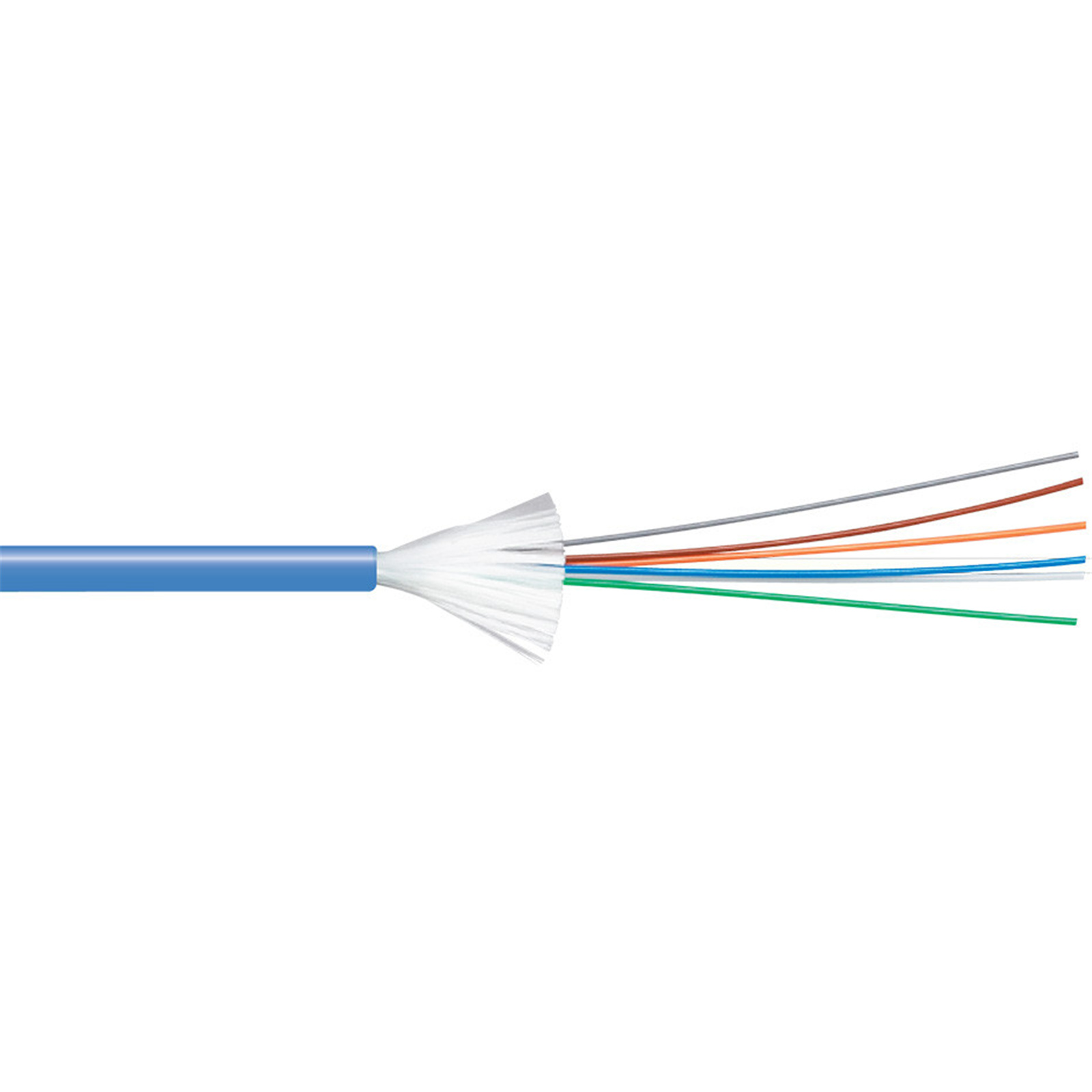

Legrand MLTOS224 OS2 Cable - 24F - Blue

Mini Loose - Indoor / Outdoor

  • Brand: Legrand
  • MPN: MLTOS224
  • Part #: CABLGD1890
  • UPC:
PB Tech price
$ 7 .51 $ 8 .64
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: Legrand
  • MPN: MLTOS224
  • Part #: CABLGD1890
  • UPC:

Cable Length

Not Specified

Colour

Blue

Connector 1

N/A

Connector 2

N/A

Braided

No

HDMI Version

N/A

Features

Legrand MLTOS224 OS2 Mini Loose 24 Fibre In-Out Blue Sheath

This loose tube dielectric optical cable is designed for external underground installations in (micro) ducts by pulling, blowing or floating techniques or by direct burial in open-cut trenches. Polyamide provides anti-termite protection. Optimised for blowing into mini ducts of 10 mm diameter.

- IEC 60794-5
- Multi-loose tube construction - Single layer 2 to 48 fibres
- Central strength member (CSM): Glass fibre reinforced plastic material (GRP) with over-sheathing
- Tube: Thermoplastic material, containing up to 12 optical fibres filled with a low viscosity, thixotropic, non-melting gel fully compatible with fibre coating and tube material
- Stranding: The required numbers of elements (tubes and filters) are SZ stranded around the central strength member
- Longitudinal water tightness: Water swellable elements (dry-core)
- Sheath: UV stabilised polyethylene in compliance with AS 1049. Two ripcords provided beneath the sheath for easy removal
- Outer jacket: UV stabilised polyamide (Nylon) in compliance with AS1049 integrally bonded to PE sheath

Specifications

Product Type

Fibre Cable

Brand

Legrand

Number of fibres

24

Number of elements

6

Tube/ Filler diameter

1.55 mm

Cable Nominal diameter

6.3 mm

Cable Nominal weight

33 kg/km

Max. Installation tension

1.0 kN

Max. Crush resistance

2.0 kN/100 mm

Min. Bending Radius At full load

130 mm or at no load 65 mm

Temperature range

Installation: 0°C to +50°C
Transport & Storage: -20°C to +70°C
Operation: -10°C to +70°C

Manufacturer Part No:
MLTOS224
Brand:
Product Type:
Cable
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
CABLGD1890
Product Model:
MLTOS224
Warranty: 12 months *
