StarTech.com SV231DPUCA 4K USB C KVM Switch 2 Port DisplayPort
StarTech.com SV231DPUCA 4K USB C KVM Switch 2 Port DisplayPort
- Brand: StarTech.com
- MPN: SV231DPUCA
- Part #: CABSTT5677040
- UPC:
- Brand: StarTech.com
- MPN: SV231DPUCA
- Part #: CABSTT5677040
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular KVM Desktop Switches
StarTech.com SV231DPUCA 4K USB C KVM Switch 2 Port DisplayPort
- Brand: StarTech.com
- MPN: SV231DPUCA
- Part #: CABSTT5677040
Product URL: https://www.pbtech.co.nz/product/CABSTT5677040/StarTechcom-SV231DPUCA-4K-USB-C-KVM-Switch-2-Port
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

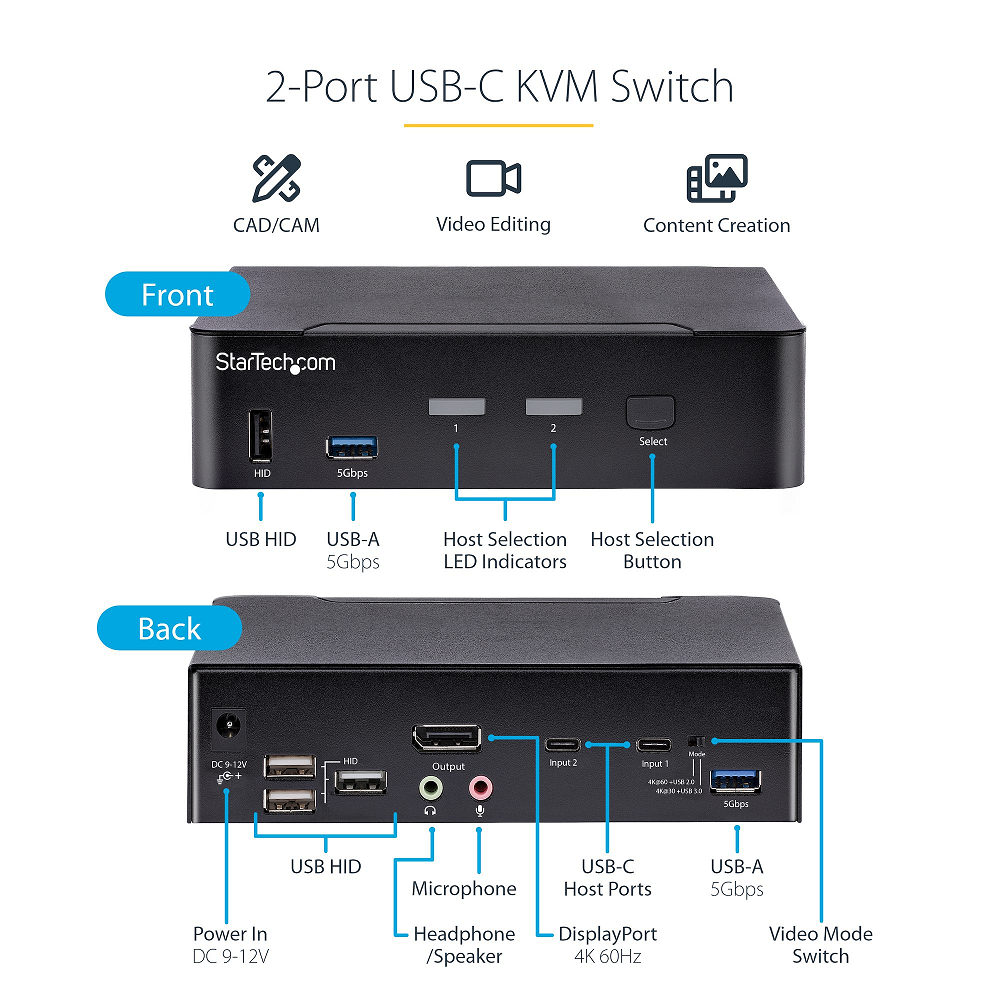

2-Port USB-C KVM Switch
- USB-C DP Alt Mode: Single USB-C cable shares monitor, mouse, keyboard, and peripherals; supports up to 4K 60Hz and 5 Gbps USB transfer.
- 4K 60Hz with HDR: Supports 4K 60Hz (4:4:4) and up to 5120×1440 resolution; includes 6 × USB-A 480Mbps ports.
- Maximize performance: Switch between 4K 60Hz with USB 2.0 or 4K 30Hz with two 5Gbps ports using rear mode switch.
- Analog & digital audio: Supports 2-channel audio output and microphone input via 3.5mm or USB-C; audio profiles toggle via hotkey.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control
The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
Applications
- Share a monitor, mouse, keyboard, and peripherals using a single USB-C cable per host
- Great for applications like CAD/CAM, video editing, and content creation

Specifications
Connector(s)
Console Interface(s)
1 - 20 pin DisplayPort Female
2 - 9 pin USB 3.0 A Female
4 - USB Type-A (4 pin; HID Port) USB 1.1
2 - 3.5 mm Stereo Audio (3 Position) Female
Host Connectors
2 - USB-C (24 pin) DisplayPort Alt Mode
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB-C
PC Video Type
USB-C (DP Alt-Mode)
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
No
Chipset ID
Parade - PS8461
Etron - EJ899I
Daisy-Chain
No
Indicators
LED Indicators
2 - Red (Selected Host)
2 - Green (Power/Sync)
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.2A
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Software
OS Compatibility
No software or drivers required
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
5 Gbps
Wide Screen Supported
Yes
Audio Specifications
Analog Stereo - 2 Channel Audio
Auto Scan
3, 8, 15 & 30 seconds
Port Selection Support
Push Button and Hotkeys
MTBF
158,000 hrs
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Humidity
0 ~ 80% RH
