Features

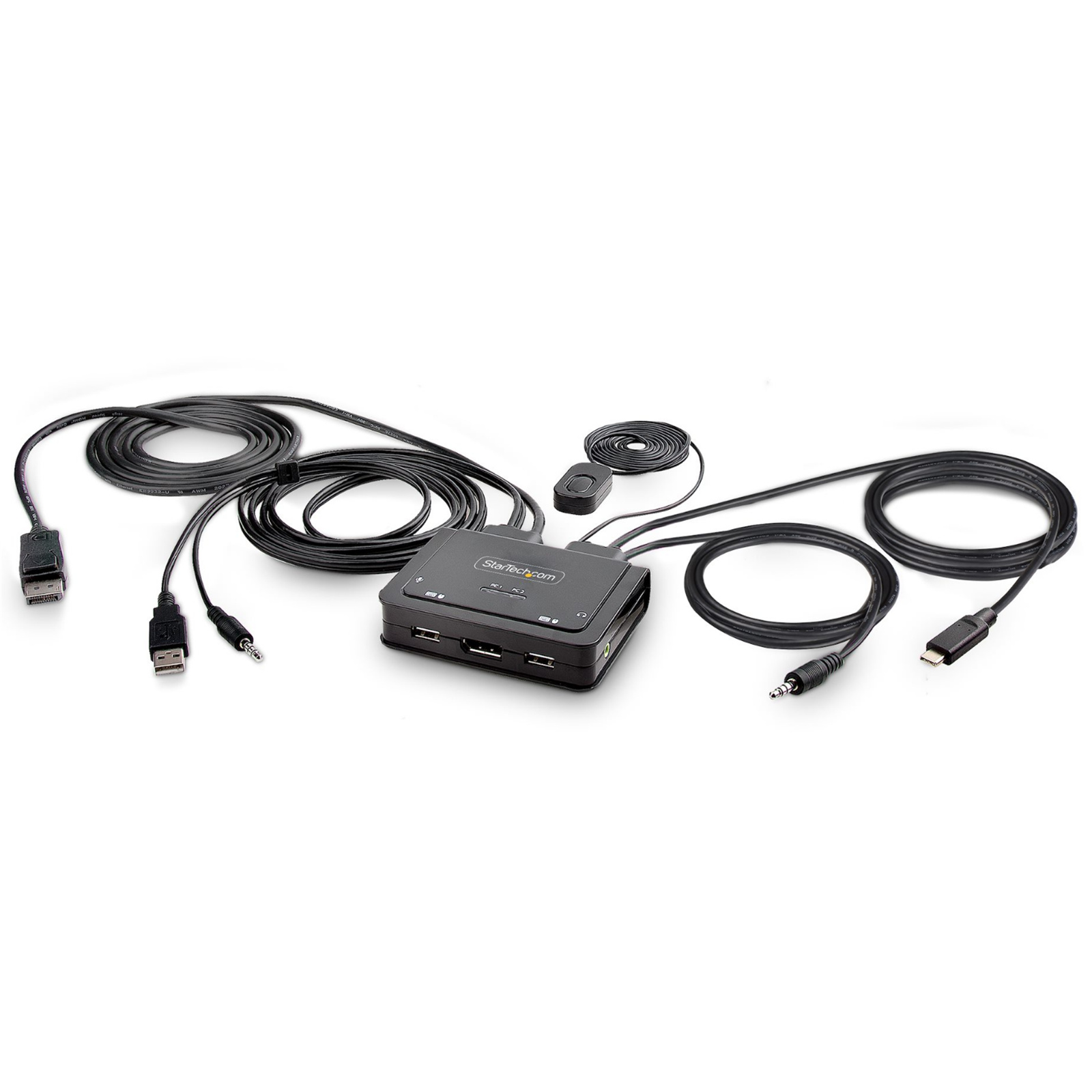

2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered - Remote Push Button/Hotkey Switching
- 4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/DisplayPort desktop and a USB-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor
- READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, DisplayPort, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2
- COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4
- SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
This Hybrid KVM Switch enables users to switch between a USB Type-A and DisplayPort-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor.
Hassle-Free Setup
The KVM switch is bus powered and features built-in DisplayPort, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
Specifications
Connector(s)
Console Interface(s)
1 - DisplayPort
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - 3.5mm Stereo Female 3 pos
Host Connectors
1 - USB-C (DP Alt-Mode)
2 - 3.5mm Stereo Male 4 pos
1 - DisplayPort
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 90% RH (non-condensing)
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB & USB-C
PC Video Type
DisplayPort
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
Yes
Chipset ID
SN8P2202SG
Daisy-Chain
No
Indicators
LED Indicators
1 - Solid Green: Selected PC is connected
1 - Blinking Green: Selected PC is not detected
Packaging Information
Package Quantity
1
Package Length
8.3 in [21.0 cm]
Package Width
6.3 in [16.0 cm]
Package Height
2.4 in [6.0 cm]
Shipping (Package) Weight
15.9 oz [450.0 g]
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
480Mbps (USB 2.0)
Supported Resolutions
4096x2160 @60Hz
3840x2160 @60Hz
5120x1440 @60Hz
3440x1440 @60Hz
2560x1440 @60Hz
2560x1080 @60Hz
1920x1200 @60Hz
1920x1080 @60Hz
Other resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
10, 20, 30, 40, 50, and 60 seconds
Port Selection Support
Push Button, Hotkeys, and Software
General Specifications
PC1 Cable Length (USB-C/Audio): 1.2m/4ft
PC2 Cable Length (USB-A/DisplayPort/Audio): 1.8m/6ft
MTBF
261,196 Hours
Physical Characteristics
Color
Black
Product Length
3.7 in [9.5 cm]
Product Width
3.1 in [8.0 cm]
Product Height
0.9 in [2.4 cm]
Weight of Product
13.4 oz [380.0 g]
Material
ABS
Power
Power Source
Bus Powered
Input Voltage
5V DC
Software
OS Compatibility
Windows 7, 8/8.1, 10, 10 ARM. 11, 11 ARM
macOS 10.12 - 10.15, 11, 12
ChromeOS
