Ubiquiti UniFi Cat6 10GbE 23AWG CMP Indoor Ethernet Cable - 305m, White

PB Tech price
PB Tech price
$ 677 .46
 +GST
$ 779 .08
 inc GST

Out of stock

Ubiquiti UniFi Cat6 10GbE 23AWG CMP Indoor Ethernet Cable - 305m, White

  • Brand: Ubiquiti
  • MPN: U-Cable-C6-CMP
  • Part #: CABUBI610194
  • UPC:
PB Tech price
$ 677 .46 $ 779 .08
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Ubiquiti
  • MPN: U-Cable-C6-CMP
  • Part #: CABUBI610194
  • UPC:

Cable Length

305m

Colour

White

Connector 1

N/A

Connector 2

N/A

Braided

N/A

HDMI Version

N/A

Features

The UniFi Box Cable Cat6 CMP is a premium-grade, Category 6 UTP bulk cable, supplied on a 305 m (1,000 ft) spool and tailored for high-speed indoor networking that requires strict fire safety standards. Its plenum-rated (CMP) low-smoke PVC jacket complies with NFPA 262, making it suitable for use in building air plenums where fire-rated materials are essential

Inside, the cable carries 23 AWG solid bare copper conductors paired with an anti-crosstalk divider, allowing it to reliably support Gigabit Ethernet (1000BASE-T) and offer bandwidths up to 600 MHz, while maintaining signal quality over long runs. With a jacket diameter of approximately 5.6 mm, and a minimal bend radius of 22.4 mm, it's designed for efficient routing in structured cabling setups.

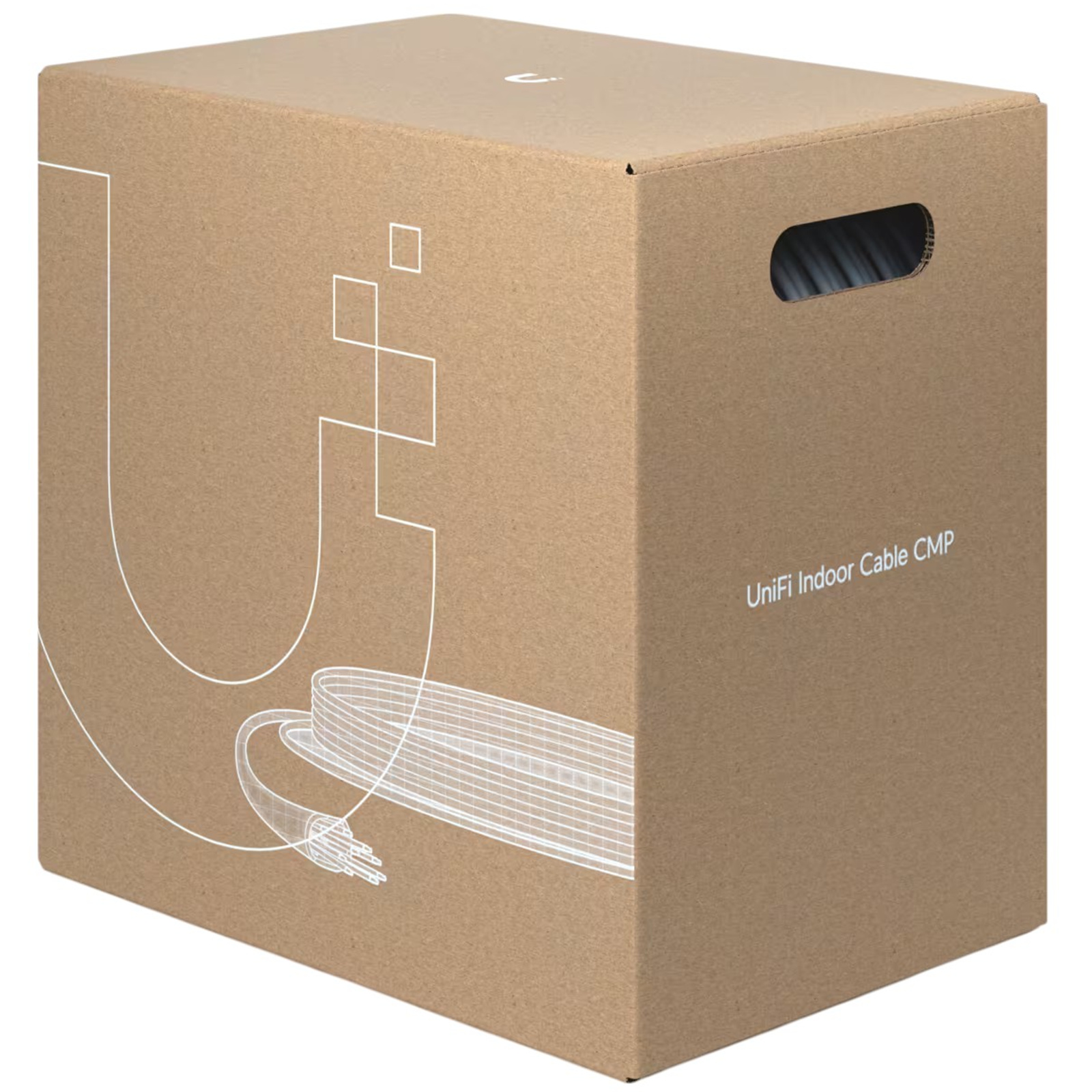

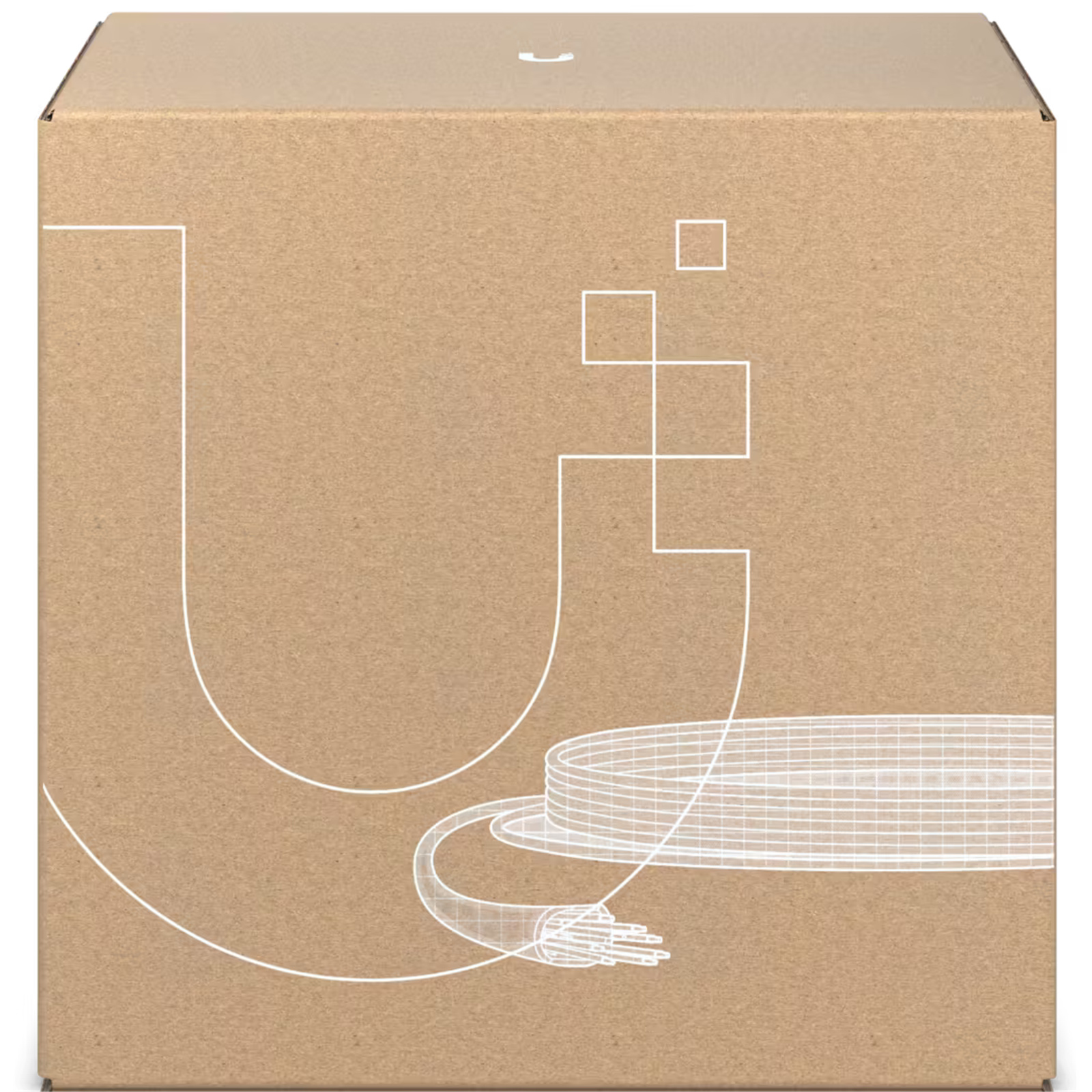

The spool measures 474 x 346 x 458 mm and weighs around 14.8 kg, offering a manageable size for professional installers. Other noteworthy features include a built-in ripcord for easy jacket removal, a maximum pulling tension of 110 N, and compliance with multiple global standards such as ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, UL 444, CSA 22.2 No. 214, RoHS2, and LVD.

- Cat 6 performance with 1 Gbps data rate and bandwidth up to 600 MHz
- Plenum-rated (CMP) for installation in air-handling spaces
- 23 AWG solid copper with anti-crosstalk divider for signal integrity
- Low-smoke flame-retardant PVC jacket, 5.6 mm diameter, 22.4 mm min bend radius
- 305 m spool size (474 x 346 x 458 mm, 14.8 kg) with easy-strip ripcord
- Robust standards compliance and safe pulling limit (110 N)

Specifications

Length

305 m (1,000 ft)

Type

Category 6

Flame Rating

CMP

Shielding Type

UTP

Conductor Type

Solid bare copper

Conductor Wire Gauge

23 AWG

Box Dimensions

474 x 346 x 458 mm (18.7 x 13.6 x 18")

Color

White

Box Weight

14.8 kg (32.5 lb)

Jacket Diameter

5.6 ± 0.2 mm

Jacket Material

Low smoke flame retardant PVC

Bend Radius

Min. 22.4 mm

Pulling Tension

Max. 110 N

Reference Bandwith

Up to 600 MHz

Anti-Crosstalk Divider

Yes

Ripcord

Yes

Standards

Electrical transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)

Flame test:
NFPA 262 (CMP)

Material and construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)

Installation Temperature

0 to 60°C (32 to 140°F)

Ambient Storage Temperature

-20 to 75°C (-4 to 167°F)

Ambient Operating Temperature

20 to 60°C (-4 to 140°F)

Manufacturer Part No:
U-Cable-C6-CMP
Brand:
Product Type:
-
UPC
-
Product Family:
UniFi
Shipping Weight:
0.2 kg
PB Part No:
CABUBI610194
Product Model:
Cat6 10GbE 23AWG CMP Indoor Ethernet Cable - 305m, White
Warranty: 60 months *
