Ubiquiti UniFi Cat6 10GbE 23AWG CMR Indoor Ethernet Cable - 305m, White

PB Tech price
PB Tech price
$ 401 .46
 +GST
$ 461 .68
 inc GST

Out of stock

Ubiquiti UniFi Cat6 10GbE 23AWG CMR Indoor Ethernet Cable - 305m, White

  • Brand: Ubiquiti
  • MPN: U-Cable-C6-CMR
  • Part #: CABUBI610195
  • UPC:
PB Tech price
$ 401 .46 $ 461 .68
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Ubiquiti
  • MPN: U-Cable-C6-CMR
  • Part #: CABUBI610195
  • UPC:

Cable Length

305m

Colour

White

Connector 1

N/A

Connector 2

N/A

Braided

N/A

HDMI Version

N/A

Product is out of stock. View similar products in-stock at PB Tech

Features

The U-Cable-C6-CMR is Ubiquiti's premium indoor networking cable, shipped on a 305 m (1,000 ft) spool, and engineered for high-speed, reliable data performance. Classified as Category 6 Unshielded Twisted Pair (UTP), it supports data transmission speeds up to 10 Gigabit Ethernet, making it ideal for backbone links, access point runs, or any scenario demanding robust network throughput.

Constructed using 23 AWG solid bare copper conductors with an anti-crosstalk divider, the cable delivers clean signal transmission with reduced interference and crosstalk. The conductor bundle is encased in a PVC jacket measuring approximately 6.0 ± 0.2 mm in diameter, yielding excellent handling and durability.

Rated CMR (Communications Multipurpose Riser), the cable meets UL 1666 standards for vertical fire safety, making it suitable for riser shafts and in-wall installations-not plenum spaces. It offers a minimum bend radius of 24 mm, a maximum pulling tension of 110 N, overfill capacity of 600 MHz bandwidth, and is built to operate in temperatures from 0 °C to 60 °C, with storage ranging from -20 °C to 75 °C.

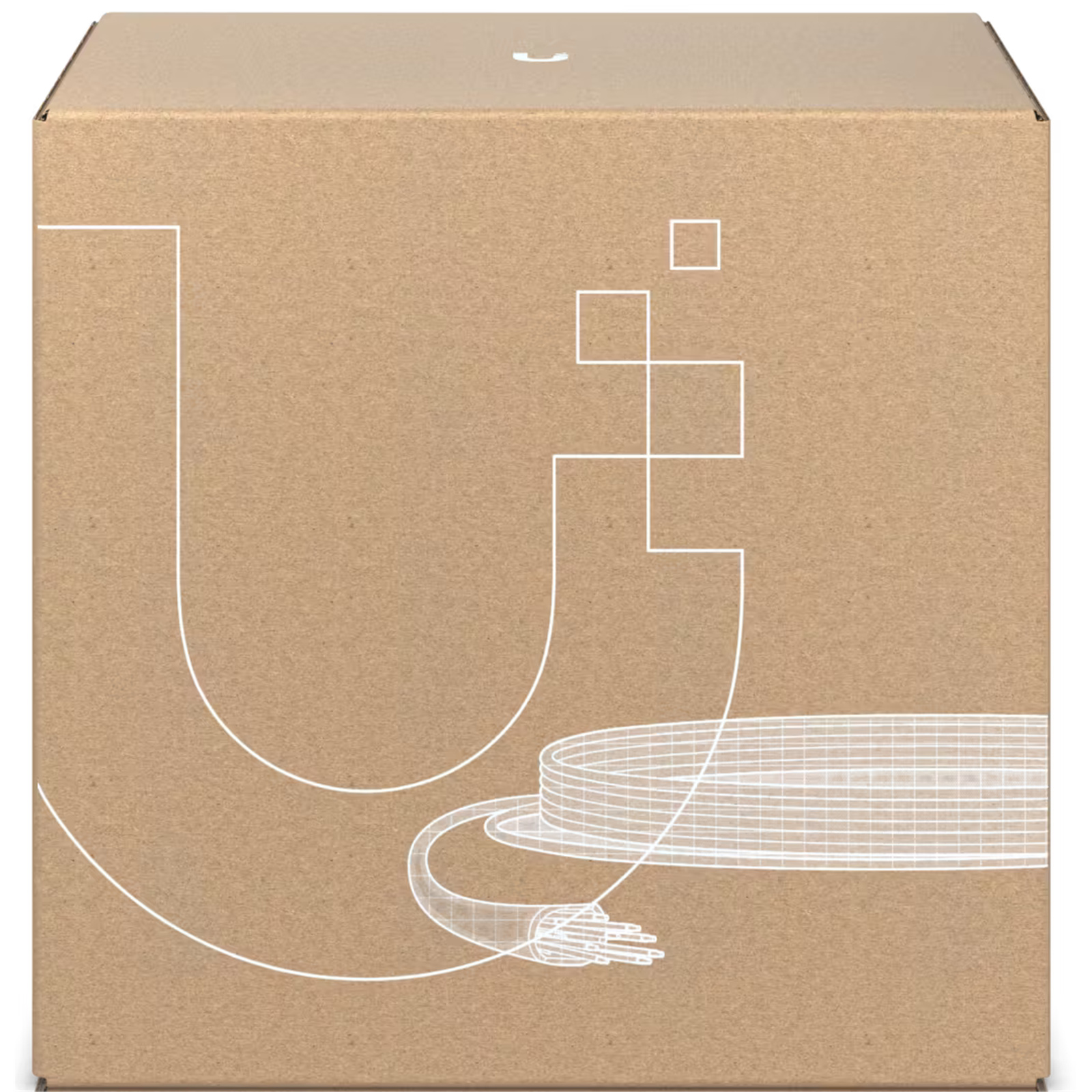

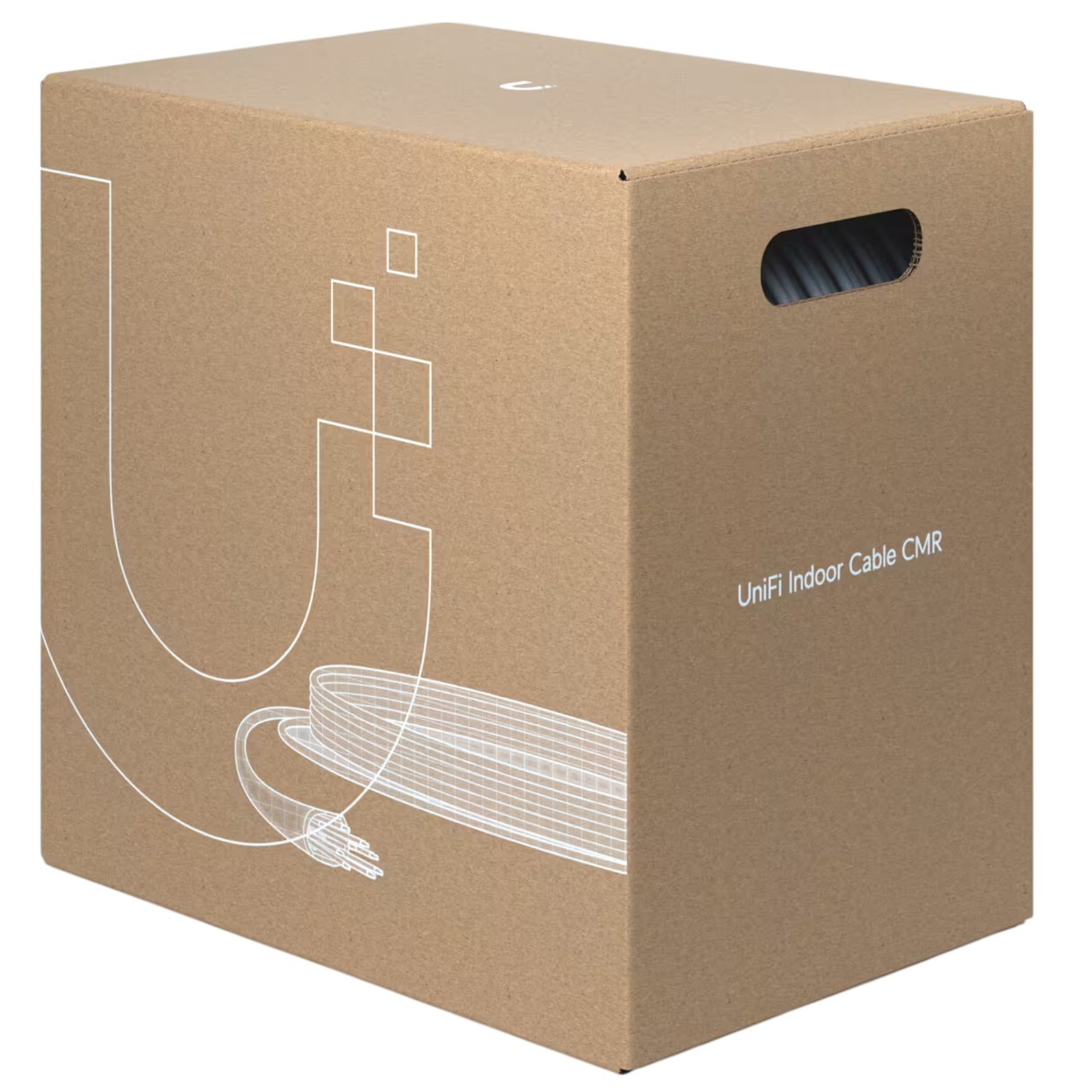

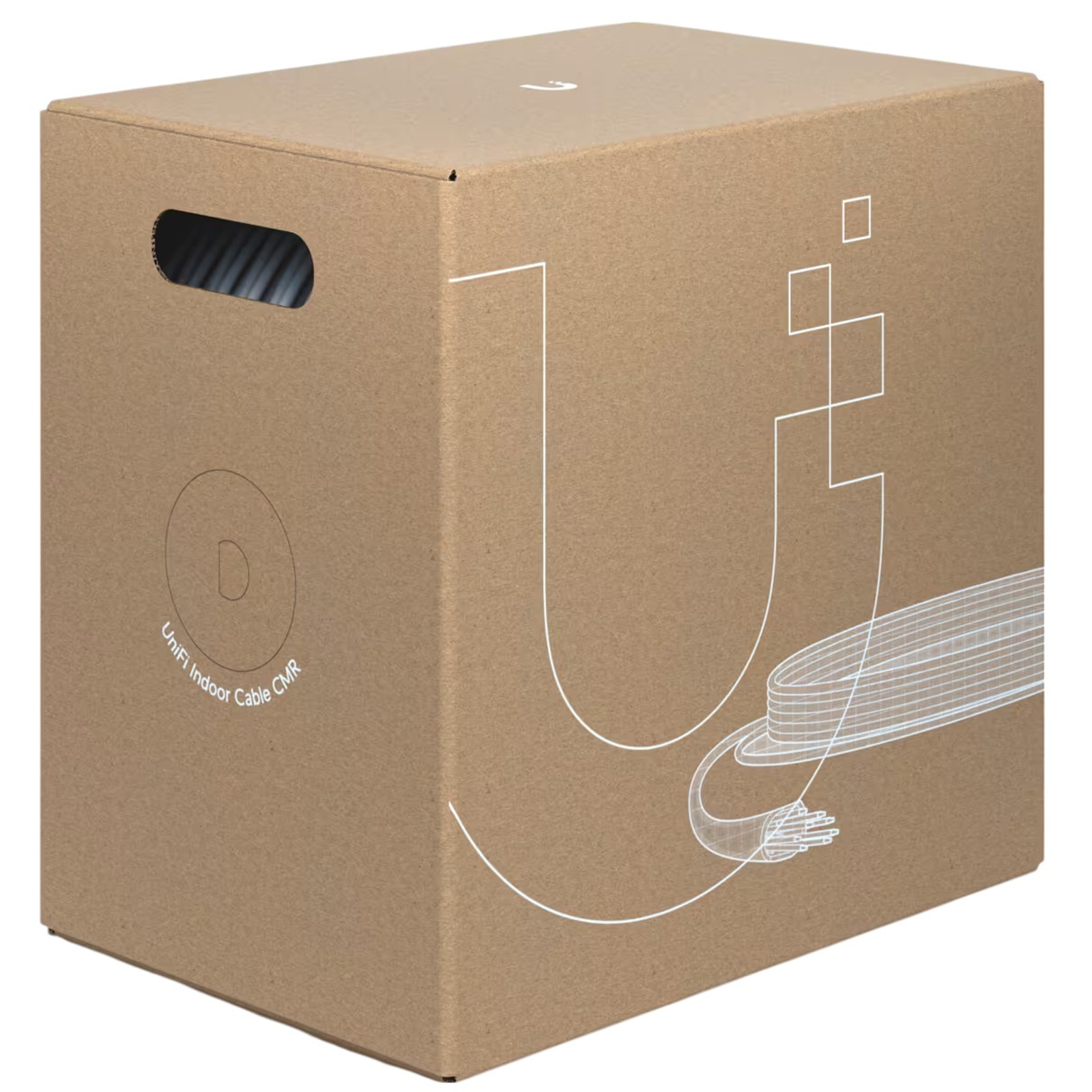

The spool carton, measuring 474 x 346 x 458 mm and weighing around 14.8 kg, includes a convenient ripcord to simplify jacket removal and streamline on-site termination.

Engineered for professional-grade network environments-such as structured cabling systems, home automation backbones, and enterprise backbone runs-the U-Cable-C6-CMR combines solid Cat 6 performance, riser safety, and installation-friendly features in a single product.

- Cable length 305 m
- Anti-crosstalk divider
- Riser (CMR)-rated, fire-resistant jacket
- Category 6 UTP communications multipurpose cable

Specifications

Length

305 m (1,000 ft)

Type

Category 6

Flame Rating

CMR

Shielding Type

UTP

Conductor Type

Solid bare copper

Conductor Wire Gauge

23 AWG

Box Dimensions

474 x 346 x 458 mm (18.7 x 13.6 x 18")

Color

White

Box Weight

14.8 kg (32.7 lb)

Jacket Diameter

6.0 ± 0.2 mm

Jacket Material

PVC

Bend Radius

Min. 24 mm

Pulling Tension

Max. 110 N

Reference Bandwith

Up to 600 MHz

Anti-Crosstalk Divider

Yes

Ripcord

Yes

Standards

Electrical transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)

Flame test:
UL 1666 (CMR)

Material and construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)

Installation Temperature

0 to 60°C (32 to 140°F)

Ambient Storage Temperature

-20 to 75°C (-4 to 167°F)

Ambient Operating Temperature

-20 to 60°C (-4 to 140°F)

Manufacturer Part No:
U-Cable-C6-CMR
Brand:
Product Type:
-
UPC
-
Product Family:
UniFi
Shipping Weight:
0.2 kg
PB Part No:
CABUBI610195
Product Model:
Cat6 10GbE 23AWG CMR Indoor Ethernet Cable - 305m, White
