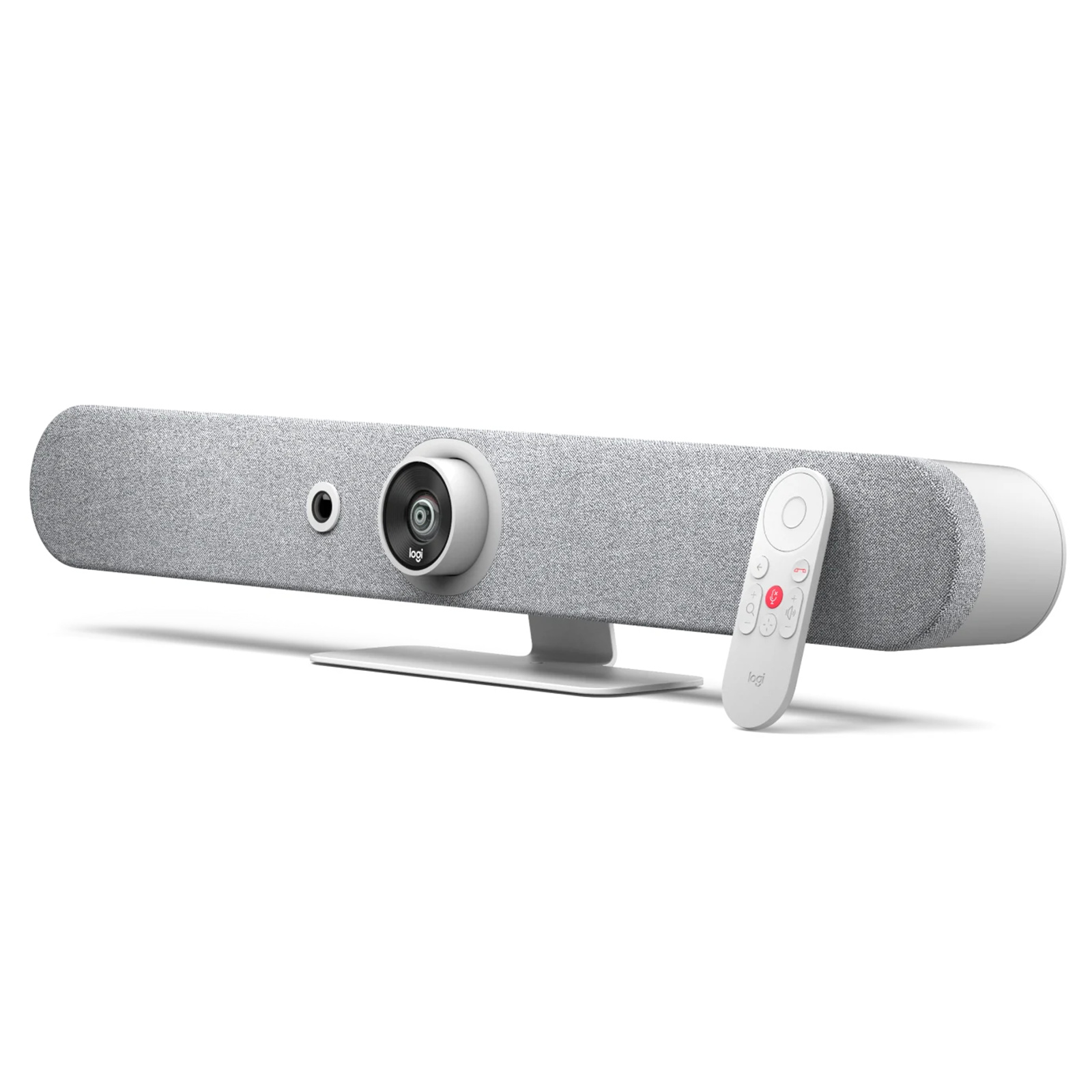

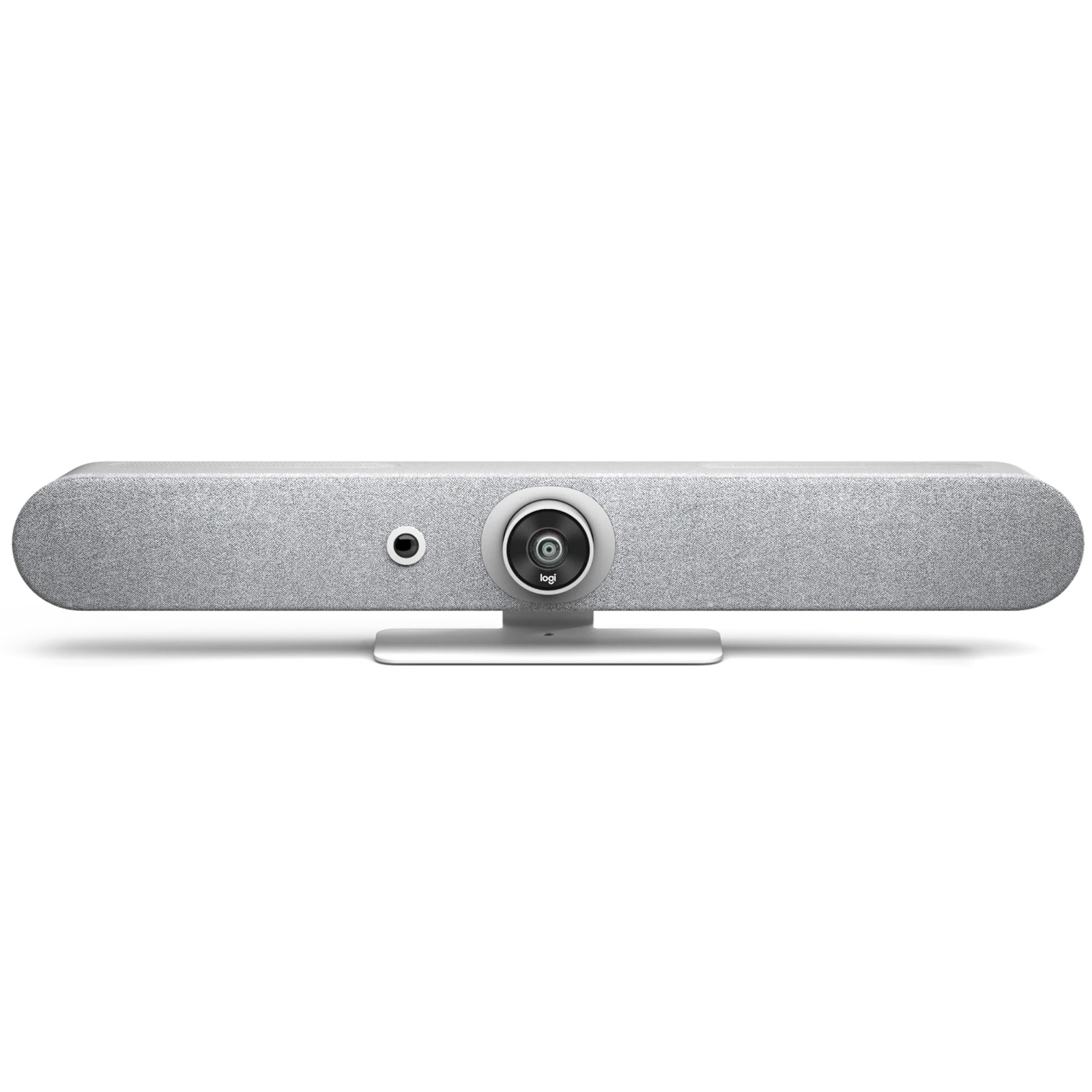

Logitech Rally Bar Mini 4K PTZ All-in-one Conference Video Bar, White - FOV 120°, 4x Zoom, Microphone Range up to 7M
Out of stock
Logitech Rally Bar Mini 4K PTZ All-in-one Conference Video Bar, White - FOV 120°, 4x Zoom, Microphone Range up to 7M
- Brand: Logitech
- MPN: 960-001355
- Part #: CAMLOG5230211
- UPC: 097855162281
- Brand: Logitech
- MPN: 960-001355
- Part #: CAMLOG5230211
- UPC: 097855162281
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Meeting Room BYOD





Logitech Rally Bar Mini 4K PTZ All-in-one Conference Video Bar, White - FOV 120°, 4x Zoom, Microphone Range up to 7M
- Brand: Logitech
- MPN: 960-001355
- Part #: CAMLOG5230211
- UPC:097855162281

Product URL: https://www.pbtech.co.nz/product/CAMLOG5230211/Logitech-Rally-Bar-Mini-4K-PTZ-All-in-one-Conferen
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
ALL-IN-ONE VIDEO BAR FOR SMALL AND MEDIUM ROOMS
Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics, AI-driven audio enhancements, seamless remote management through Logitech Sync, and additional advanced features.
EXPAND THE CONVERSATION
Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.
EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.
MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.
CERTIFIED FOR BUSINESS
Leverage the video conferencing platforms and features you already use. Rally Bar Mini is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.
A CHOICE YOU WILL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.
MADE WITH RECYCLED PLASTIC
The plastic parts in the Graphite version of Rally Bar Mini include 36% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.*
*Excludes cables, PWA, and packaging. Measured by weight.
Specifications
Dimensions
Height: 91.4 mm
Width: 719 mm
Depth: 101 mm
Lens Depth: 18.5 mm
Weight: 4.03 kgs
Technical Specifications
Certifications & Compatibility
For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
Microsoft Teams Rooms on Android*
Microsoft Teams Rooms on Windows*
*For small sized rooms
General Specifications
Built-in Components
6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure
All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management
Logitech Sync
Displays Supported
2
Display Resolution
Up to 1080p
Network Protocol Support
IPv4, IPv6
Proxy Support
IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan
Motorized ±25°
Tilt
Motorized ±15°
Zoom
4X HD digital zoom
Diagonal Field of View
120°
Horizontal Field of View
113°
Vertical Field of View
80.7°
Total Room Coverage (field of view + pan and tilt)
163° horizontal x 110° vertical
Woofer Speaker
Driver
70 mm
Sensitivity
92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power
8W
THD
1kHz < 2% at 1W
Speaker Sampling Rate
48KHz
Impedance
4 Ohms
Midrange Speakers
Drivers
2 x 43mm
Sensitivity
84 dB SPL @ 1W/1M
Rated Power
4W
THD
1kHz < 2% at 1W
Speaker Sampling Rate
48KHz
Impedance
4 Ohms
Microphones
Frequency Response
90Hz - 16kHz
Sensitivity
>-36dBFS +/-1 dB @ 1Pa
Microphone data rate output
48 kHz
Pickup Range
Up to 7 m
Beamforming Elements
6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression
AI based de-noising algorithm
Add-on Mics
Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight
Renders natural skin tones for each participant
RightSight
Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound
Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View
Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out
2 (up to 1080p)
HDMI In
1
USB
3x Type A, 1x Type C
Network
10/100/1G Ethernet
WiFi
802.11a/b/g/n/ac
External Mic Input
Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control
Bluetooth® Low Energy
Power & Cables
Power supply
Auto-sensing
Operating Voltage/Power
100-240V, 19V, 4.74A
Power Supply Dimensions
127 mm x 51 mm x 30 mm
DC Cable
1.5 m
AC Cable
1 m
HDMI 1.4 Cable
2 m
USB A to USB C 3.0 Cable
2.2 m
Environmental
Operating Temperature
0 to 40°C
Storage Temperature
-40 to 70°C
Humidity
10 to 95%
BTU/hr
57 idle, 64 in meeting
Security
Full Disk Encryption
AES-128
Data Encryption
Symmetric Keys, PKI
Device Identity
Protected by device attestation
Device Access
Authenticated using API
Key Protection
Arm TrustZone, RPMP
Accessories
Mounts
Wall Mount for Video Bars, TV Mount for Video Bars
Audio
Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity
Logitech Strong USB (10m, 25m, 45m)
Touch Controller
Logitech Tap and Tap IP*
*Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
Other
Compatibility
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software license (not included)
In the Box
Rally Bar Mini
Power supply
AC power cord
HDMI cable
USB cable
Remote control

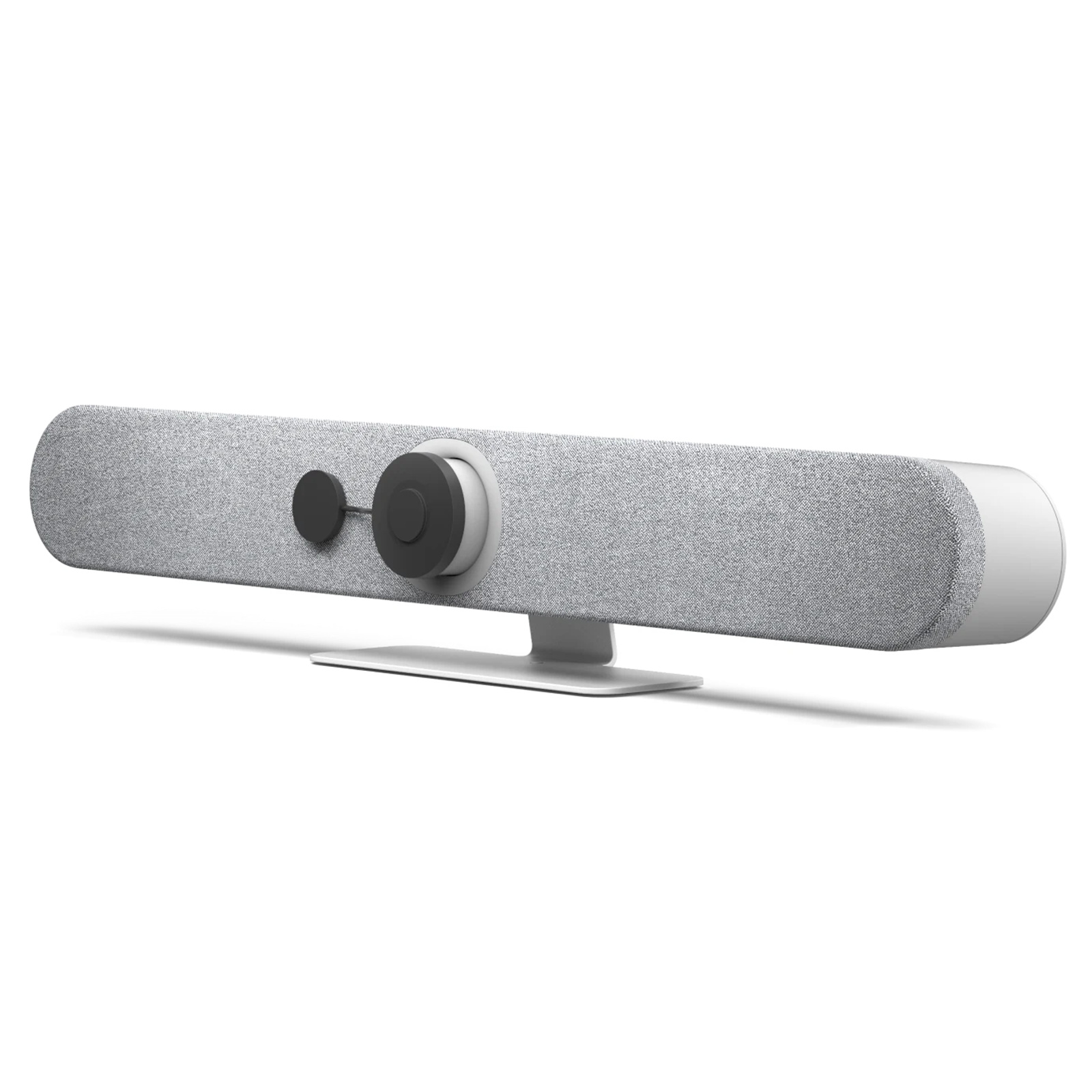

Lens caps for main lens and AI Viewfinder
User documentation
