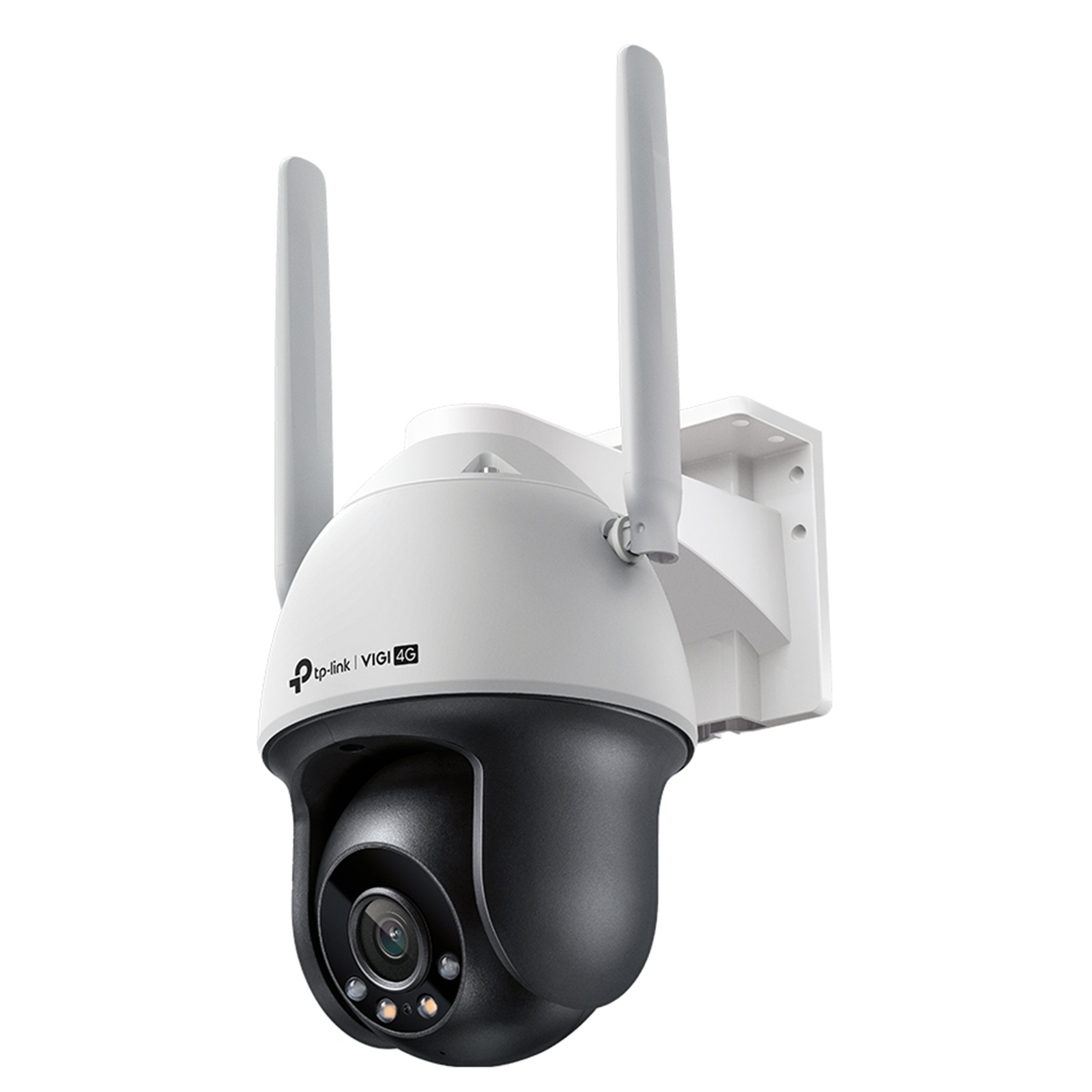

TP-Link VIGI C540-4G(4mm), VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
TP-Link VIGI C540-4G(4mm), VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
- Brand: TP-Link
- MPN: VIGI C540-4G(4mm)
- Part #: CAMTPL0219
- UPC:
- Brand: TP-Link
- MPN: VIGI C540-4G(4mm)
- Part #: CAMTPL0219
- UPC:
Features
VIGI 4MP Outdoor Full-Color 4GPan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*
Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
IP66 Weatherproof
Reliable IP66 enables stable outdoor performance.
Flexible Storage
Local storage is available for each method, and an SD card slot (up to 256 GB) offers onboard storage.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Hardwired Articles
Popular Wire Free Cameras
Eufy eufyCam 2C Pro Wire-Free Security Camera Kit - 2 Pack, 2K,...
Eufy Security eufyCam 3 (S330) Wire-Free Security Camera Kit - 4...
Eufy Security eufyCam 3 (S330) Wire-Free Security Camera Kit - 2...
Reolink Argus 3 Pro 4MP/2K+ Wire-Free Smart Security Camera with...
Eufy eufyCam 2C Pro Wire-Free Security Camera Kit - 3 Pack, 2K,...
TP-Link VIGI C540-4G(4mm), VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
- Brand: TP-Link
- MPN: VIGI C540-4G(4mm)
- Part #: CAMTPL0219
Product URL: https://www.pbtech.co.nz/product/CAMTPL0219/TP-Link-VIGI-C540-4G4mm-VIGI-4MP-Outdoor-Full-Colo
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
VIGI 4MP Outdoor Full-Color 4GPan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*
Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
IP66 Weatherproof
Reliable IP66 enables stable outdoor performance.
Flexible Storage
Local storage is available for each method, and an SD card slot (up to 256 GB) offers onboard storage.
Specifications
CAMERA
Image Sensor
1/3.06" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
4 mm
Aperture
F1.6
FOV
Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount
M12*0.5
DORI Distance
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
PTZ
Pan/tilt Range
Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed
- Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s
- Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed
Configurable from 8° to 35°/s
Presets
300
Patrol Scan
8 patrols, up to 8 presets for each patrol
Power-off Memory
Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action
Yes;
Preset; Patrol Scan
3D Positioning
Yes
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 348°
Tilt: 0° to 120°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m;
Wavelength: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2560 X 1440
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure, WDR,
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
- Rotation (90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Yes
Audio Output
Yes
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
ONVIF
Simultaneous Live View
2 Main Streams & 2 Sub-Streams
Client
VIGI App, VIGI Security Manager, Web UI
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard
LTE-TDD/LTE-FDD/WCDMA
SIM Type
Nano SIM
Category
4
Frequency
LTE-FDD: B 1/3/5/7/8/20/28
LTE-TDD: B 38/40/41
WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
Smart Event
- Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- People Detection
- Vehicle Detection
Basic Event
- Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
Alarm Linkage
- Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
Linkage Method
N/A
Output Notification
Message Push
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Nano-SIM Card Slot
Yes
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
Audio
N/A
GENERAL
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Power Adapter
Material
Plastic
Net Weight
0.69 Kg
Gross Weight
1.16 Kg
Power Supply
12V DC/1A, 5.5mm Coaxial Power Plug
Antenna
Quantity: 2
- Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna
- Gain:
Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection
IP66
Product Dimensions (L x W x H)
120 × 182 × 201 mm (excluding antennas)
