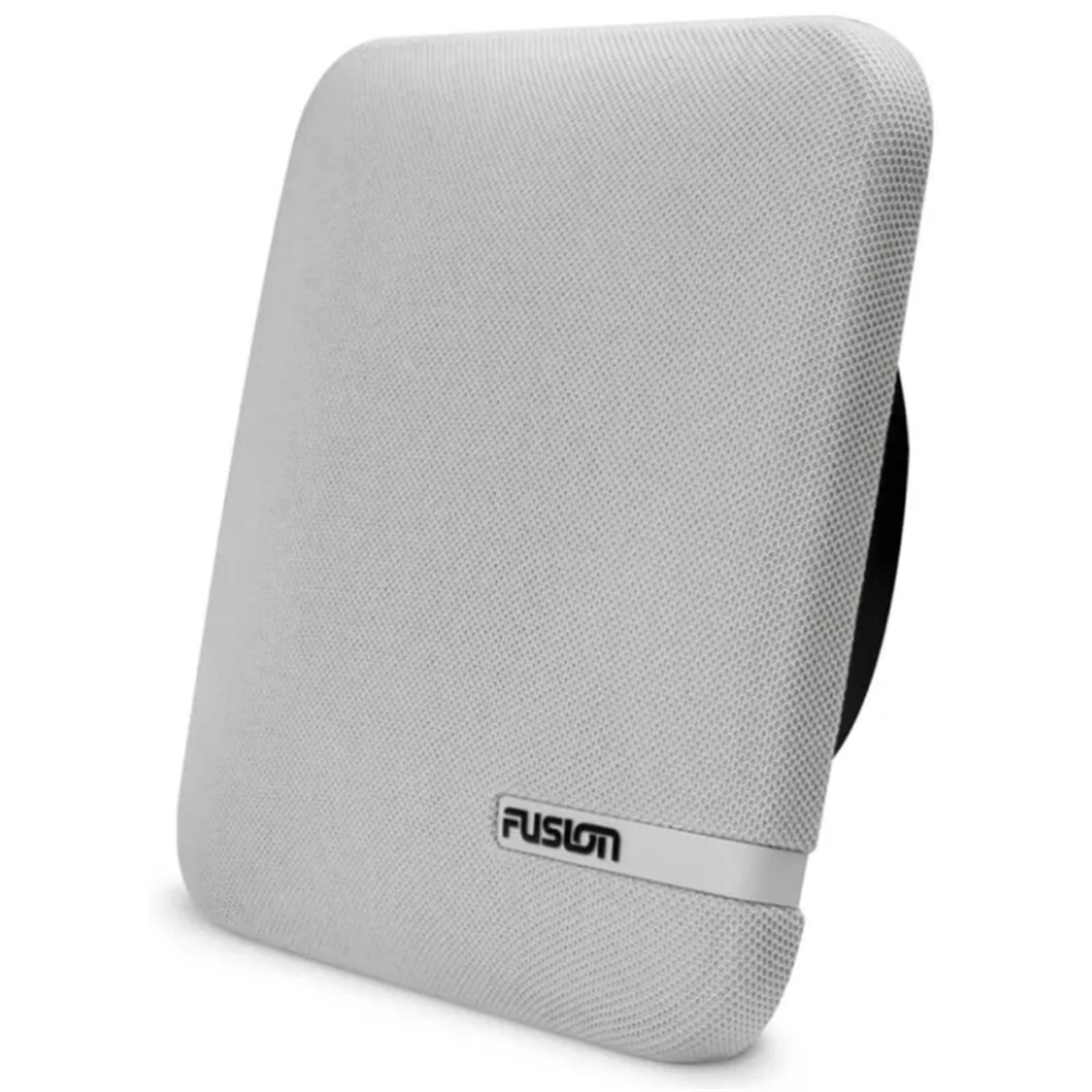

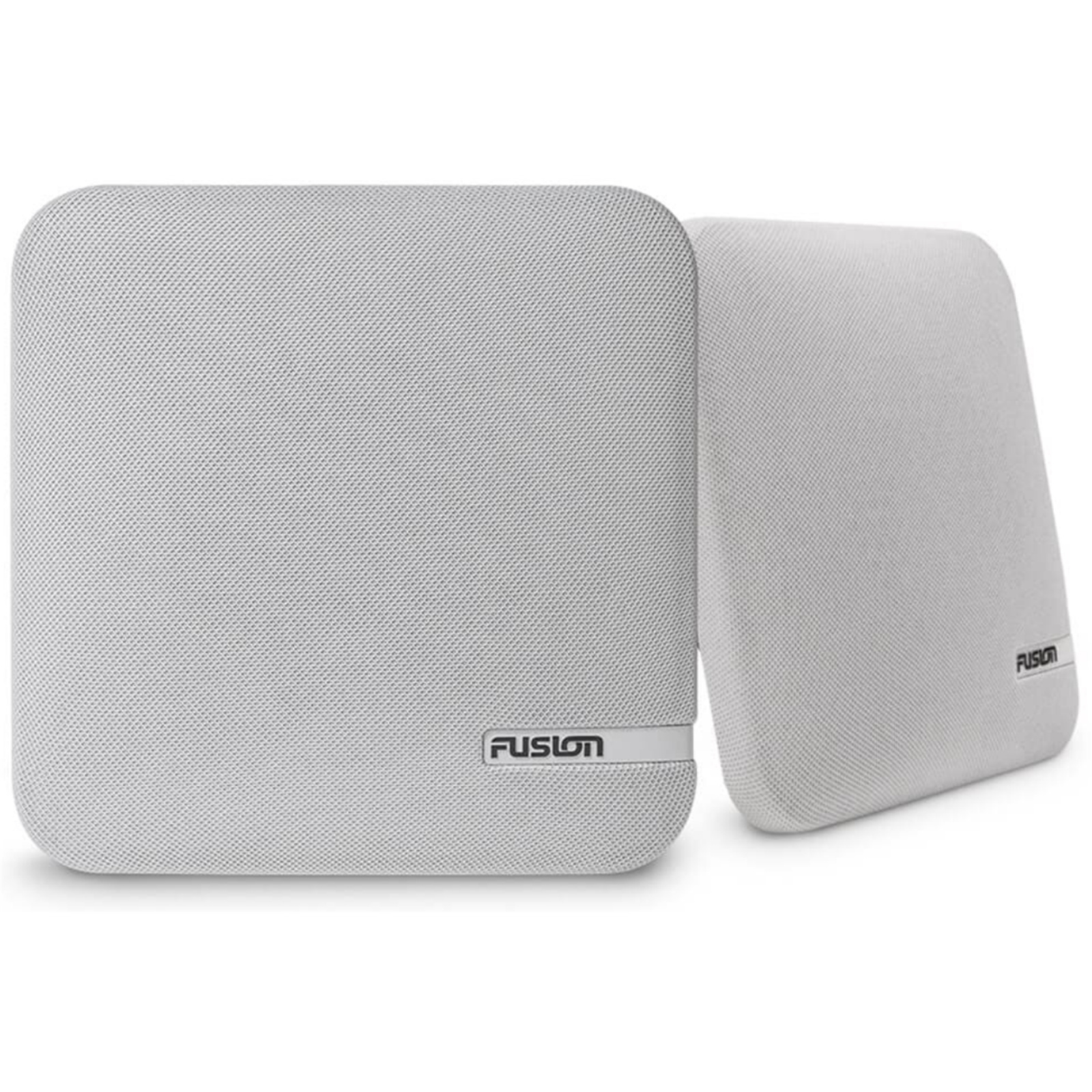

FUSION SM-F65CW Shallow Mount Speaker 6.5"- Cloth White
Out of stock
FUSION SM-F65CW Shallow Mount Speaker 6.5"- Cloth White
- Brand: FUSION
- MPN: 010-02263-10
- Part #: CARFSN1119
- UPC:
- Brand: FUSION
- MPN: 010-02263-10
- Part #: CARFSN1119
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Speakers
FUSION SM-F65CW Shallow Mount Speaker 6.5"- Cloth White
- Brand: FUSION
- MPN: 010-02263-10
- Part #: CARFSN1119
Product URL: https://www.pbtech.co.nz/product/CARFSN1119/FUSION-SM-F65CW-Shallow-Mount-Speaker-65--Cloth-Wh
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
OPTIMISED QUALITY AUDIO REPRODUCTION
The Fusion SM Series shallow mount speakers are designed for installations where mounting depth is limited, without compromising on sound quality and performance.

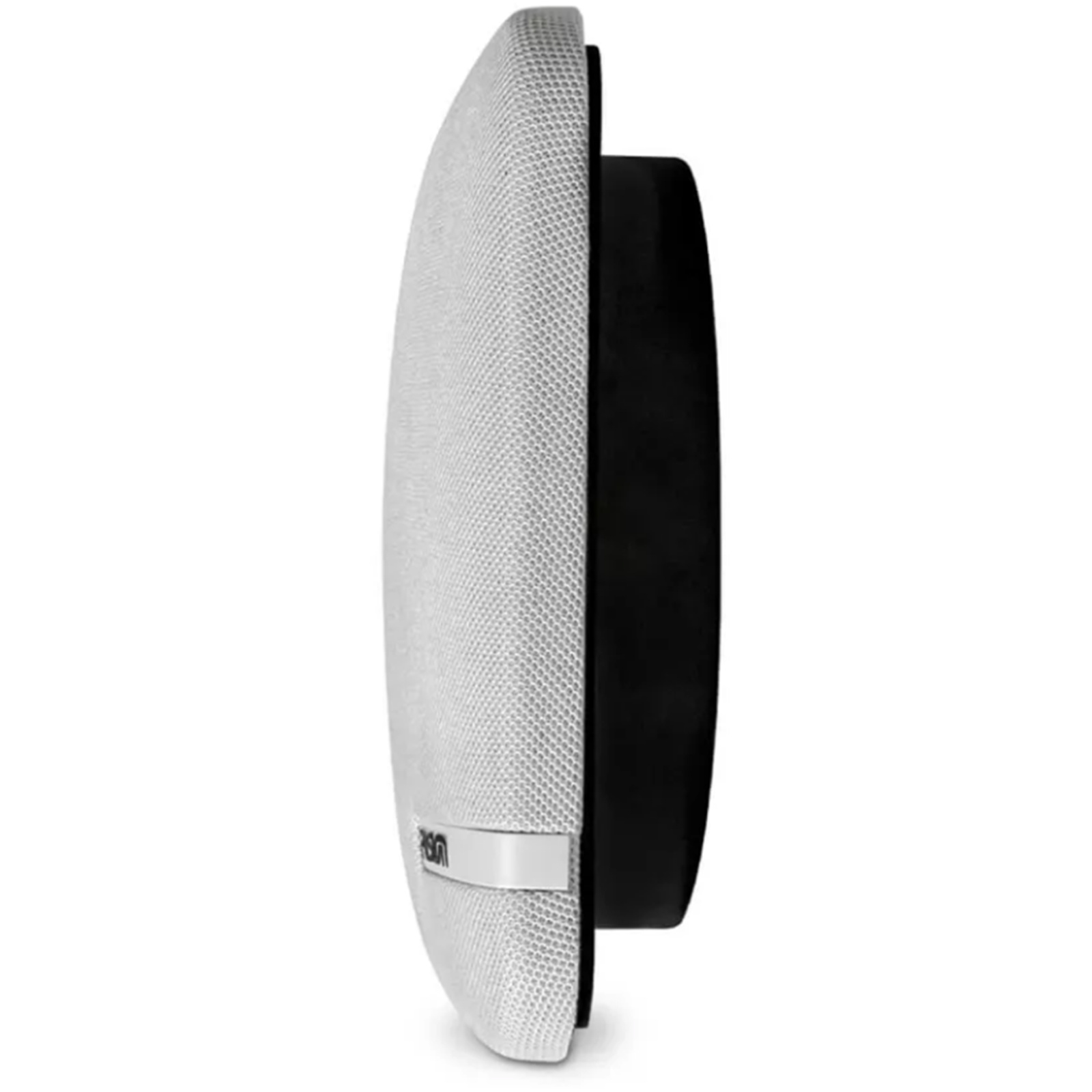

The unique shallow mount design features a mounting depth of only 0.94? (24 mm).

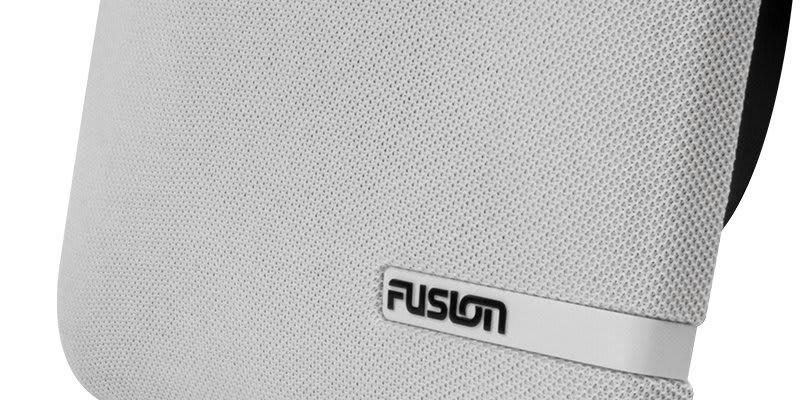

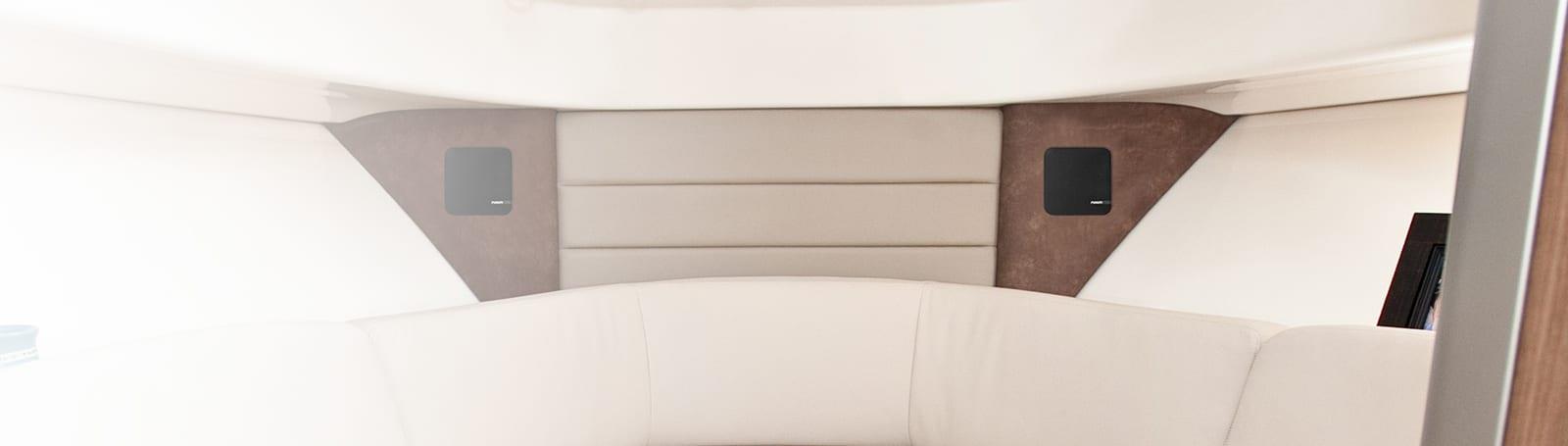

A high-end acoustic fabric finish with rounded edges and contours adds style to your boat.

The tuned, sealed enclosure provides quality audio reproduction and protects the speaker components.

The mounting diameter clearance of 5.12" (130 mm) allows it to be retrofittable with most 6.50" speaker cutouts.

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The SM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The SM Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
MULTIPLE MOUNTING ACCESSORIES
Three accessory mounting spacers are available (each sold separately), allowing you to mount your SM Series speakers on board with versatility and ease.
Perfectly tuned for quality acoustics without compromise.

TUNED, SEALED ENCLOSURE
The enclosure allows for installation where mounting depth is limited, without compromising sound quality. The enclosure also protects the components from damage without needing rear speaker cups, simplifying installation.

OPTIMISED SPEAKER DRIVER

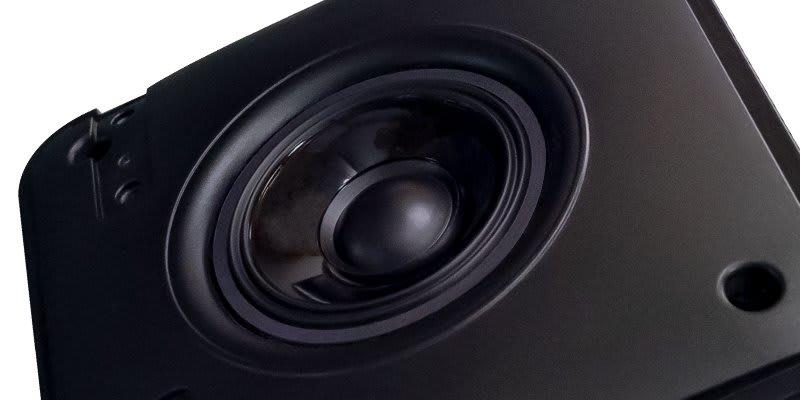

An optimised 3" speaker driver is incorporated into the enclosure, with all acoustic parameters precisely calculated for quality audio reproduction wherever the speaker is installed.

Specifications
General
Sizes
6.5"
Color
Classic White or Classic Black
Physical dimensions (Diameter)
155 mm (6.1")
Physical dimensions (Depth)
46 mm (1.81")
Weight
0.55 kg (1.21 lbs)
Water and dust rating
IP65
Speaker type
Full Range
Sensitivity (SPL @ 1 W/1 m)
84 dB
Frequency response (+/- 3 dB)
150 Hz-20 kHz
Nominal impedance
4 O
Operating temperature range
0° to 50° C (32° to 122° F)
Cone material
Polypropylene cone with rubber surround
Warranty
1 year
Electrical features
Compass safe distance
245 cm (96.50")
Connections
Speaker connections
Spade Connectors
Mounting Dimensions
Mounting diameter clearance
130 mm (5.12")
Mounting depth clearance
24 mm (0.94")
Frontal grille protrusion
25 mm (0.98")
