Features

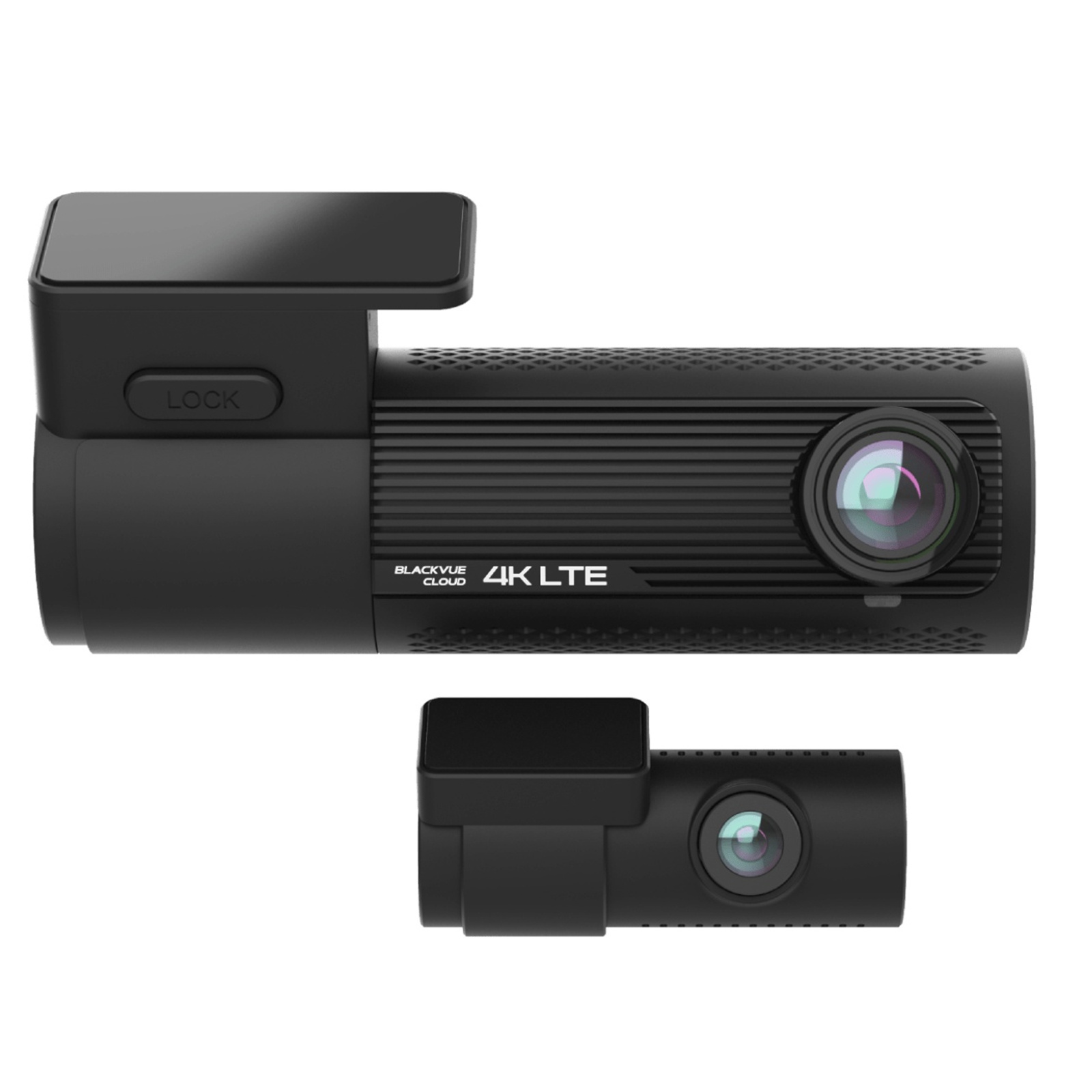

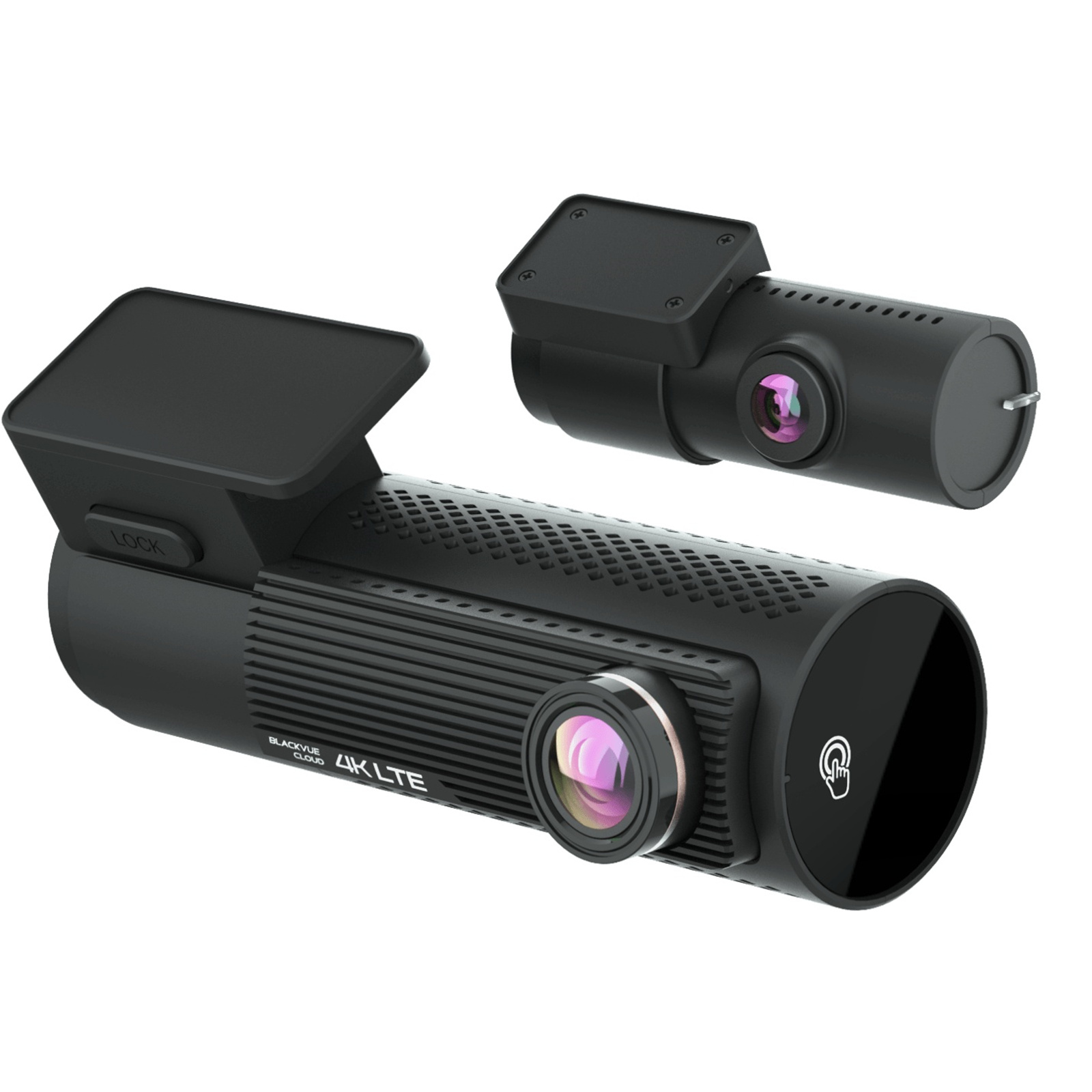

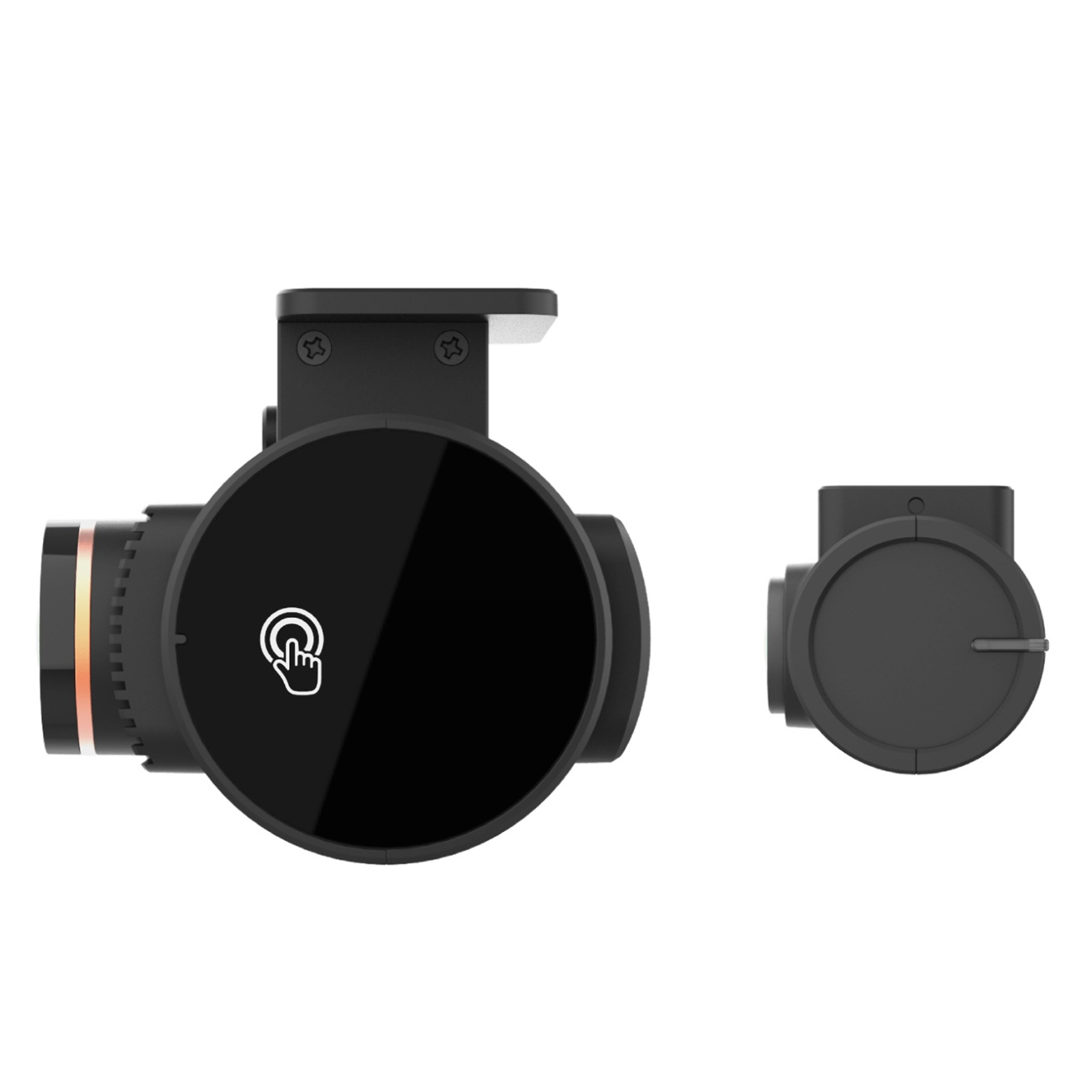

The flagship 4K UHD dash camera available in front or front and rear systems, now with an improved Sony STARVIS 2 sensor. The 970X-2CH LTE PLUS II takes the 970X PLUS II model and combines it with the CM100GLTE cloud module into one system. The 970X-2CH LTE PLUS II shares the same specifications as the regular DR970X-2CH PLUS II unit but houses a SIM card slot which is compatible with most Telco carriers for Cloud access.
When only the best will do
With its 8.4MP Sony STARVIS 2 CMOS sensor, the DR970X-2CH LTE PLUS II captures 4K 2160P UHD video - four times as many pixels as Full HD; combined with true 4K 2-channel technology, BlackVue brings a whole new level to dash cams.

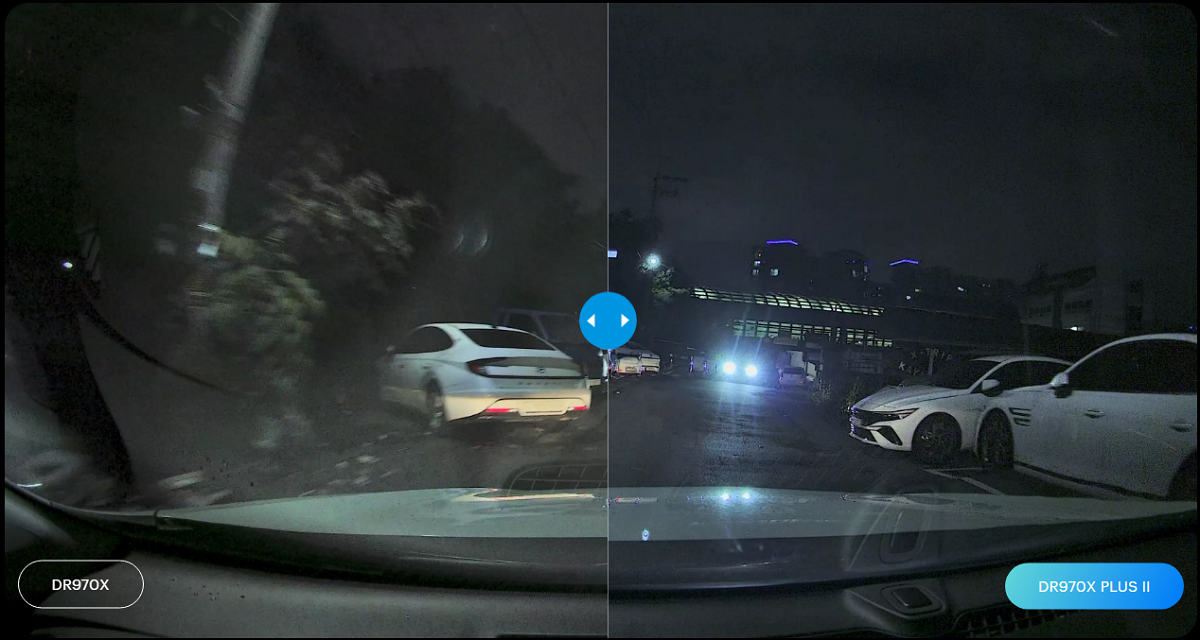

Experience the latest in Sony STARVIS 2 technology
Higher quality, better night-time clarity and richer vision.

New and upgraded lens: An all new 7-Element f/1.7 Aperture lens for improved vision
Expandable Cloud Features: Simple cloud connection via our LTE module

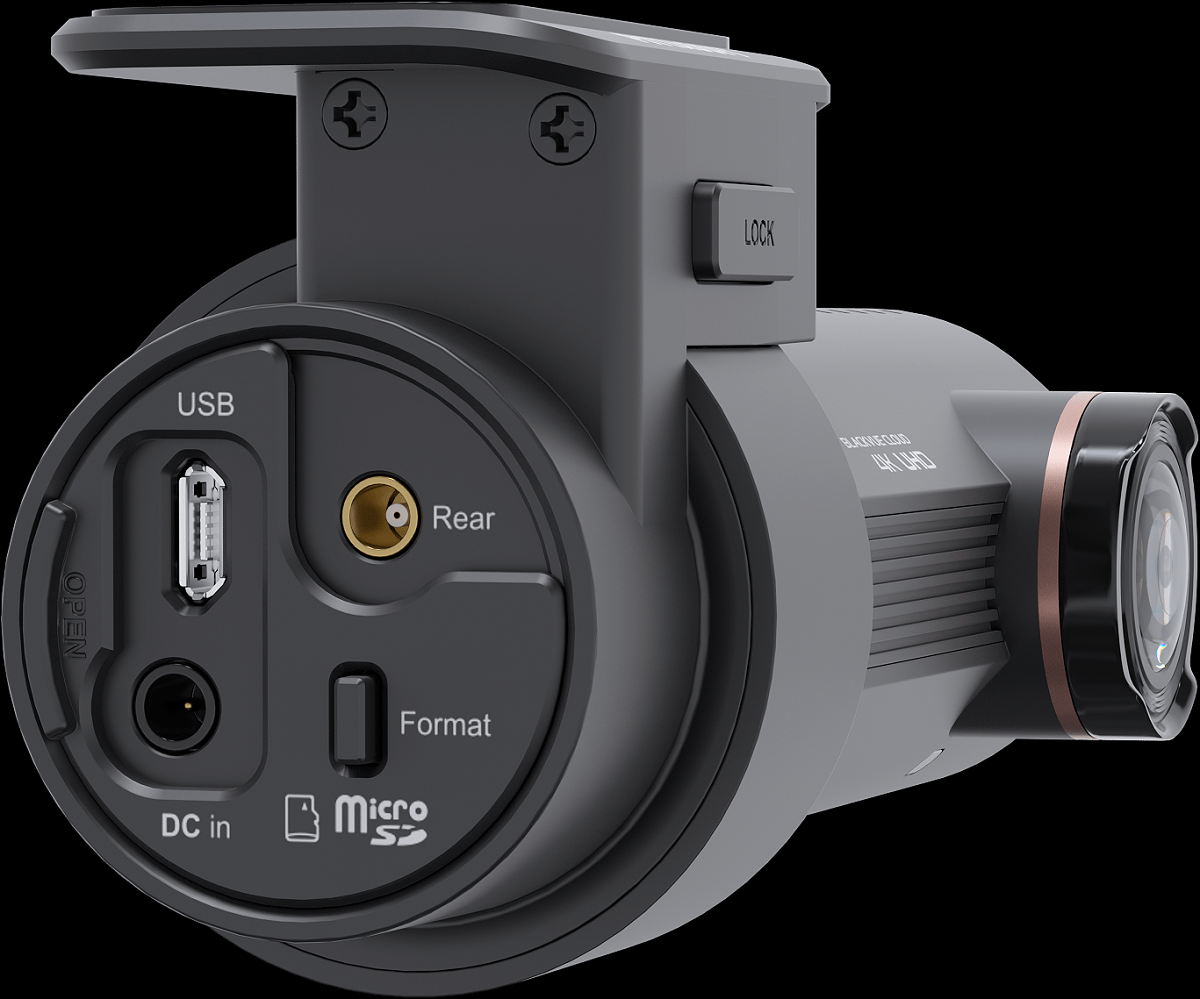

Camera Coaxial Port: Connect your IR camera for ride-share or rear camera for standard use

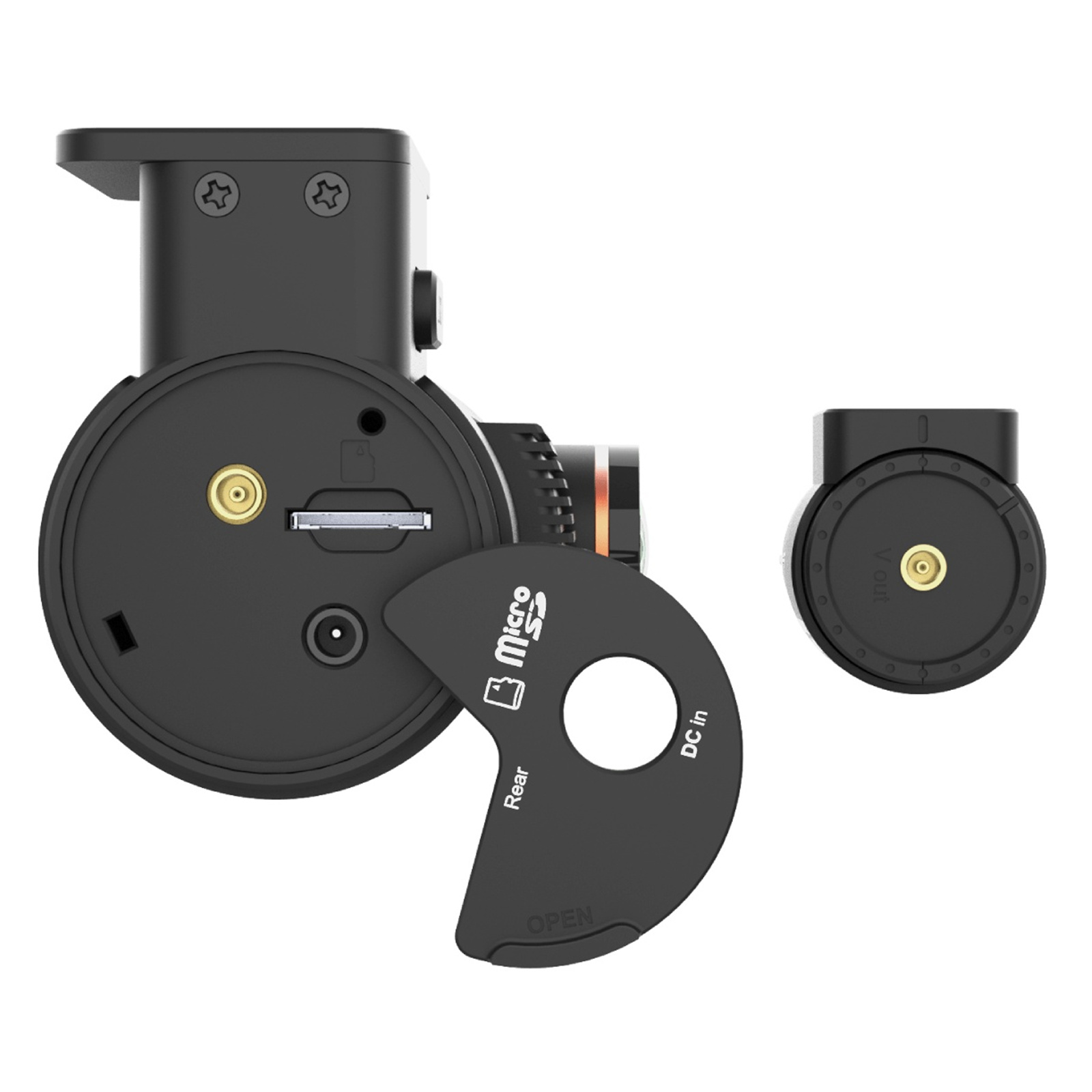

Quick format button: Easily format your microSD card for increased longevity

Intelligent parking mode
With advanced parking mode technology, your dash cam protects your car, recording videos when it detects movement or impact, even when you're not there. Buffered recording even includes the few seconds before and after the triggered event, so you get the complete picture.

Seamless pairing
Simply connect to your dash cam without leaving the BlackVue App. With Seamless Pairing, setting up your dash cam is a breeze. Just power the dash cam, then easily connect from the BlackVue app and follow the simple instructions.
BlackVue Cloud™
- Live View: Remote Viewing at your fingertips
- Emergency Alarm: Receive notifications on the go
- Video Backup: Move files from dashcam to cloud
- Video Playback: Watch on your computer or smartphone

Specifications
What's in the box?
Front Camera
Rear Camera
Hardwiring Power Cable
USB-C Power cable
USB-C 12V Adapter
Rear camera connection cable
MicroSD Card
Double-sided tape for the mounting brackets
Pry tool / Trim Remover
Cable clips (5 EA)
Alcohol Pad
Recording Mode
Recording Modes
Normal Recording
Event Recording (Impact Detection)
Manual Event Recording
Parking Mode Recording (Impact and Motion Detection).
*For extended Parking Mode recording, a B-130A dedicated battery pack is recommended.
Button
Touch sensor
Trigger Manual Recording
*Touch the sensor to trigger manual recording. Can be disabled in settings.
Camera
Front
STARVIS 2 8.4 Megapixel CMOS Sensor
Rear
STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front
Diagonal 146°, Horizontal 125°, Vertical 68°
Rear
Diagonal 131°, Horizontal 107°, Vertical 55°
Format Free
Format Free
Yes (Adaptive)
Resolution/FPS
Front Camera
TRUE 4K UHD (3840×2160) @30FPS
*Front camera resolution is fixed and cannot be changed to 1080P
Rear Camera
Full HD (1920×1080) @30fps
*Frame rate is different during Parking mode and Wi-Fi > streaming
Image Quality
Highest (Extreme)
60+10 Mbps*
*60Mbps bitrates only supported in H.265(HEVC).
Highest
25+10 Mbps
High
12+8 Mbps
Normal
8+6 Mbps
Video Codec
Video Codec
H.264 (AVC)
H.265 (HEVC)
Video File Extension
MP4
Operating
Input Voltage
DC 12V - 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V)
Power Consumption
Normal Mode (GPS On/Cloud On) : Avg. 590mA/12V
Normal Mode (GPS On/Cloud Off) : Avg. 530mA/12V
Parking Mode (GPS Off/Cloud On) : Avg. 430mA/12V
Parking Mode (GPS Off/Cloud Off) : Avg. 370mA/12V
Note
The DR970X-2CH LTE Plus II should only be installed in circuits with less than 100 VA to avoid damaging the device. Speak to your preferred auto electrician about professional installation for best results.
Actual power consumption may vary depending on use conditions and environment.
Voltage Cut-off
Built-in Variable Voltage Cut-off System
11.8V - 12.5V
22.8V - 24V
Operating & Storage Temp
-20℃ - 80℃ (-4°F - 176°F )
High Temperature Cut-off
Approximately 80℃ (176°F)
Other
Wi-Fi
Built-in (802.11n 2.4~2.4835 GHz / 802.11ac 5GHz dual band)
Software
BlackVue Viewer* Windows 7 or higher and Mac OS X Sierra (10.12) or higher.
GPS
Built-in (Dual Band: GPS, GLONASS)
4G LTE
Built-in 4G LTE module compatible with nano SIM*
*SIM not included with purchase.
Application
BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher)
*Some videos may not play on HTC mobile devices due to the resolution of the files
Microphone
Built-in
Certifications
Front
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear
FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
