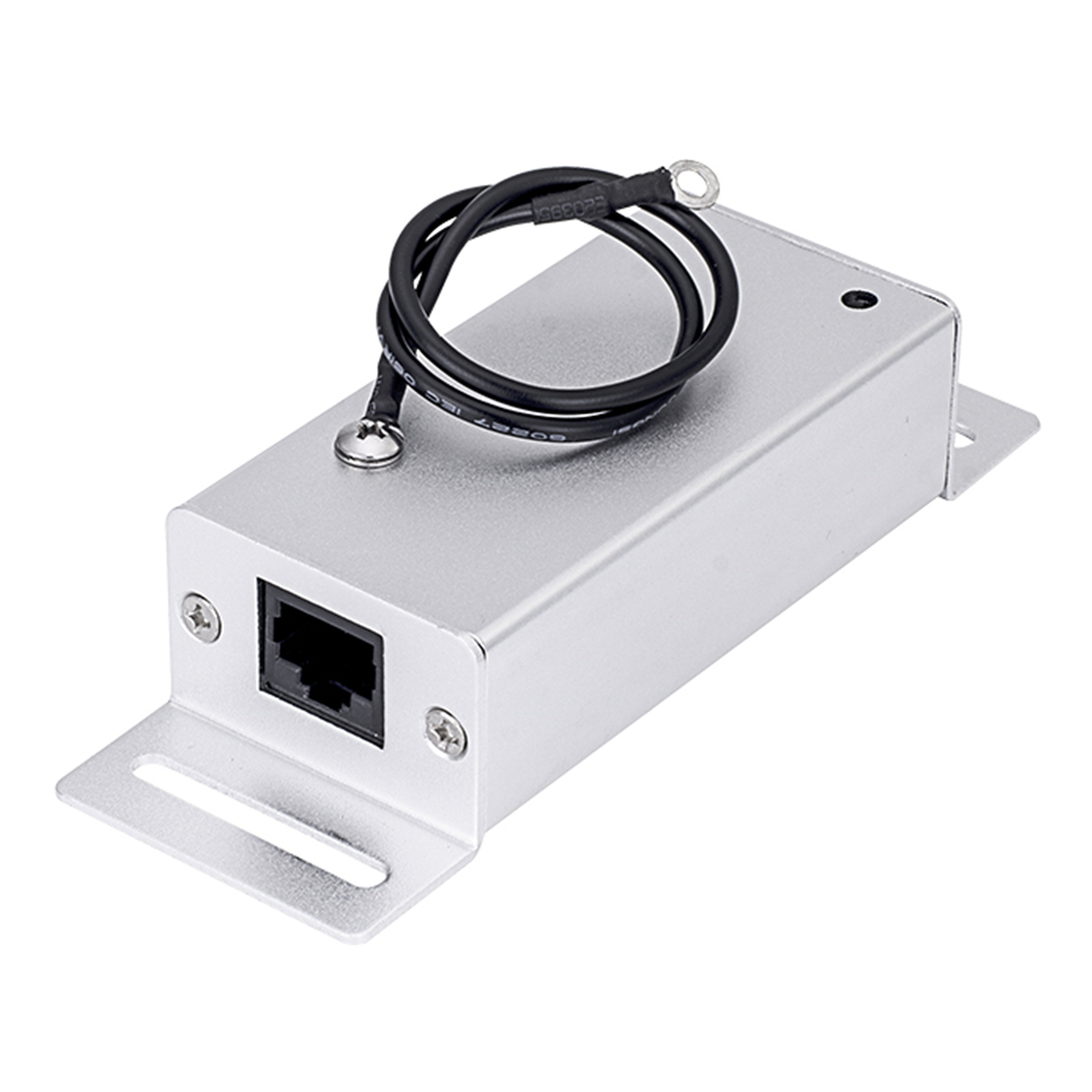

AETEK SD-101 Indoor PoE Surge Protector
AETEK SD-101 Indoor PoE Surge Protector
- Brand: AETEK
- MPN: SD-101
- Part #: CCTATE1029
- UPC:
- Brand: AETEK
- MPN: SD-101
- Part #: CCTATE1029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





AETEK SD-101 Indoor PoE Surge Protector
- Brand: AETEK
- MPN: SD-101
- Part #: CCTATE1029

Product URL: https://www.pbtech.co.nz/product/CCTATE1029/AETEK-SD-101-Indoor-PoE-Surge-Protector
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The SD series surge protectors are proven to keep PoE switches, PoE PDs, and other IP devices safe from lightning and other forms of electrical interference, including power surges and spikes over networking cables. Two sub-models (the SD-101 and SD-201) are classified as hardened-grade surge protectors, and will operate in harsh weather conditions from -40°C to 85 °C.
The SD-101 is designed to be deployed besides PoE switches, or inside junction or power boxes. With a robust operating temperature range, the SD-101 will prevent surges of up to 10KA and features plug-and-play installation.
- Supports 10M/100M/1G/2.5G bps Ethernet
- IEEE 802.3 bt/at/af compliant
- Support UPoE
- Protects eight wires of networking cable including PoE
- Protects up to 20KV/10KA surge
- Failure Indicator LED
- Operating temperature from -40°C to 85 °C

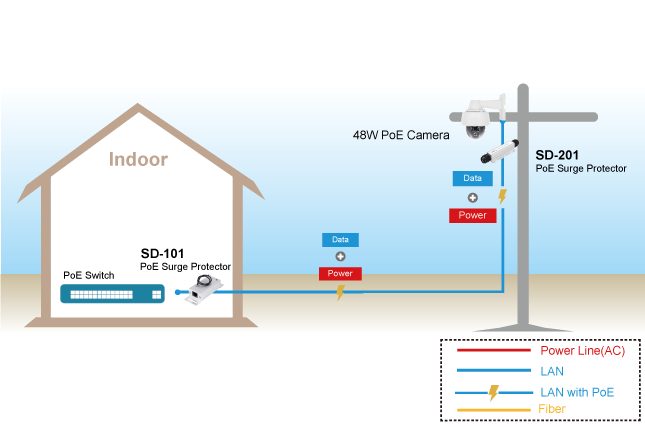

Applications
Specifications
Hardware Specifications
Number of Ports
1
Pass Through Data Rates
10M/100M/1G/2.5G bps
Transmission Media
Cat. 5e,6 UTP/STP
PoE Supoort
802.3af / 802.3at / 802.3bt
Max Discharge Current (8/20us)
10KA
Maximum Operation DC Voltage
60VDC
Maximum Operation DC Current
1A for 2 pair, 2A for 4 pair, 95W maximum
Common Mode Protection Level (10/700us)
20KV
Differential Mode Protection Level (10/700us)
4KV
Clamping Voltage (Line to GND)
600V
Clamping Voltage (Line to Line)
20V
Insertion Loss @ 10MHz/100MHz
1db
Return Loss @ 10MHz/100MHz
-20db
Response Time
5ns
Mechanical Specifications
Dimensions (L x W x H)
80 x 40 x 25 mm
Weight
0.18KG
Connectors
RJ45 x 2
Environmental Specifications
Operating Temperature
-40°C~ 85°C (-40°F~ 185°F)
Storage Temperature
-40°C~ 85°C (-40°F~ 185°F)
Operating Humidity
5% ~ 95% non-condensing
Certifications
EMC
CE, FCC, VCCI, C-Tick
Surge
ITU-T K.21
IEC-61643-21
IEC-61000-4-5
TIA-968-A (FCC Part68)
