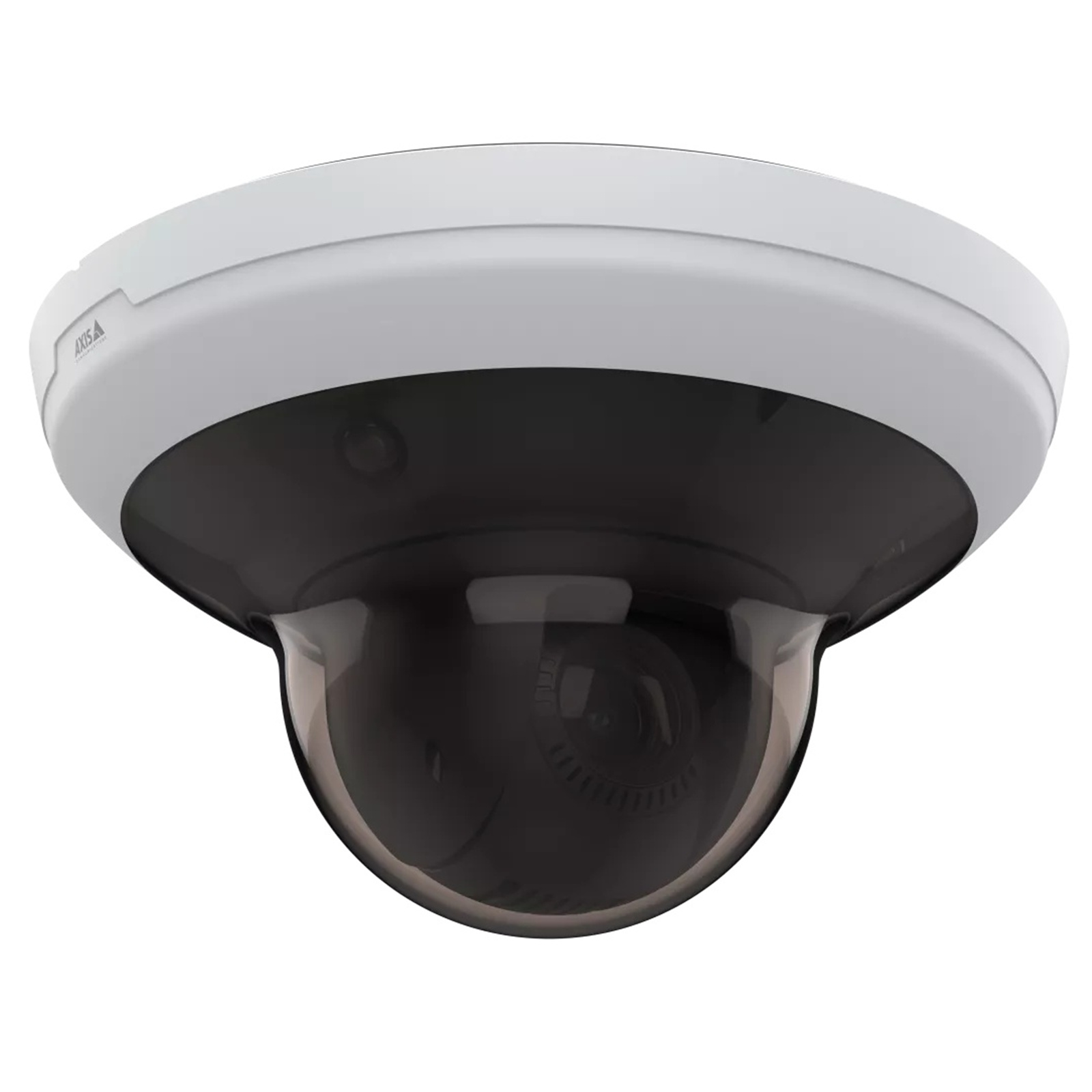

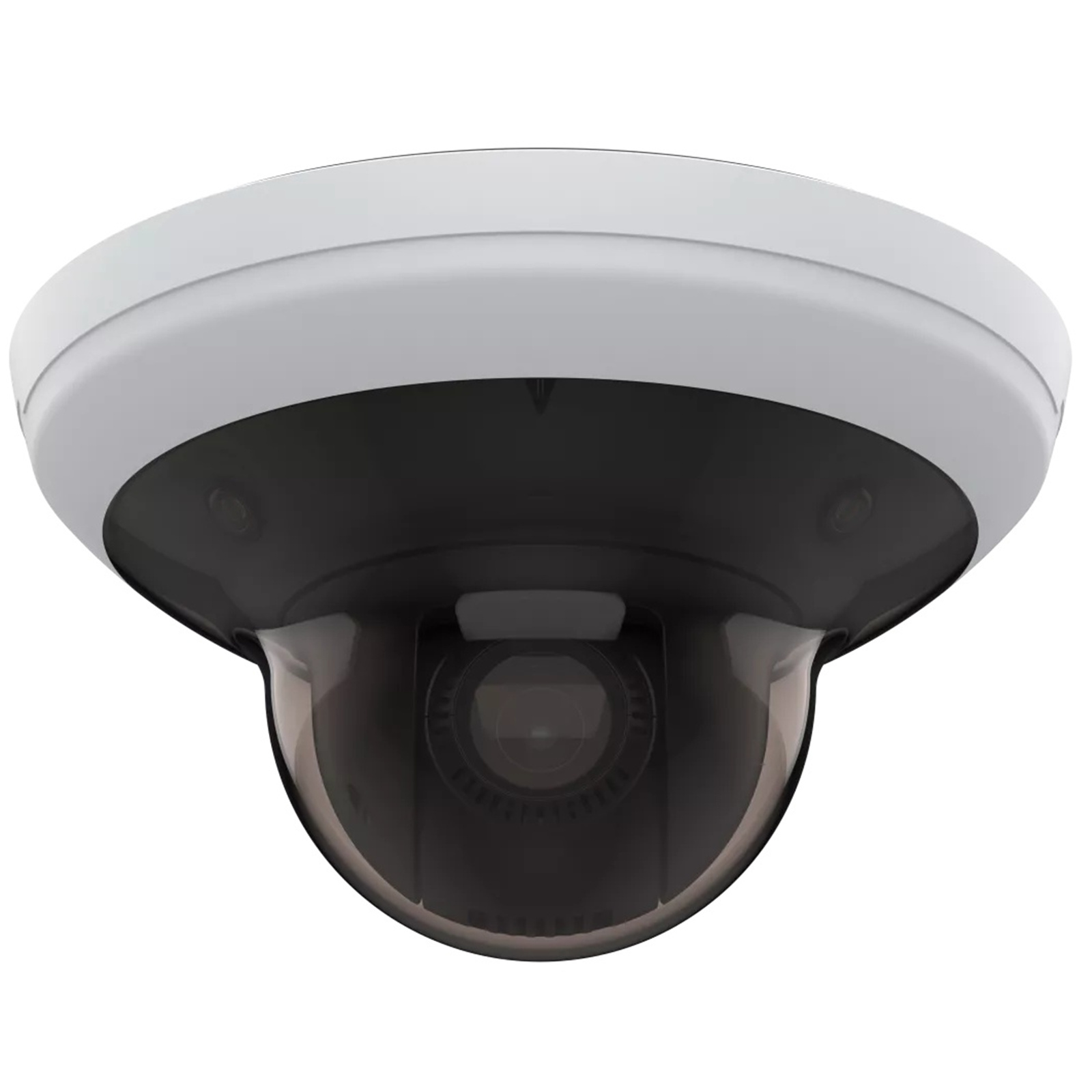

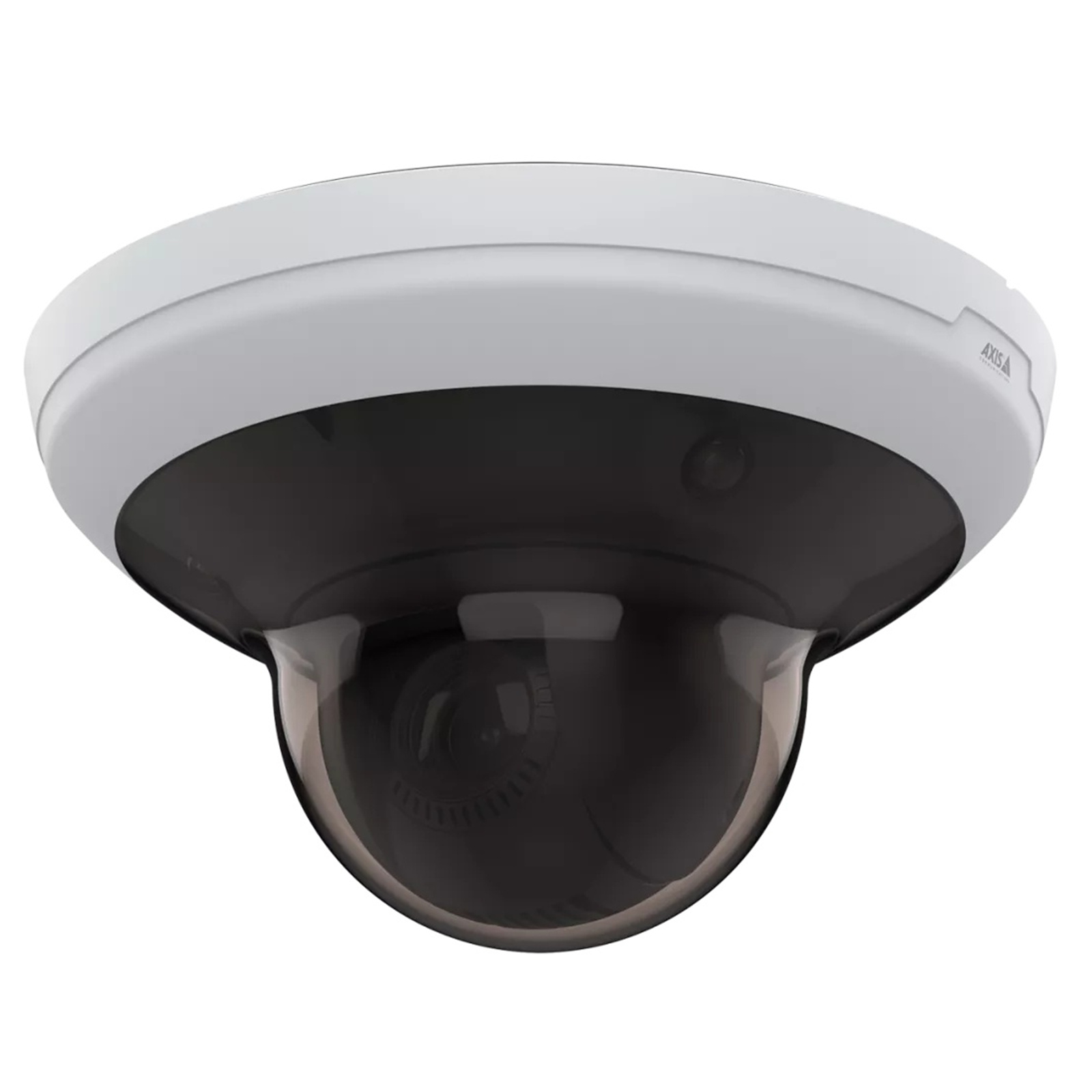

Axis 02187-001 M5000 50 Hz 15MP indoor panoramic
Axis 02187-001 M5000 50 Hz 15MP indoor panoramic
- Brand: Axis
- MPN: 02187-001
- Part #: CCTAXS5506205
- UPC:
- Brand: Axis
- MPN: 02187-001
- Part #: CCTAXS5506205
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras





Axis 02187-001 M5000 50 Hz 15MP indoor panoramic
- Brand: Axis
- MPN: 02187-001
- Part #: CCTAXS5506205

Product URL: https://www.pbtech.co.nz/product/CCTAXS5506205/Axis-02187-001-M5000-50-Hz-15MP-indoor-panoramic
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
AXIS M5000 PTZ Camera - 15 MP indoor camera with 10x optical zoom
From banks to retail stores, M5000 PTZ is ideal for a wide variety of indoor applications. This 15 MP indoor camera features three 5 MP sensors and one PTZ camera with 10x optical zoom, so you get the benefits of four cameras, while installing just one.
- 3x 5MP sensors for situational awareness
- Total overview, zoomed-in details
- Covers indoor areas up to 400 m2 (4300 ft2)
- 10x optical zoom with HDTV 1080p
- Autofocus and D/N functionality
Total situational awareness
AXIS M5000 offers total situational awareness of indoor areas up to 400 m2 (4300 ft2). Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews, and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas.
Great image quality
Including three 5 MP sensors with a total of 15 MP resolution, this cost-effective, indoor camera offers great image quality. It has day/night functionality with an automatically removable infrared-cut filter. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Thanks to polygonal privacy masking, it's possible to pixelate whole areas where privacy must be kept, such as a neighboring property. Plus, click in picture functionality allows you to click directly in the picture to define the central position of the selected camera. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements.
Cost-efficient and easy to install
With AXIS M5000, you get the benefits of four cameras, while installing just one. So, there's only one camera to install, one cable to run, one IP address, and one video management software (VMS) license to install. Thanks to edge storage you can record directly to an onboard memory card for easy installation and maintenance.
Specifications
Camera
PTZ camera
Image sensor: 1/2.8" progressive scan RGB CMOS
Overview cameras
Image sensor: 1/2.8" progressive scan RGB CMOS
Lens
PTZ camera
Varifocal, 4.7-47 mm, F1.6-3.0
Horizontal field of view: 61.8°-6.7°
Vertical field of view: 36.3°-3.8°
Autofocus, auto-iris, P-Iris control
Overview cameras
Focal length 2.39 mm, F2.0
Horizontal field of view: 360°
Vertical field of view: 93°
Day and night
PTZ camera
Automatically removable infrared-cut filter
Minimum illumination
PTZ camera
Color: 0.09 lux at 30 IRE F1.6
B/W: 0.01 lux at 30 IRE F1.6
Color: 0.1 lux at 50 IRE F1.6
B/W: 0.01 lux at 50 IRE F1.6
Overview cameras
Color: 0.08 lux at 30 IRE F2.0
B/W: 0.03 lux at 30 IRE F2.0
Color: 0.4 lux at 50 IRE F2.0
B/W: 0.03 lux at 50 IRE F2.0
Shutter speed
PTZ camera
1/66500 s to 2 s
Overview cameras
1/50000 s to 2 s
Pan/Tilt/Zoom
PTZ camera
Pan: 360° with autoflip, 1.8°-150°/s
Tilt: 180°,1.8°-150°/s
10x optical zoom, 12x digital zoom, total 120x zoom
100 preset positions, limited guard tour, control queue, on-screen directional indicator, E-flip, click-in-image
System on chip (SoC)
Model
ARTPEC-7
Memory
2048 MB RAM, 512 MB Flash
Video
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High
Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution
PTZ camera:
1920x1080 to 320x180
Overview cameras:
2592x1944 to 320x180
Frame rate
PTZ camera:
Up to 25/30 fps with power line frequency 50/60 Hz
Overview cameras:
Up to 12 fps with power line frequency 50/60 Hz
Audio
Audio streaming
Two-way, full duplex
Audio encoding
24 bit LPCM, AAC-LC 8/16/32/44.1 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio input/output
External microphone input or line input, line output, automatic gain control
General
Casing
IP51-rated
Repaintable plastic casing, polycarbonate (PC) dome
Sustainability
PVC free, BFR/CFR free
Power
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Typical 7.4 W, max 13.0 W
20-28 V DC, typical 6.5 W, max 11.9 W
(PoE midspan and power supply not included)
Connectors
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
DC input terminal block
Audio: mic/line in, line out terminal block
Storage
Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10-85% RH (non-condensing)
Storage conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Dimensions
Height: 138 mm (5.4 in), ø 247 mm (9.7 in)
