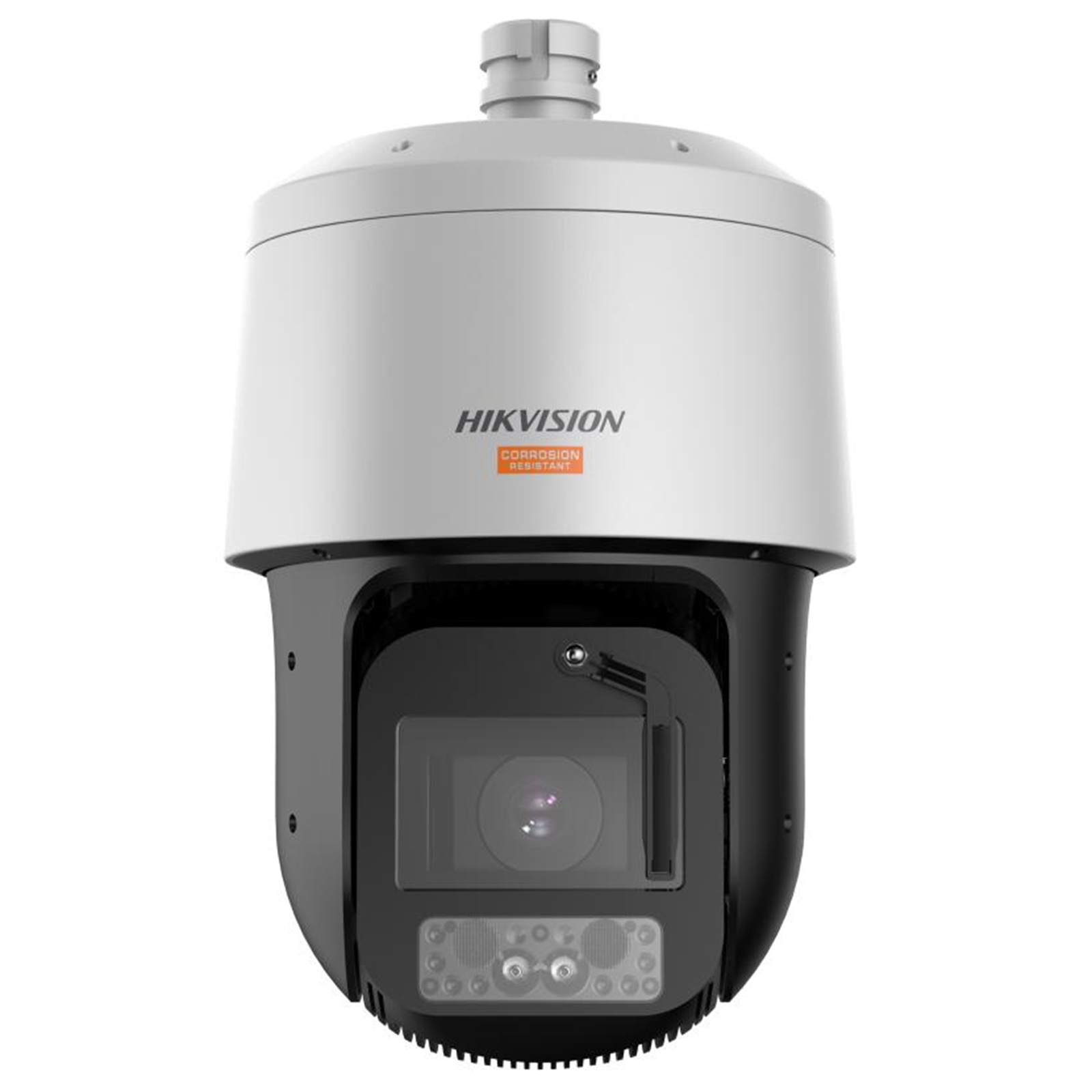

HIKVISION DS-2DT8C442MXG-LWT 4MP Polymer Anti-corrosion Network 42X PTZ

Brand: HIKVISION
MPN: 327001313
Part #: CCTHIK0138
UPC:

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 11 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 327001313
Part #: CCTHIK0138
UPC:

Be the first to review this product

Max Video Resolution

2560 x 1440

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 256GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Black & White

Camera Megapixels

4 Megapixels

Indoor/Outdoor Use

Indoor + 1 more

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Hikvision DS-2DT8C442MXG-LWT 4MP 42× Network IR Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 42× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

- 1/1.8" progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with DarkFighter technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 500 m IR distance
- Water and dust resistant (IP67)
- Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras

Specifications

Camera

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2,AGC ON), 0 Lux with IR

Shutter Speed

1s to 1/30,000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

42x optical, 16x digital

Max. Resolution

2560 × 1440

Lens

Focus

Auto, semi-auto, manual

Focal Length

6.0 mm to 252 mm

Zoom Speed

Approx. 5.4 s

FOV

Horizontal field of view: 58.8° to 1.97° (wide-tele),
Vertical field of view: 34.6° to 1.12° (wide-tele),
Diagonal field of view: 67.1° to 2.28° (wide-tele)

Aperture

Max. F1.2

Illuminator

Supplement Light Type

Hybrid

Supplement Light Range

IR Distance: up to 500 m
White Light Distance: up to 100 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-20° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

Video

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps~192 Kbps(MP2L2)/16 Kbps~64 Kbps(AAC)

Network

Network Storage

NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

API

ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Client

HikCentral, iVMS-4200, Hik-Connect

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

AI Open Platform

Model Specification

Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)


Day/Night Switch

Day, night, auto, scheduled-switch

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB

Defog

Optical defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

Up to 24 masks, mosaic mask, mask color configurable, rectangle region

SNR

= 52 dB

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm

7 inputs, 2 outputs

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%; 1 output (line out), line level, output impedance: 600 O

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

Basic Event

Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception

Smart Event

Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Smart Tracking

Manual tracking, auto-tracking

Alarm Linkage

Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

General

Power

36 VDC ± 25%, max. 60 W,24 VAC ± 25%, max. 60 W

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: = 95%

Wiper

Yes

Dimension

Ø 242 mm × 398.1 mm (Ø 9.53" × 15.67")

Weight

Approx. 6 kg (13.2 lb.)

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019)

Safety

UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018),C5

Protection

IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Manufacturer Part No:

327001313

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK0138

Product Model:

DS-2DT8C442MXG-LWT

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
