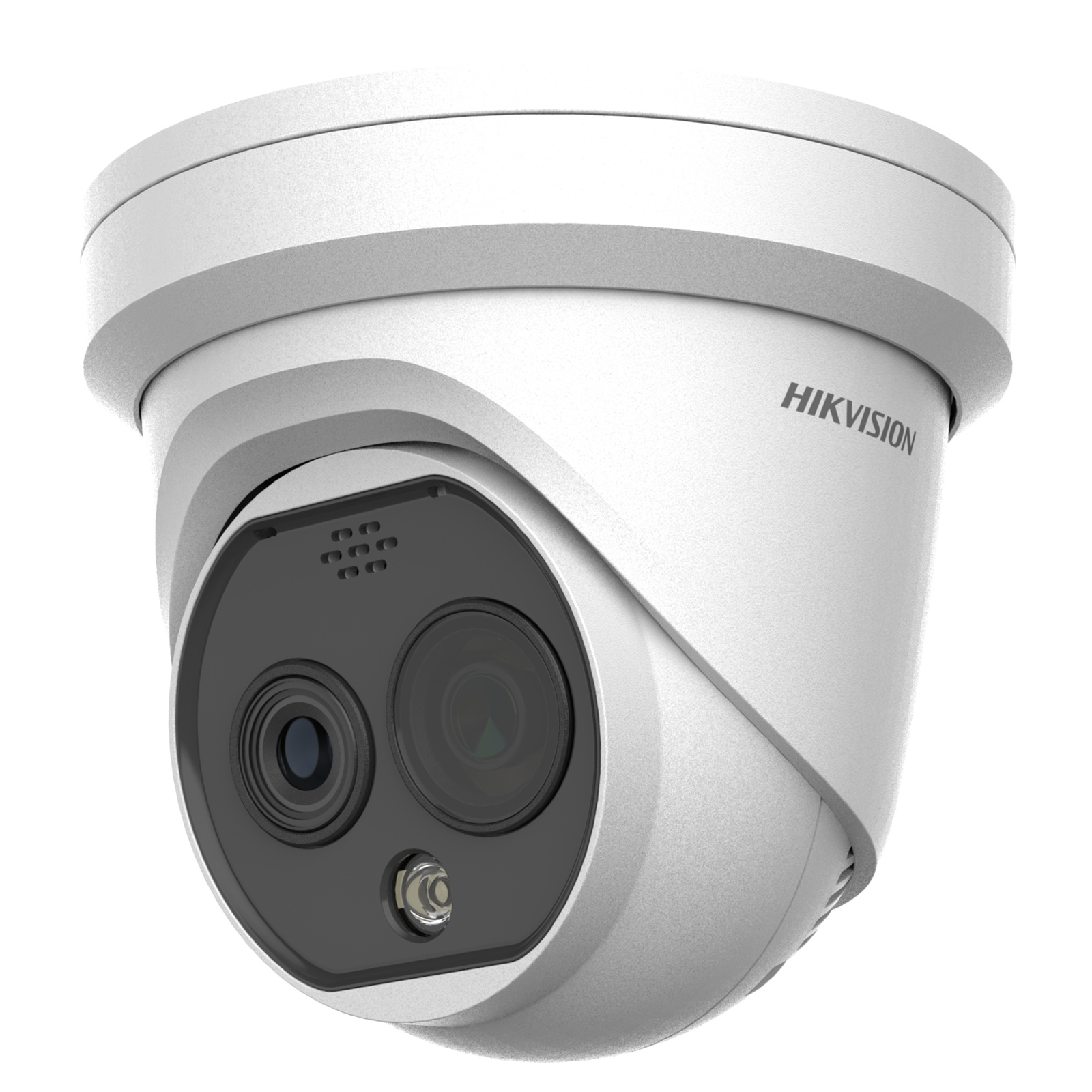

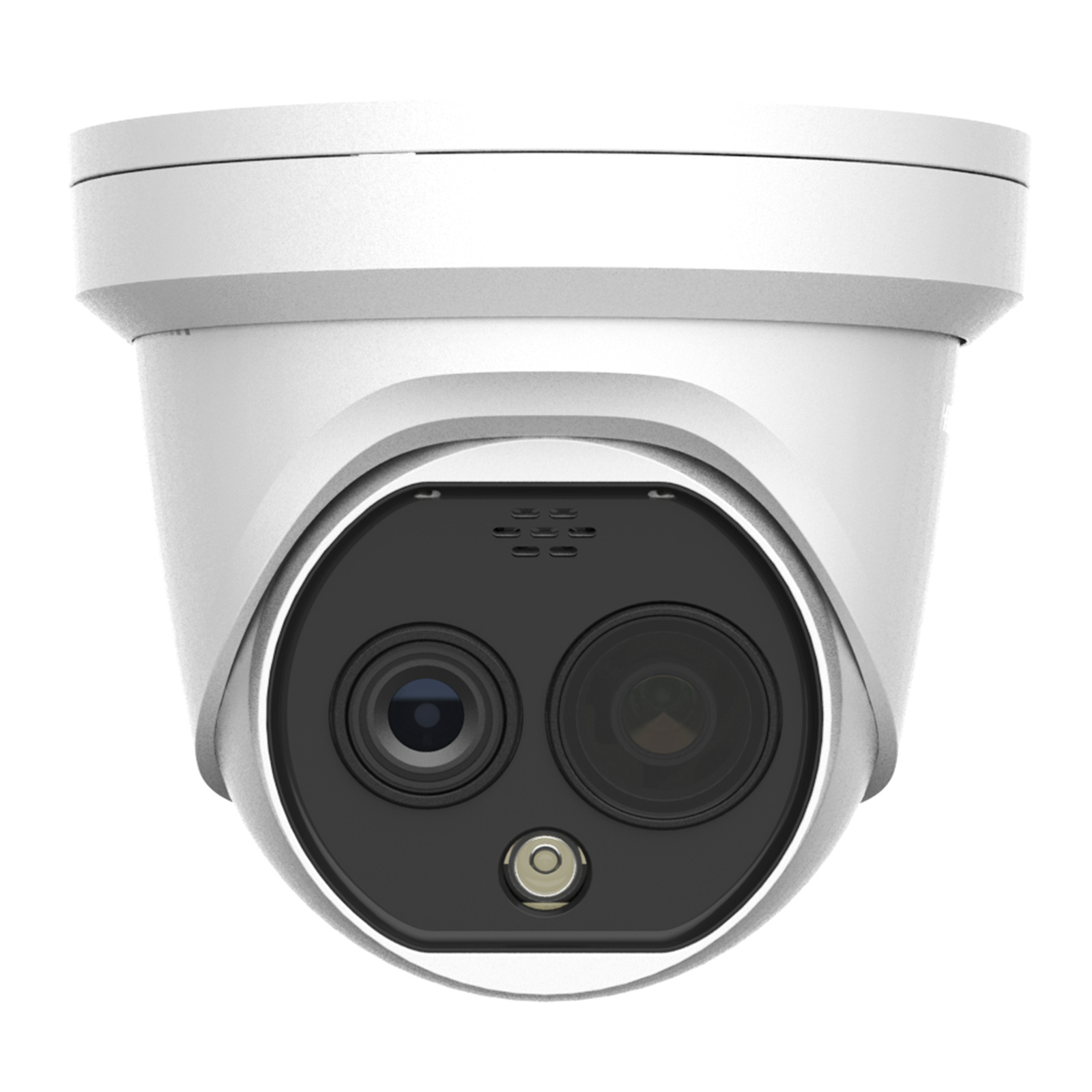

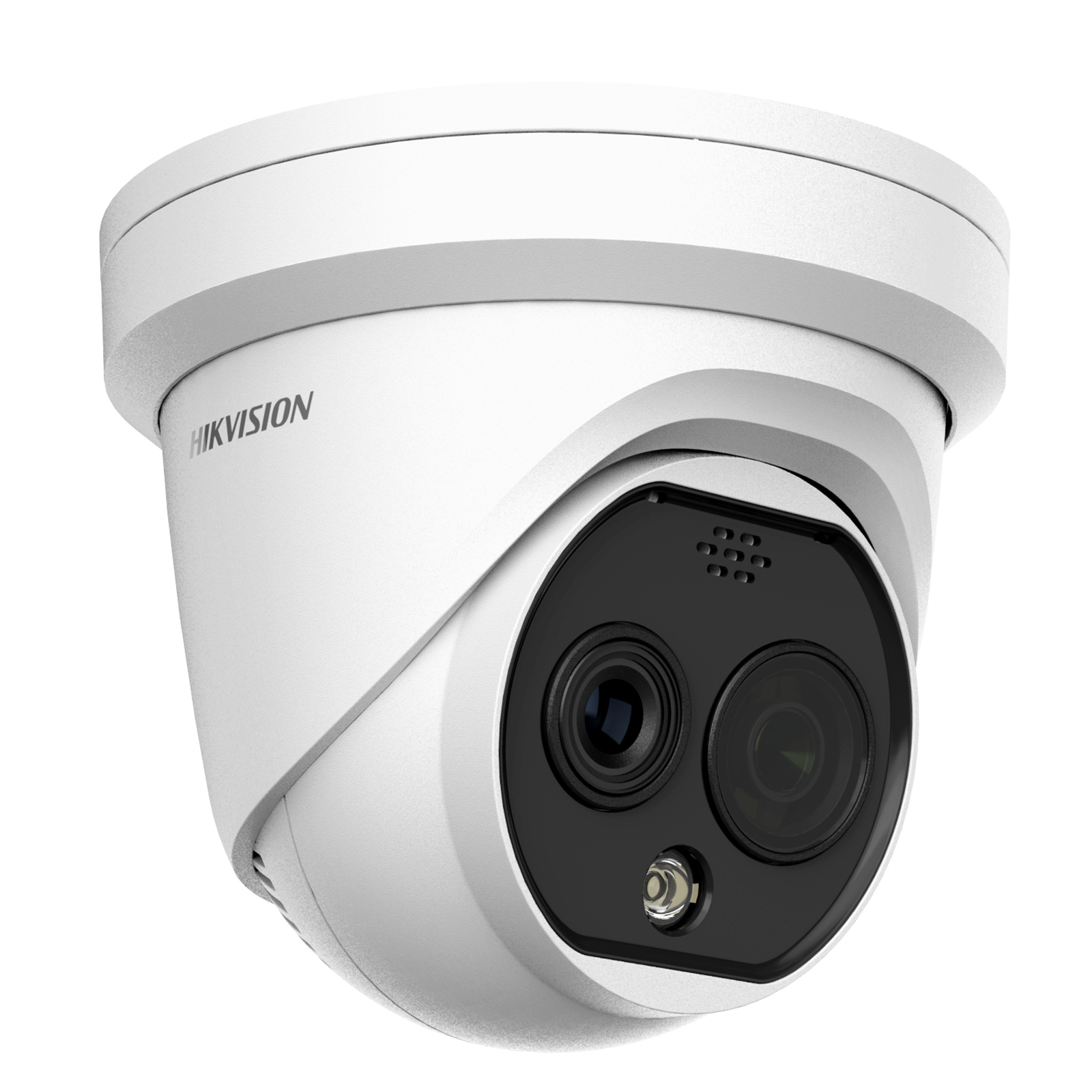

HIKVISION DS-2TD1228T-3/QA (B) Thermal & Optical Bi-Spectrum Network Turret Camera
3mm Dual 256
Out of stock
HIKVISION DS-2TD1228T-3/QA (B) Thermal & Optical Bi-Spectrum Network Turret Camera
3mm Dual 256
- Brand: HIKVISION
- MPN: DS-2TD1228T-3/QA (B)
- Part #: CCTHIK0158
- UPC:
- Brand: HIKVISION
- MPN: DS-2TD1228T-3/QA (B)
- Part #: CCTHIK0158
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
HIKVISION DS-2TD1228T-3/QA (B) Thermal & Optical Bi-Spectrum Network Turret Camera 3mm Dual 256
- Brand: HIKVISION
- MPN: DS-2TD1228T-3/QA (B)
- Part #: CCTHIK0158
Product URL: https://www.pbtech.co.nz/product/CCTHIK0158/HIKVISION-DS-2TD1228T-3QA-B-Thermal--Optical-Bi-Sp
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Hikvision DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends temperature exception alarms for loss prevention.
- 256 × 192 resolution, 12 µm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max. (± 2°C, ± 2%)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Specifications
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
256 x 192
Pixel Pitch
12 µm
Spectral Range
8 µm to 14 µm
NETD
= 40 mK (@25° C,F# = 1.0)
Focal Length
3.6 mm
IFOV
3.33 mrad
Aperture
F1.0
Field of View
50.0° × 37.3° (H × V)
Min. Focusing Distance
0.5 m
Digital Zoom
×2, ×4
Optical Module
Image Sensor
1/2.7" Progressive Scan CMOS
Resolution
2688 × 1520
Min. Illumination
0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View
84.0° ×43.1° (H × V)
Focal Length
4.3 mm
Shutter Speed
1 s to 1/100,000 s
White Balance
MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode
IR Cut Filter with Auto Switch
WDR
120 dB
Aperture
F 1.6
Image Effect
Bi-spectrum Image Fusion
Display the details of optical channel on thermal channel
Picture in Picture
Display partial image of thermal channel on the full screen of optical channel
Target Coloration
Yes. Supported in white hot and black hot mode.
Illuminator
IR Distance
Up to 15 m
IR Intensity and Angle
Automatically adjusted
Illuminator
IR Distance
Up to 15 m
IR Intensity and Angle
Automatically adjusted
Audible and Visual Alarm
White Light Range
Up to 30 m
Visual Alarm
Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range
-20°C to 550°C (-4°F to 1022°F);
Temperature Accuracy
Max (±2°C, ±2 %)
General Function
Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Video and Audio
Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, HIKVISION SDK, ISUP,,and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live View
Up to 20 channels
User/Host level
Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client
iVMS-4200, Hik-Connect
Interface
Alarm Input
1, alarm input (0-5 VDC)
Alarm Output
1, alarm output (alarm response actions configurable)
Alarm Action
SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KO ± 10%
Audio Output
Linear level, impedance: 600 O
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex
General
Menu Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
12 VDC ± 25%, f 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 25%: 0.5 A, Max 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
Dimensions
138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
Weight
940 g (2.07 lb)
Detection Range Table/Smart Function Range
VCA Range for Humans
24 m
VCA Range for Vehicles
72 m
