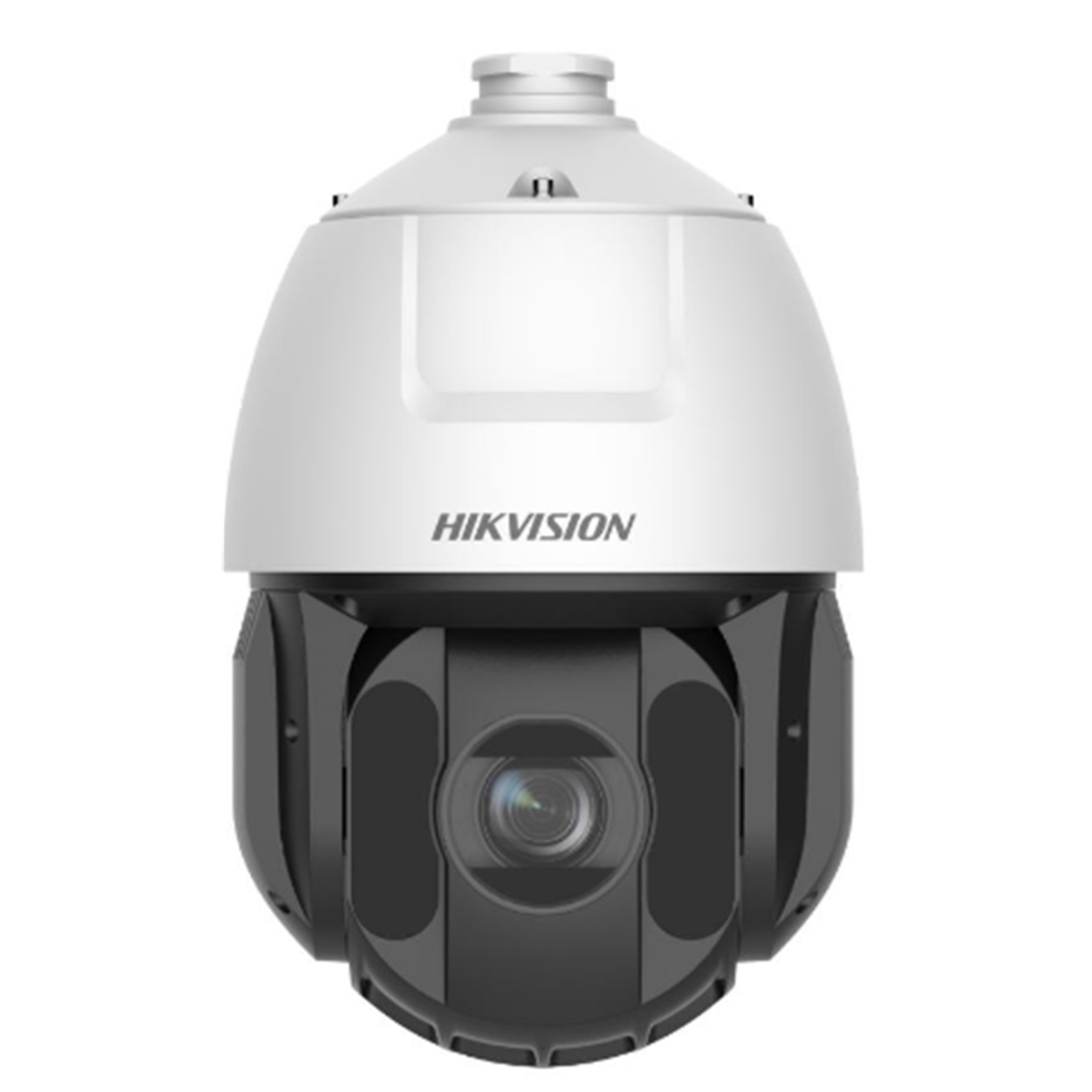

HIKVISION DS-2DE5425IWG-4G 4MP 25x Pro Solar-Powered Security PTZ Camera

Brand: HIKVISION
MPN: DS-2DE5425IWG-4G
Part #: CCTHIK0163
UPC:

Out of stock

No store stock available.

Click & Collect: Collect unavailable

Delivery: Out of stock When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: DS-2DE5425IWG-4G
Part #: CCTHIK0163
UPC:

Be the first to review this product

Max Video Resolution

2560 x 1440

Two-Way Audio

Wireless Technology

WiFi - 2.4GHz

Memory Card Support

Not Specified

Video Storage - Local

Built-In Storage

Night Vision

Camera Megapixels

4 Megapixels

Indoor/Outdoor Use

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

4MP 25X Pro Solar-powered Security PTZ Camera

- Supports performance mode and low power mode. The consumption is 3 W in low power mode, and 0.3 W in sleep mode
- Built-in heating glass for effective defog
- Water and dust resistant (IP66)
- The built-in eMMC storage is up to 256 GB
- Supports Wi-Fi AP for short-distance debugging;The Wi-Fi function of the device only works as AP mode on Channel 11, no other modes and - channels are supported
- Supports 12 V 1 A reverse power supply
- Expansive night view with up to 150 m IR distance

Specifications

Camera

Image Sensor

1/2.8" progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

color: 0.05Lux @ (F1.6,AGC ON)||B/W: 0.01Lux @(F1.6,AGC ON)||0 Lux with IR

Shutter Speed

1 s~1/30,000 s

Day & Night

IR cut filter

Zoom

25 × optical,16 × digital

Slow Shutter

yes

Lens

Focal Length

4.8 mm~120 mm

FOV

Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

F1.6

Zoom Speed

approx.3.6s

Illuminator

Supplement Light Type

Supplement Light Range

IR distance: up to 150 m

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Park Action

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory

yes

Video

Main Stream

50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)
60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)

Sub-Stream

50 Hz:25 fps(704 × 576,640 × 480,352 × 288)
60 Hz:30 fps(704 × 480,640 × 480,352 × 240)

Third Stream

50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288)
60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240)

Video Compression

H.265||H.264||MJPEG

H.264 Type

Baseline Profile||Main Profile||High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

fixed region

Audio

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC

Audio Sampling Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz,48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

yes

Network

Protocols

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets

API

Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface

User/Host

Security

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage

NAS (NFS, SMB/ CIFS)

Client

iVMS-4200

Web Browser

Chrome 57+?Firefox 52+?Safari 12+||IE10-11

Wireless (Wi-Fi)

Wireless Range

Up to 20 m
(The performance varies based on actual environment)

Wireless (Mobile Communication)

Frequency

LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE

Standard

LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH


Image Parameters Switch

yes

Image Settings

saturation||brightness||contrast||sharpness

Day/Night Switch

day||night||auto||scheduled-switch

Wide Dynamic Range (WDR)

120 dB

SNR

>52dB

Defog

yes

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

up to 24 masks||mask color configurable

Regional Focus

yes

Regional Exposure

yes

Interface

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O

Alarm

2 alarm inputs

Reset

yes

Power Output

12 VDC, max. 1000 mA

Event

Basic Event

motion detection||alarm input||alarm output||video tampering alarm||exception

Smart Event

face detection||intrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection||audio exception detection

Linkage

preset||patrol scan||pattern scan||alarm output||sending email||notify surveillance center|| upload to FTP||NAS video recording

General

Power

12 VDC

Dimension

Ø208 mm × 344.8 mm

Weight

Approx. 3.5 kg (7.7 lb.)

Material

Metal

Operating Condition

-30? to 65? (-22°F to 149°F)

Demist

yes

Power Consumption and Current

Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

Manufacturer Part No:

DS-2DE5425IWG-4G

Brand:

HIKVISION

Product Type:

25x Pro Solar-Powered Security PTZ Camera

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

CCTHIK0163

Product Model:

DS-2DE5425IWG-4G

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
