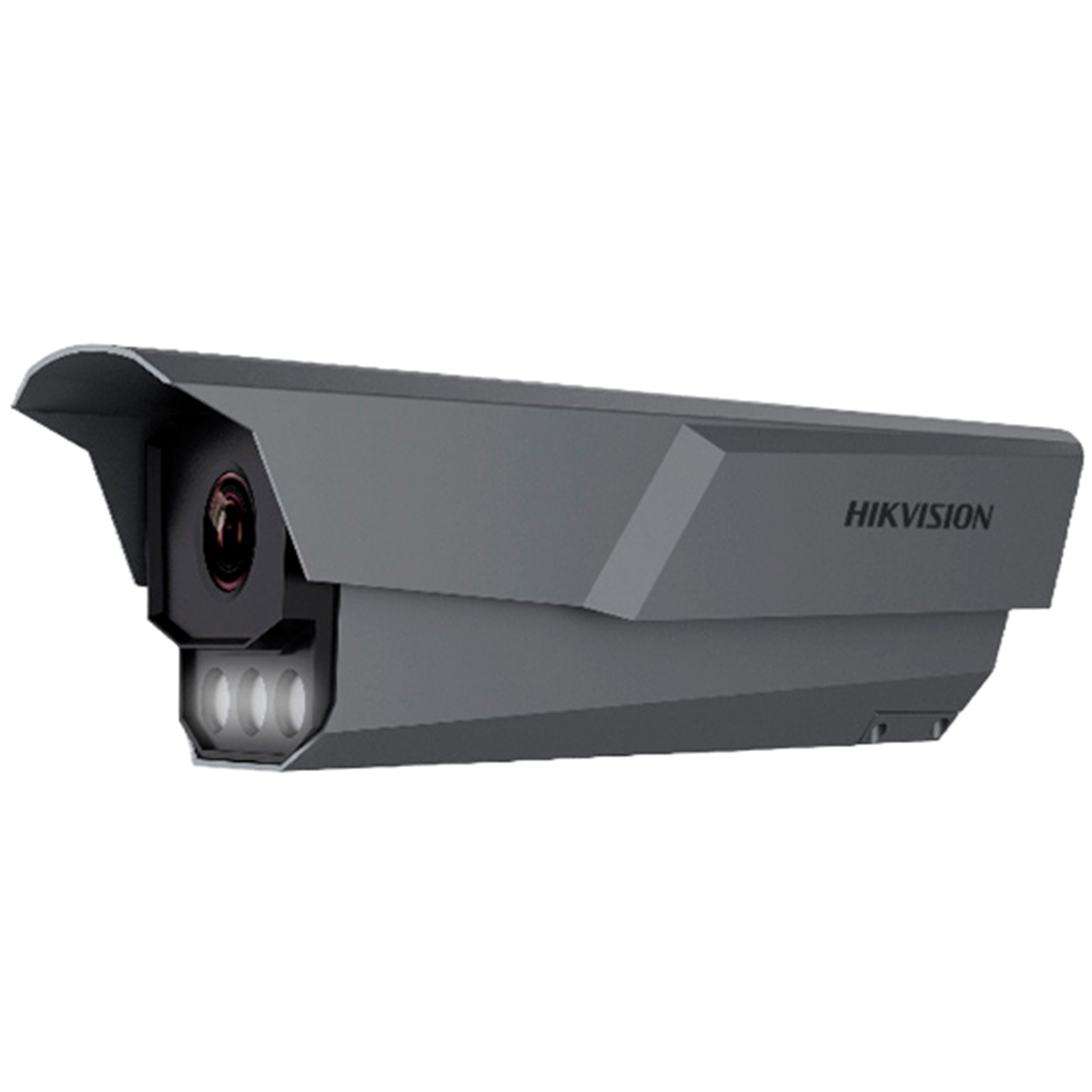

HIKVISION iDS-TCW403-BI(G)/GK/ Container Number Recognition Camera
Out of stock
HIKVISION iDS-TCW403-BI(G)/GK/ Container Number Recognition Camera
- Brand: HIKVISION
- MPN: iDS-TCW403-BI(G)/GK/
- Part #: CCTHIK0172
- UPC:
- Brand: HIKVISION
- MPN: iDS-TCW403-BI(G)/GK/
- Part #: CCTHIK0172
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras





HIKVISION iDS-TCW403-BI(G)/GK/ Container Number Recognition Camera
- Brand: HIKVISION
- MPN: iDS-TCW403-BI(G)/GK/
- Part #: CCTHIK0172

Product URL: https://www.pbtech.co.nz/product/CCTHIK0172/HIKVISION-iDS-TCW403-BIGGK-Container-Number-Recogn
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- High performance Container No. Recognition bullet camera
- Excellent low-light performance with DarkFighter technology
- High quality imaging with 4 MP resolution(1/1.8'' CMOS)
- Clear imaging against strong back light due to 140 dB WDR technology
- Motorized vari-focal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal proof (IK10)
Specifications
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 x 1520
Min. Illumination
Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux with IR
Shutter Time
1 s to 1/100000 s
Day & Night
IR cut filter
Lens
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 113.5° to 39°, vertical FOV 58.4° to 22.7°, diagonal FOV 141.3° to 44.3°
Focus
Auto
Iris Type
Auto-iris: DC drive
Aperture
F1.38
Illuminator
Built-in Supplement Light Type
IR light
Built-in Supplement Light Range
Up to 40 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
Sub-Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
Third Stream
50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288)
60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)
Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Audio
Audio Compression
G.722.1,G.711
Audio Bit Rate
8 Kbps (G.711),16 Kbps (G.722.1)
Network
Protocols
TCP/IP,ICMP,802.1X,IGMP,SNMP,SMTP,NTP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RT P,RTSP,RTCP,QoS,IPv4/IPv6,UDP,ARP,ISUP
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
User/Host
Up to 32 users,3 user levels: administrator, operator, and user
Security
Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP.EAP-LEAP.EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,Host authentication (MAC address),TLS 1.2,1.3,Control timeout settings,Security audit log,RTP/RTSP over HTTPS,WSSE and digest authentication for ONVIF
Network Storage
TF/SD card (512 GB),Local storage,CVR,NVR,ANR
Web Browser
Chrome V61 to Chrome V89, IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge,IE9 to IE11
Image Settings
Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by clien software or web browser.,Rotate mode
Day/Night Switch
Schedule,Manual,Auto
Wide Dynamic Range (WDR)
140 dB
Image Enhancement
3D DNR
Interface
Ethernet Interface
1 RJ45 10/100/1000 M self-adaptive Ethernet port(s)
On-Board Storage
Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
Audio
1 line in and 1 line out
Alarm
1 input T port,1 output F port,2 relay port
RS-485
1 RS-485
Wiegand
1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
Event
Basic Event
Network disconnected,IP address conflict,HDD error
Road Traffic and Vehicle Detection
Smart Function
Container No. Recognition and ISO No. Recognition
General
Operating System
Linux
Power
DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W
Material
Aluminum alloy
Dimension
428.5 mm × 120 mm × 138 mm (16.9" × 4.72" × 5.2") (L × W × H)
Package Dimension
452 mm × 398 mm × 198 mm (17.8" × 15.67" × 7.8") (L × W × H)
Weight Approx.
3 kg (6.61 lb.)
With Package Weight
Approx. 5.19 kg (11.44 lb.)
Operating Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
Storage Condition
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
General Function
One-key reset,Three streams,Password protection,Heartbeat
Approval
EMC
CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11
Environment
WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: 2011/65/EU
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
