Features

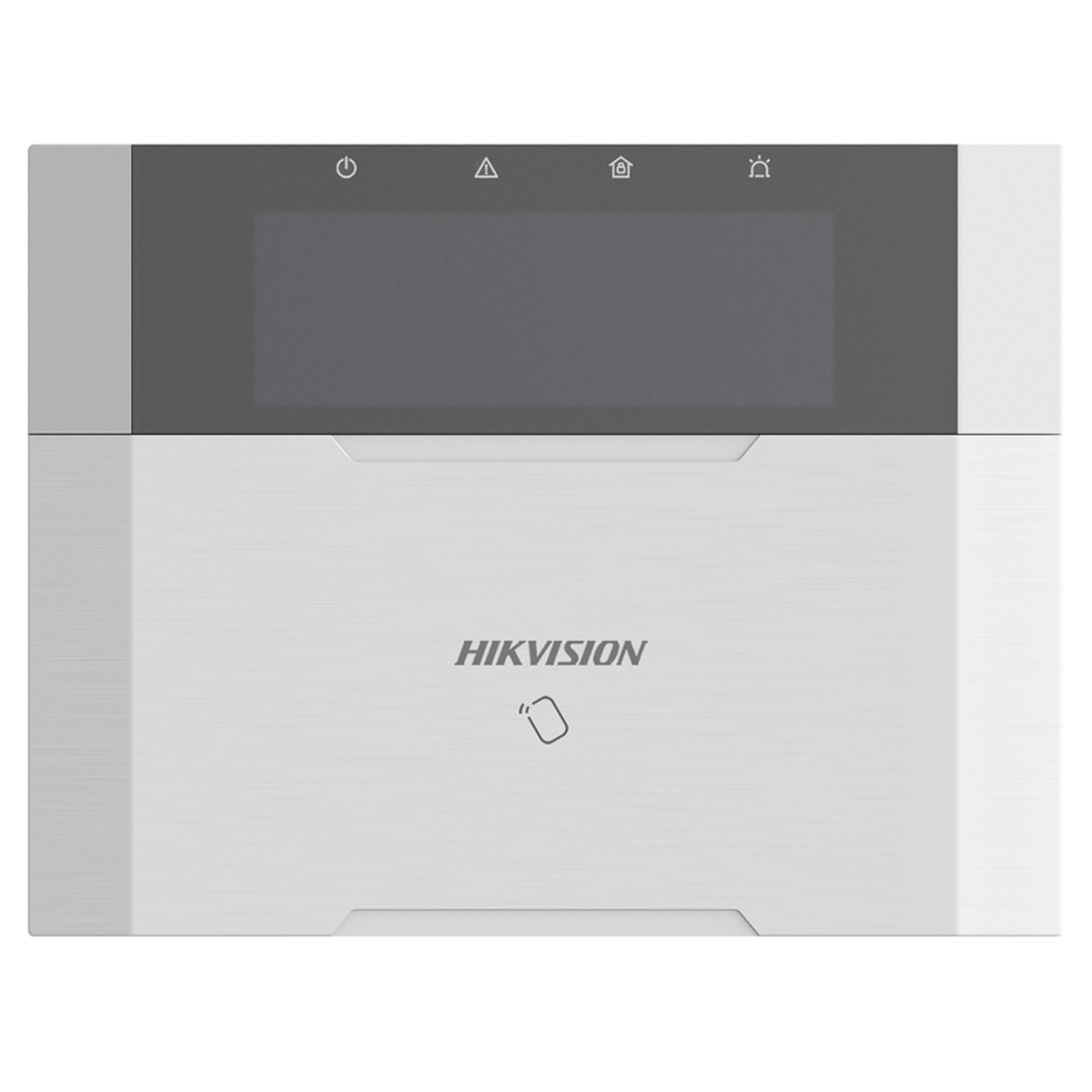

Wired LCD Keypad
The DS-PK1-LRT-HWE/DS-PK1-LRT-HWB wired keypad is an AX series keypad designed for AX hybrid pro control panel (DS-PHA48-EP, DS-PHA64-LP). The DS-PK1-LRT-HWE/ DS-PK1-LRT-HWB supports built-in wireless transceiver and tag reader, which can work with keyfob and tag for arming/disarming.
- LCD screen display
- Supports one-touch arm(Arming without password)
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs
Purpose-Built Integration for AX Hybrid Pro Panels
The DS-PK1-LRT-HWB LCD Keypad is designed for seamless compatibility with the AX Hybrid Pro control panels (models DS-PHA48-EP, DS-PHA64-LP), providing reliable arming and disarming operations through both keypads and wireless peripherals.
Clear LCD Display and User-Friendly Operations
Featuring an LCD screen, this keypad supports one-touch arming without a password, a full numeric keypad, and clear system status indicators, making daily operations straightforward and secure.
Multi-Function Alarm Keys and Flexible Input/Output
The product features dedicated keys for fire, panic, and medical alerts, supports displaying company name and time, and comes with two on-board alarm inputs and one alarm output for enhanced alarm integration.
Comprehensive Device and Access Management
The built-in tag reader and support for up to 64 keyfobs offer flexible access control, suitable for both home and business security needs, with an 8-key function set for full-featured system interaction.
Robust Electrical and Wireless Capabilities
Operating at 10.2-14.4 VDC with low power consumption, the keypad includes a reliable wireless transceiver at 433MHz, TTL serial connectivity, RS-485 Speed-X bus support, and a tamper-proof back-cover switch.
Durable and Versatile for Varied Environments
With a compact white design, dimensions of 150×115×28mm, the keypad operates from -10°C to +55°C and 10%-90% humidity, making it suitable for diverse installation settings.
Specifications
Hardware features
Tag reader built in
1 Built-in Tag Reader
Serial port
1 TTL Serial Port
Tamper-Proof
1 Back-cover Tamper-switch(Will be damaged when tamper triggered)
Buzzer
1 On-board Buzzer
Function key
8 Function keys:Query,Away Aram,Stay Arm,Disarm,Alarm Output,Project,Left,Right
RS-485
1 Speed-X bus
Alarm input
2 On-board Alarm inputs
Alarm output
1 On-board Alarm output
Display
Numeric key: 0 to 9,*,#
Display screen: LCD Screen
Indicator
4 indicators and 1 backlight:
1. Power:Green
2. Faults:Fault-Orange / Alert-Flashing orange / Find me mode-flashing green
3. Armed:Blue
4. Alarm:Red
5. Keypad button backlight:White
Electrical characteristics
Power supply
10.2 to 14.4 VDC
Typical voltage
12 VDC
Power consumption
Maximum current: 150mA@12VDC
Quiescent current: 72mA@12VDC
Wireless transmission
RF frequency
433MHz
General
Dimension(WxHxD)
150mmx115mmx28mm
Color
White
Operation temperature
- 10 °C to + 55 °C (14 °F to 131 °F)
Operation humidity
10%~90%
Device management
Keyfob
64
