HIKVISION INTERCOM KV9503-WBE1 G2 2MP VILLA DOOR STN, 4.3"TOUCH,FACIAL,CARD,PWD,SURFACE

This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

HIKVISION INTERCOM KV9503-WBE1 G2 2MP VILLA DOOR STN, 4.3"TOUCH,FACIAL,CARD,PWD,SURFACE

  • Brand: HIKVISION
  • MPN: 305303711
  • Part #: CCTHIK305303711
  • UPC:
NEW ARRIVAL
No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 31 Oct When will I receive it?
Sign in to your commercial account or apply online now to view the price and order this product

Features

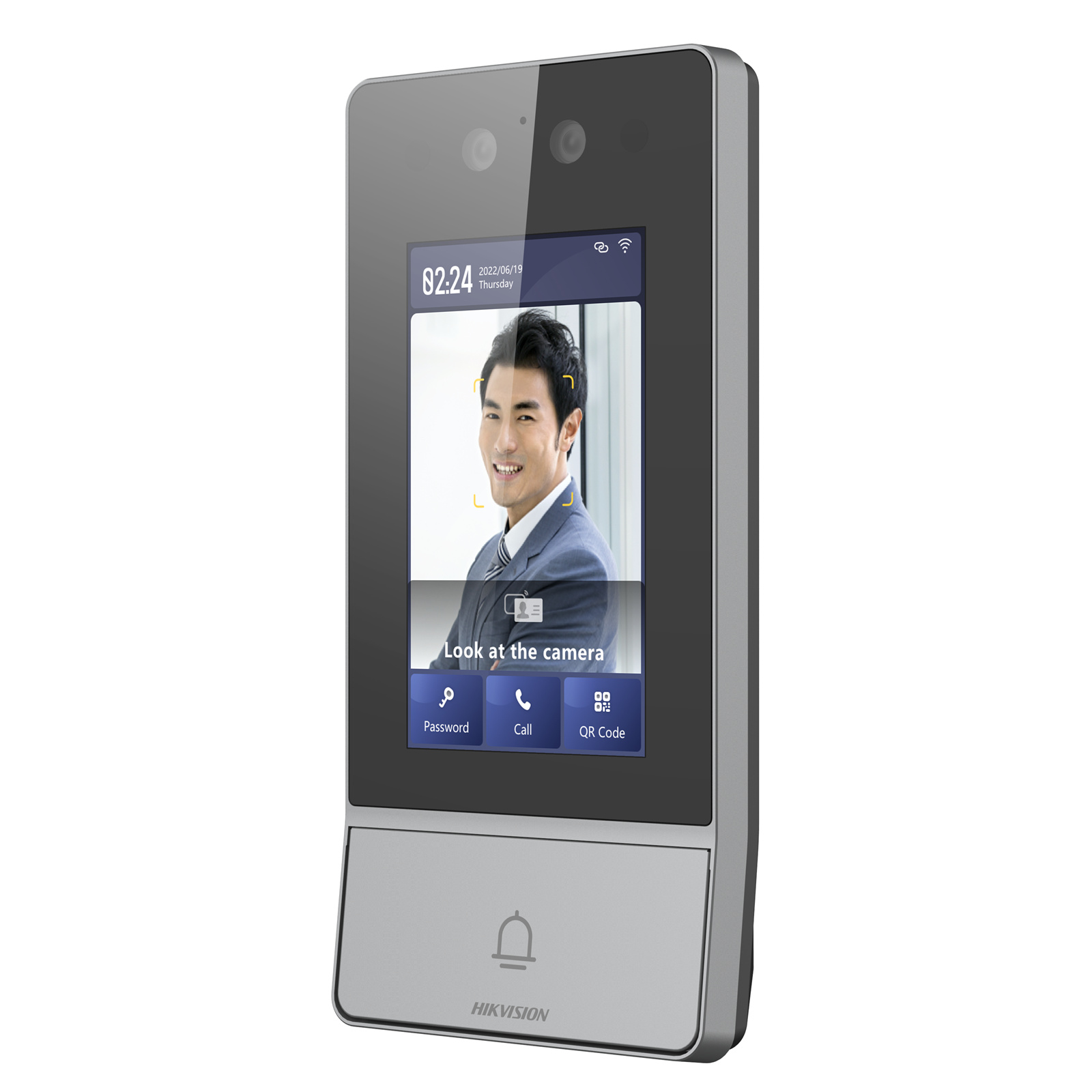

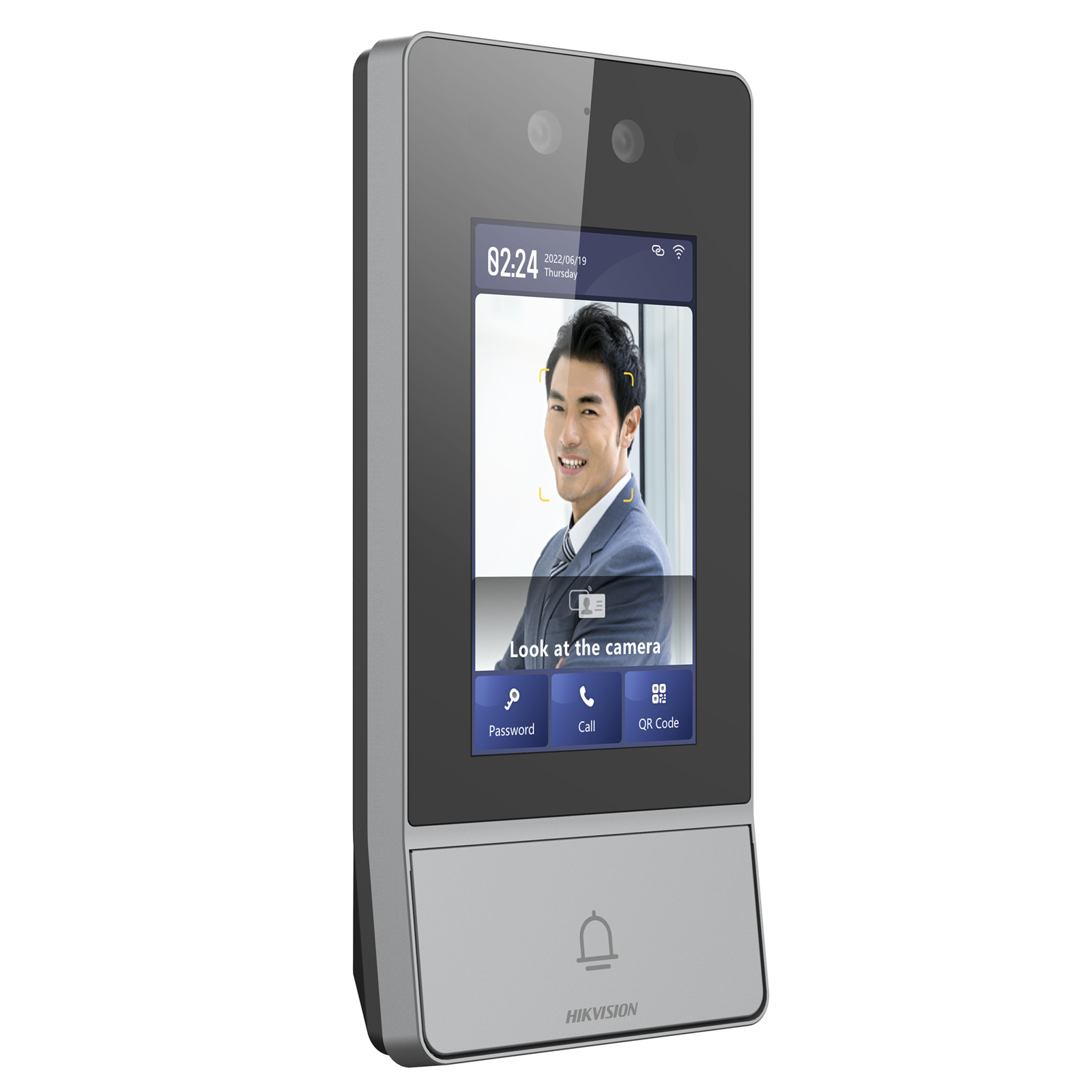

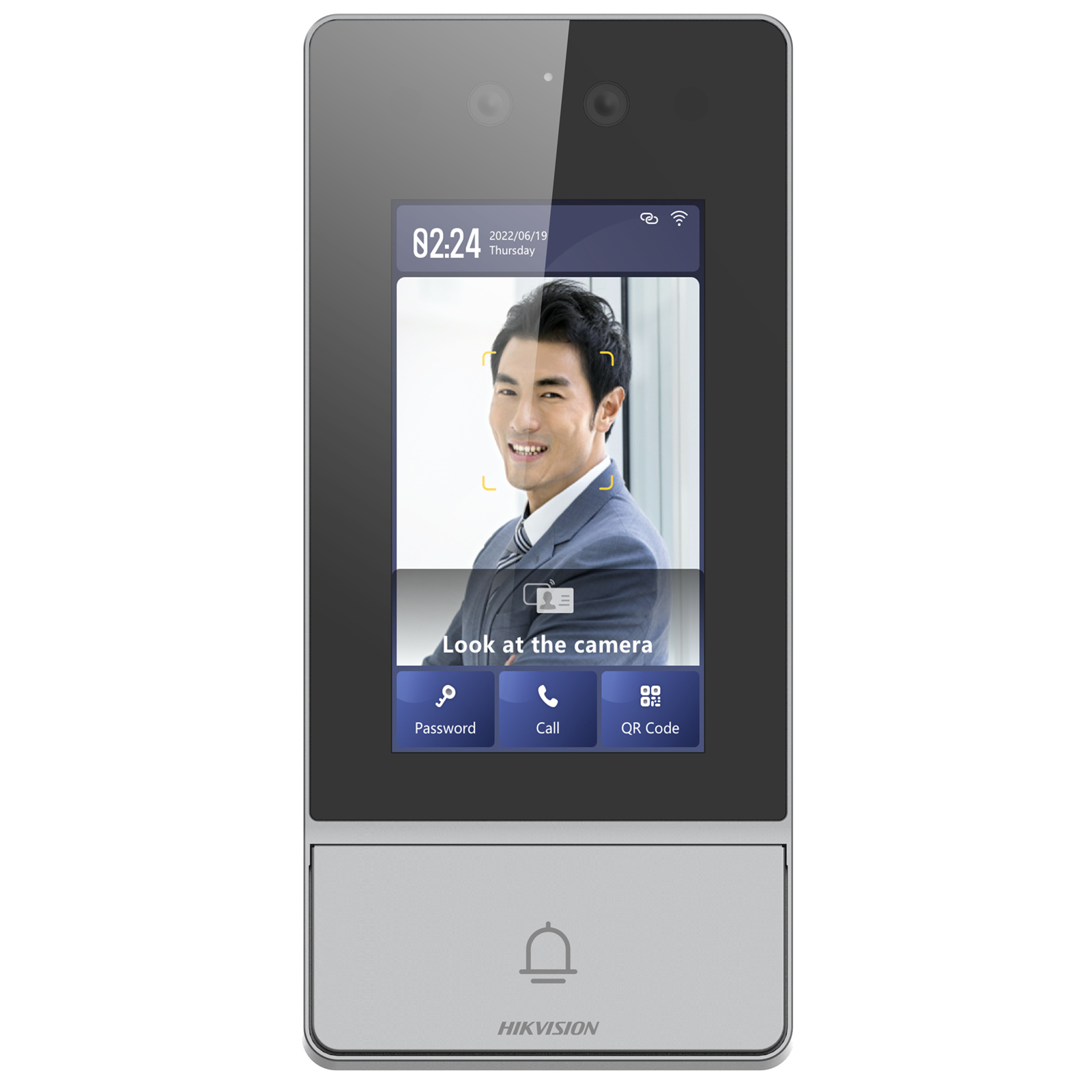

Metal Vandal-resistant Facial Recognition IP Villa Door Station

- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth

Specifications

System parameters

Operation system

Linux

ROM

4 GB

RAM

1 GB

Processor

Embeded high performance processor

Display parameters

Screen size

4.3-inch

Operation method

Capacitive touch screen

Type

IPS

Resolution

800 × 480

Luminance

425 cd/m²

Video parameters

Lens

2

Resolution

2 × 2 MP

FOV

Horizontal: 88°, Vertical: 44°

Wide dynamic range (WDR)

Support 120 dB

Supplement light

IR light, up to 3 m

Video compression standard

Main stream and sub stream: H.264
Third stream: H.265

Audio parameters

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1

Audio output

1 built-in loudspeaker

Audio compression bitrate

G.711u、G.711a、Opus:64kbps;G.722.1、G.726:32kbps;AAC-LD、AAC-LC:16kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

User capacity

20000

Face capacity

10000

Fingerprint capacity

/

Card capacity

100000

Message capacity

/

Linked indoor station capacity

500

Sub door station capacity

16

Network parameters

Network protocol

TCP/IP, RTSP

Wi-Fi

IEEE802.11b, IEEE802.11g, IEEE802.11n

Bluetooth

Support:2.0

3G/4G

/

Authentication

Card reading frequency

13.56 MHz

Face recognition distance

0.3 to 2 m

Face recognition accuracy rate

≥ 99%

Face recognition duration

< 0.2 s per person

Device interfaces

Alarm input

4 (2 exit butttons and 2 door contacts by default)

Network interface

1 RJ-45, 10/100 Mbps self-adaptive

TAMPER

1

Exit button

2

RS-485

1

USB

/

Wiegand

/

TF card

Reserved

Lock control

2 relays, Max. 30 VDC 2 A, lock 2 needs secure module

Door contact input

2

General

Button

1 physical button

Installation

Surface mounting

Net weight

0.405 kg

Gross weight

0.752 kg

Protective level

IP65, IK08

Working temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")

Power supply

12 VDC, 1.5 A,IEEE802.3af, Standard PoE

Application environment

Outdoor

Power consumption

≤ 6 W

Language

English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek

Manufacturer Part No:
305303711
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
CCTHIK305303711
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
