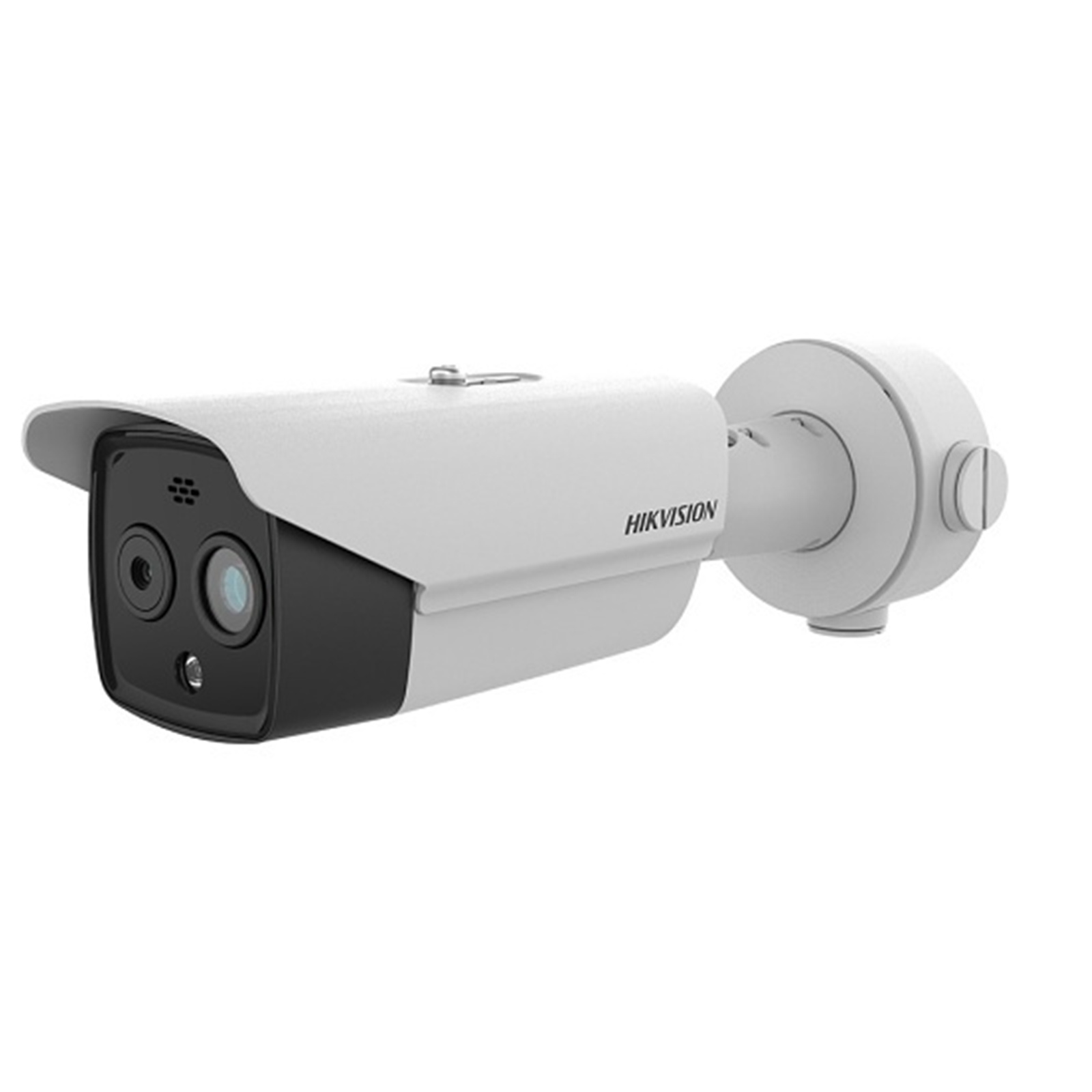

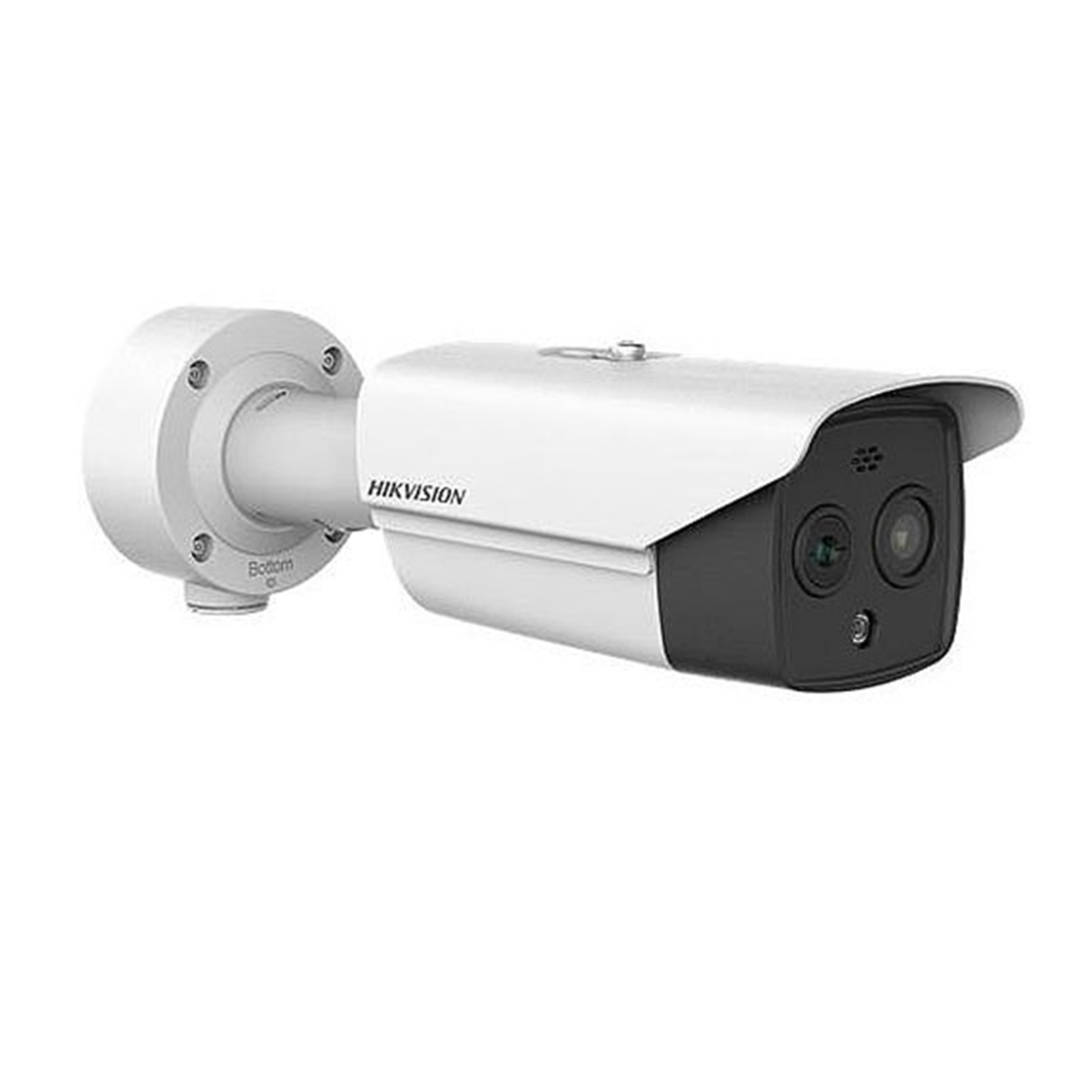

HIKVISION THERMAL 50 HFOV 4MP CV 4MM BULLET HEATPRO
Out of stock
HIKVISION THERMAL 50 HFOV 4MP CV 4MM BULLET HEATPRO
- Brand: HIKVISION
- MPN: 305401573
- Part #: CCTHIK305401573
- UPC:
- Brand: HIKVISION
- MPN: 305401573
- Part #: CCTHIK305401573
- UPC:
Features
Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Support smoking detection algorithm
- Support sun-reflection filter algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Integrated Bi-spectrum Thermal & Optical Surveillance Solution
The DS-2TD2628-3/QA combines advanced thermal imaging and high-resolution optical monitoring in one device, supporting precise perimeter analysis for diverse security needs ranging from residential estates to industrial sites.
Advanced Imaging with High-Precision Sensors
Equipped with a 256×192 vanadium oxide thermal module and a 4MP optical module, this camera delivers sharp imagery in varied lighting and weather, supporting wide spectral response and low thermal sensitivity for comprehensive detection.
Real-Time Threat Detection and Intelligent Alarms
This model leverages deep learning algorithms for video content analysis such as human/vehicle classification, temperature exception alarms for early fire detection, and unique features such as smoking and sun-reflection detection to enhance proactive protection.
Powerful Video Analytics and Smart Monitoring Functions
With support for up to 8 VCA rules (line crossing, intrusion, region entrance/exit), and flexible temperature monitoring, the camera enables up to 3 types and 21 locations for temperature measurement-suitable for monitoring critical safety points.
Robust Connectivity and Security Architecture
Supporting a wide range of network protocols and integration standards (including ONVIF), the camera offers local and network storage, multi-client online access (up to 20 channels), and advanced user management and device authentication.
Rugged Design for Demanding Environments
Built to withstand the harshest conditions, the unit features IP67 weather resistance, IK10 vandal protection, wide operating temperatures (-40°C to 65°C), and robust surge protection, making it ideal for 24/7 outdoor operation.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Thermal Cameras
HIKVISION THERMAL 50 HFOV 4MP CV 4MM BULLET HEATPRO
- Brand: HIKVISION
- MPN: 305401573
- Part #: CCTHIK305401573
Product URL: https://www.pbtech.co.nz/product/CCTHIK305401573/HIKVISION-THERMAL-50-HFOV-4MP-CV-4MM-BULLET-HEATPR
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Support smoking detection algorithm
- Support sun-reflection filter algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Integrated Bi-spectrum Thermal & Optical Surveillance Solution
The DS-2TD2628-3/QA combines advanced thermal imaging and high-resolution optical monitoring in one device, supporting precise perimeter analysis for diverse security needs ranging from residential estates to industrial sites.
Advanced Imaging with High-Precision Sensors
Equipped with a 256×192 vanadium oxide thermal module and a 4MP optical module, this camera delivers sharp imagery in varied lighting and weather, supporting wide spectral response and low thermal sensitivity for comprehensive detection.
Real-Time Threat Detection and Intelligent Alarms
This model leverages deep learning algorithms for video content analysis such as human/vehicle classification, temperature exception alarms for early fire detection, and unique features such as smoking and sun-reflection detection to enhance proactive protection.
Powerful Video Analytics and Smart Monitoring Functions
With support for up to 8 VCA rules (line crossing, intrusion, region entrance/exit), and flexible temperature monitoring, the camera enables up to 3 types and 21 locations for temperature measurement-suitable for monitoring critical safety points.
Robust Connectivity and Security Architecture
Supporting a wide range of network protocols and integration standards (including ONVIF), the camera offers local and network storage, multi-client online access (up to 20 channels), and advanced user management and device authentication.
Rugged Design for Demanding Environments
Built to withstand the harshest conditions, the unit features IP67 weather resistance, IK10 vandal protection, wide operating temperatures (-40°C to 65°C), and robust surge protection, making it ideal for 24/7 outdoor operation.
Specifications
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
256 × 192
Pixel Pitch
12 μm
Spectral Range
8 μm to 14 μm
NETD
< 40 mK (25°C, F1.0)
Focal Length
3.6 mm
IFOV
3.33 mrad
Field of View
50.0° × 37.3° (H × V)
Min. Focusing Distance
0.5 m
Aperture
F1.0
Digital Zoom
×2, ×4
Optical Module
Image Sensor
1/2.7" Progressive Scan CMOS
Resolution
2688 × 1520
Min. Illumination
0.0089Lux @(F1.6,AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Focal Length
4.3 mm
Field of View
84.0° × 43.1° (H × V)
Aperture (Range)
F1.6
WDR
120 dB
Image Effect
Target Coloration
Yes. Supported in white hot and black hot mode.
Illuminator
IR Distance
Up to 30 m
IR Intensity and Angle
Automatically adjusted
Audible and Visual Alarm
White Light Range
Up to 30 m
Visual Alarm
Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range
-20°C to 150°C (-4°F to 302°F)
Temperature Accuracy
± 8°C (± 14.4°F)
General Function
Fire detection, smoking detection, sun-reflection filter
Video and Audio
Main Stream
Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
Optical: 50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP, TLS
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API
ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
Simultaneous Live View
Up to 20 channels
User/Host level
Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client
iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
Interface
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2, alarm output (alarm response actions configurable)
Alarm Action
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
Analog Output
1.0V [p-p]/75Ω, PAL/NTSC/BNC
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
Dimensions
321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Weight
1550 g (3.41 lb)
Detection Range Table/Smart Function Range
VCA Range for Humans: 24 m
VCA Range for Vehicles: 72 m
