HIKVISION 305401643 Hik DS-2TD2367-50/PY Thermal Bullet 50mm
Out of stock
HIKVISION 305401643 Hik DS-2TD2367-50/PY Thermal Bullet 50mm
- Brand: HIKVISION
- MPN: 305401643
- Part #: CCTHIK305401643
- UPC:
- Brand: HIKVISION
- MPN: 305401643
- Part #: CCTHIK305401643
- UPC:
Features

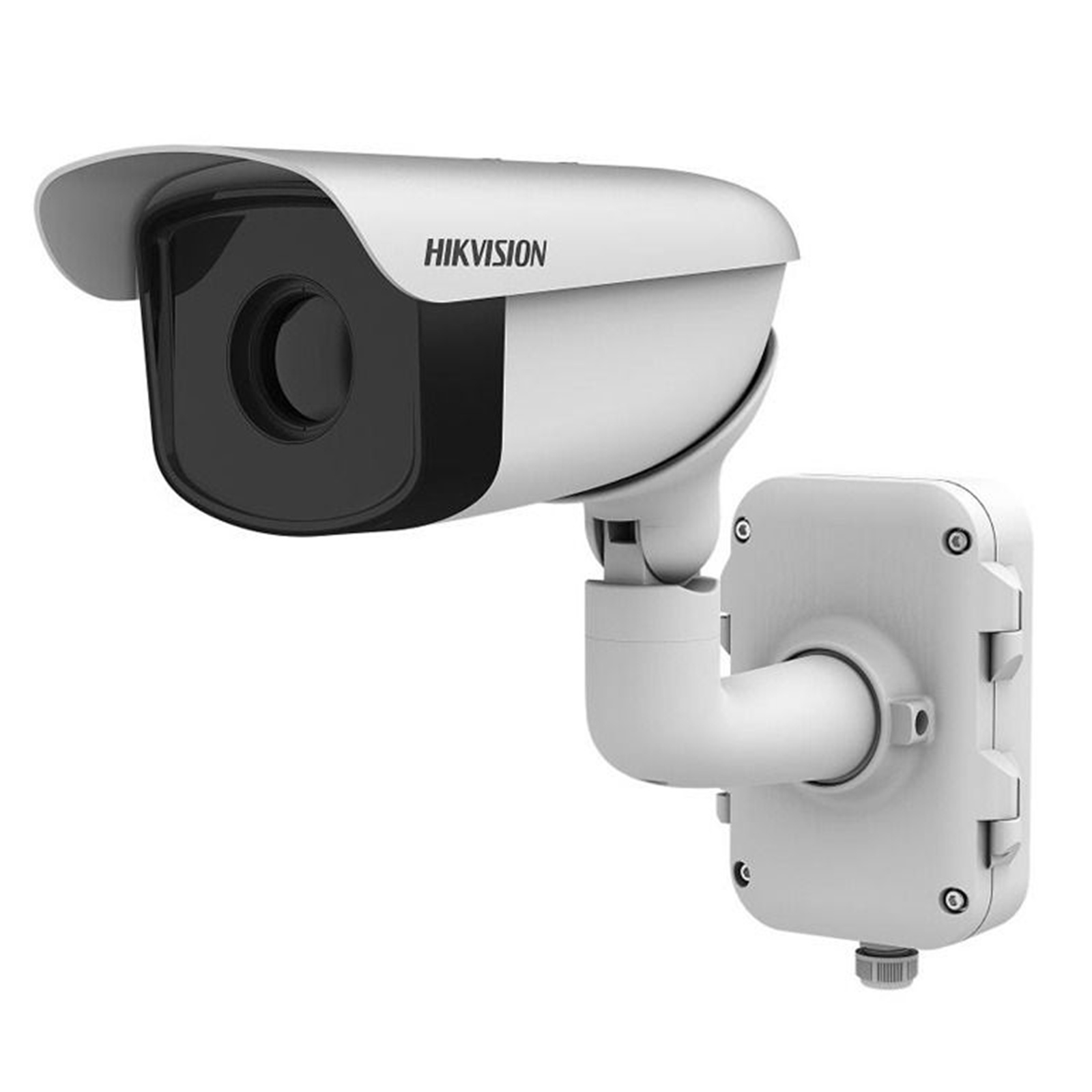

Thermal Network Bullet Camera
Hikvision DS-2TD2367-50/PY Anti-corrosion Thermal Network Bullet Camera is applied to perimeter protection and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anticorrosion coating to meet the requirements of used in anti-corrosion environment.
- 640 x 512 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25 °C, F# = 1.0)
- Perimeter protection functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Temperature exception alarm
- Fire detection algorithm
Engineered for Critical Infrastructure Security Needs
The DS-2TD2367-50/PY is specifically designed for perimeter protection and early fire detection in critical sites such as airports, railways, prisons, and power stations, supporting anti-corrosion operation for harsh environments.
High-Precision Thermal Imaging Sensor and Optics
Featuring a vanadium oxide uncooled focal plane array with 640x512 resolution and 50mm lens, this camera delivers detailed, stable thermal images, even in demanding and large-area applications.
Comprehensive Intelligent Analysis and Early Warning
Equipped with deep learning algorithms, the device provides perimeter VCA (line crossing, intrusion, region entrance/exit), dynamic fire source detection, temperature exception alarms, and up to 8 custom rules.
Advanced Video Processing and Audio Capabilities
Multiple video streams (H.265/H.264/MJPEG) and rich audio encoding options support real-time monitoring, with target coloration visualization in both white-hot and black-hot modes for precise threat identification.
Robust Network Protocols and Flexible Integration
The camera integrates with diverse platforms via ISAPI, Hikvision SDK, and open network interfaces, supporting up to 20 live view channels, 32 user accounts, and encrypted device authentication.
Industrial-Grade Reliability and Environment Resistance
With IP67 rating, anti-corrosion coating, TVS 6000V lightning protection, and single-mode fiber support, the camera ensures operation in extreme temperatures, high humidity, and corrosive conditions, making it fit for industrial deployments.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Thermal Cameras
HIKVISION 305401643 Hik DS-2TD2367-50/PY Thermal Bullet 50mm
- Brand: HIKVISION
- MPN: 305401643
- Part #: CCTHIK305401643
Product URL: https://www.pbtech.co.nz/product/CCTHIK305401643/HIKVISION-305401643-Hik-DS-2TD2367-50PY-Thermal-Bu
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Thermal Network Bullet Camera
Hikvision DS-2TD2367-50/PY Anti-corrosion Thermal Network Bullet Camera is applied to perimeter protection and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anticorrosion coating to meet the requirements of used in anti-corrosion environment.
- 640 x 512 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25 °C, F# = 1.0)
- Perimeter protection functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Temperature exception alarm
- Fire detection algorithm
Engineered for Critical Infrastructure Security Needs
The DS-2TD2367-50/PY is specifically designed for perimeter protection and early fire detection in critical sites such as airports, railways, prisons, and power stations, supporting anti-corrosion operation for harsh environments.
High-Precision Thermal Imaging Sensor and Optics
Featuring a vanadium oxide uncooled focal plane array with 640x512 resolution and 50mm lens, this camera delivers detailed, stable thermal images, even in demanding and large-area applications.
Comprehensive Intelligent Analysis and Early Warning
Equipped with deep learning algorithms, the device provides perimeter VCA (line crossing, intrusion, region entrance/exit), dynamic fire source detection, temperature exception alarms, and up to 8 custom rules.
Advanced Video Processing and Audio Capabilities
Multiple video streams (H.265/H.264/MJPEG) and rich audio encoding options support real-time monitoring, with target coloration visualization in both white-hot and black-hot modes for precise threat identification.
Robust Network Protocols and Flexible Integration
The camera integrates with diverse platforms via ISAPI, Hikvision SDK, and open network interfaces, supporting up to 20 live view channels, 32 user accounts, and encrypted device authentication.
Industrial-Grade Reliability and Environment Resistance
With IP67 rating, anti-corrosion coating, TVS 6000V lightning protection, and single-mode fiber support, the camera ensures operation in extreme temperatures, high humidity, and corrosive conditions, making it fit for industrial deployments.
Specifications
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
640 × 512
Pixel Interval
17 μm
Response Waveband
8 μm to 14 μm
NETD
< 35 mk (25 °C, F# = 1.0)
Focal Length
50mm
IFOV
0.34 mrad
Field of View
12.4° × 10° (H × V)
Min. Focusing Distance
50 m
Aperture
F 1.0
Digital Zoom
×2, ×4, ×8
Image Effect
Target Coloration
Yes. Supported in white hot and black hot mode.
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
Max (±8 °C, ±8 %)
Fire Detection
Dynamic fire detection, up to 10 fire points detectable.
Video and Audio
Main Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
Sub-stream
50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
Third Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Audio Compression
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
API
ISAPI, HIKVISION SDK, open network video interface
Security
User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
Simultaneous Live View
Up to 20 channels
Client
iVMS-4200, Hik-Connect
Web Browser
IE 11, Chrome 41-44, Firefox 30-51
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
User/Host level
Up to 32 users, 3 levels: Administrator, Operator, User
Interface
Alarm Input
2, alarm input (0-5 VDC)
Alarm Output
2, alarm output
Alarm Action
SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output
Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface
1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
General
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
24 VAC ± 25%, two-core terminal block
PoE (802.3at, class 4)
Power Consumption
18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W
9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W
PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
Working Temperature/Humidity
Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F)
Humidity: 90% or less
Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
535mm × 400mm × 171mm (21.06" × 15.75" × 6.73")
Weight
Approx. 6.40 kg (14.11 lb)
Detection Range Table/Smart Function Range
VCA Range for Humans: 350 m
VCA Range for Vehicles: 1050 m
