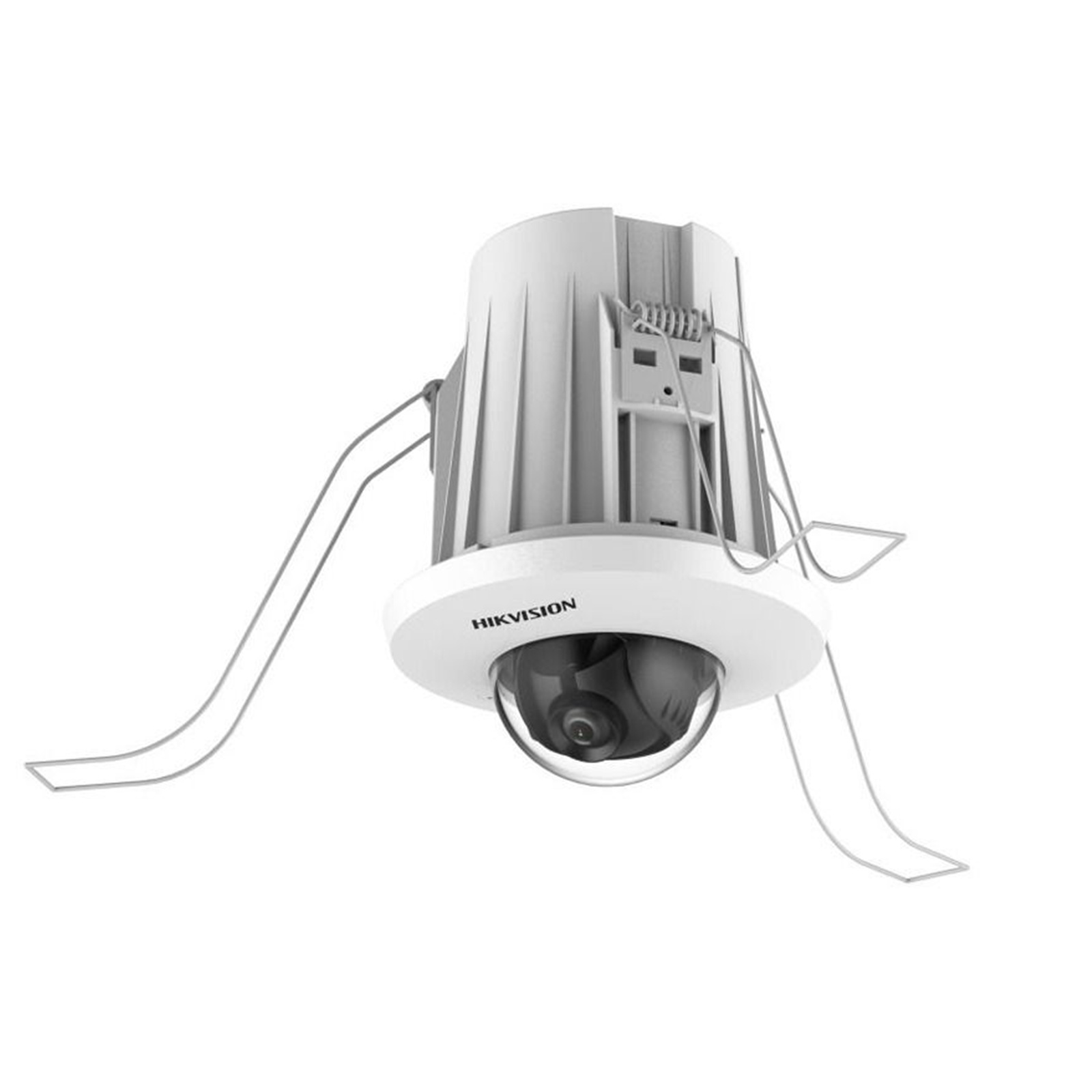

HIKVISION ACUSENSE 2CD2E43G2-U 4MP MINI IN-CEILING DOME CAMERA, FIXED 2.8MM, MIC

Brand: HIKVISION
MPN: 311317004
Part #: CCTHIK311317004
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 31 Oct When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 311317004
Part #: CCTHIK311317004
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

4 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera

- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Focus on human and vehicle targets classification based on deep learning

Specifications

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Tilt: 0° to 75°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°

Aperture

F1.6

Lens Mount

M12

DORI

2.8 mm: D: 56 m, O: 22 m, R: 11 m, I: 6 m

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,
Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Built-in Microphone

Yes

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Smart Event

Face detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

Deep Learning Function

Perimeter Protection

Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block
PoE: IEEE 802.3af, 36 V to 57 V, Class 3, 0.12 A to 0.07 A, max. 4.2 W

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding

Storage Conditions

-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)

Material

Plastic body

Dimension

Ø93.9 mm × 117.5 mm (Ø3.7" × 4.6")

Weight

Approx. 155 g (0.3 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Manufacturer Part No:

311317004

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK311317004

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
