This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

HIKVISION 311318352 Hik DS-2CD6425G1-20 8M 2MP Covert Camera -3.7mm

Brand: HIKVISION
MPN: 311318352
Part #: CCTHIK311318352
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 27 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 311318352
Part #: CCTHIK311318352
UPC:

Be the first to review this product

Max Video Resolution

1920 x 1080

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 256GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Camera Megapixels

2 Megapixels

Indoor/Outdoor Use

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Separated Network Camera

- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
- 3D DNR technology delivers clean and sharp images

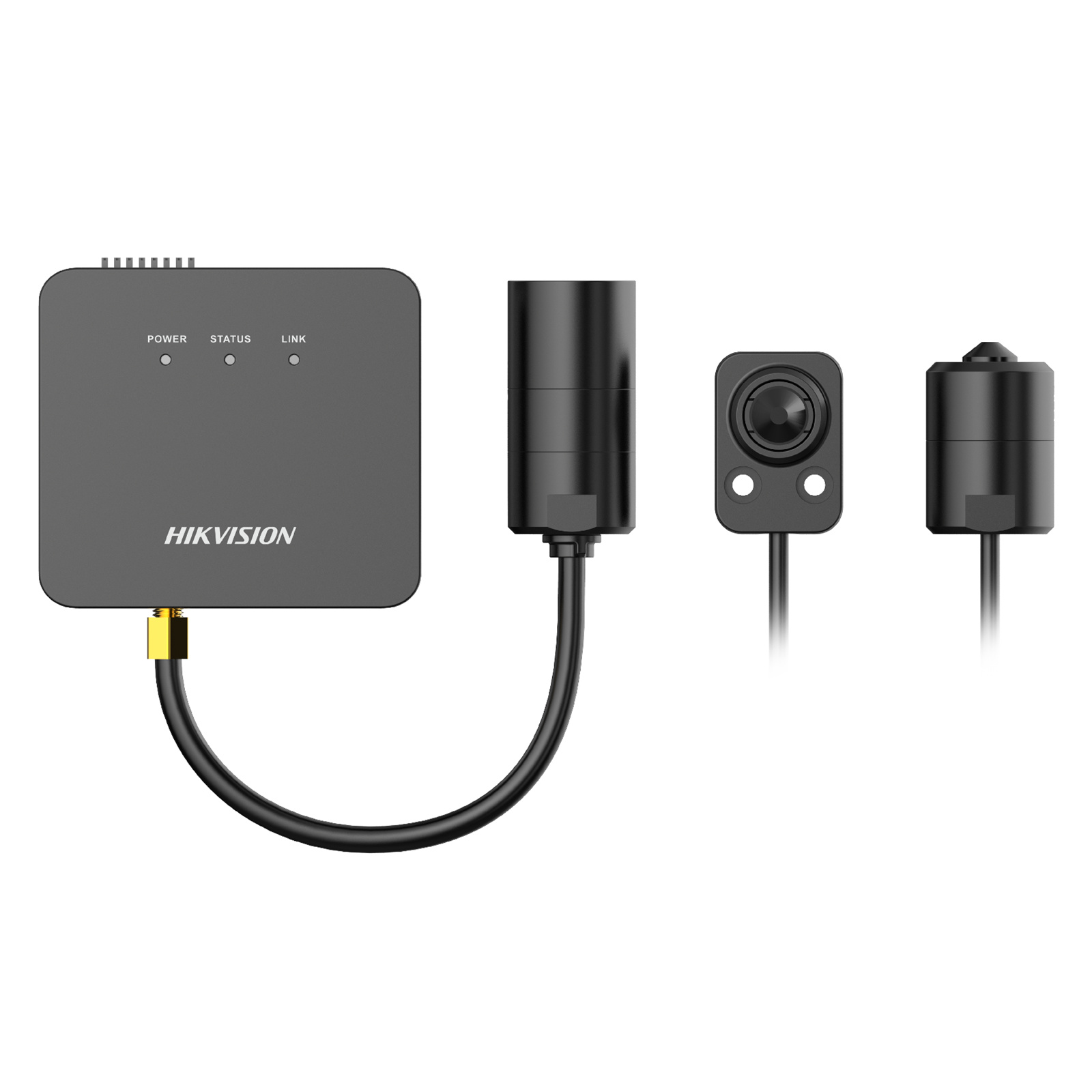

Compact 2MP Separated Camera for Flexible Installation

With a mini-sized lens and separated body, this camera enables discreet or challenging mounting-ideal for ATMs, kiosks, or covert security points.

Clear True Full HD Imaging, Effective WDR and 3D DNR

Delivers sharp, 2MP full HD video, outstanding performance against strong backlight with true 120 dB WDR, and cleaner images via 3D digital noise reduction.

H.265+ Compression and Triple-Stream Output

Efficient H.265/H.265+ compression and support for three simultaneous streams with scalable coding (SVC) help save bandwidth, storage, and ensure robust remote viewing.

Real-Time Audio, Alarm, and Advanced Networking

With mono audio in/out, alarm input/output, RS-485, NAS, and up to 32 users, the camera is equipped for professional system integration and fast incident response.

Intelligent Video Analytics and Reliable Smart Event Detection

Supports intrusion, line crossing, unattended object, audio exception, defocus, and scene change detection. Alert linkage includes FTP, NAS, SD, email, and on-site warnings.

Global Rugged Build and Comprehensive Compliance

Wide power range (12VDC/PoE), -30~60°C operation, 2m/8m lens cable option, and approvals for EMC/safety/environmental worldwide make this camera ready for any secure project.

Specifications

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Lens

Focal Length & FOV

L10/L20 model:
3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°

Lens Mount

L10/L20: Mini

Iris Type

Fixed

Aperture

L10/L20:
3.7 mm: F2.5

DORI

L10/L20:
3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CVR/BVR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

Support 1 fixed region for main stream

Audio

Audio Type

Mono

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View

Up to 15 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP 5.0

User/Host

Up to 32 users
3 level: administrator, operator, and user

Network Storage

NAS (NFS, SMB/CIFS)

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, and sharpness adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, HLC, defog, 3D DNR

Privacy Mask

Yes

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB

Audio

1 input (line in), 1 output (line out)

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconnected), video quality diagnosis

Smart Event

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

Power

12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W

Dimension

Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0")
L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0" × 1.0")

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter

Length of Lens Cable

2 m (6.6 ft.) and 8 m (26.2 ft.) optional

Approval

EMC

FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Manufacturer Part No:

311318352

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK311318352

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
