HIKVISION WIRELESS DUAL-TECH DETECTOR

Brand: HIKVISION
MPN: 314300105
Part #: CCTHIK314300105
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 14 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 314300105
Part #: CCTHIK314300105
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

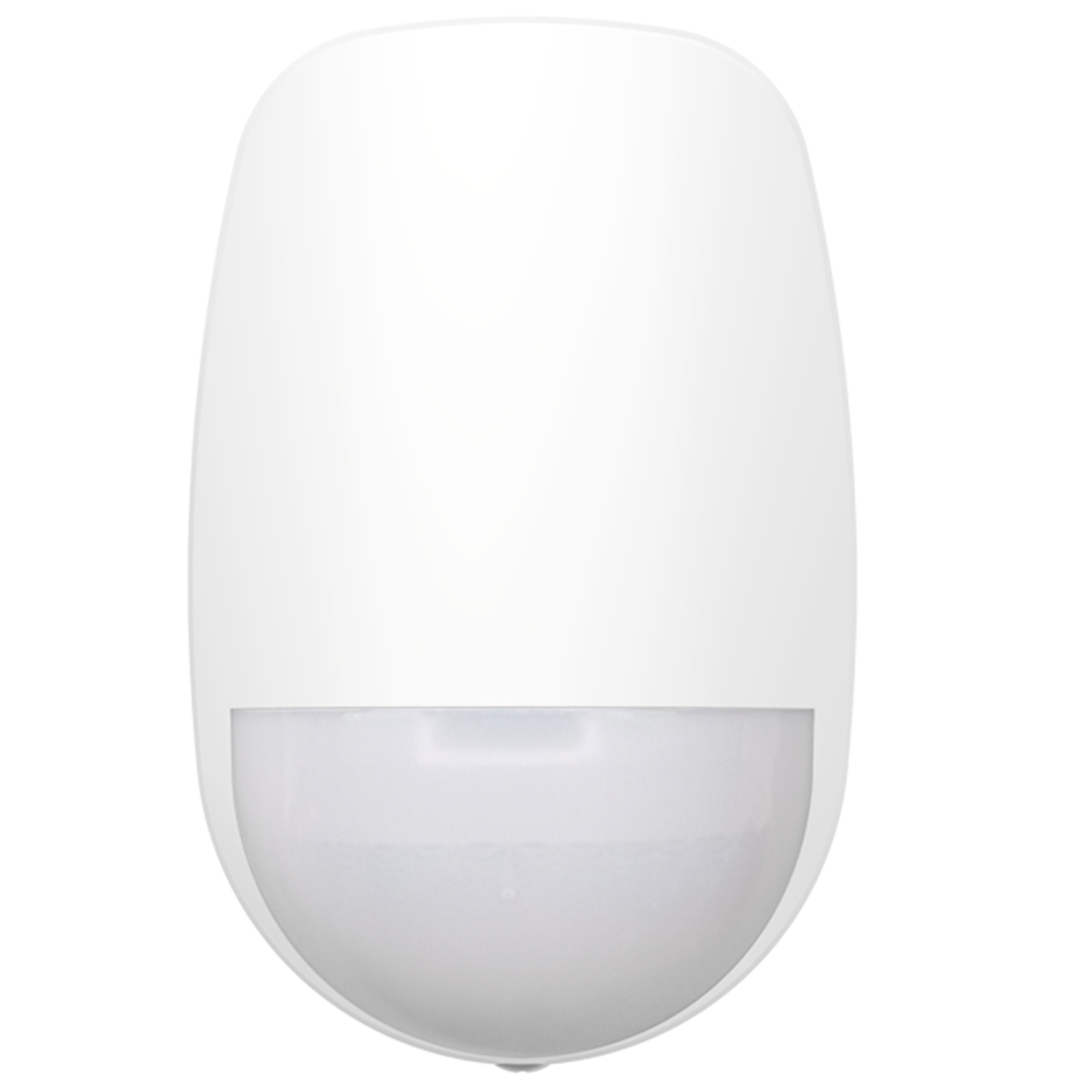

DS-PDD12P-EG2-WB is a fully supervised two-way wireless detector featuring motion and microwave detection，tamper protection，low battery and supervision. It can operate for up to 5 years from two in-built batteies, and monitors the area within 12m radius, ingnores animals while recognizing human from the first step.

- 3D optics including creep-zone protection, full coverage without dead angle
- 24G microwave to prevent wall penetration
- Digital temperature compensation
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission

Powerful Dual-Technology Detection for Complete Security

The HIKVISION DS-PDD12P-EG2-WB Wireless Dual-Tech Detector integrates both passive infrared (PIR) and advanced microwave detection, delivering robust, supervised indoor security. With a detection range of up to 12 meters and an 85.9° angle across 52 zones, it provides comprehensive coverage-while 3D optics and creep-zone protection ensure there are no blind spots, even in challenging installation scenarios. The sensor is further enhanced with a 24GHz microwave system that blocks wall penetration, maintaining precise detection within designated zones.

Intelligent Operation-Pet Immunity and Digital Precision

Designed for real-world environments, the detector applies intelligent algorithms for pet immunity up to 30kg, effectively recognizing humans from the very first step and minimizing false alarms caused by animals. It features user-selectable sensitivity (high, auto, or pet) and a smart white light filter (6500 lux) to reduce unwanted triggers from lighting. Digital temperature compensation and sealed optics keep sensor performance stable, regardless of indoor climate or ambient light changes.

Secure, Reliable Wireless Transmission

Operating on Tri-X Wireless technology, this dual-tech detector offers secure two-way RF wireless communication with AES-128 encryption and supports frequency hopping to counteract jamming attempts. The system allows for a transmission range of up to 1.2km (free space), ensuring consistent connectivity in large homes or commercial properties. Visual LED indicators display the status of PIR (green), microwave (red), and alarm (blue) for instant feedback and diagnostics.

Convenient Installation and Long-Life Battery

Installers and users benefit from multiple enrollment options-including power-up, remote ID, and QR code-for quick and hassle-free pairing. The device is powered by two CR123A batteries, offering up to 5 years of standby life, and the battery compartment is PCB-protected and easily replaceable for minimal maintenance. Remote configuration and diagnostics are accessible through a dedicated app, streamlining setup and monitoring for maximum efficiency.

Durable and Adaptable for Demanding Indoor Applications

With tamper protection on both the front and rear, plus environmental temperature and signal-strength indicators, the DS-PDD12P-EG2-WB is a comprehensive security solution built for reliability and ease of use. Its compact and lightweight design (65.5mm × 103mm × 48.5mm, 141g) and flexible wall-mount (1.8-2.4m) make it suitable for any indoor environment, operating smoothly in temperatures from -10°C to 55°C and up to 90% humidity. It is an ideal choice for homes, offices, and businesses that demand high-performance motion detection without compromise.

Specifications

Detection Performance

Detection Method

Passive Infrared; Microwave

Detection Range

12m

Detection Angle

85.9°

Detection Zones

Detectable Speed

0.3～2m/s

Sensitivity

High; Auto; Pet

Pet Immunity

30Kg

White Light Filter

6500lux

Microwave Frequency

24GHz(24.15～24.25GHz)

Digital Temperature Compensation

Support

Creep Zone Protection

Support

Feature

Digital Processing

Support

Sealed Optics

Support

Tamper Protection

Front; Rear

Environment Temperature Indicator

Support

Signal Strength Indicator

Support

Interface

Power Switch

Power Up Enrolling

LED Indicator

Green(PIR), Red(Microwave), Blue(Alarm)

Transmission

Transmission Technology

Tri-X Wireless

Transmission Method

Two-Way RF Wireless

Transmission Frequency

433MHz

Transmission Security

AES-128 Encryption

Transmission Range (Free Space)

1.2Km

Frequency Hopping

Support

Enrolling Method

Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life

Up to 5 years (standby time)

Power Supply

Battery Powered

Battery Type

CR123A × 2

Typical Voltage

General

Operation Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Operation Humidity

10% to 90%

Dimension (WxHxD)

65.5mm × 103mm × 48.5mm

Weight

141g

Mounting Height

1.8 to 2.4m

Mounting Method

Wall

Application Scenario

Indoor

Manufacturer Part No:

314300105

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

CCTHIK314300105

Product Model:

Warranty: 12 months *
