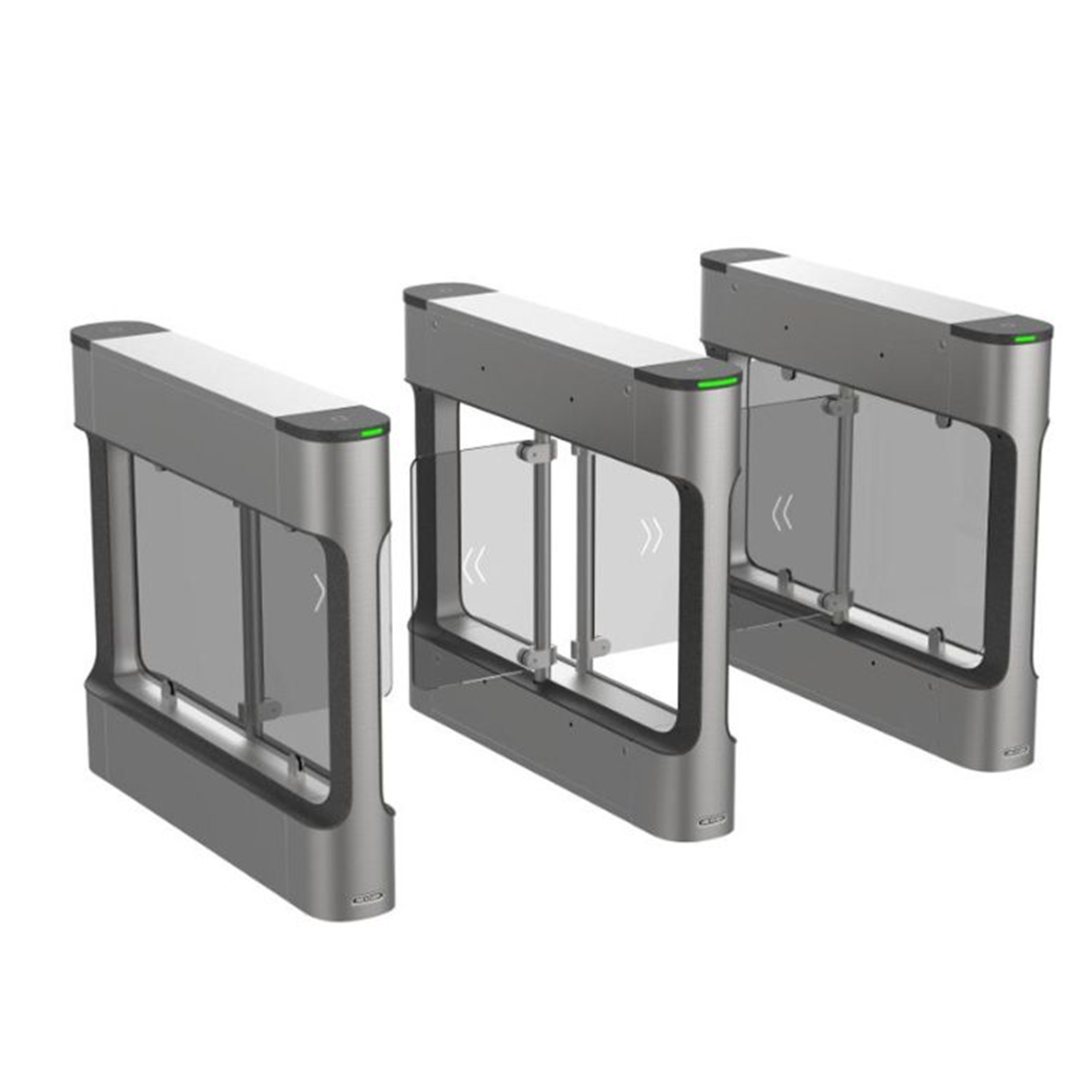

HIKVISION 314619417 DS-K3B411BX-L/MPg Swing Gate Left Hand Side
HIKVISION 314619417 DS-K3B411BX-L/MPg Swing Gate Left Hand Side
- Brand: HIKVISION
- MPN: 314619417
- Part #: CCTHIK314619417
- UPC:
- Brand: HIKVISION
- MPN: 314619417
- Part #: CCTHIK314619417
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Access Control
HIKVISION 314619417 DS-K3B411BX-L/MPg Swing Gate Left Hand Side
- Brand: HIKVISION
- MPN: 314619417
- Part #: CCTHIK314619417
Product URL: https://www.pbtech.co.nz/product/CCTHIK314619417/HIKVISION-314619417-DS-K3B411BX-LMPg-Swing-Gate-Le
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The DS-K3B411BX series swing barrier with 6 pairs of IR lights is designed to detect unauthorized entrance or exit.
- 20 to 60 persons per minute
- 100 to 240 VAC
- 50 to 60 Hz
- Pedestal material
- SUS304 stainless steel
- Lefthand side
Specifications
System
Motor
Brushless motor
MCBF
≥ 3 million times
IR light detectors
6 pairs
Interface
Network interface
1
Lock control
2
Exit button
2
Alarm output
2
RS-485
4
RS-232
2
Capacity
Face capacity
500,000
Card capacity
500,000
General
Throughput
20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
Lane width
550 mm to 1100 mm
Barrier material
Stainless steel pipe; Acrylic
Pedestal material
SUS304 stainless steel
Power consumption
65W (stand by)
Working temperature
-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity
10% to 95% (No condensing)
Dimensions
1200 mm × 200 mm × 1020 mm (47.2" × 7.9" × 40.2")
Configuration
Lane width
650; 750; 900; 1100
Pedestal length
1200 mm
Module selection
YES
Pedestal width
200 mm
Wall distance
60 mm
Base
YES
Barrier material
Acrylic glass; Stainless steel pipe
Application environment
Indoor and outdoor
Authentication mode
Card; Face; QR code
Card type
EM; M1
Recommended width
650 mm
Base model
DS-KSM01/B411
Product type
Swing barrier
Remote controller type
433Mhz; 868Mhz
Convert Face
NO
Door Height
Default(0.77m)
Door wing gap
Default: 50mm
