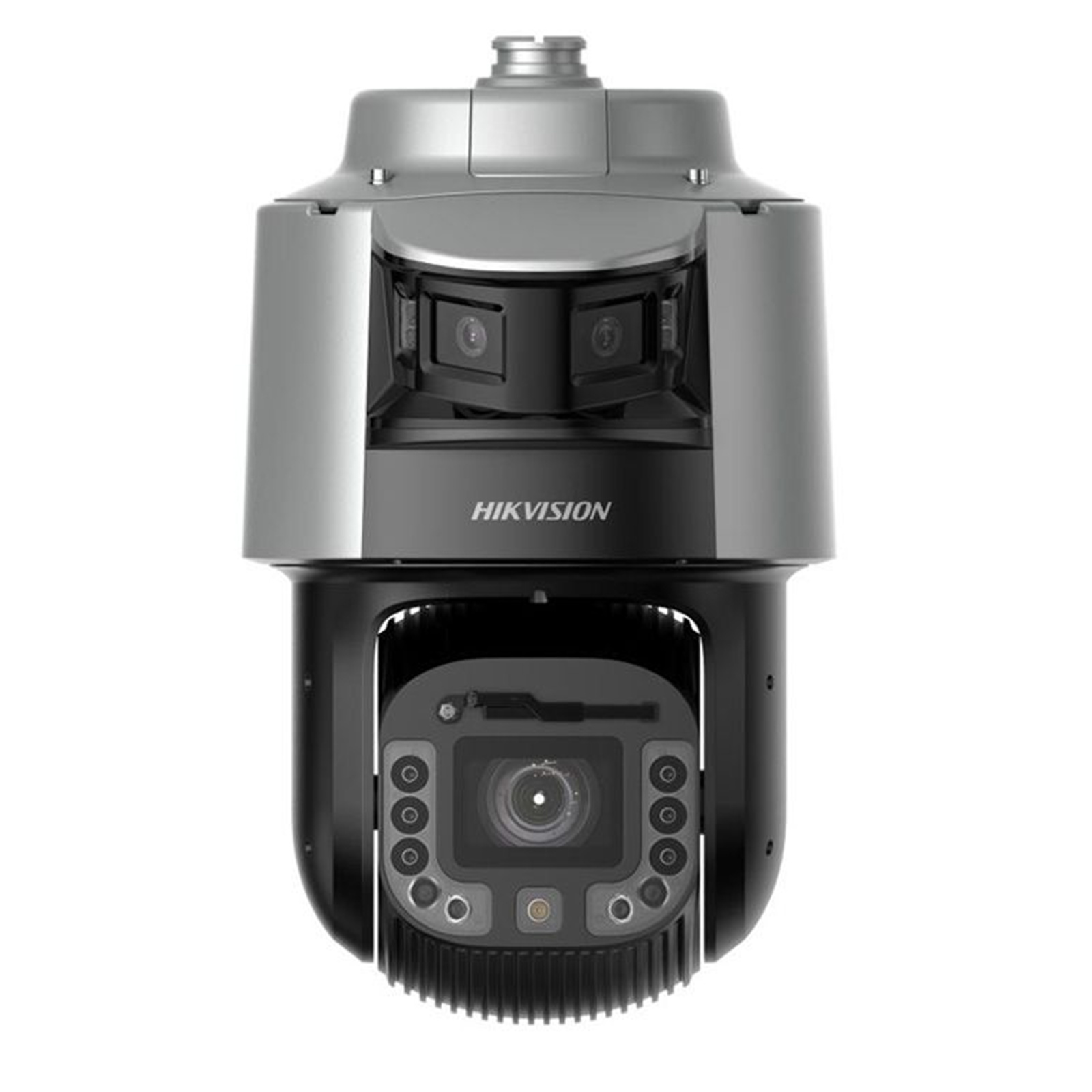

HIKVISION 327001912 HIK DS-2SF8C848MXG1-ELWY/26 (F0) 8mp TandemVu 48xPTZ

Camera

Image Sensor

[Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.2" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR

Shutter Speed

1 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Panoramic channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 48 × optical, 16 × digital

Max. Resolution

[Panoramic channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

FOV

[Panoramic channel] horizontal field of view: 190° ± 5°, vertical field of view: 80° ± 5°
[PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°

Focus

Auto, semi-auto, manual

Zoom Speed

[Panoramic channel] No, [PTZ channel] approx. 5.6 s

Focal Length

[Panoramic channel] 4 mm, [PTZ channel] 6.25 to 300 mm

Aperture

[Panoramic channel] F1.0, [PTZ channel] F1.6

Illuminator

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] Laser: up to 500 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360° endless

Movement Range (Tilt)

[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s, [Panoramic channel] tilt speed configurable

Proportional Pan

[Panoramic channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Panoramic channel] 50 Hz: 25 fps (3680 × 1656, 3632 × 1632), 60 Hz: 30 fps (3680 × 1656, 3632 × 1632)
[PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.

Sub-Stream

[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240), [Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)

Third Stream

[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240), [Panoramic channel] No

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile, Main profile, High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Audio Bit Rate

32 to 192 Kbps (MP2L2), 16 to 64Kbps (AAC-LC), 16 Kbps (G.722.1), 8-48 Kbps (PCM), 64 Kbps (G.711), 16 Kbps (G.726)

Audio Sampling Rate

8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

Yes

Network

API

ONVIF (Profile S, Profile G, Profile T, Profile M), ISUP, ISAPI, SDK, OTAP

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, IP address filter, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), watermark, TPM 2.0 (FIPS 140-2 level 2)

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Web Browser

Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+


Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Day/Night Switch

Day, night, auto, schedule

Image Enhancement

HLC, 3D DNR

Privacy Mask

[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Defog

Optical defog

Image Stabilization

OIS

Regional Exposure

Yes

Regional Focus

[Panoramic channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning: No
Gyroscope: Yes
Compass: No

Interface

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Built-in Speaker

1 built-in speaker

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Event

Basic Event

[PTZ channel & panoramic channel] alarm input and output, exception,
[PTZ channel] video tampering alarm

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection

Linkage

[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,
[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Face Capture

Detects up to 30 faces simultaneously, uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total
Recognizes face identity via face modeling, grading and comparing to those in face library
Supports face library encryption

Road Traffic and Vehicle Detection

Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario),support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc., support vehicle and non-vehicle counting, blocklist and allowlist: up to 10,000 records
LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98%, capture rate ≥99%, driving direction accuracy rate ≥98%
Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h, side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle, gets 7 face features, 14 human body features and 8 vehicle features

Perimeter Protection

Line crossing detection, region entrance detection, intrusion detection, region exiting detection

Linkage and Tracking

Smart Tracking: Manual tracking, auto-tracking 3.0
Smart Linkage: Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General

Power

36 VDC± 25%, max. 90 W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater)
PoE 802.3bt, type4, class8, max. 90W (Max. 62 W, including max. 15 W for IR and max. 8 W for heater)

General Function

mirror, password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing), For speaker: -30 °C to 55°C (-22°F to 131°F)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø290 mm × 453.2 mm (Ø11.42" × 17.84")

Weight

Approx. 10.5 kg ( 23.15 lb.)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7)

Safety

CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection, IK10 (IEC 62262:2002, excluding glass window)

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
