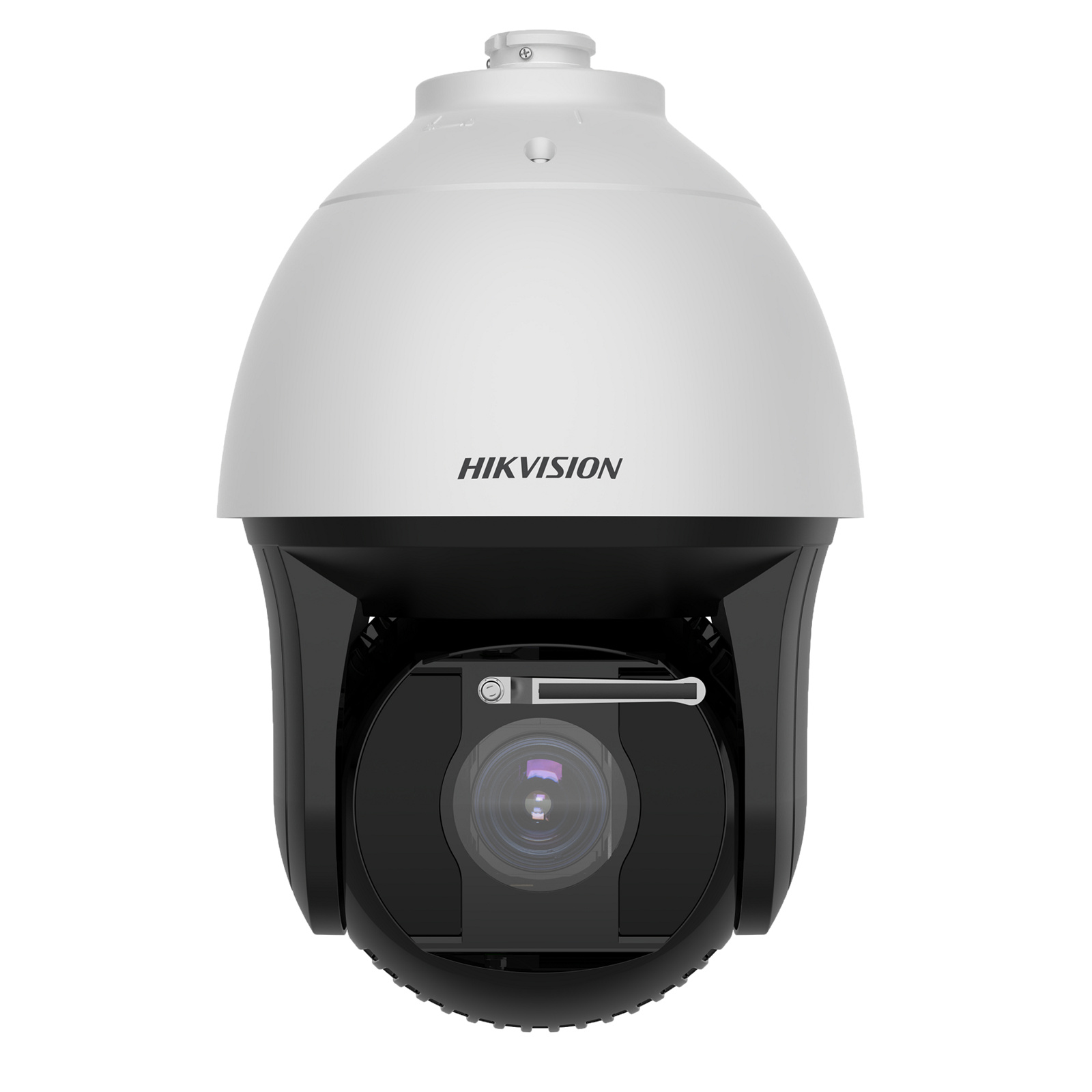

HIKVISION 327002078 Hik DS-2DF8442IXG1-ELWY Darkfighter 4MP IR PTZ 42xZoom+Wip.x

Brand: HIKVISION
MPN: 327002078
Part #: CCTHIK327002078
UPC:

NEW ARRIVAL

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 03 Nov When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HIKVISION
MPN: 327002078
Part #: CCTHIK327002078
UPC:

Be the first to review this product

Max Video Resolution

2688 x 1520

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 1TB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Black & White

Camera Megapixels

4 Megapixels

Indoor/Outdoor Use

Indoor + 1 more

View full specs

Returns & Warranty Bulk Quote Print Page

Features

DF8 Series 4MP 42X DarkFighter IR Network Speed Dome

- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 42 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles

Specifications

Camera

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2，AGC ON), 0 Lux with IR

Shutter Speed

1/1 s to 1/30,000 s

Slow Shutter

Yes

Day & Night

IR cut filter

Zoom

42x optical, 16x digital

Max. Resolution

2688 × 1520

Lens

Focus

Auto, semi-auto, manual, rapid focus

Focal Length

6.0 mm to 250 mm, 42× Optical

Zoom Speed

Approx. 4.5 s (optical, wide-tele)

FOV

Horizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele)

Aperture

Max. F1.2

Illuminator

Supplement Light Type

Supplement Light Range

IR Distance: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-20° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s

Proportional Pan

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Target Cropping

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Audio Sampling Rate

MP2L2: 16kHz, 32kHz, 48kHz
AAC-LC: 16kHz, 32kHz, 48kHz
PCM: 8kHz, 16kHz, 32kHz, 48kHz
MP3: 8kHz, 16KHz, 32KHz, 48KHz

Environment Noise Filtering

Yes

Network

Smooth Streaming

Yes

Security

Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)

Network Storage

NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour

API

ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Client

HikCentral, iVMS-4200, Hik-Connect

Web Browser

IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Day/Night Switch

Day, night, auto, scheduled-switch

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

150 dB WDR

Defog

Optical defog

Image Stabilization

Yes. Built-in gyroscope to improve EIS performance.

Regional Exposure

Yes

Regional Focus

Yes

Privacy Mask

Up to 24 masks, polygon region, mosaic mask, mask color configurable

SNR

≥ 52 dB

Supplement Detection

Gyroscope

Interface

Reset

Yes

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB

Alarm

7 inputs, 2 outputs

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Video Output

1.0V[p-p]/75Ω, PAL, NTSC, BNC connector

RS-485

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

Basic Event

Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Object Tracking

Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General

Vandal-proof Alarm

Heater

Yes

Wiper

Yes

De-icing

Demist

Yes

General Function

Mirror, password protection, watermark, IP address filter

Power

36 VDC (Max. 40 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 40 W, including max. 18 W for IR and max. 6 W for heater)

Operating Condition

Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%

Dimension

⌀ 266 mm × 410 mm (⌀ 10.47" × 16.14")

Weight

Approx. 8 kg (17.64 lb.)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)

Safety

CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Anti-Corrosion Protection

NEMA 4X

Protection

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Manufacturer Part No:

327002078

Brand:

HIKVISION

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

CCTHIK327002078

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
