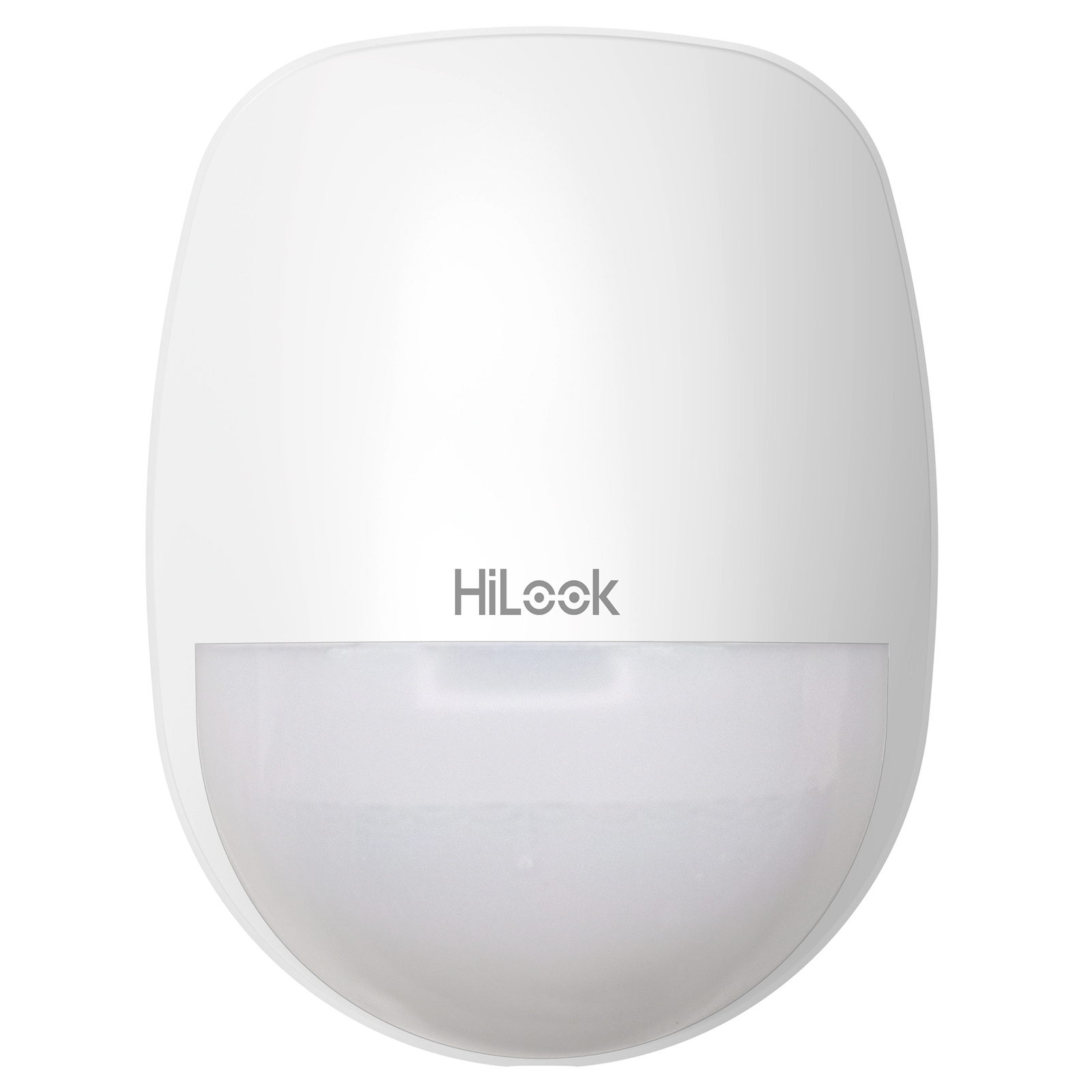

HiLook HA-ALARM-PIR1 PRO Wired PIR Detector
HiLook HA-ALARM-PIR1 PRO Wired PIR Detector
- Brand: HiLook
- MPN: HA-ALARM-PIR1
- Part #: CCTHLK1017
- UPC:
- Brand: HiLook
- MPN: HA-ALARM-PIR1
- Part #: CCTHLK1017
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Sensors





HiLook HA-ALARM-PIR1 PRO Wired PIR Detector
- Brand: HiLook
- MPN: HA-ALARM-PIR1
- Part #: CCTHLK1017

Product URL: https://www.pbtech.co.nz/product/CCTHLK1017/HiLook-HA-ALARM-PIR1-PRO-Wired-PIR-Detector
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Modern design
Delivers a small and sleek detection solution that provides a modern yet unobtrusive finish to complement any room.
Detection range
Covers up to 18m volumetric detection, making the Ellipse ideal for small to large indoor rooms and spaces.
Digital temperature compensation
Digitally adjusts its sensitivity to maintain accurate detection performance even when background temperature is close to body temperature.
Automatic sensitivity
Self-adapts to changing environmental conditions to ensure stability and consistent intruder detection performance.
3D optics
Improves the detection of moving targets by enabling precise focusing of the infrared signal onto the pyro-electric sensor, ensuring more accurate signal capture.
Creep-zone protection
Covers the blind spot area directly beneath the detector, preventing intruders from avoiding detection.
Selectable EOL resistors
Incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6, and 8K2, along with tamper resistance values of 1K, 2K2, 4K7, and 5K6, ensuring compatibility with most control panels on the market.
Anti-insect interference
Protects the detector from insect infestation while shielding air movement in front of the pyro-electric sensor and preventing unwanted reflections inside the housing.
Wide voltage
Supports a wide 9 to 16V voltage range with polarity reverse connection protection for reliable operation.
IFT technology
Automatically adjusts upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference, reducing the chance of false alarms.
Specifications
Detection performance
Detection Range
18m
Detection Angle
85.9°
White Light Filter
6500lux
Software features
Tamper-Proof
Front
Hardware features
Indicator
Blue(alarm)
Electrical characteristics
Power supply
12 VDC (Typical)
9~16 VDC
Power Consumption
Maximum Current 12mA @12VDC
General
Application scenario
Indoor
Dimension(WxHxD)
65.4mm × 86.8mm × 45.5mm
Weight
68g
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation temperature
-10 °C to 55 °C (14 °F to 131 °F)
-10 °C to 40 °C (14 °F to 104 °F) Certified
Operation humidity
10% to 90%
Installation height
1.8 to 2.4 m
Shell material
PC+ABS
