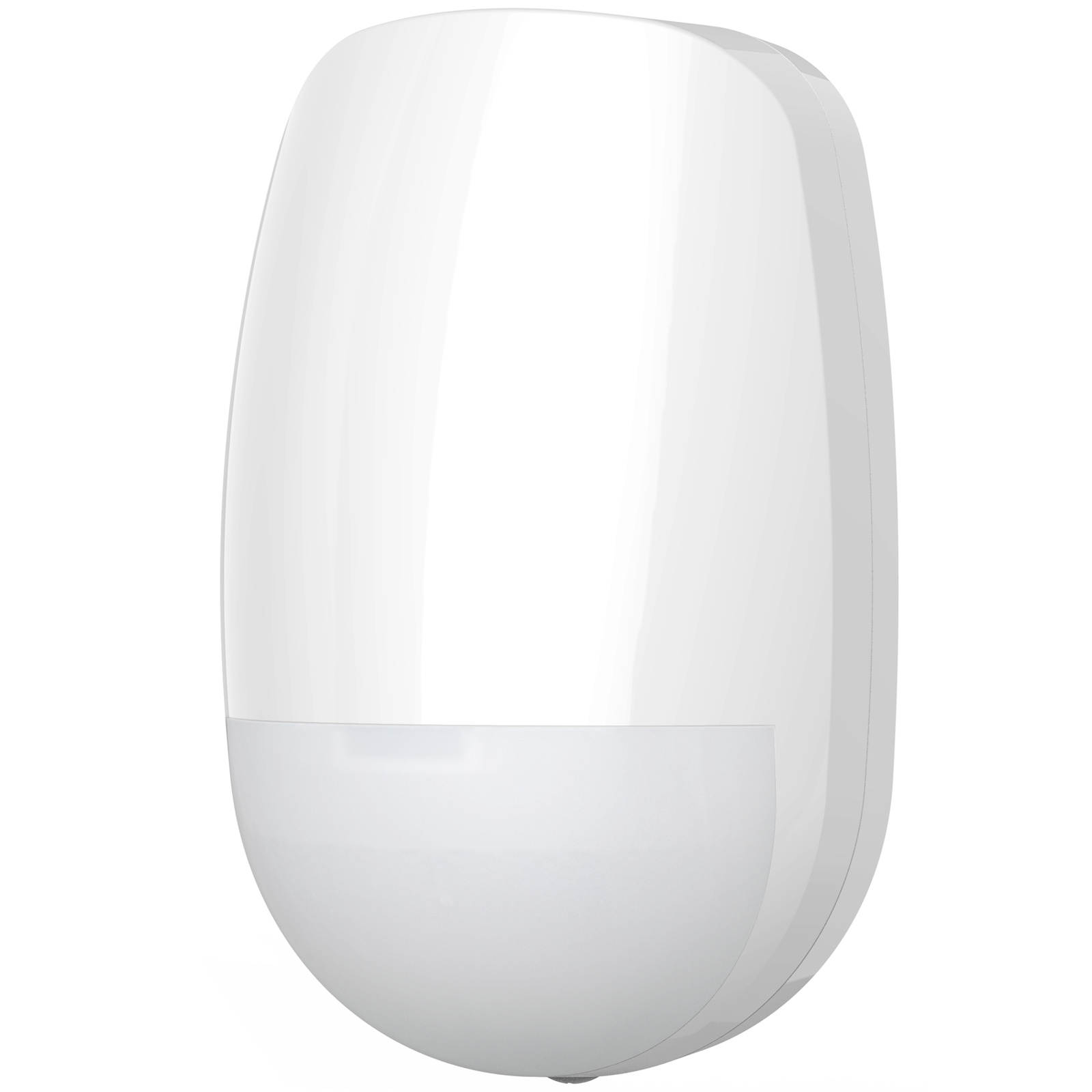

HiLook HA-ALARM-PIR2 PRO Wired Dual PIR Detector

PB Tech price
PB Tech price
$ 39 .39
 +GST
$ 45 .30
 inc GST
$39.39  +GST
$45.30

HiLook HA-ALARM-PIR2 PRO Wired Dual PIR Detector

  • Brand: HiLook
  • MPN: HA-ALARM-PIR2
  • Part #: CCTHLK1018
  • UPC:
PB Tech price
$ 39 .39 $ 45 .30
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 26 Sep When will I receive it?
$39.39  +GST
$45.30

Features

HILOOK PRO Wired Dual PIR Detector

HA-ALARM-PIR2 series of dual-tech detectors are equipped with K-Band 24GHz microwave and 3D fresnel lens technology. Non-interfering technology allows back-to-back installation and no penetration through the wall. It allows the detector to be installed and set up quicker than traditional DT's giving time and cost-saving advantages to the installer.

- Detection Range: 12m / 85.9°
- Up to 30kg pey immunity
- Automatic sensitivity
- Digital temperature compensation
- 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
- Selectable EOL resistors for alarm and tamper-proof wiring
- Sealed optics preventing insect interference
- 24Ghz microwave
- 9 to 16 V wide voltage adaptation with polarity reverse connection protection
- Wall/Ceiling-mounting brackets available (sold separately)
- IFT technology prevents false alarms

Specifications

General

Model

HA-ALARM-PIR2

Operation Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Operation Humidity

10% to 90%

Dimension(WxHxD)

65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ")

Weight

99g (3.5 oz)

Mounting Height

1.8 m to 2.4 m

Mounting Method

Wall

Application Scenario

 Indoor

Detection Performance

Detection Method

Passive Infrared,Microwave

Detection Range

12m

Detection Angle

85.9°

Detection Zones

52

Detectable Speed

0.3~2m/s

Sensitivity

Auto,Pet

Pet Immunity

30Kg

White Light Filter

6500lux

Microwave Frequency

24GHz(24.15~24.25GHz)

Digital Temperature Compensation

Support

Creep Zone Protection

Support

Feature

Digital Processing

Support

Sealed Optics

Support

Tamper Protection

Front

Interface

Alarm Output

Normally Closed

LED Indicator

Green(PIR), Orange(Microwave), Blue(Alarm)

Transmission

Transmission Method

Wired

Electrical Characteristics

Power Supply

9 to 16 VDC

Typical Voltage

12 VDC

Power Consumption

Maximum current:17mA@ 12VDC
Quiescent current:17mA@ 12VDC

Manufacturer Part No:
HA-ALARM-PIR2
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.8 kg
PB Part No:
CCTHLK1018
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
