Features
HILOOK Hybrid Intercom Kit with 7" Colour Touch Screen & 2MP Camera. IP Indoor Station & Analog Door Recieve Video Calls, Unlock on Mobile APP, Anywhere, Any Time, IP65, Includes Rain Cover.
- Hik-Connect Mobile Control for remote access and monitoring
- HD TVI Video Quality with a 1280 × 720 resolution at 60fps
- 7-Inch Touch Screen with capacitive operation and 1024 × 600 resolution
- Wide Field of View (Horizontal: 117°, Vertical: 70°, Diagonal: 141°)
- Infrared Supplement Light for night vision up to 3 meters
- Built-in Omnidirectional Microphone & Loudspeaker for clear two-way audio
- Noise Suppression & Echo Cancellation for improved audio clarity
- Lock Control with 1 relay (max 30V 1A) for secure access
- Supports Up to 3 Indoor Stations & 1 Sub Door Station
- Wi-Fi 802.11 b/g/n Support for wireless connectivity
- TF Card Support Up to 128GB for local storage
- Wide Operating Temperature Range (-30°C to 60°C for door station, -10°C to 50°C for indoor station)
- Durable & Weather-Resistant Design (IP65, IK08 protection level for outdoor unit)
- Surface Mount Installation for both indoor and outdoor units
- Multi-Language Support including English, Spanish, French, German, Italian, Arabic, and more
Video footage viewable
- Via FREE mobile app
- On local monitor
- Over local network

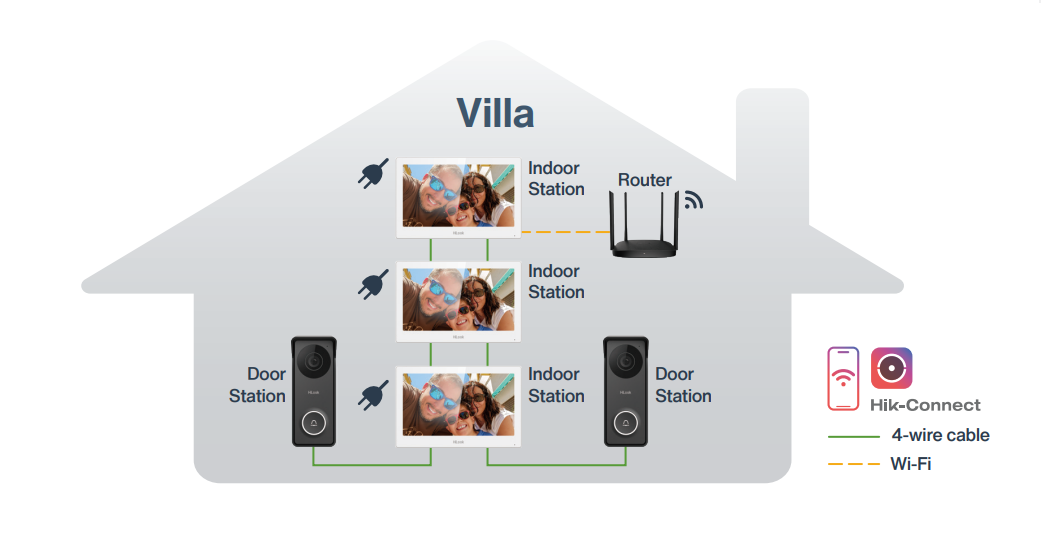

Topology
Specifications
Door station/Video parameters
Supplement light
IR light, up to 3 m
Resolution
Stream resolution:1280 * 720@ 60fps
FOV
Horizontal: 117°, Vertical: 70°, Diagonal: 141°
Door station/Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio output
1 built-in loudspeaker
Door station/Capacity parameters
Linked indoor station capacity
3
Sub door station capacity
1
Card capacity
/
Door station/Device interfaces
Lock control
1 relay, max 30 V 1 A
Power supply input
12 VDC
Debugging port
1
Four-Wire interface
1
Door station/General
Button
1 physical button(s)
Indicator
/
Power supply
12 VDC
Power consumption
≤ 4 W
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
10% to 90% (no-condensing)
Application environment
Outdoor
Dimension (W × H × D)
55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94")
Installation
Surface mounting
Protective level
IP65, IK08
Material
Aluminum alloy and Plastic
Without package: 200 g (0.44 lb)
Indoor station/System parameters
Operation system
Embedded Linux operation system
RAM
128 MB
ROM
32 MB
Processor
Embedded high performance processor
Indoor station/Display parameters
Type
Colorful TFT
Resolution
1024 × 600
Viewing Angle
Horizontal 160°, vertical 130°
Contrast
700 (Typ)
Luminance
250 cd/m² (Typ)
Operatiing method
Capacitive touch screen
Screen size
7-inch
Indoor station/Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kps
Audio compression standard
G.711U, G.711A
Audio quality
Noise suppression and echo cancellation
Indoor station/Capacity parameters
Linked network camera capacity
/
Linked indoor extensions capacity
2
Linked doorphone capacity
2
Linked analog camera
1
Indoor station/Network parameters
Wi-Fi
Wi-Fi 802.11 b/g/n
Indoor station/Device interfaces
Network interface
/
RS-485
/
Alarm input
2
Alarm output
/
Power supply input
12 VDC
TF card
Support TF card, up to 128 G
Debugging port
2
Four-Wire interface
4
Relay
/
Indoor station/General
Button
0 physical button
Power supply
12 VDC
Power consumption
≤ 5 W
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71")
Installation
Surface mounting
Application environment
Indoor
Weight
Without package: 260 g (0.573 lb)
Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek
Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
