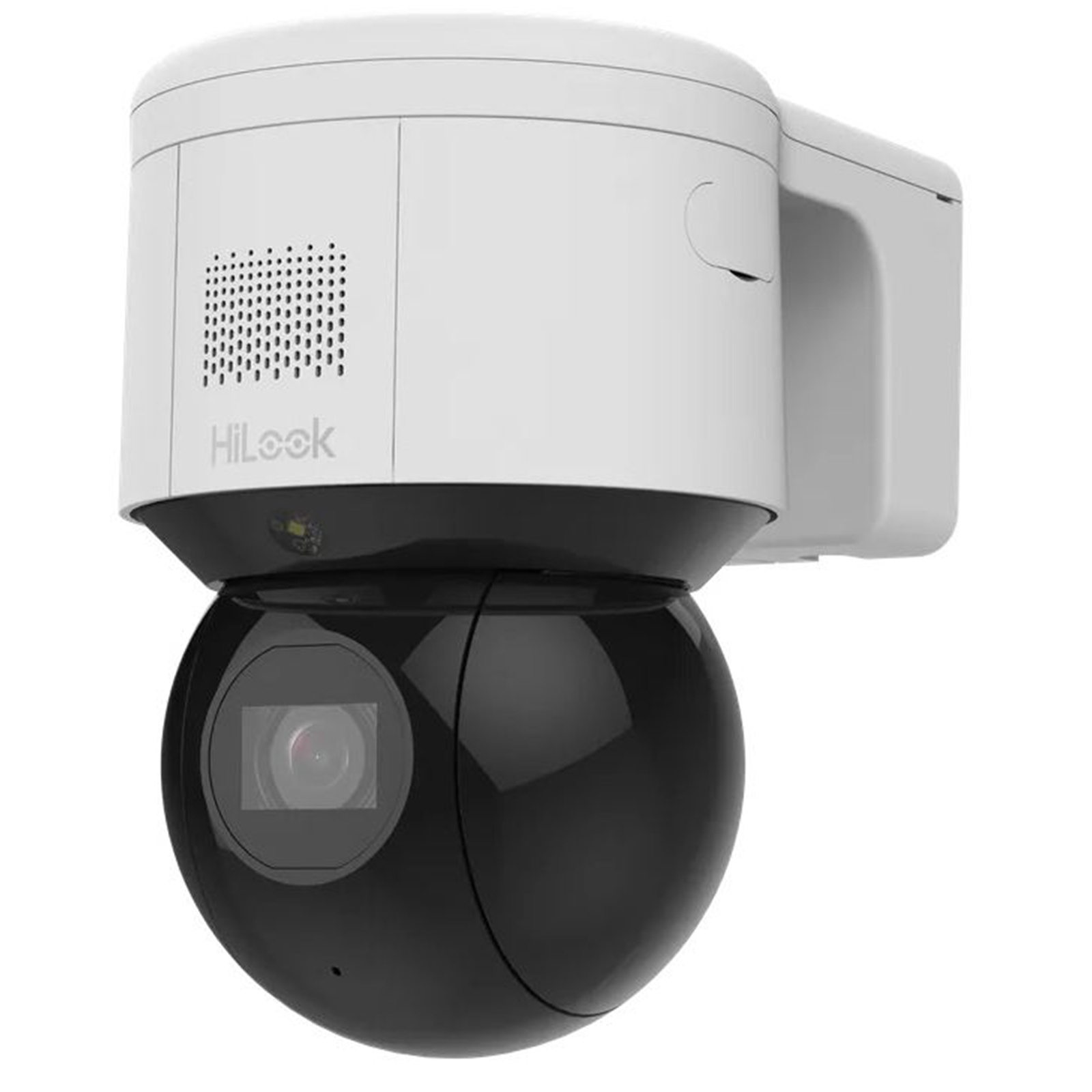

HiLook PTZ-N3404LIU (2.8-12mm) 4MP/2K+ Outdoor IP PTZ Carmera
Two-way talk / 4 x optical zoom
HiLook PTZ-N3404LIU (2.8-12mm) 4MP/2K+ Outdoor IP PTZ Carmera
Two-way talk / 4 x optical zoom
- Brand: HiLook
- MPN: PTZ-N3404LIU
- Part #: CCTHLK1034
- UPC:
- Brand: HiLook
- MPN: PTZ-N3404LIU
- Part #: CCTHLK1034
- UPC:
Similar in-stock products available at PB Tech right now
Features
HILOOK 4MP IP PTZ Carmera with Vari-focal Lens. 2.8-12mm
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Intelligent Detection
- Auto-tracking based on intelligent analysis
- Support two-way talk
- Red & Blue flashing light
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4 x optical zoom allows for closer viewing of subjects in expansive areas
- Efficient H.265+ compression technology
Video Footage Viewable
- Via FREE mobile app
- On local monitor
- Over local network
Dimension
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink P334 8MP/4K Outdoor Turret POE IP Camera Plug&play /...
HiLook PTZ-N3404LIU (2.8-12mm) 4MP/2K+ Outdoor IP PTZ Carmera Two-way talk / 4 x optical zoom
- Brand: HiLook
- MPN: PTZ-N3404LIU
- Part #: CCTHLK1034
Product URL: https://www.pbtech.co.nz/product/CCTHLK1034/HiLook-PTZ-N3404LIU-28-12mm-4MP2K-Outdoor-IP-PTZ-C
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
HILOOK 4MP IP PTZ Carmera with Vari-focal Lens. 2.8-12mm
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Intelligent Detection
- Auto-tracking based on intelligent analysis
- Support two-way talk
- Red & Blue flashing light
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4 x optical zoom allows for closer viewing of subjects in expansive areas
- Efficient H.265+ compression technology
Video Footage Viewable
- Via FREE mobile app
- On local monitor
- Over local network
Dimension
Specifications
Camera
Image Sensor
1/2.8" progressive scan CMOS
Max. Resolution
2560 x 1440
Min. Illumination
Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
Shutter Speed
1 to 1/30,000 s
Day & Night
IR cut filter
Zoom
4 × optical, 16 × digital
Lens
Focal Length
2.8 to 12 mm
FOV
Horizontal field of view: 96.7° to 31.6° (wide-tele)
Vertical field of view: 51.1° to 17.7° (wide-tele)
Diagonal field of view: 115.1° to 36.3° (wide-tele)
Focus
Auto, semi-auto, manual
Aperture
Max. F1.5
Zoom Speed
Approx. 2 s (optical lens, wide-tele)
Illuminator
Supplement Light Range
IR distance: up to 50 m
PTZ
Movement Range (Pan)
0° to 350°
Movement Range (Tilt)
0° to 90°
Pan Speed
Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
Tilt Speed
Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Park Action
Preset,Patrol Scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset,Patrol Scan,dome reboot, dome adjust, aux output
Auto tracking
Yes
Power-off Memory
Yes
Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile/main profile/high profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, QoS,802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Simultaneous Live View
Up to 20 channels
API
ONVIF, ISAPI, SDK, ISUP
User/Host
Up to 32 users. 3 user levels, administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, HikCentral, HiLookVision
Web Browser
IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Defog
Digital defog
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
24 programmable polygon privacy masks, mask color configurable
Regional Focus
Yes
Regional Exposure
Yes
Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone
1 built-in microphone
Built-in Speaker
1 built-in speaker, 8 O, 2 W. Max sound pressure level: 100 dB (10 cm)
Built-in Flashing light
Red & Blue flashing light
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%; 1output (line out), line level, output impedance: 600 O
Alarm
1 input, 1 output
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage
Preset, Patrol Scan, Upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning, flashing alarm, auto-tracking
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 14 W (including max. 2.4 W for IR, 1.2 W for white light flashing)

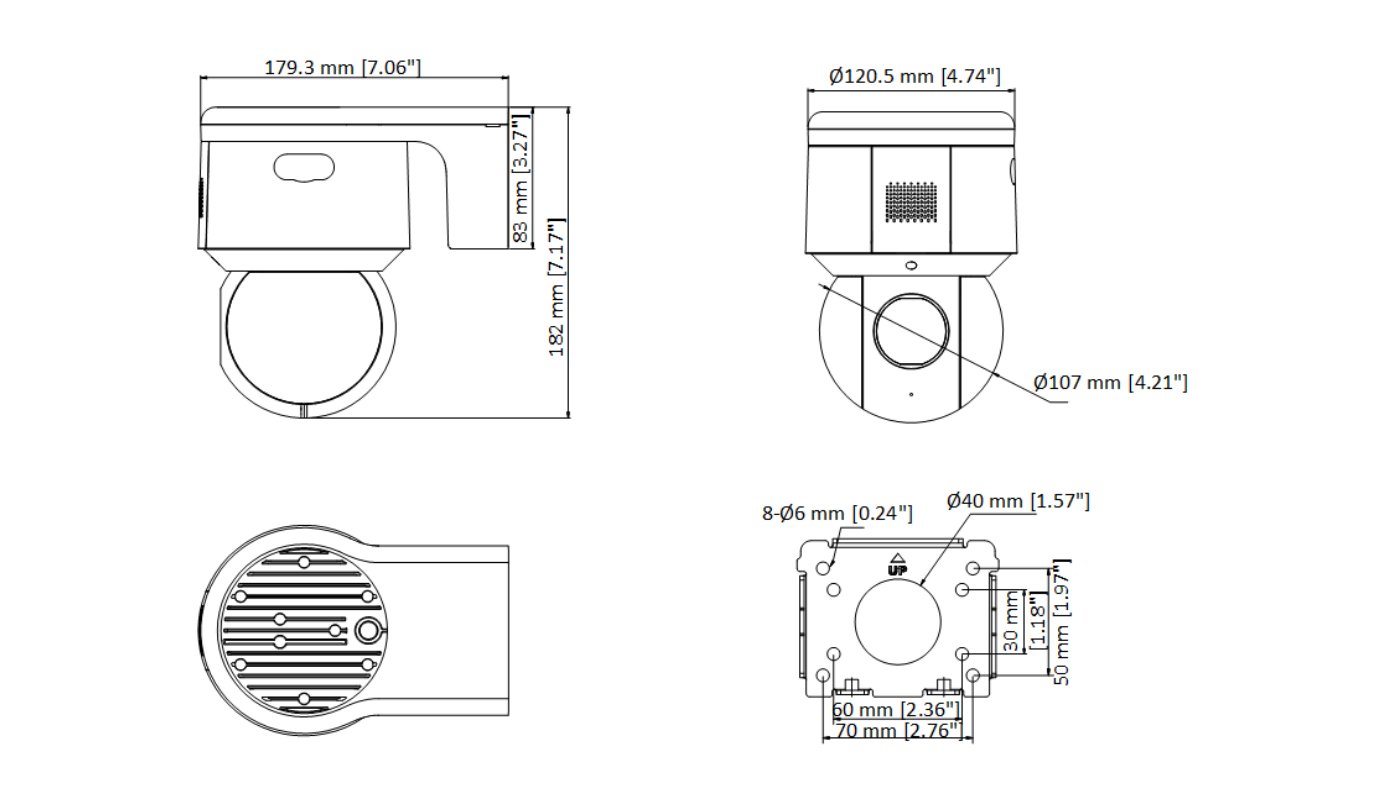

Dimension
179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.17")
Weight Approx.
1.125 kg (2.48 lb.)
Material
ADC12 + PC
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Approval
Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
