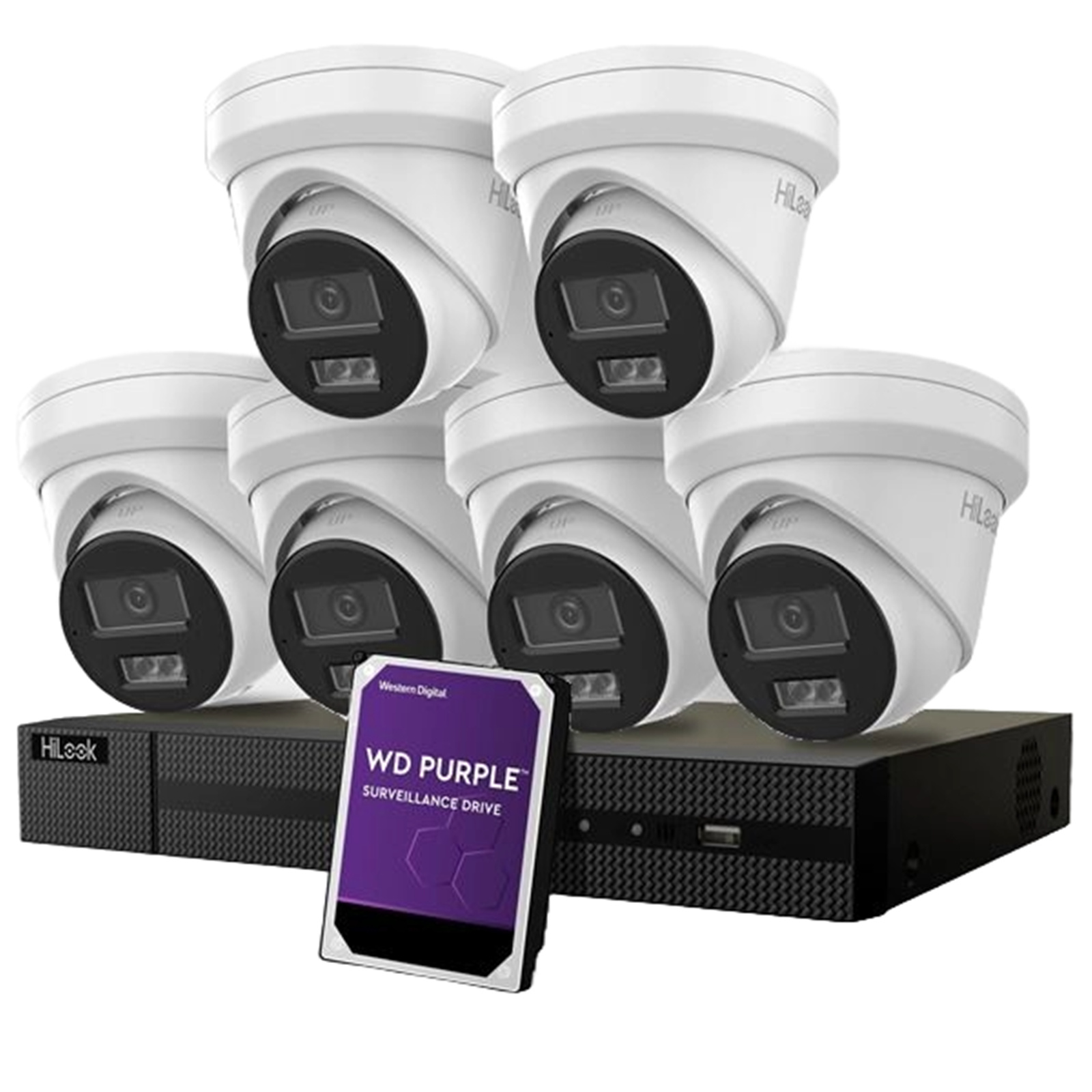

HiLook IK-6486TH-MM 6x 6MP Cameras & 8-Ch Security Surveillance NVR with 4TB HDD
Includes 6x IPC-T262H-MU (2.8mm) 6MP Turret PoE Cameras / 1x 8-Channel 1U PoE 4K NVR / 1x 4TB HDD
HiLook IK-6486TH-MM 6x 6MP Cameras & 8-Ch Security Surveillance NVR with 4TB HDD
Includes 6x IPC-T262H-MU (2.8mm) 6MP Turret PoE Cameras / 1x 8-Channel 1U PoE 4K NVR / 1x 4TB HDD
- Brand: HiLook
- MPN: IK-6486TH-MM
- Part #: CCTHLK1036
- UPC:
- Brand: HiLook
- MPN: IK-6486TH-MM
- Part #: CCTHLK1036
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Surveillance Kits - Wired





HiLook IK-6486TH-MM 6x 6MP Cameras & 8-Ch Security Surveillance NVR with 4TB HDD Includes 6x IPC-T262H-MU (2.8mm) 6MP Turret PoE Cameras / 1x 8-Channel 1U PoE 4K NVR / 1x 4TB HDD
- Brand: HiLook
- MPN: IK-6486TH-MM
- Part #: CCTHLK1036

Product URL: https://www.pbtech.co.nz/product/CCTHLK1036/HiLook-IK-6486TH-MM-6x-6MP-Cameras--8-Ch-Security
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
NVR Features:
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP/5-ch @ 1080p decoding capacity
- Up to 80Mbps incoming bandwidth
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2x SATA interfaces for HDD connection (up to 8TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
Camera Features:
- High-quality imaging with 6MP resolution
- Support Human and VehicleIntelligentDetection
- DualIR lights to enhance night vision
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
Video Footage Viewable:
- Via FREE mobile app
- On local monitor
- Over local network
Specifications
Video and Audio
IP video input
8-ch
Up to 8 MP resolution
Incoming bandwidth
80 Mbps
Outgoing bandwidth
80 Mbps
HDMI output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output
1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video output mode
HDMI/VGA simultaneous output
CVBS output
N/A
Audio output
1-ch, RCA (Linear, 1 KΩ)
Two-way audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format
H.265+/H.265/H.264+/H.264
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback
8-ch
Capability
1-ch @ 8MP (30 fps)/5-ch@1080p (30 fps)
Stream type
Video, Video & Audio
Audio compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection
64
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 80W
Supported standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 8 TB capacity for each disk
USB interface
Front panel: 1 x USB 2.0 ; Rear panel: 1 x USB 2.0
General
Power supply
48 VDC, 2.5 A
Consumption (without HDD and PoE off)
≤ 15 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (W x D x H)
385 x 315 x 52 mm (15.2" x 12.4" x 2.0")
Weight (without HDD)
≤ 2.6 kg (5.7 lb)
Certification
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
