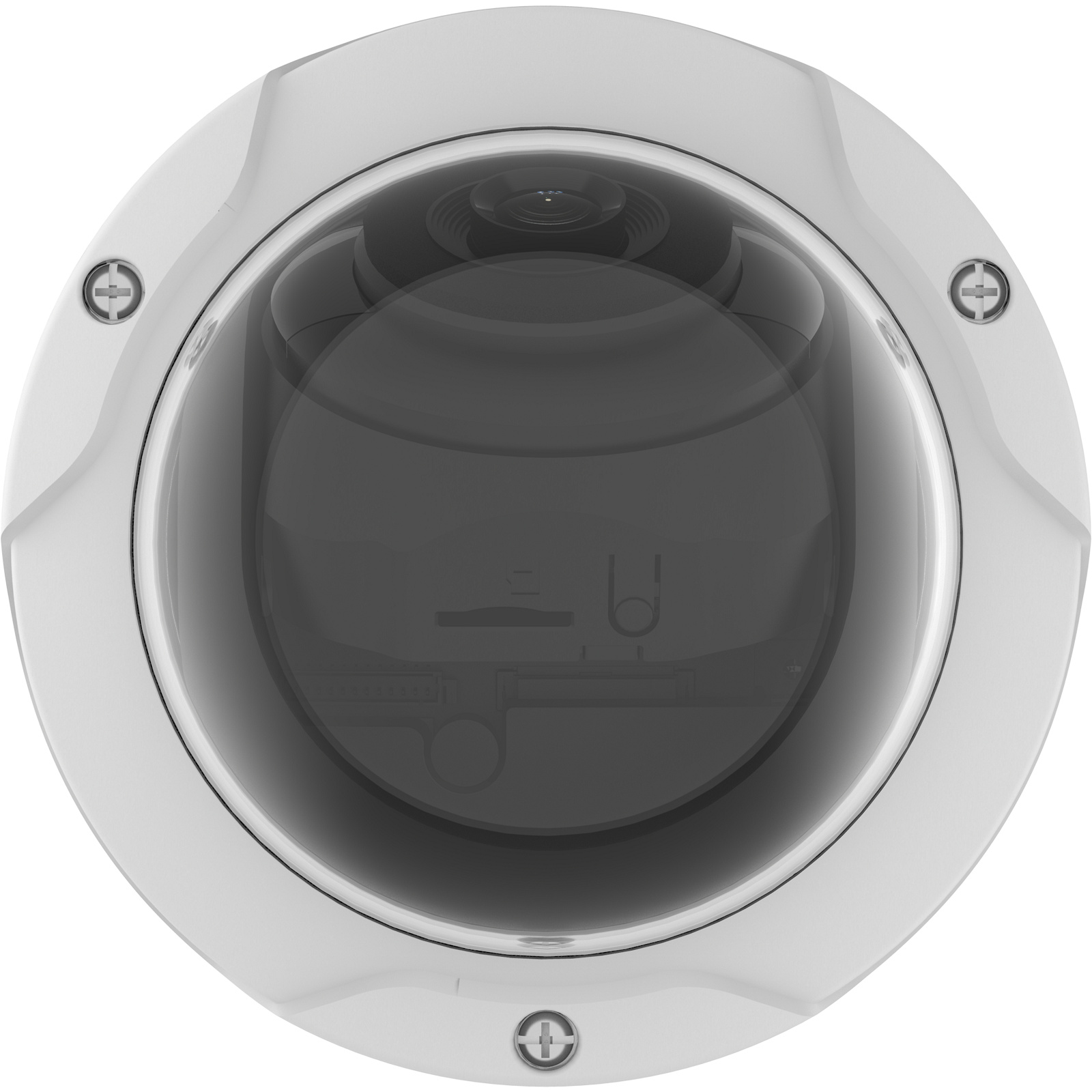

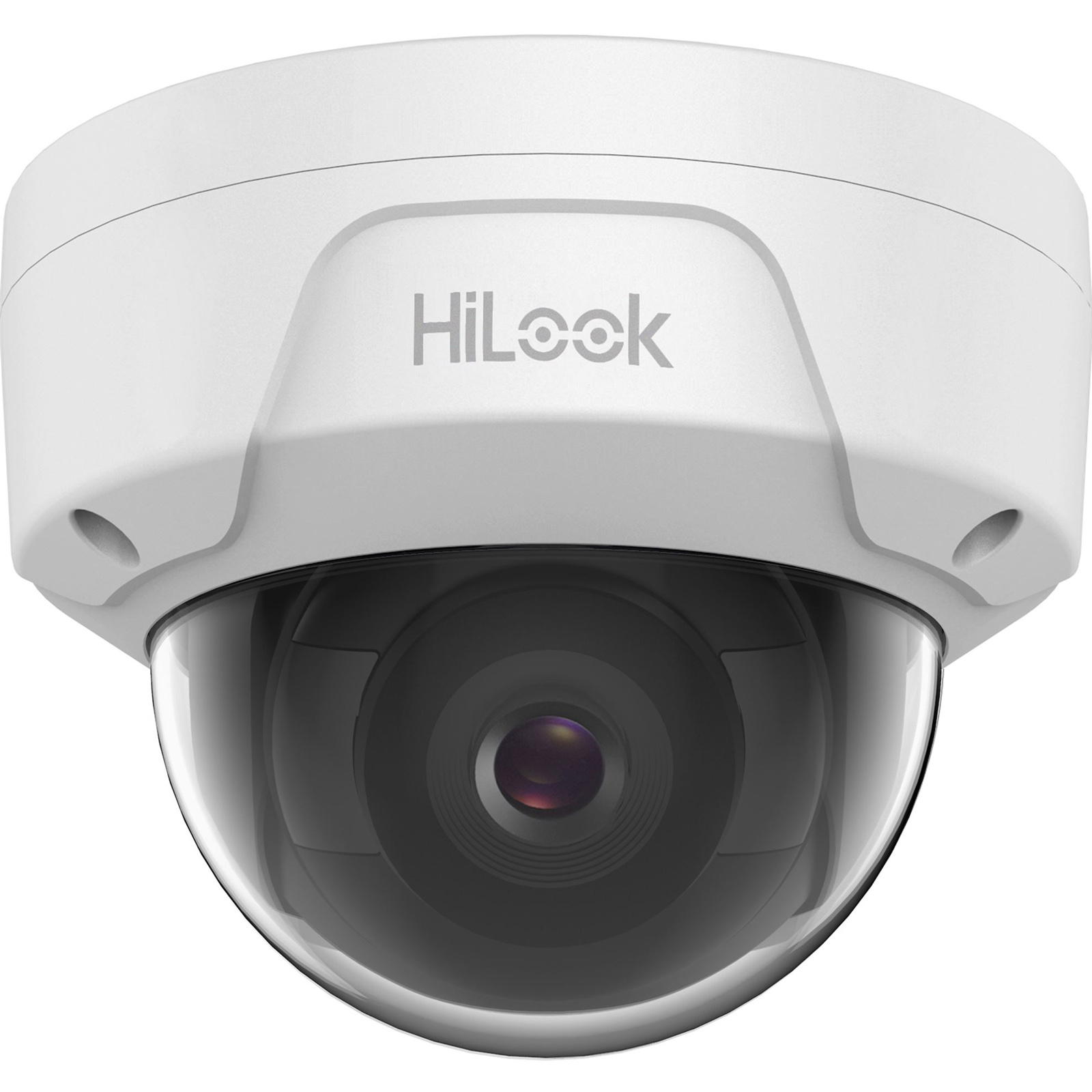

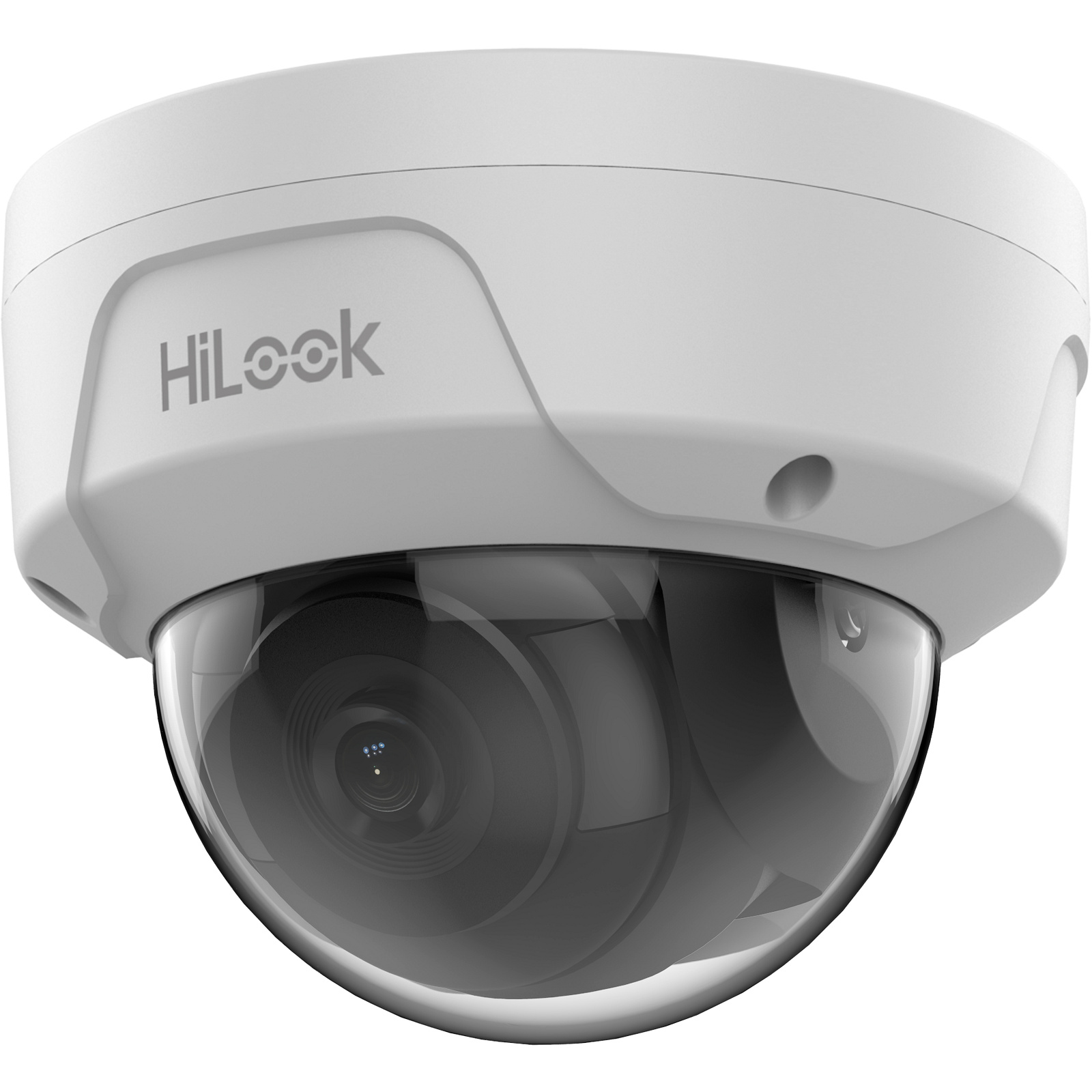

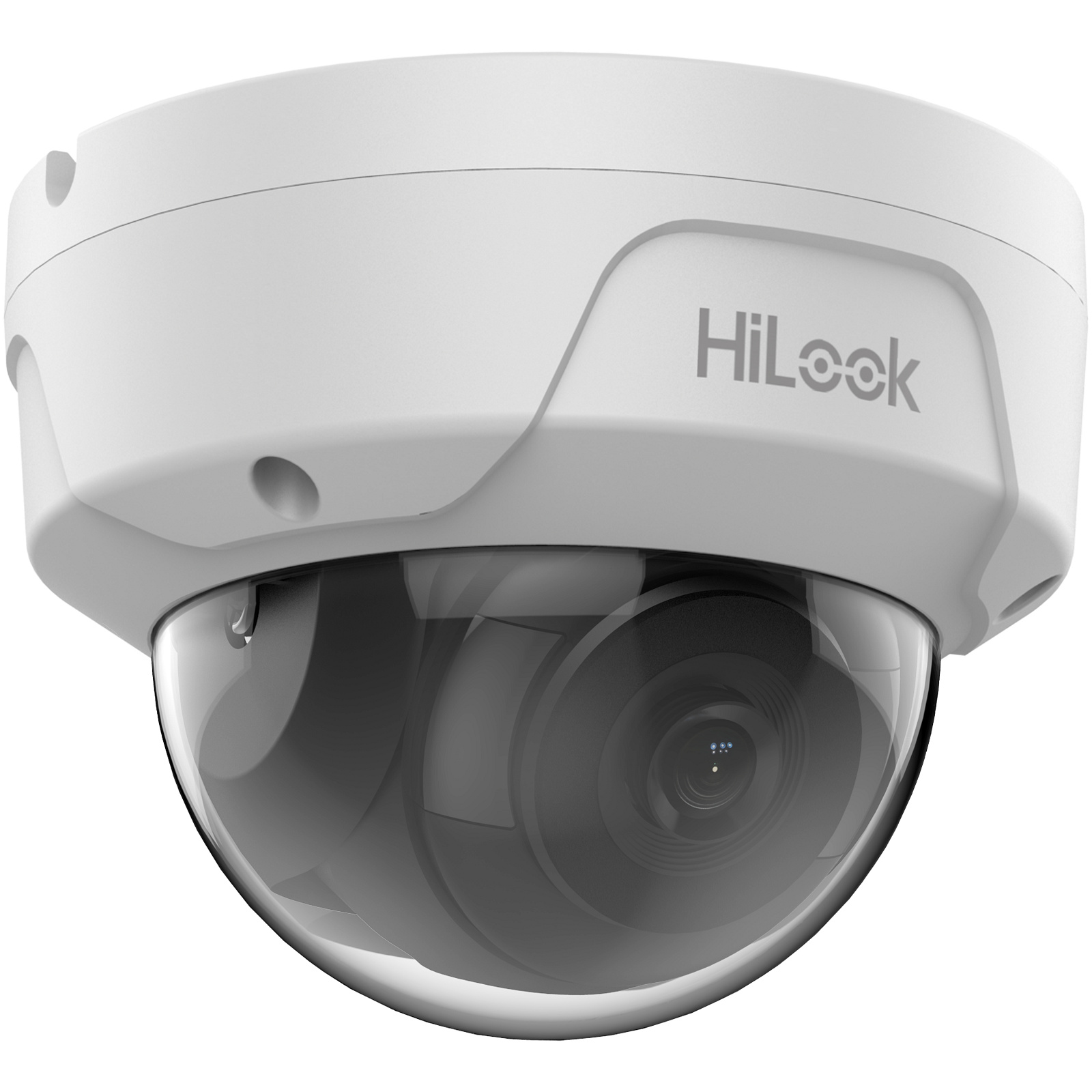

HiLook IPC-D140H-2-8 4MP IP PoE Dome Network Camera with 2.8mm Fixed Lens, White
Supports H265, Max IR up to 30m, 120dB WDR. Weatherproof (IP67), Vandelproof (IK10), 3D DNR, 2560x1440 Max Res
HiLook IPC-D140H-2-8 4MP IP PoE Dome Network Camera with 2.8mm Fixed Lens, White
Supports H265, Max IR up to 30m, 120dB WDR. Weatherproof (IP67), Vandelproof (IK10), 3D DNR, 2560x1440 Max Res
- Brand: HiLook
- MPN: IPC-D140H-2-8
- Part #: CCTHLK1087
- UPC: 6941264092360
- Brand: HiLook
- MPN: IPC-D140H-2-8
- Part #: CCTHLK1087
- UPC: 6941264092360
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras





HiLook IPC-D140H-2-8 4MP IP PoE Dome Network Camera with 2.8mm Fixed Lens, White Supports H265, Max IR up to 30m, 120dB WDR. Weatherproof (IP67), Vandelproof (IK10), 3D DNR, 2560x1440 Max Res
- Brand: HiLook
- MPN: IPC-D140H-2-8
- Part #: CCTHLK1087
- UPC:6941264092360

Product URL: https://www.pbtech.co.nz/product/CCTHLK1087/HiLook-IPC-D140H-2-8-4MP-IP-PoE-Dome-Network-Camer
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
4MP IP PoE Dome Network Camera with 2.8mm Fixed Lens, Weatherproof (IP67), Vandelproof (IK10), 3D DNR, White
- High-quality imaging with 4MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong backlight due to 120dB true WDR technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- 3D DNR technology delivers clean and sharp images
- Easy installation with Power over Ethernet (PoE) technology
Video Footage Viewable
- Via FREE mobile app
- On local monitor
- Over local network
Specifications
Camera
Image Sensor
1/3" progressive scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100, 000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
Lens Mount
M12
Focus
Fixed
Aperture
F2.0
Lens Type
Fixed focal lens, 2.8mm
Iris Type
Fixed
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception
Linkage
Upload to FTP, notify surveillance center, send email
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension
Ø111 mm × 82.4 mm (Ø 4.4" × 3.2")
Weight
Approx. 360 g (0.8 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
