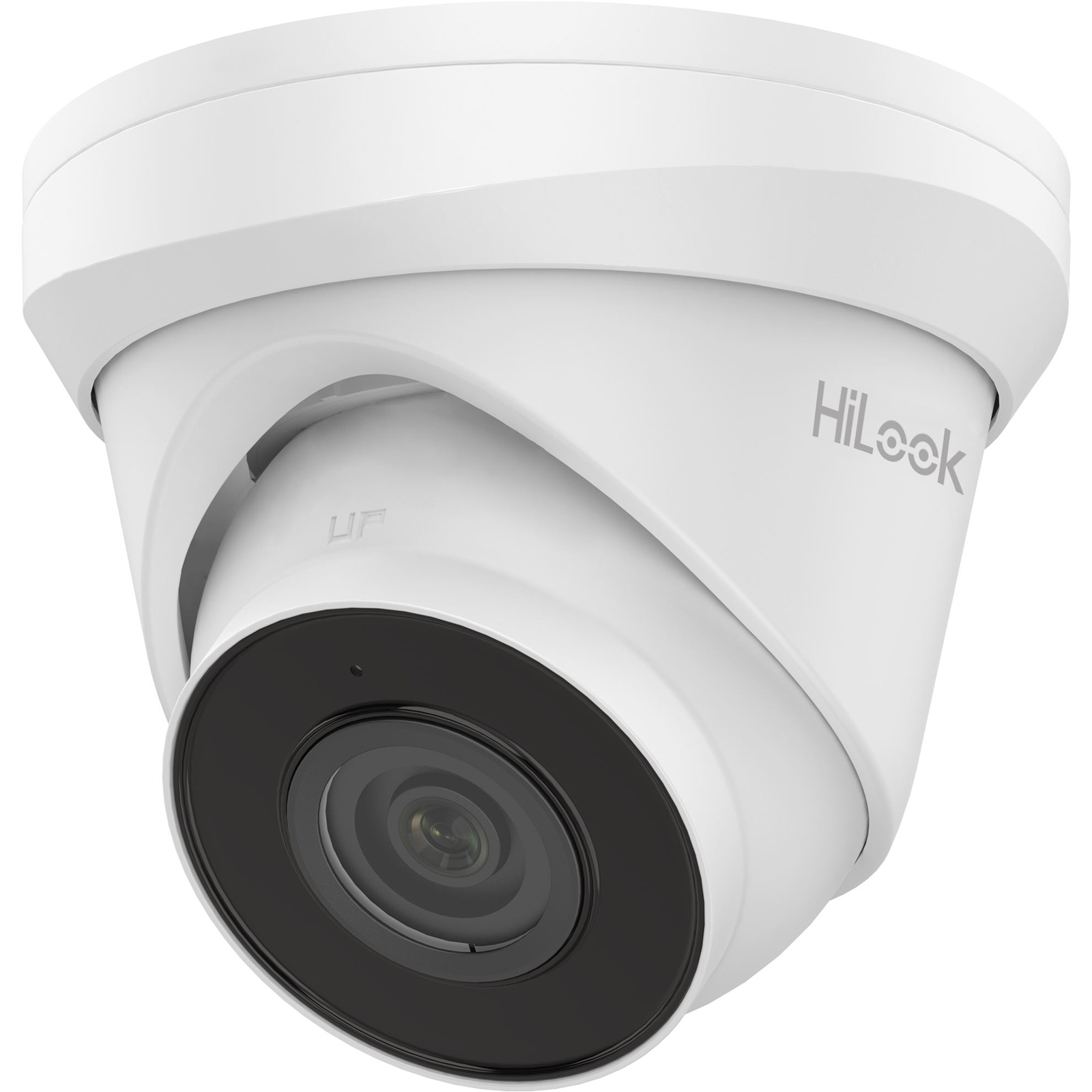

HiLook IPC-T240H-MU-2-8 4MP IP Turret Camera with 2.8mm Fixed Lens
Supports H265 PoE IP EXIR up to 30m, Starlight (0.01 Lux), 120dB True-WDR, WeatherProof, Built-in Mic, 98 Degree Wide Angle FoV
HiLook IPC-T240H-MU-2-8 4MP IP Turret Camera with 2.8mm Fixed Lens
Supports H265 PoE IP EXIR up to 30m, Starlight (0.01 Lux), 120dB True-WDR, WeatherProof, Built-in Mic, 98 Degree Wide Angle FoV
- Brand: HiLook
- MPN: IPC-T240H-MU-2-8
- Part #: CCTHLK1090
- UPC:
- Brand: HiLook
- MPN: IPC-T240H-MU-2-8
- Part #: CCTHLK1090
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras





HiLook IPC-T240H-MU-2-8 4MP IP Turret Camera with 2.8mm Fixed Lens Supports H265 PoE IP EXIR up to 30m, Starlight (0.01 Lux), 120dB True-WDR, WeatherProof, Built-in Mic, 98 Degree Wide Angle FoV
- Brand: HiLook
- MPN: IPC-T240H-MU-2-8
- Part #: CCTHLK1090

Product URL: https://www.pbtech.co.nz/product/CCTHLK1090/HiLook-IPC-T240H-MU-2-8-4MP-IP-Turret-Camera-with
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- High-quality imaging with 4MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong backlighting due to 120dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
-U: Built-in microphone for real-time audio security
-U: Support up to 256 GB SD card storage
Video Footage Viewable
- Via FREE mobile app
- On local monitor
- Over local network
Specifications
Camera
Image Sensor
1/3" progressive scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal length, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-U: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
-U: 8 kHz/16 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
Guardingvision
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-U: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone
-U: Yes
Reset Key
-U: Yes
Event
Basic Event
Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
Smart Event
Line crossing detection, intrusion detection
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension
Ø110 mm × 85.3 mm (Ø 4.3" × 3.4")
Weight
Approx. 320 g (0.7 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
