HiLook HA-IN72 7" Colour Intercom TFT LCD Capacitive Touch Screen / Two-Wire Interface / Wall Mounting / Supports Door Station (Connects to HA-DS2 Only)
HiLook HA-IN72 7" Colour Intercom TFT LCD Capacitive Touch Screen / Two-Wire Interface / Wall Mounting / Supports Door Station (Connects to HA-DS2 Only)
- Brand: HiLook
- MPN: HA-IN72
- Part #: CCTHLK7003
- UPC:
- Brand: HiLook
- MPN: HA-IN72
- Part #: CCTHLK7003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Intercom Systems





HiLook HA-IN72 7" Colour Intercom TFT LCD Capacitive Touch Screen / Two-Wire Interface / Wall Mounting / Supports Door Station (Connects to HA-DS2 Only)
- Brand: HiLook
- MPN: HA-IN72
- Part #: CCTHLK7003

Product URL: https://www.pbtech.co.nz/product/CCTHLK7003/HiLook-HA-IN72-7-Colour-Intercom-TFT-LCD-Capacitiv
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Two-Wire Indoor Station
- Easy,Cost-Efficient Installation
- 7 inch Touch-Screen, User Friendly Interface, Plug & Play
- Receives Video Call and Unlocks on Mobile App Anywhere, Anytime

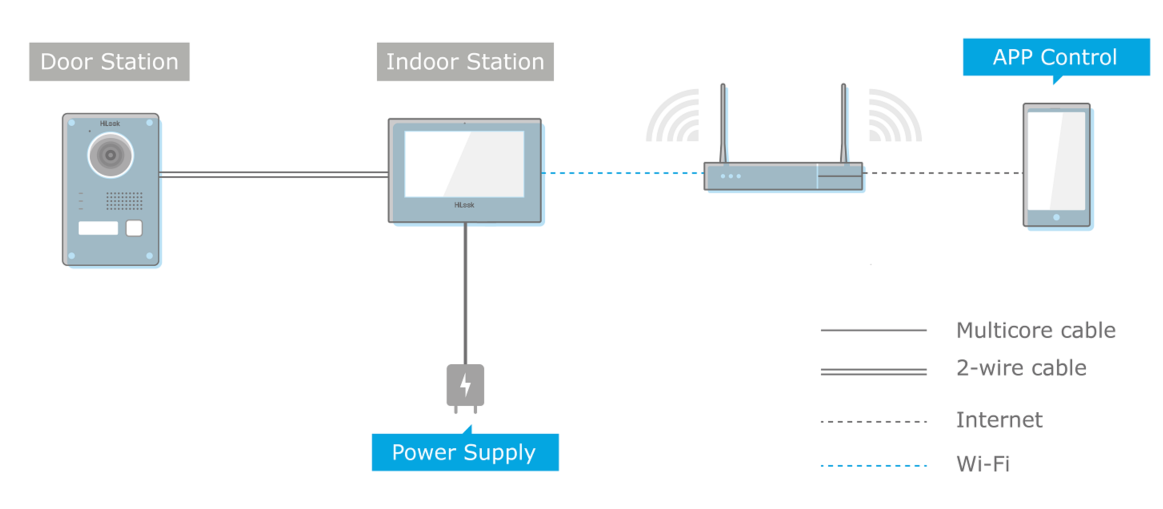

Typical Application

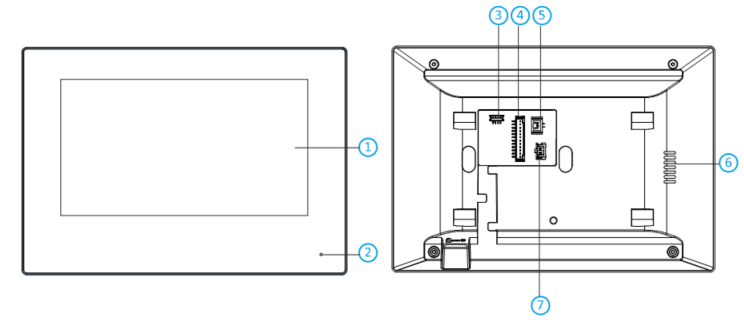

Appearance and Interfaces
Two-Wire Indoor Station
1 - Display Screen
2 - Microphone
3 - Debugging Port
4 - Alarm Terminal
5 - Two-Wire Interface
6 - Loudspeaker
7 - Power Supply Interface
Note: The debugging port is used for debugging only.
Dimension
Two-Wire Indoor Station
Specifications
System parameters
Memory
128 MB
Flash
32 MB
Operation system
Embedded Linux operation system
Display parameters
Display screen
7-inch TFT touch screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Brightness
Adjustable
Audio parameters
Audio input
Built-in microphone
Audio output
Built-in loudspeaker
Volume
Local adjustable
Audio compression standard
G.711 U, G.711 A
Audio quality
Noise suppression and echo cancellation
Network parameters
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Interfaces
Two-wire interface
1
Alarm input
8
Debugging port
1 channel reserved
RS485
1
General
Power supply
24 VDC
Power consumption
= 8 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension
200 × 140 × 23.6 mm (7.87" × 5.51" × 0.93")
Weight
334.5 g
