Milesight AM307-915M AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp,Humidity, PIR, Light, TVOC, Barometric Pressure and CO2
Milesight AM307-915M AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp,Humidity, PIR, Light, TVOC, Barometric Pressure and CO2
- Brand: Milesight
- MPN: AM307-915M
- Part #: CCTMLS1033
- UPC:
- Brand: Milesight
- MPN: AM307-915M
- Part #: CCTMLS1033
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors





Milesight AM307-915M AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp,Humidity, PIR, Light, TVOC, Barometric Pressure and CO2
- Brand: Milesight
- MPN: AM307-915M
- Part #: CCTMLS1033

Product URL: https://www.pbtech.co.nz/product/CCTMLS1033/Milesight-AM307-915M-AM307-915M-LoRaWAN-7-in-1-Ind
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

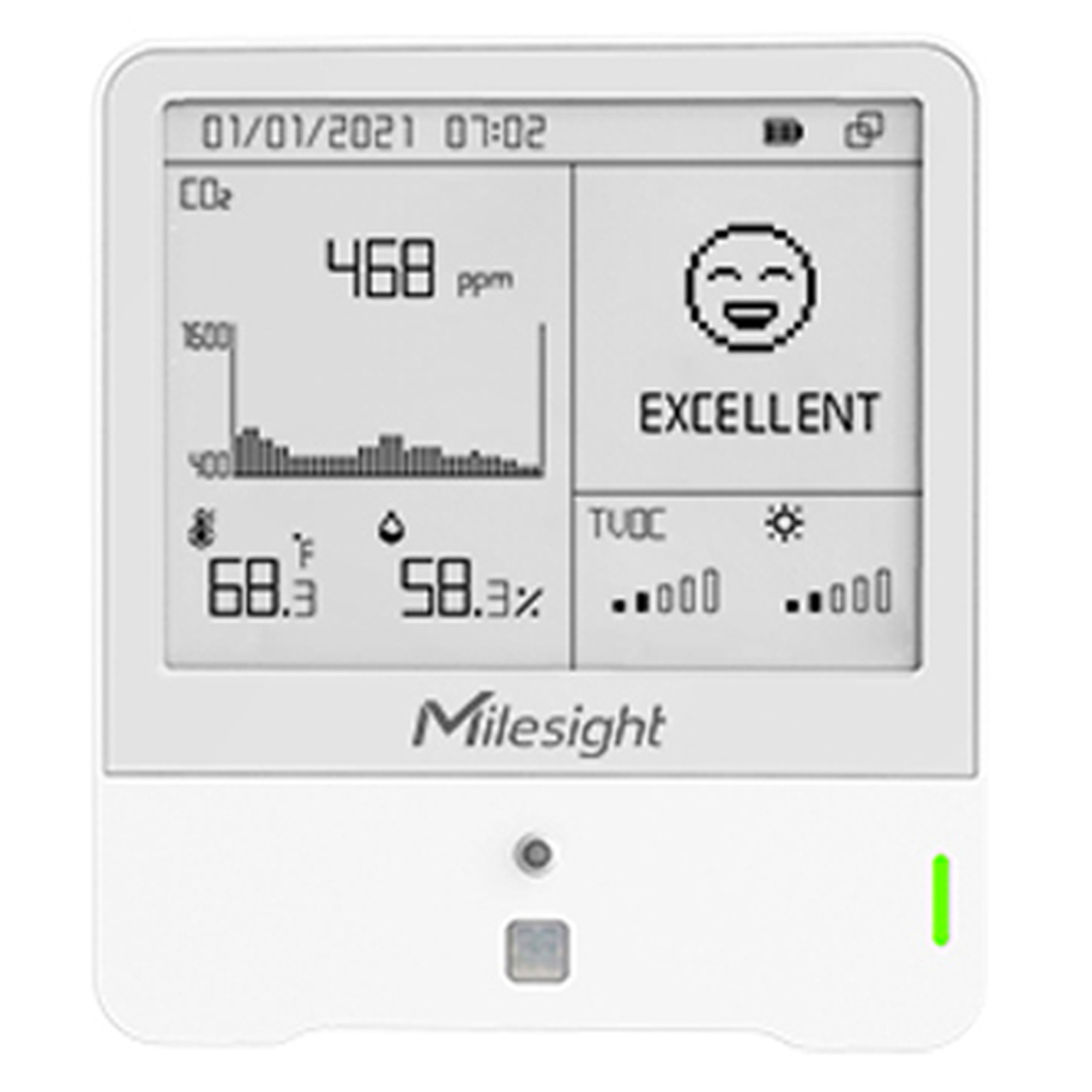

The Milesight AM307 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. The AM307 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.
- Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN® gateways and network servers
- Perfect device for Environmental Monitoring for Business, Education and Homes
Specifications
Model
AM307-915M
Frequency
AU915 or AS923 switchable
Tx Power
22dBm
Sensitivity
-137dBm @300bps
Work Mode
Class A
Temperature Range
-40°C - 85°C
Accuracy
± 1°C
Resolution
0.1°C
Humidity Range
0% - 100% RH
Accuracy
± 3%
Resolution
0.5% RH
PIR Detection Area
80 ° Horizontal, 55 ° Vertical
Detection Range
5 m
Status
Vacant/Occupied
Light Range
0-60000 Lux (display as 6 levels, 0-5)
TVOC Range
0-500 (IAQ Index)
Accuracy
±15 %
Barometric Pressure Range
300 - 1100 hPa (-40°C - 85°C)
Accuracy
±0.6 hPa
Resolution
0.1 hPa
Carbon Dioxide (CO2) Range
400 - 5000 ppm
Accuracy
±30 ppm or ±3 % of reading
Resolution
1 ppm
Display
4.2-inch Black & White E-Ink Screen
Buttons
1 × Power Button + 1 × Reset Button
LED & Buzzer
1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply
4 × 2700 mAh ER14505 Li-SOCl2 battery
Operating Temperature
-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity
10% - 90% (non-condensing)
Ingress Protection
IP30
Dimension
100.8 × 114 × 22 mm
Installation
Wall Mounting
