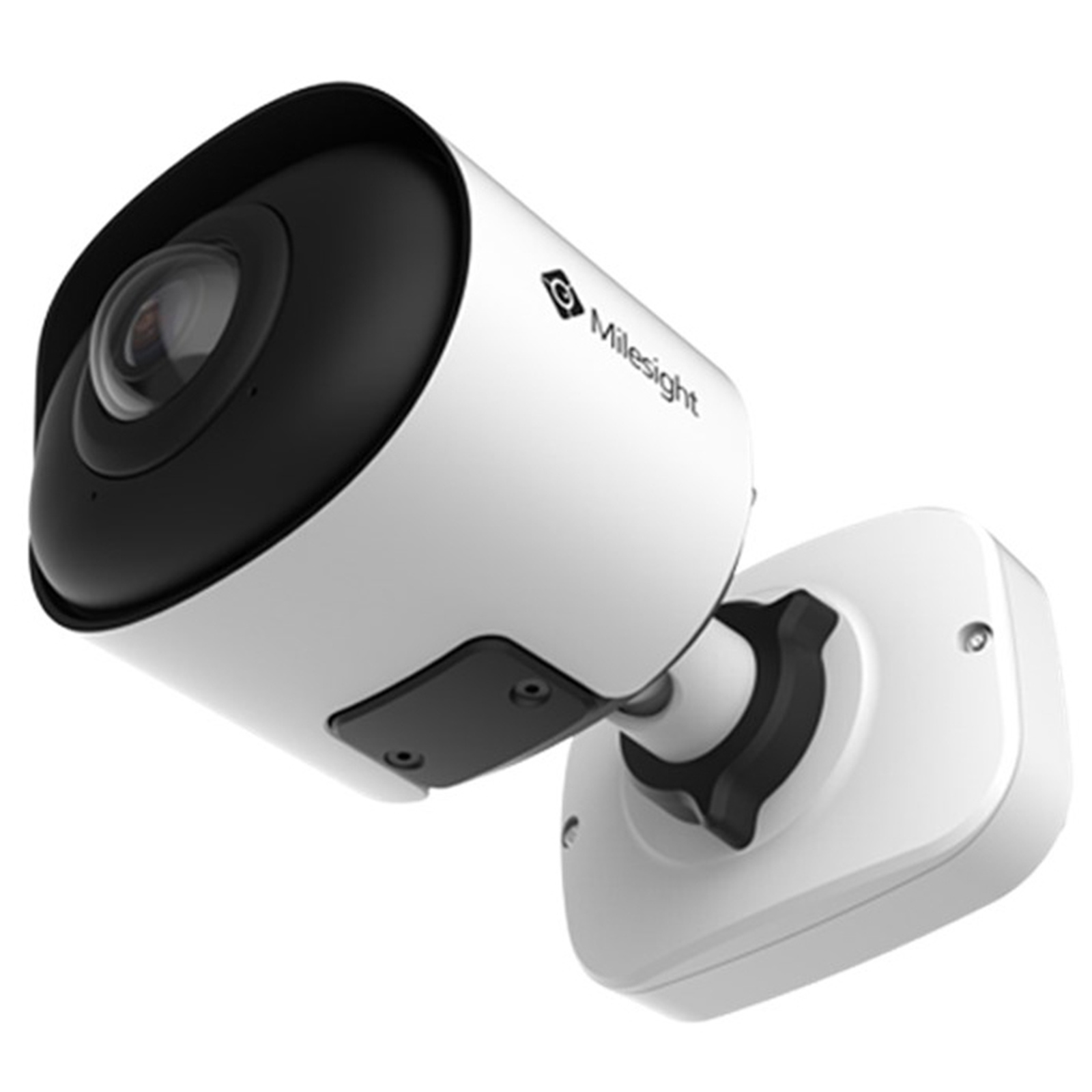

Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
- Brand: Milesight
- MPN: MS-C8165-PE
- Part #: CCTMLS1111
- UPC:
- Brand: Milesight
- MPN: MS-C8165-PE
- Part #: CCTMLS1111
- UPC:
Features
Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
Milesight AI IP Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
With the built-in microphone which adopts the advanced codec, the AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 180° Panoramic View
- AI
- 120dB Super WDR
- Privacy Mask
- 0.005Lux Starlight
- Heat Map
- IP67 & IK10
- 15m IR Distance
- Smart IR II
- Support microSD/SDHC/SDXC Card Local Storage, up to 256G
- vGRID SaferCity Platform Compliant
180° Panoramic View
Milesight AI 180° Panoramic Mini Bullet Network Camera catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.
4K Ultra High Definition
It features with 4K ultra high definition which better restores the images to guarantee superb image quality. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.
Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.
Efficient & Simple Installation
The well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix WiFi 8MP/4K Dual-Lens Outdoor PTZ Wi-Fi Camera...
Reolink Duo Floodlight PoE 8MP/4K Dual Lens Outdoor PoE Camera...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
_20250617145711.webp)
Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
- Brand: Milesight
- MPN: MS-C8165-PE
- Part #: CCTMLS1111
Product URL: https://www.pbtech.co.nz/product/CCTMLS1111/Milesight-MS-C8165-PE-4K-NDAA-AI-180-Panoramic-Min
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
Milesight AI IP Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
With the built-in microphone which adopts the advanced codec, the AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 180° Panoramic View
- AI
- 120dB Super WDR
- Privacy Mask
- 0.005Lux Starlight
- Heat Map
- IP67 & IK10
- 15m IR Distance
- Smart IR II
- Support microSD/SDHC/SDXC Card Local Storage, up to 256G
- vGRID SaferCity Platform Compliant
180° Panoramic View
Milesight AI 180° Panoramic Mini Bullet Network Camera catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.
4K Ultra High Definition
It features with 4K ultra high definition which better restores the images to guarantee superb image quality. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.
Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.
Efficient & Simple Installation
The well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Product Code
MS-C8165-PE
Product Name
Milesight 4K AI 180° Panoramic Mini Bullet Network Camera
Min. Illumination
Color: 0.01Lux @ F1.2, Color: 0.012Lux @ F2.0, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
1.68mm @ F2.0
Field of View
H180°/V86°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
180° IR Illumination Up to 15m
S/N
>55dB
Max. Image Resolution
3840x2160
Primary Stream
60Hz/50Hz: 25fps @ (3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream
60Hz/50Hz:25fps @ (704x576, 640x480, 640x360)
Tertiary Stream
60Hz/50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 8 areas
Region Of Interest
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Web Access
Support IE/Firefox/Chrome/Safari Browser
Interfaces
1*RJ45 10M/100M Ethernet Port
Audio Interface
Built-in Microphone
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP
Supported - Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Condition
Temperature: -40?~60? / Humidity: 0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
7W MAX, 9W MAX (With IR on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions/Weight
97mm x 74mm x 160mm/630g
