Features
Ursalink Indoor EU868 LoRaWAN Base Station, DC Powered

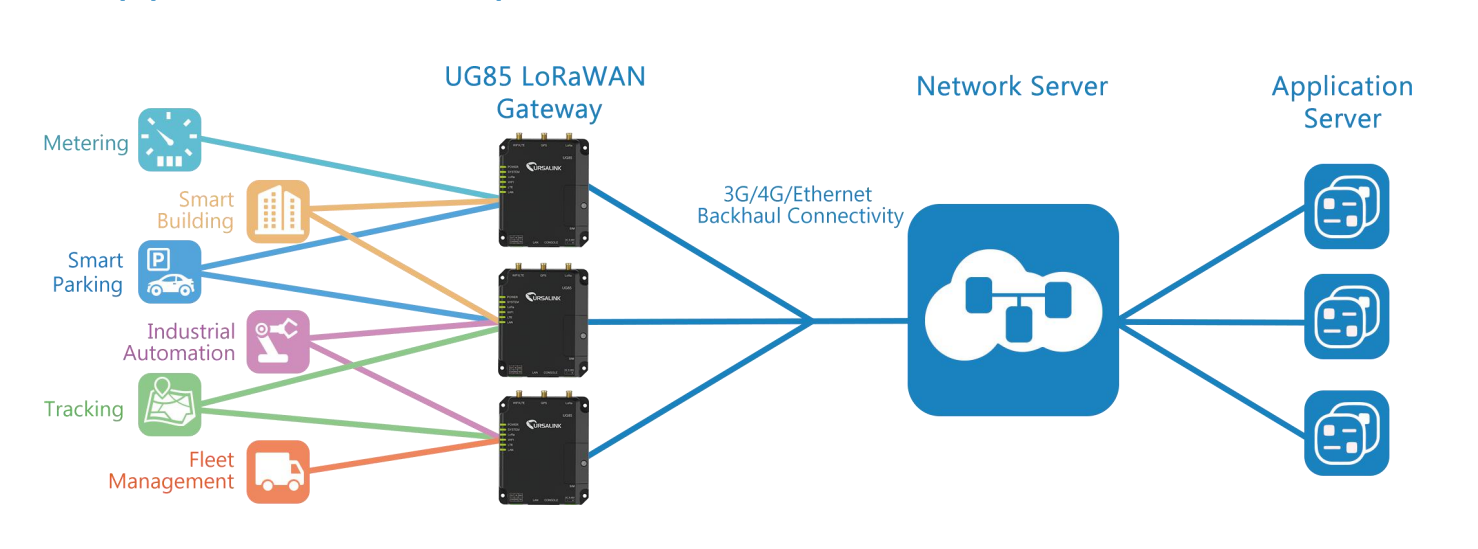

The Ursalink UG85 is an intelligent, performant and configurable indoor LoRaWAN gateway for smart IoT applications. The UG85 is based on the Semtech SX1301 chipset, allowing to operate on multiple channels at the same time. It also offers Ethernet interface for backhaul connectivity as well as cellular or WiFi network for option. With its embedded Network Server (NS), it is very suitable for small business or private area use cases, also perfect for providing network coverage for indoor blind spots.
- Supports 2000 end-devices
- Integrated with multiple network server (NS)
- Up to 8 simultaneous channels
- Compliance to LoRaWAN Class A and Class C
- CE/FCC Certified
- Up to 11 km radio range in open area
- Offer digital input/output and serial interface
Specifications
Manufacturer's Code
UG85-EU868
CPU
800 MHz, 64-bit ARM Cortex-A53
Memory
512 MB DDR3 RAM
Flash
8 GB eMMC
LoRaWAN Connector
1 × 50 O SMA (Center PIN: SMA Female)
Channel
8
Frequency Band
Supports EU868 Band
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface
1 × RJ-45 (PoE PD Optional), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX, Full or Half Duplex (Auto-Sensing)
Serial Interface
1 × RS232, Terminal Block, Band Rate 300 bps to 230400 bps
IO Connector
Terminal Block, Digital 1 × DI + 1 × DO
Console Interface Connector
1 × RJ45
Network Protocols
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall
ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management
Web, CLI, SMS, On-demand dial up, DeviceHub
Reliability
WAN Failover, Dual SIM Backup
Serial Port
Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus TCP to Modbus RTU), Modbus Master
Power Input
2-pin with 5.08 mm terminal block (Optional: 1 × 802.3 af/at PoE PD)
Input
Voltage 9-48 VDC
Power Consumption
Typical 2.3 W, Max 6.5 W
Ingress Protection
IP30
Dimensions
108 x 90 x 26 mm
Mounting
Desktop, Wall or DIN Rail Mounting
Reset Button
1 × RESET
LED Indicators
1 × POWER, 1 × SYSTEM, 1 × LoRa, 1 × LAN
Built-in
Watchdog, RTC, Timer
Operating Temperature
-40degC to +70degC Reduced Cellular Performance Above 60°C
Storage Temperature
-40degC to +85degC
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25degC
