Features

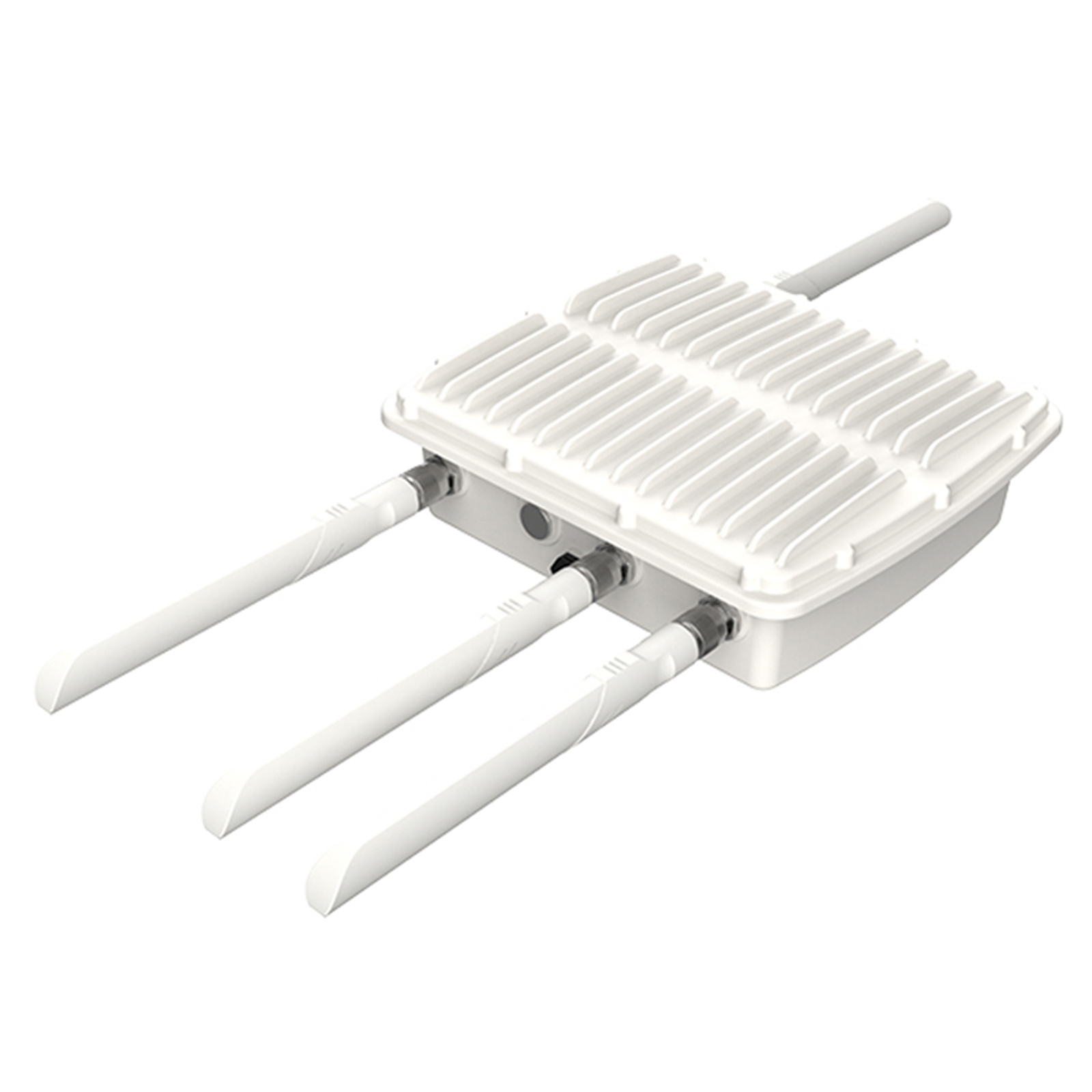

Ursalink Outdoor EU868 LoRaWAN Base Station with GPS, Wi-Fi and PoE support
The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications. Adopting a high-performance industrial platform with a 64-bit CPU and wireless module, the UG87 enables you to scale up M2M applications combining data within a limited time and budget. The UG87 is particularly ideal for smart cities, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on.
The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network.
- Compliance to LoRaWAN Class A and Class C
- Built in DI/DO Serial Port and GPS
- IEEE 802.11b/g/n/ac Wi-Fi built in
- 16 Simultaneous channels
- Backhaul Connectivity
- IP67 Waterproof Casing
- Long Range over 10 km Radius
- Free Embedded Network Server
- Embedded Network Server and MQTT transmission
- Ursalink Cloud compliant
- Support GPS for high-precision time synchronization
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

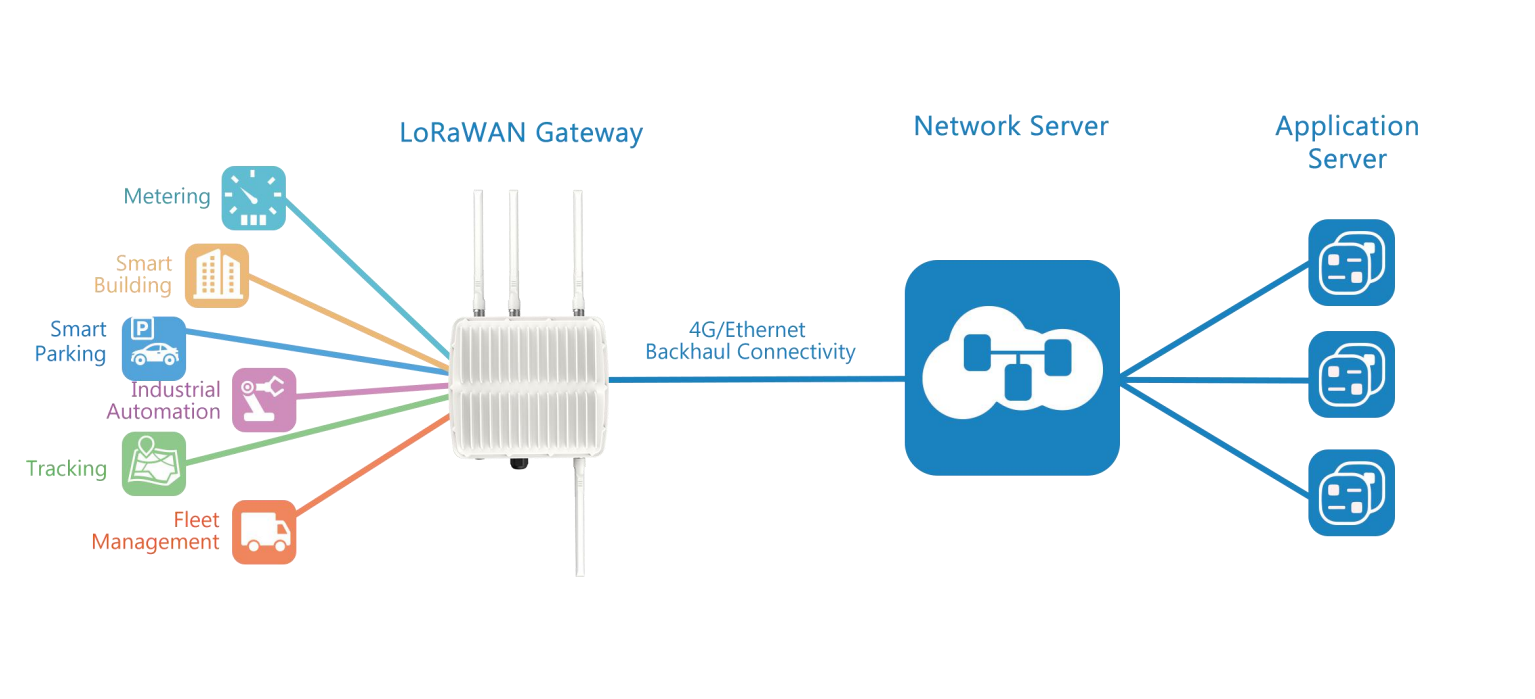

Application
Specifications
Manufacturer's Code
UG87-W-G-P-CH16-868
CPU
800 MHz, 64-bit ARM Cortex-A53
Memory
512 MB DDR3 RAM
Flash
8 GB eMMC
Storage
1 × M.2 slot supports SATA M.2 SSD
LoRaWAN Connector
1 × 50 O N-Type (Center PIN: Female) for 8-channel model, 2 × 50 O N-Type (Center PIN: Female) for 16-channel model
Channel
16
Frequency
Band EU868
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface
1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi
Connectors 1 × 50 O N-Type (Center PIN: Female)
Standards
IEEE 802.11 b/g/n/ac
Tx Power
802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 15 dBm +/-1.5 dBm (54 Mbps), 802.11n@ 2.4 GHz: 14 dBm +/-1.5 dBm (MCS7), 802.11n@ 5 GHz: 11 dBm +/-2 dBm (MCS7), 802.11ac@ 5 GHz: 10 dBm +/-2 dBm (MCS9)
GPS Connectors
1 × 50 O N-Type (Center PIN: Female)
Network Protocols
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall
ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management
Web, CLI, SMS, On-demand dial up, DeviceHub
Reliability
WAN Failover, Dual SIM Backup
Power Supply
1 × 802.3 af/at PoE input
Power Consumption Typical
4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels)
Ingress Protection
IP67
Dimensions
256 x 226 x 90.5 mm
Mounting
Wall or Pole Mounting
Built-in
Watchdog, RTC, Timer
Certification
CE, FCC
Operating Temperature
-40 degC to +70 degC, Reduced Cellular Performance Above 60°C
Storage Temperature
-40 degC to +85 degC
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25 degC
