Milesight UPS01-M12 UPS01 12000mAh Backup Power Supply for Outdoor Gateways with M12 Interface for Milesight Gateways
Milesight UPS01-M12 UPS01 12000mAh Backup Power Supply for Outdoor Gateways with M12 Interface for Milesight Gateways
- Brand: Milesight
- MPN: UPS01-M12
- Part #: CCTMLS1291
- UPC:
- Brand: Milesight
- MPN: UPS01-M12
- Part #: CCTMLS1291
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Milesight UPS01-M12 UPS01 12000mAh Backup Power Supply for Outdoor Gateways with M12 Interface for Milesight Gateways
- Brand: Milesight
- MPN: UPS01-M12
- Part #: CCTMLS1291

Product URL: https://www.pbtech.co.nz/product/CCTMLS1291/Milesight-UPS01-M12-UPS01-12000mAh-Backup-Power-Su
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Milesight UPS01 is an advanced uninterruptible power supply (UPS) designed to ensure uninterrupted operation of various devices for up to 32 hours. Featuring IP67 and IK08 ratings, the UPS01can withstand demanding environments and provide reliable protection against dust, water, and mechanical impact.
UPS01 makes it simple to prolong the working time of connected devices and supply with not only internal batteries but also anexternal power source through power adapter. Its plug-and-playdesign enables quick and easy integration with various devices such as gateways, routers, CPE, Dongle and sensing cameras, without the need for additional configuration. For added flexibility, theUPS01offers M12 and Type-C connectors to suit different power supply scenarios.
What sets the UPS01 apart is its compatibility with Milesight network devices. This allows for real-time monitoring of powerconsumption and remote alarm notification tofacilitate effective and smart management.
- Adopt rechargeable 12000mAh high-capacity battery for providing up to 32 hours' supplement
- Equip with heating film for protecting battery in low-temperature environment
- High IP67 and IK08 protection for adapting to harsh environment
- Equip with a traffic light indicator and cooperate with smart internal logic for status display
- Compact size with multiple deployment methods for adapting to different scenarios
- Compatible with Milesight devices for managing both power monitoring and alarming remotely
- Provide dual versions of connectors for satisfying different output voltages and devices
- Support plug-and-play without further configuration
- Overcharging and overdischarging protection
High Capacity up to 12000 mAh
The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for the terminal devices up to 32 hours.

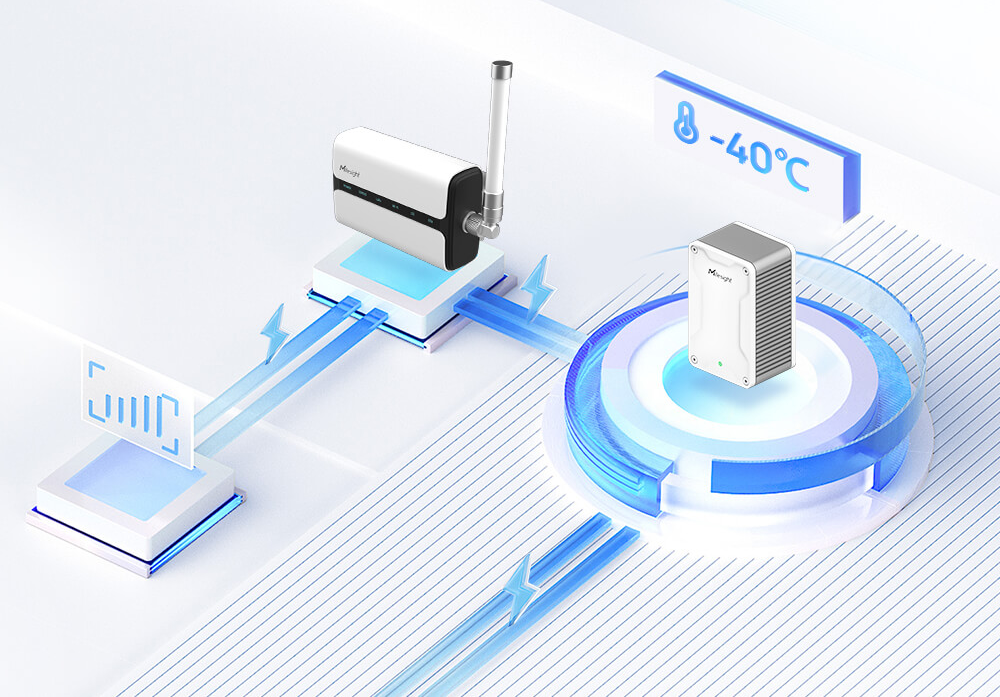

Data Protection
By offering resilient power supply, the UPS01 is poised to ensure seamless data transmission between the terminal devices and remote platform when power outage happens. Besides, the heating film also allows it to work in low-temperature environment for continuous power supply.

Compact Design with IP67 and IK08 Protection
With a greater reliance on sophisticated technology , the UPS01 favors a rugged design with IP67 and IK08 and can be served in the most demanding environment and meet mission critical.
Real-time Alarming
The UPS01 owes its powerful function to cutting-edge technology and ensure the device and network resilience while sending alarms of power outage, saving manufacturers expense of unnecessary maintenance downtime and keeping your business operating without interruption.

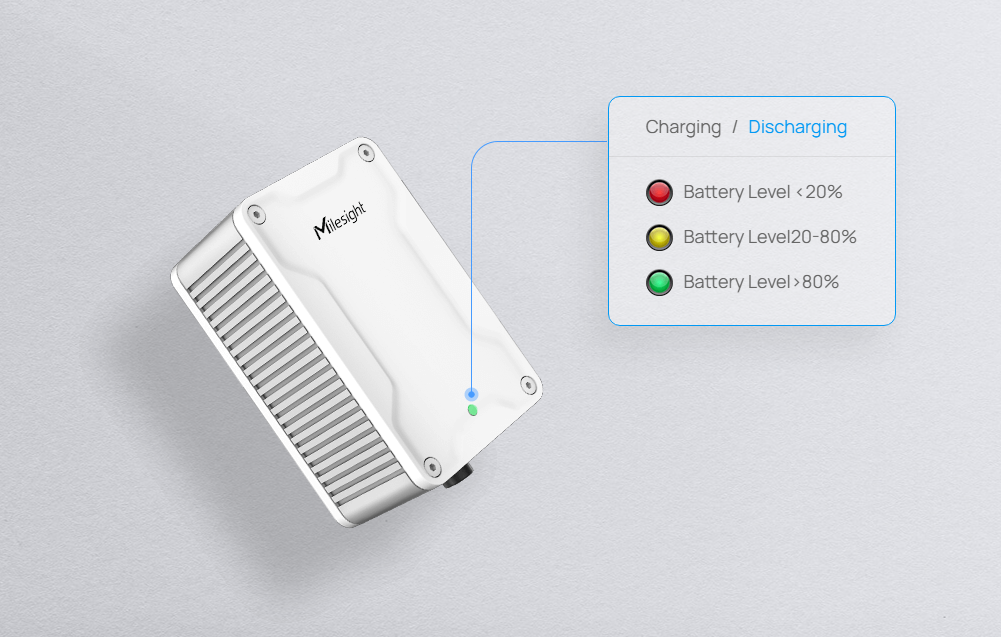

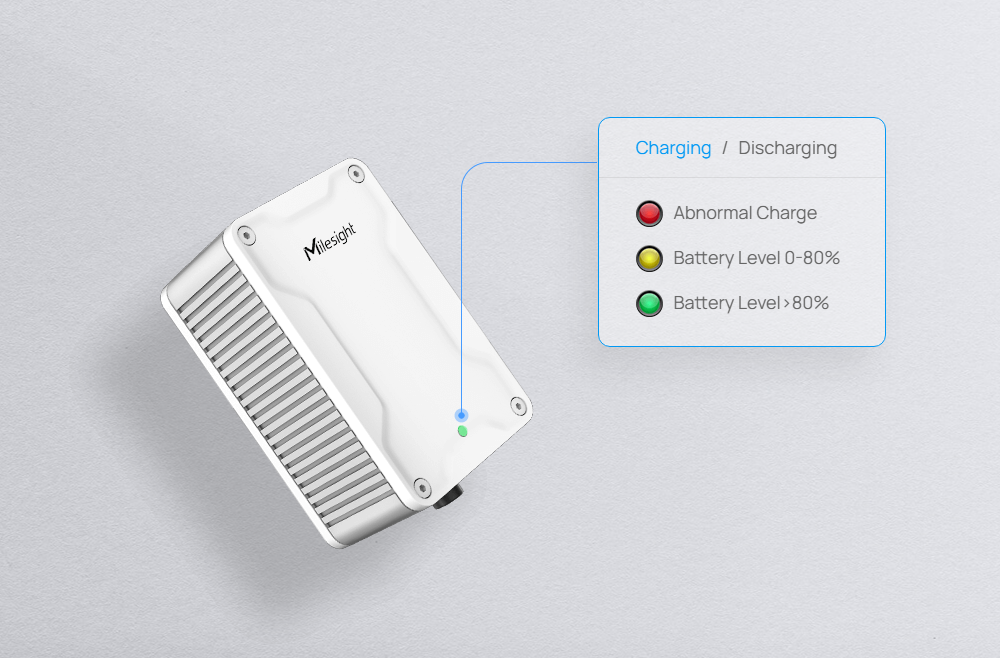

Tricolor Indicators
The Milesight UPS01 is equipped with tricolor indicators and smart internal logic for status display. By which it increases the operational efficiency and allows for quick data-decision making.

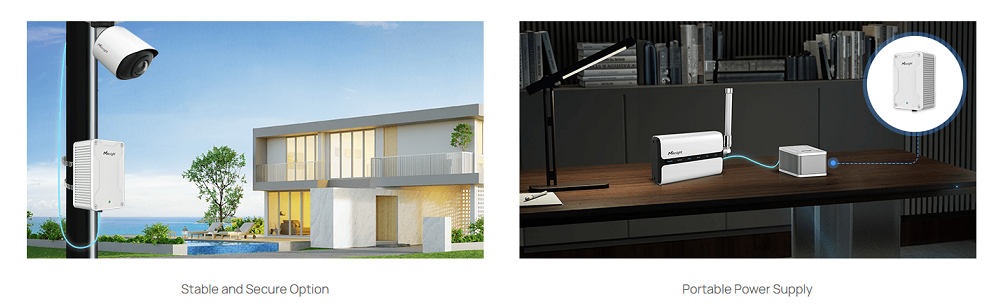

Typical Applications
Specifications
Brand
Milesight
Manufacturer Part Number
UPS01-M12
Power Input
9 - 20V, 2A
Input Connector
DC Jack Female Connector
Power Output
6 - 8.4V, 1.5A
Output Connector
4-Pin M12 A-Coded Female
Battery Capacity
4x3000mAh Lithium-ion Rechargeable Batteries
Battery Supply Time
6 - 32 hours
LED Indicator
1×Traffic Light Indicator (Battery Capacity & Diagnose)
Button
1 × Reset Button (Internal)
Software Features
Power Monitoring, Alarm, Upgrade (Only with Milesight Devices)
Cable Length
DC IN: 30cm, M12: 150cm
Ingress Protection
IP67 & IK08
Material & Colour
Aluminum, White & Silver
Dimensions
96×60×45mm (3.78×2.36×1.77in) (Without Cable)
Operating Temperature
Charge Temperature: -20°C to +45°C (-4°F to +113°F), Discharge Temperature: -20°C to +60°C (-4°F to +140°F)
Relative Humidity
0% - 95% (Non-condensing)
Installation
Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting
