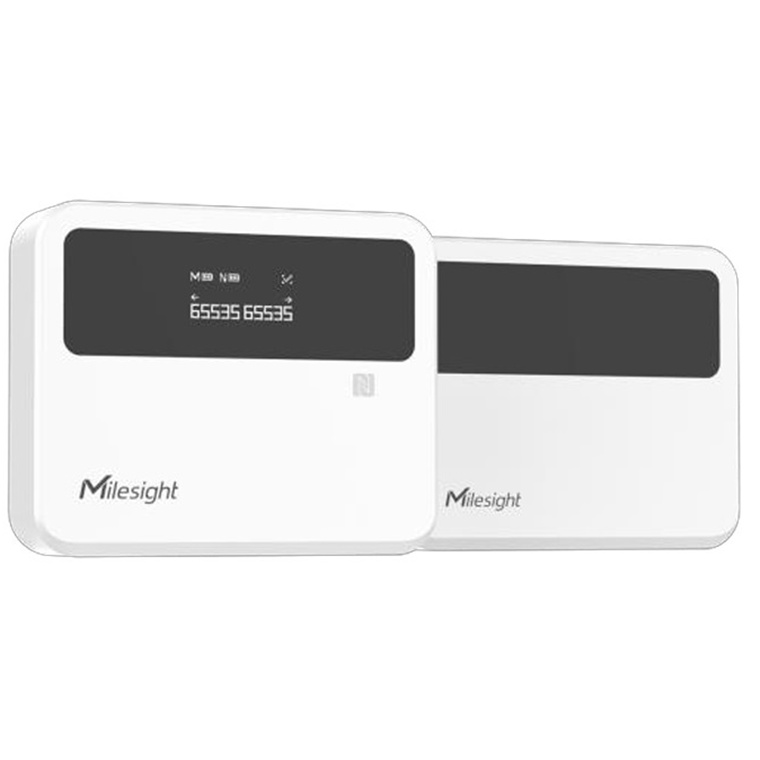

Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter
- Brand: Milesight
- MPN: VS360-915M
- Part #: CCTMLS1300
- UPC:
- Brand: Milesight
- MPN: VS360-915M
- Part #: CCTMLS1300
- UPC:
Features
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter
Milesight VS360 is a people counting sensor that is based on IR Breakbeam technology. Equipped withtwodevices,the principle is that the target blocks the infrared beam by detecting the area to achieve thepurposeofcounting, so it is not affected by the ambient temperature and the color of the target clothes, andit hasstrongadaptability. Adjusting the current of the node device reduces the power consumption and extendsthebatterylife. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2Dagentdevices, establishing more possible connections and paving the way for smoother operations.
With easy configuration and wireless detection, the VS360 facilitates simple deployment andconnectivity.Compliant with the Milesight LoRaWAN® gateway and Milesight Development Platform, users canknowthenumber of passage people and trigger other sensors or appliances easily.
- Bi-Directional People Counting
- Leveraging Infrared Beams
- Strong Environmental Adaptability
- Cost-Effective Accurate Performance
- 100% Privacy Protection (GDPR Compliant)
- Long Battery Life up to 3 Years
- Wireless Deployment
Bi-Directional People Counting
Working as pair, the VS360 can smartly identify and calculate the inbound and outbound at the entryway as one passes by.
Infrared Break Beam Technology
The infrared break beam technology involves the principle of crossing the invisible line between the transmitter and receiver, accurately counting foot counts.
High Measuring Accuracy
VS360 offers pinpoint precision in foot traffic counting with an accuracy of up to 99% for single person detection, and up to 85% accuracy when there is more than one person.
*Accuracy may be affected when walking side by side.
100% Anonymous Detection
Throughout the people counting process, the sensor relies on "breaking" the infrared beams, where neither personal or sensitive information of any kind will be collected. Its GDPR compliant!
Strong Environmental Adaptability
VS360 operates with high precision even with slight rise in temperature or in complete darkness, offering consistent performance during day and night.
* It is advisable to place the device away from direct sunlight and items that may cause reflections to ensure accurate results.
Wireless Deployment
The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, bringing easier and smarter extended performance.
LoRaWAN® Based
Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas.
High Compatibility: compliant with standard LoRaWAN® gateways and network servers.
Application Scenarios
The VS360 is specially designed for areas that may or are exposed to temperature fluctuations and scenarios where ceiling mount is unavailable.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Other Networking
Ubiquiti UniFi USW-Flex-Utility Outdoor Weatherproof Enclosure...
StarTech.com RJ45COVER 100 Pack RJ45 Dust Covers - Reusable RJ45...
Go Wireless PS12V1.5A-WH Power Supply 12V 1.5A DC Mains Plug Pack...
Abeeway DEABE502-19-8AS LoRaWAN AS923 Compact GPS IoT Tracker
Cambium Networks C050900B071A Cambium ePMP Force 180 5GHz...
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter
- Brand: Milesight
- MPN: VS360-915M
- Part #: CCTMLS1300
Product URL: https://www.pbtech.co.nz/product/CCTMLS1300/Milesight-LoRaWAN-AS923-IR-Breakbeam-IoT-People-Co
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter
Milesight VS360 is a people counting sensor that is based on IR Breakbeam technology. Equipped withtwodevices,the principle is that the target blocks the infrared beam by detecting the area to achieve thepurposeofcounting, so it is not affected by the ambient temperature and the color of the target clothes, andit hasstrongadaptability. Adjusting the current of the node device reduces the power consumption and extendsthebatterylife. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2Dagentdevices, establishing more possible connections and paving the way for smoother operations.
With easy configuration and wireless detection, the VS360 facilitates simple deployment andconnectivity.Compliant with the Milesight LoRaWAN® gateway and Milesight Development Platform, users canknowthenumber of passage people and trigger other sensors or appliances easily.
- Bi-Directional People Counting
- Leveraging Infrared Beams
- Strong Environmental Adaptability
- Cost-Effective Accurate Performance
- 100% Privacy Protection (GDPR Compliant)
- Long Battery Life up to 3 Years
- Wireless Deployment
Bi-Directional People Counting
Working as pair, the VS360 can smartly identify and calculate the inbound and outbound at the entryway as one passes by.
Infrared Break Beam Technology
The infrared break beam technology involves the principle of crossing the invisible line between the transmitter and receiver, accurately counting foot counts.
High Measuring Accuracy
VS360 offers pinpoint precision in foot traffic counting with an accuracy of up to 99% for single person detection, and up to 85% accuracy when there is more than one person.
*Accuracy may be affected when walking side by side.
100% Anonymous Detection
Throughout the people counting process, the sensor relies on "breaking" the infrared beams, where neither personal or sensitive information of any kind will be collected. Its GDPR compliant!
Strong Environmental Adaptability
VS360 operates with high precision even with slight rise in temperature or in complete darkness, offering consistent performance during day and night.
* It is advisable to place the device away from direct sunlight and items that may cause reflections to ensure accurate results.
Wireless Deployment
The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, bringing easier and smarter extended performance.
LoRaWAN® Based
Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas.
High Compatibility: compliant with standard LoRaWAN® gateways and network servers.
Application Scenarios
The VS360 is specially designed for areas that may or are exposed to temperature fluctuations and scenarios where ceiling mount is unavailable.
Specifications
Brand
Milesight
MPN
VS360-915M
People Counting
Technology
IR Breakbeam
Installation Height
0.7m ~ 1.2m
Detection Range
1.2m ~ 3 m
Detection Rate*
High Traffic Period Mode: Up to 90% (Single Person: Up to 99%)
Low Traffic Period Mode: Up to 85% (Single Person: Up to 99%)
*Test under the detection range is 1.5m.
Bi-directional Counting
Support
Wireless Transmission
Protocol
LoRaWAN®, Milesight D2D
Frequency
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4Tx Power 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)
Sensitivity
-137dBm
Mode
OTAA/ABP Class A
Others
Screen
1 × OLED Screen for Master Device
LED
1 × LED Indicator for Node Device
Button
1 × Power Button for Both devices
1 × Reset Button (Internal for Master Device)
Configuration
NFC Configuration via Mobile App (Master Device)
Advanced Feature
Hibernate Mode, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller
Physical Characteristics
Power Supply
2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device
Battery Life**
Master device: Around 3 Years
(10-min Report Interval, 12 Working Hour per Day, 25°C)
Node device:
High Traffic Period Mode: Around 3 Years
Low Traffic Period Mode: Around 4 Years
(12 Working Hour per Day, 25°C)
**Tested under laboratory conditions and for guideline purposes only.
Operating Temperature
-10°C ~ 60°C
Relative Humidity
0% - 95% (Non-condensing)
Ingress Protection
IP30
Dimension
76 x 62 x 20 mm ( 2.99 x 2.44 x 0.79 in)
Material & Colour
PC (Flame Retardant), White
Installation
Wall Mount
