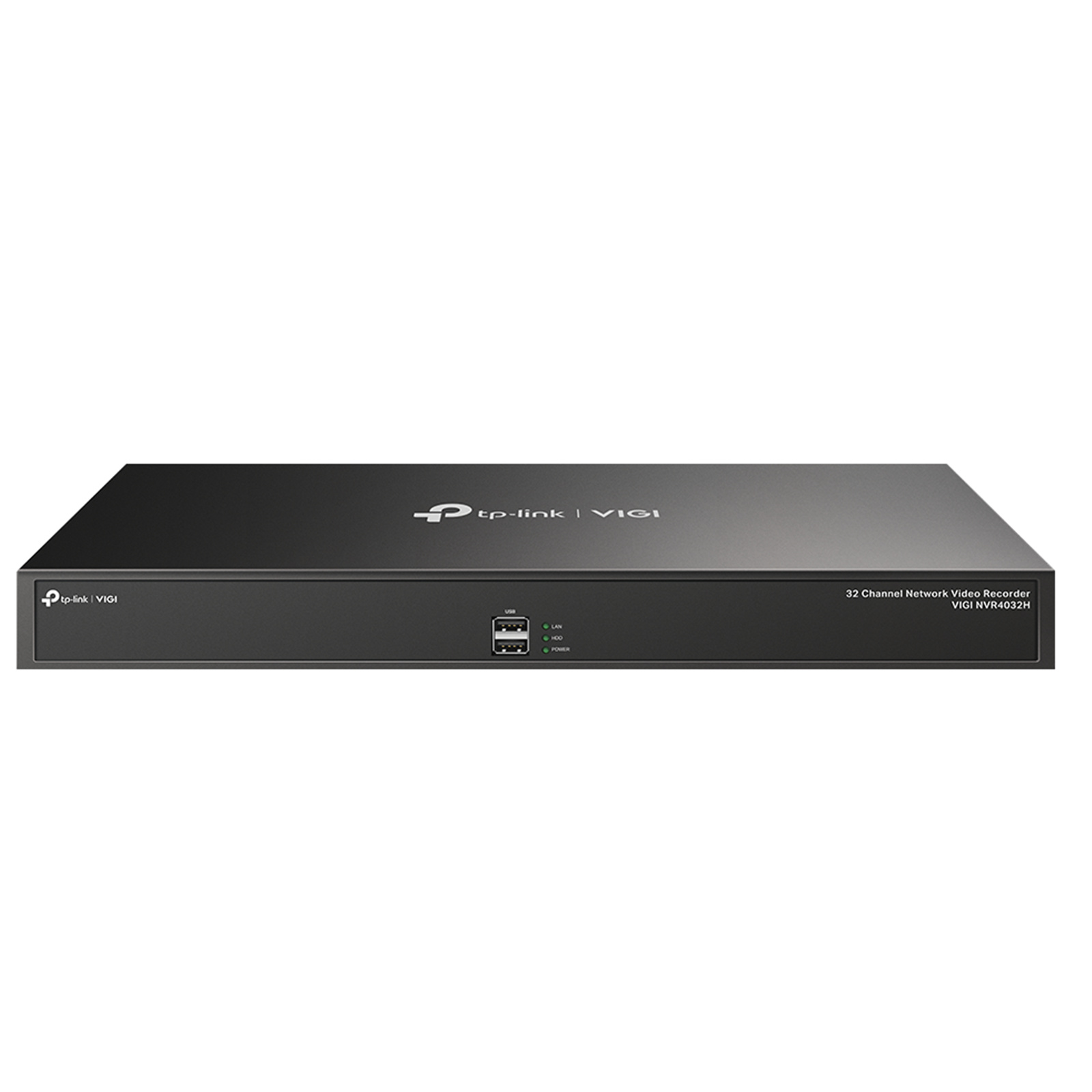

TP-Link VIGI NVR4032H 4K 32 Channel Network Video Recorder

Supports up to 4x 10TB HDD

Brand: TP-Link
MPN: VIGI NVR4032H
Part #: CCTTPL14032
UPC:

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 26 Sep When will I receive it?

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: VIGI NVR4032H
Part #: CCTTPL14032
UPC:

Be the first to review this product

HDD Bays

Max Camera Resolution

8 MP

Max Cameras Supported

Video Recorder Type

NVR

View full specs

Returns & Warranty Bulk Quote Print Page

Features

VIGI 32 Channel Network Video Recorder

- Face Recognition: Enhances access management and maximizes security.

- Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.

- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

- 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.

- Mass Storage: Supports 4× SATA, up to 10 TB each

- 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.

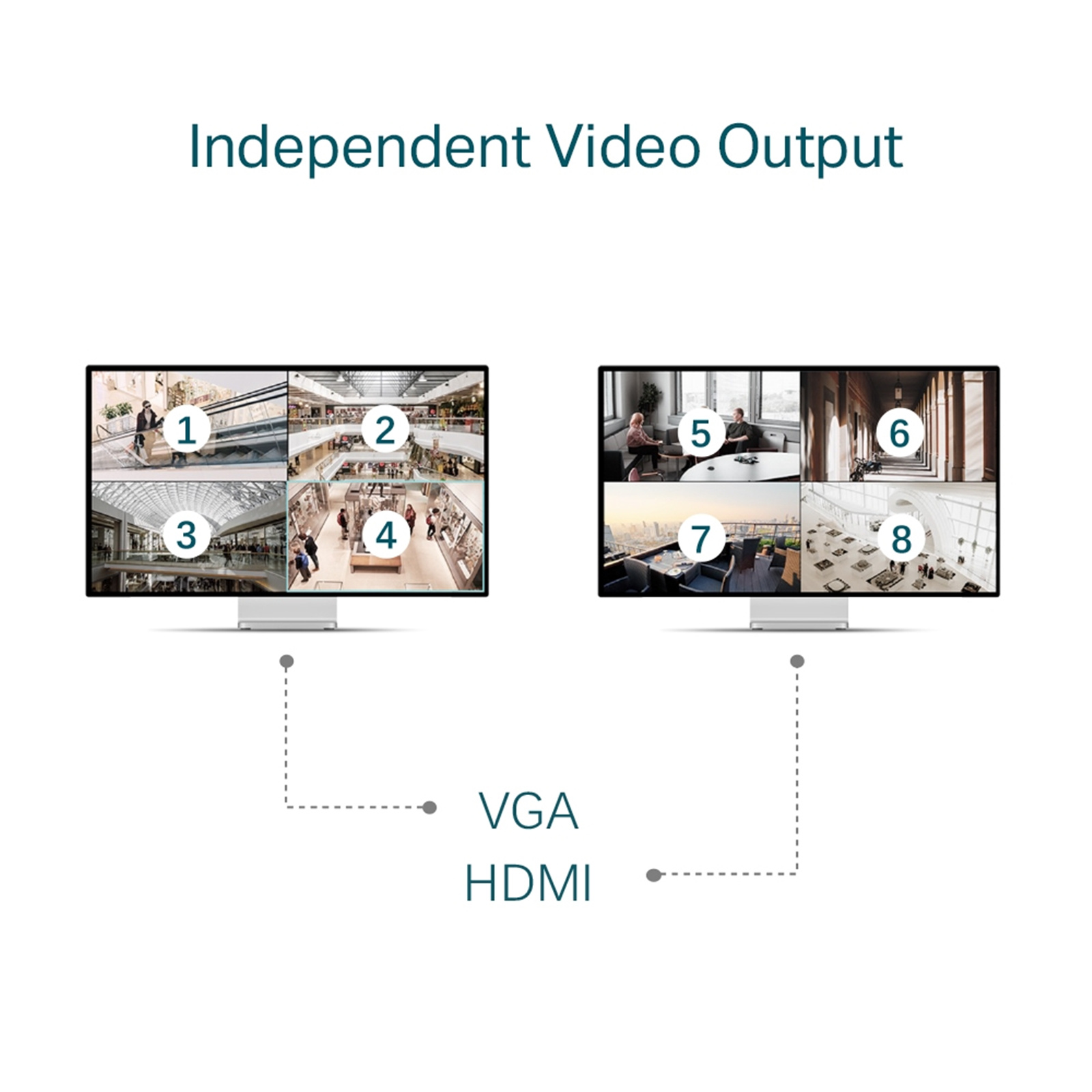

- 1 HDMI and 1 VGA Interface: Supports independent video output.

- 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

- ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Specifications

VIDEO AND AUDIO

IP Video Input

32-Channel

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

320 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Video Output Mode

HDMI/VGA Independent Output

Multi-View Display

1/4/6/8/9/16/25/32/36

DECODING

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Capability

16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)

RECORD MANAGEMENT

Record Mode

Manual Recording
Scheduling Recording
Motion Detection Recording

Playback Mode

Instant Playback
Regular Playback
Tag Playback
Event Playback

Backup Mode

Regular Backup
Video Clip Backup

Playback Function

Play
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/Off

NETWORK

Protocol

UPnP (Plug and Play), NTP (Network Timing)

Mobile Phone Access

Android, iOS

Incoming Bandwith

320 Mbps

Outgoing Bandwidth

320 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

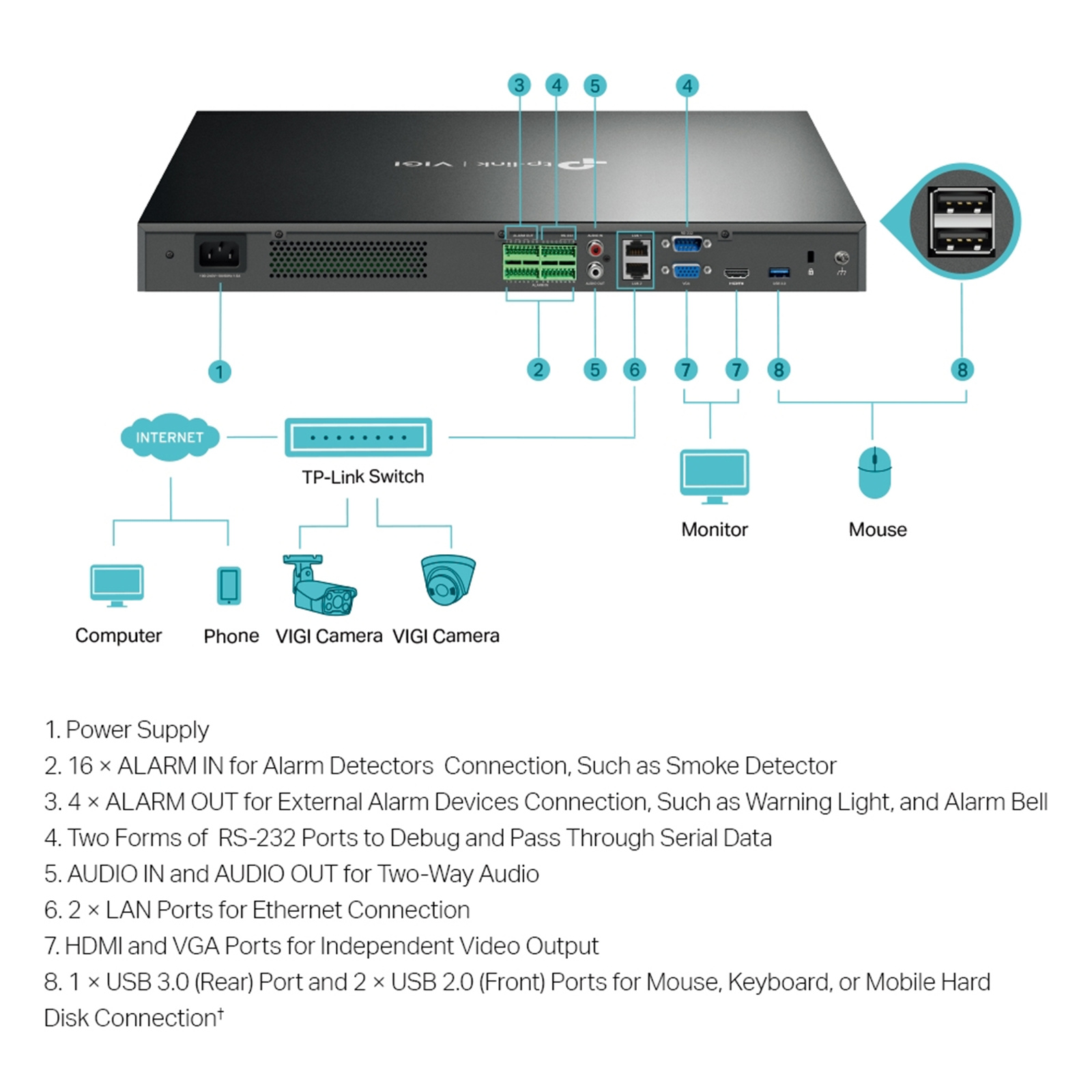

EXTERNAL INTERFACE

Network Interface

2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

16/4

Serial Interface

1, RS232

Power

1× AC Jack

Reset Button

Speaker

N/A

eSATA

N/A

HDMI

VGA

HARD DISK

SATA

4 SATA Interfaces

Capacity

Up to 10 TB Capacity for Each HDD

ALARM

General Alarm

Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection

Anomaly Alarm

Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception

Alarm Linkage

Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm

NETWORK MANAGEMENT

Network Protocols

UPnP (Plug and Play), NTP (Network Timing)

Interoperability

ONVIF, CGI

Mobile Phone Access

Android, iOS

Browser

Chrome (57+), Firefox (52+), Edge (91+)

GENERAL

Storage Temperature

-40-70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Contents

VIGI Network Video Recorder
Mouse
Installation Guide
Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
Mounting Brackets, Screws and Rubber Feet

Working Temperature

-10-55 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

440 × 330 × 44 mm

External Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Net Weight

4.0 Kg

Gross Weight

5.2 Kg

Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Power Consumption

5 W (Without Disk)
48 W (With Disk)

Certifications

CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI

RECORD PLAYBACK

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

VIDEO/IMAGE

IP Video Input

32-Channel

Multi-View Dispaly

1/4/6/8/9/16/25/32/36

Video Output Mode

HDMI/VGA Independent Output

Recording Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Manufacturer Part No:

VIGI NVR4032H

Brand:

TP-Link

Product Type:

Network Video Recorder

UPC

Product Family:

VIGI

Shipping Weight:

5.2 kg

PB Part No:

CCTTPL14032

Product Model:

NVR4032H

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
